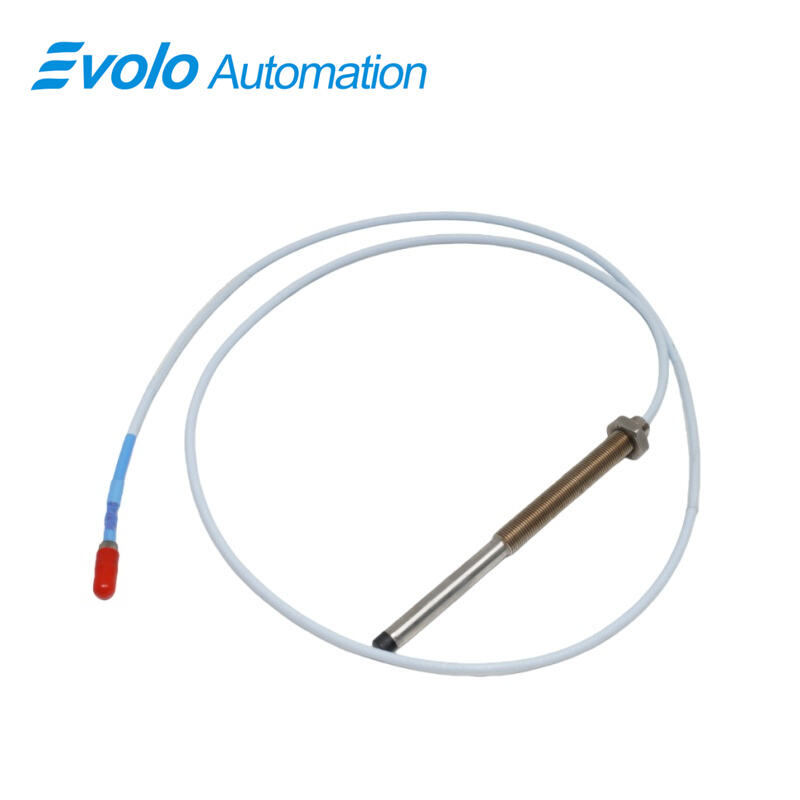

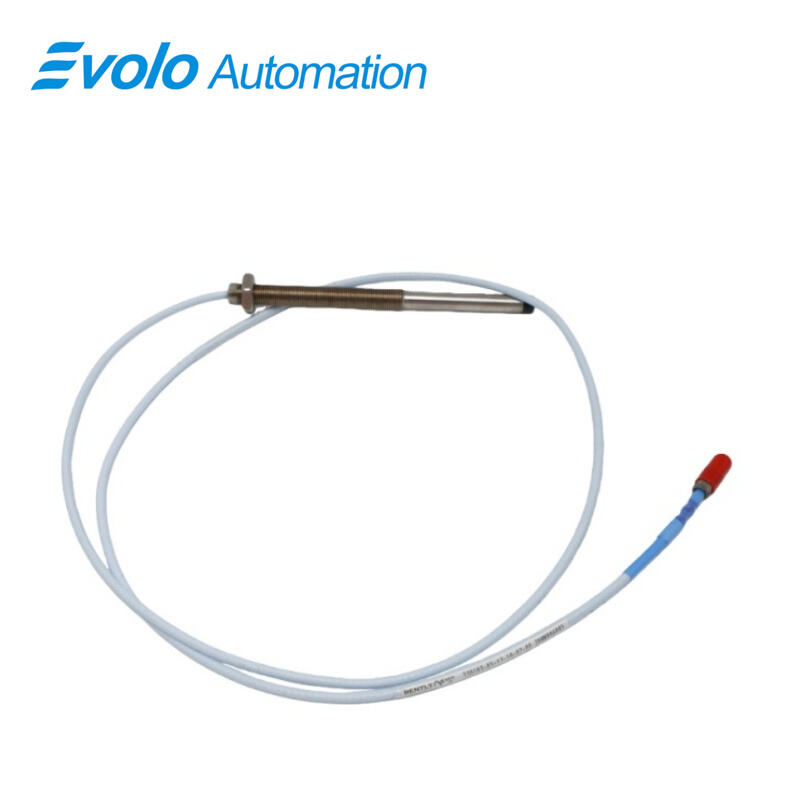

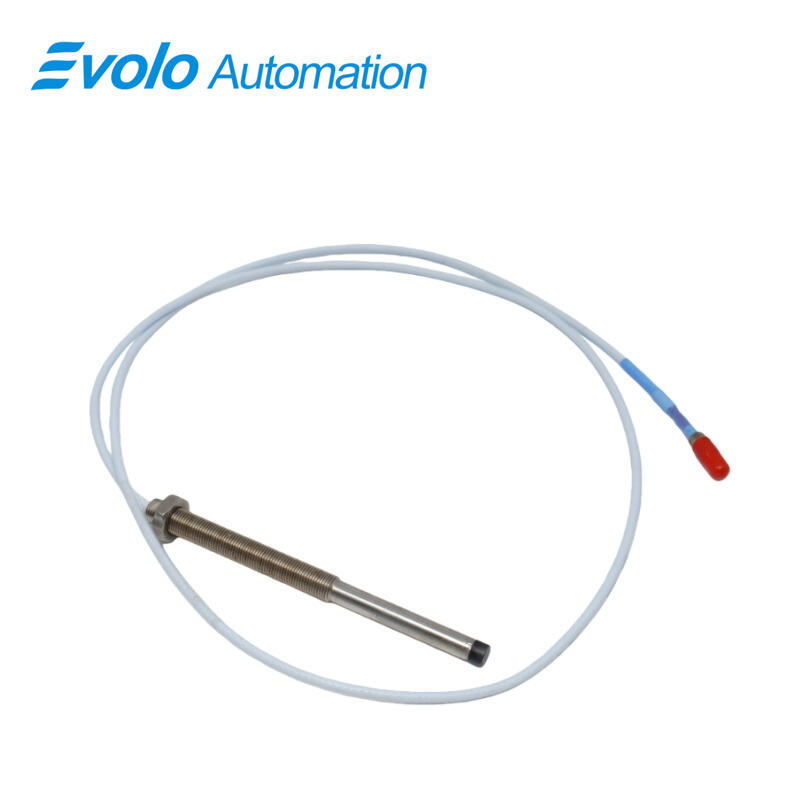

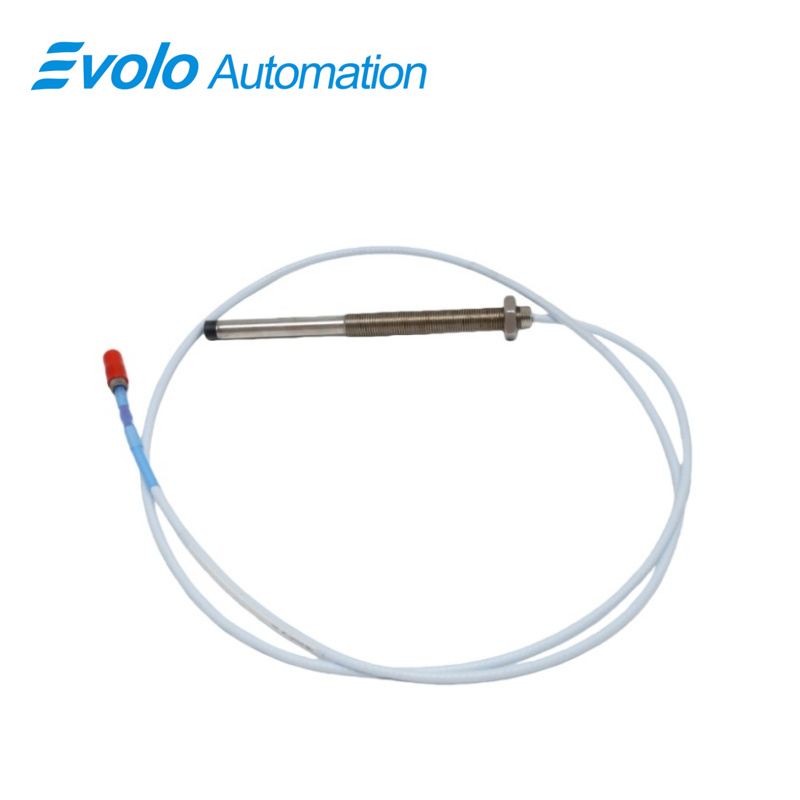

330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-13-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe delivers precise measurement of both static position and dynamic vibration in automated monitoring systems. Designed with a 130 mm case length and M10x1 threaded probe, the 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe supports a linear range of 2 mm (80 mils) and outputs voltage directly proportional to the distance between the probe tip and conductive surfaces. Operating between -52°C and +177°C, the 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe maintains less than 2 mV change in output voltage per volt of input variation, with an output resistance of 50 Ω and extension cable capacitance of 69.9 pF/m. The probe integrates easily with standard 0.2 to 1.5 mm² field wiring and features a miniature coaxial ClickLoc connector for secure automated connections. Applications include radial and axial vibration monitoring, Keyphasor reference, and shaft position measurement in fluid-film bearing machines. The 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe supports seamless interchangeability with 3300 XL extension cables and Proximitor sensors, and optional FluidLoc cables prevent oil ingress in automated industrial setups.

Applications

Radial Vibration Measurement on Small Shafts
The 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe monitors radial vibration on shafts as small as 15.2 mm (0.6 in) diameter. Its 2 mm linear range and 50 Ω output resistance provide precise data for automated diagnostics and predictive maintenance systems.

Axial Position Control in High-Speed Rotors
Use the 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe to measure axial position (thrust) in fluid-film bearing machines. The probe’s linear range of 2 mm and field wiring capability from 0.2 to 1.5 mm² ensure reliable integration into PLC or DCS control loops.

Keyphasor Reference for Speed Synchronization
The 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe generates accurate Keyphasor signals, supporting rotational speed monitoring up to 10 kHz and facilitating precise synchronization of automated processes.

Vibration Monitoring in Restricted Spaces
With an overall case length of 130 mm and M10x1 threading, the 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe can be installed in tight spaces where standard probes cannot fit, enabling automation on small or complex machinery.

Specifications

Competitive Advantage

High-Fidelity Signal Output
The 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe delivers <2 mV voltage variation per volt input and supports a 2 mm linear range, allowing precise feedback for automated vibration and position control.

Enhanced Connector and Cable Design
Featuring miniature coaxial ClickLoc connectors and optional FluidLoc cables, the 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe ensures secure electrical connections and prevents oil ingress, reducing signal noise and maintenance requirements.

System Interchangeability and Upgrade Path
The 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe is compatible with 3300 XL extension cables and Proximitor sensors, allowing existing automation systems to be upgraded without replacing entire setups, saving labor and downtime.

Temperature and Environmental Range for Industrial Automation
Operating from -52°C to +177°C with field wiring support up to 1.5 mm², the 330103-00-13-10-02-05 3300 XL 8 mm Proximity Probe adapts to diverse industrial conditions while maintaining precise monitoring for automated controls.
