330103-00-12-10-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-12-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

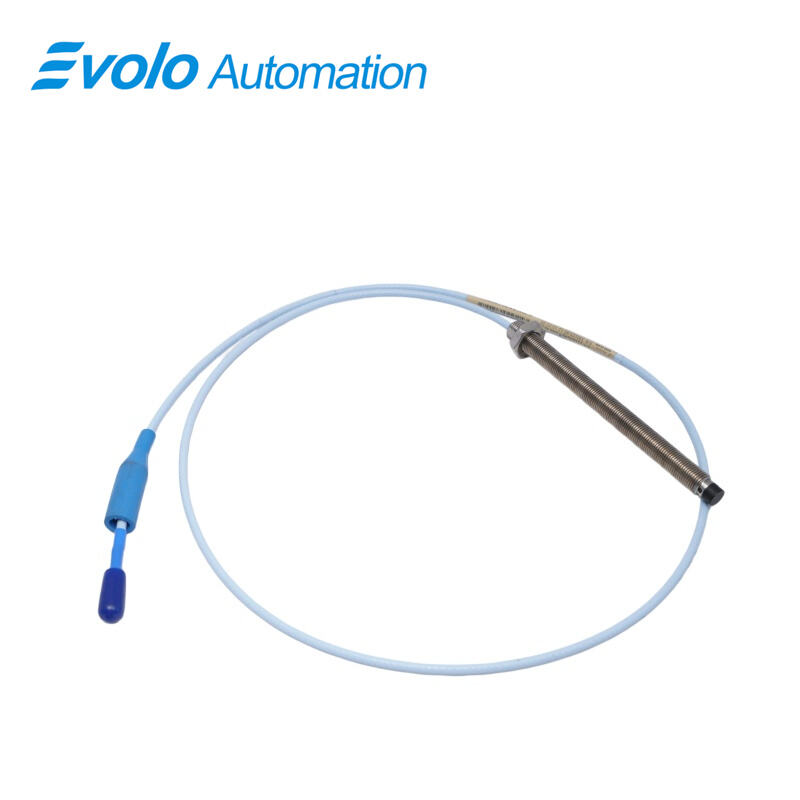

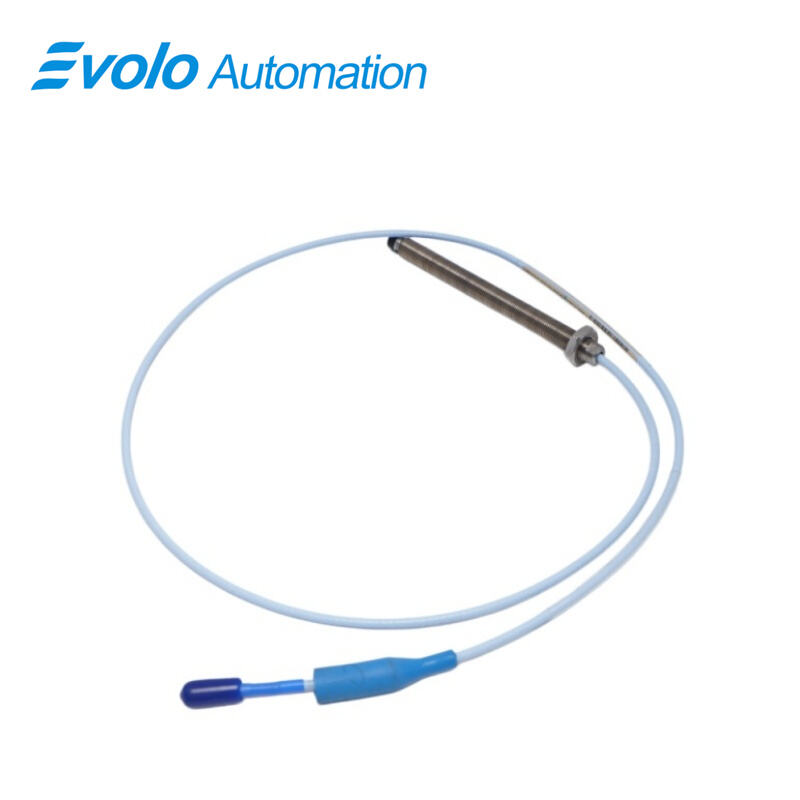

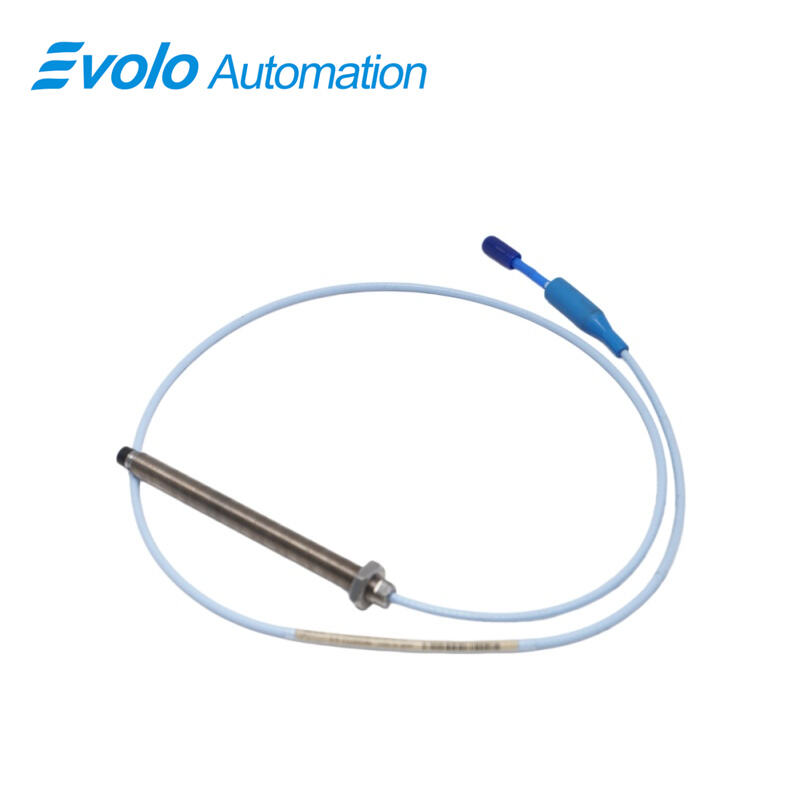

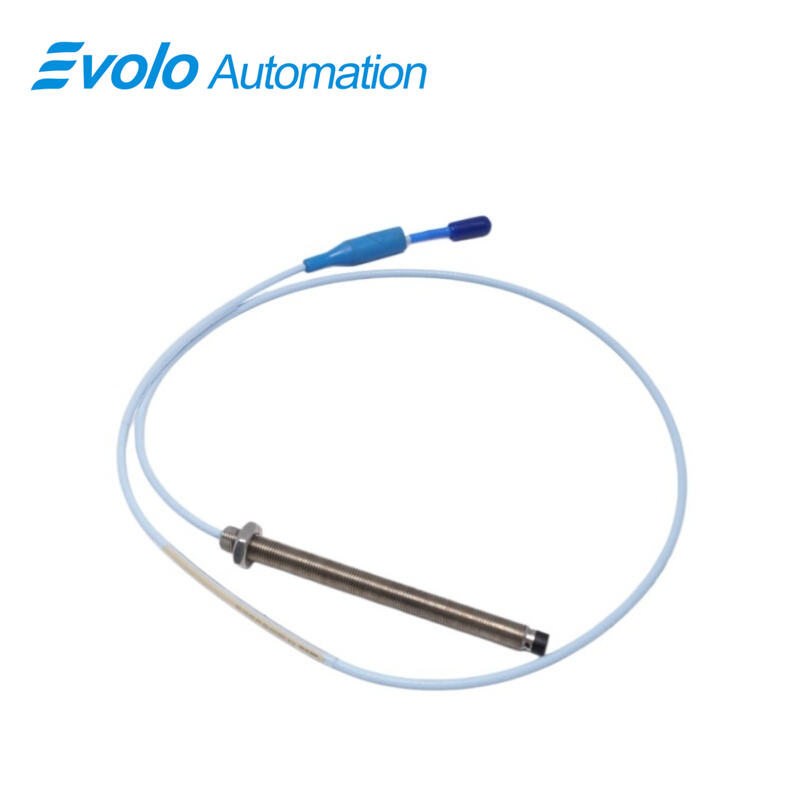

The 330103-00-12-10-01-00 3300 XL 8 mm Proximity Probe delivers voltage output directly proportional to the distance between the probe tip and conductive surfaces, enabling precise position and vibration measurements in automated machinery. The 330103-00-12-10-01-00 3300 XL 8 mm Proximity Probe features a 120 mm overall case length, M10x1 thread with 15 mm maximum engagement, and 1.0 m total length cable with Miniature Coaxial ClickLoc connector and protector. Operating from -52°C to +177°C, the 330103-00-12-10-01-00 3300 XL 8 mm Proximity Probe maintains less than 2 mV change per volt input variation. Output resistance is 50 Ω, extension cable capacitance 69.9 pF/m, and field wiring supports 0.2–1.5 mm² conductors. With a 2 mm linear range, the 330103-00-12-10-01-00 3300 XL 8 mm Proximity Probe captures Keyphasor reference, shaft speed, and bearing clearance signals for fluid-film bearings, pumps, and turbines. Patented TipLoc and CableLoc designs provide 330 N pull strength, and optional FluidLoc cables prevent oil or liquid leakage, ensuring secure integration into industrial automation systems.

Applications

Measure Rotor Position in Turbines
The 330103-00-12-10-01-00 3300 XL 8 mm Proximity Probe outputs voltage proportional to the distance from the rotor surface. Its 2 mm linear range and 50 Ω output resistance allow precise shaft position measurement in automated turbine systems.

Capture Vibration in Pumps and Compressors
With a total 1.0 m (3.3 ft) cable and Miniature Coaxial ClickLoc connector with protector, the 330103-00-12-10-01-00 3300 XL 8 mm Proximity Probe records dynamic vibration signals, supporting real-time monitoring of automated pumps and compressors.

Generate Keyphasor Reference and Speed Signals
The 330103-00-12-10-01-00 3300 XL 8 mm Proximity Probe detects shaft rotations and produces Keyphasor pulses for speed measurement. Extension cable capacitance of 69.9 pF/m ensures accurate signal capture over long distances.

Monitor Bearing Clearance in Fluid-Film Bearings
The 330103-00-12-10-01-00 3300 XL 8 mm Proximity Probe , with M10x1 thread and 15 mm maximum engagement, measures bearing clearance directly, enabling automated control and preventive maintenance.

Specifications

Competitive Advantage

Secure Probe Tip and Cable Connection
Patented TipLoc and CableLoc designs provide 330 N pull strength. The 330103-00-12-10-01-00 3300 XL 8 mm Proximity Probe maintains secure tip and cable connections in high-vibration automated systems.

Operate Across Extreme Temperatures
Operating from -52°C to +177°C, the 330103-00-12-10-01-00 3300 XL 8 mm Proximity Probe maintains consistent voltage output (<2 mV per V input change) in hot or cold industrial environments.

Deliver Accurate Voltage for Automated Monitoring
With less than 2 mV change per 1 V input variation, the 330103-00-12-10-01-00 3300 XL 8 mm Proximity Probe provides reliable measurements over its 2 mm linear range, supporting automated diagnostics and control.
