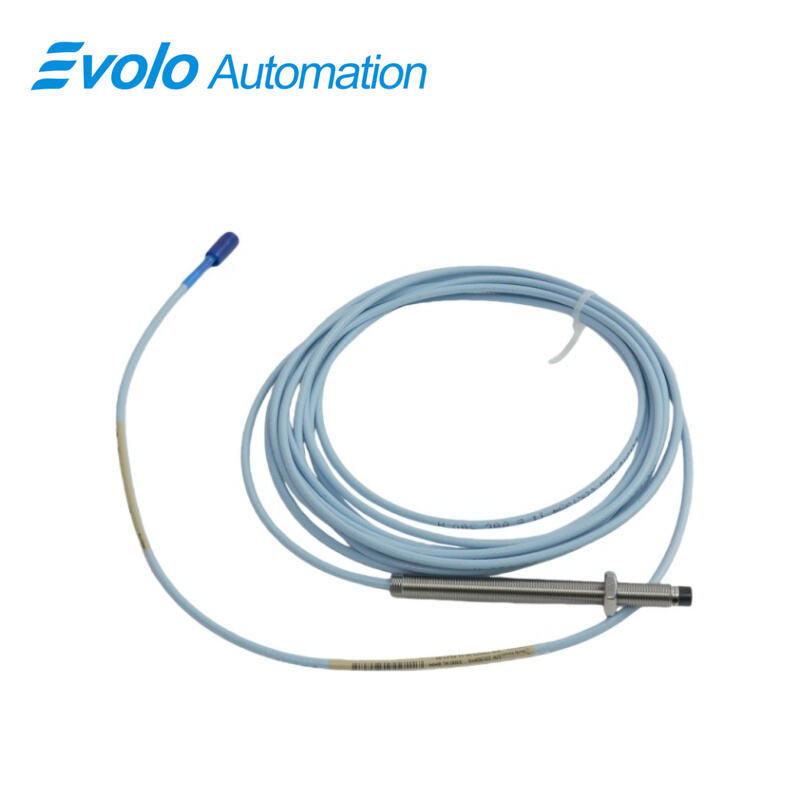

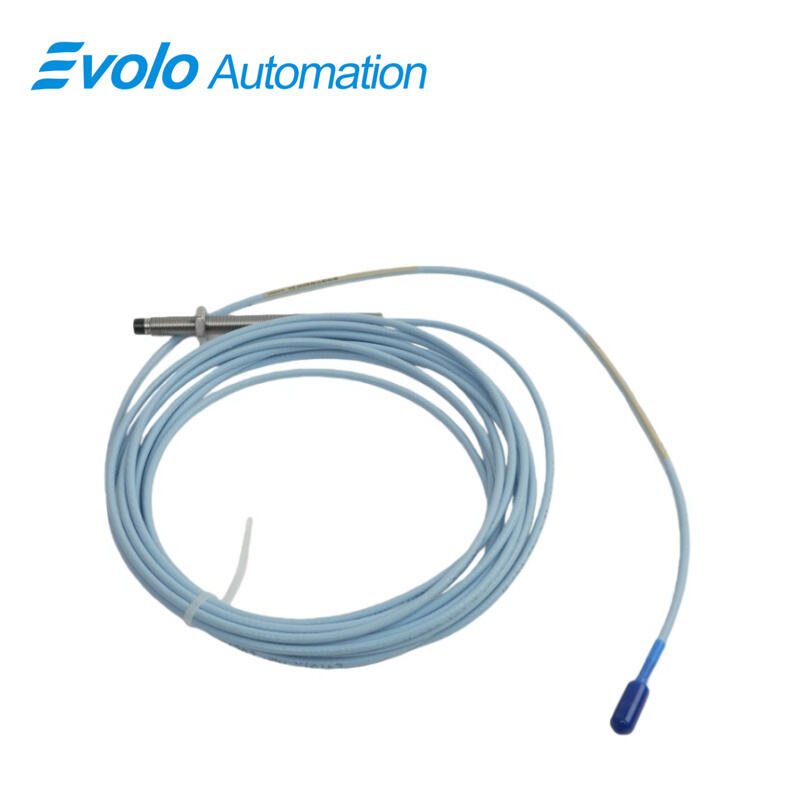

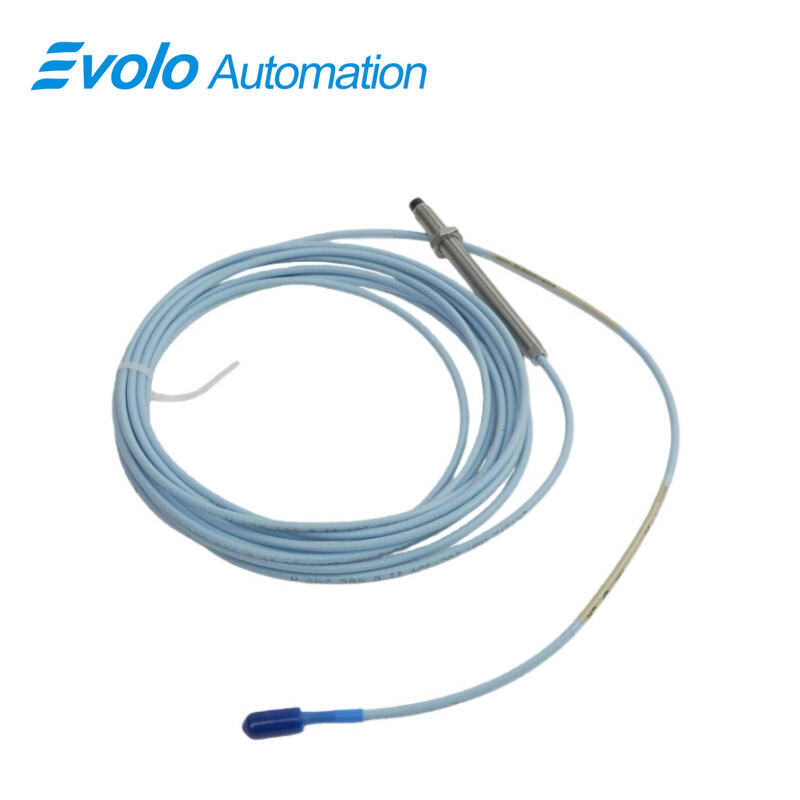

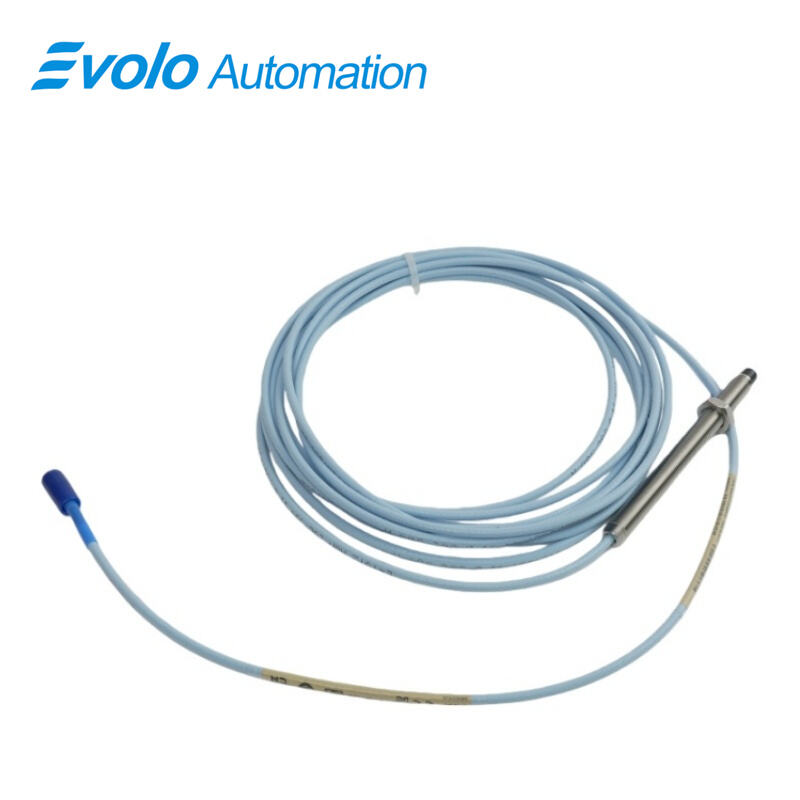

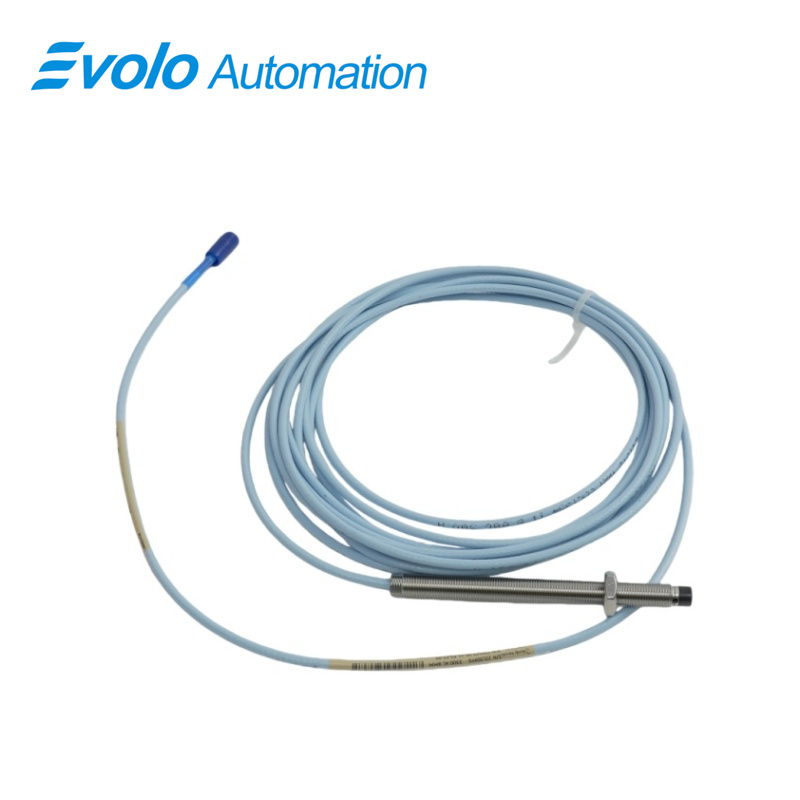

330103-00-11-50-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-11-50-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-11-50-02-05 3300 XL 8 mm Proximity Probe is an eddy-current sensor designed for automated machinery monitoring, providing voltage output directly proportional to shaft position and vibration. With an M10x1 probe thread, overall case length of 110 mm, and linear range of 2 mm, 330103-00-11-50-02-05 is suitable for fluid-film bearing machines, Keyphasor reference, and speed measurement applications.

The 330103-00-11-50-02-05 probe operates from −52°C to +177°C and delivers precise signal output with less than 2 mV voltage change per volt of supply variation. A 50 Ω output resistance and 69.9 pF/m extension cable capacitance allow accurate data transmission over 5-meter standard cables using the miniature coaxial ClickLoc connector. Field wiring supports 0.2 to 1.5 mm² conductors, accommodating industrial automation installation.

Enhanced design features of 330103-00-11-50-02-05 include the patented TipLoc molding for a robust probe tip bond, CableLoc design with 330 N pull strength, and optional FluidLoc cables to prevent oil or liquid ingress. This makes 330103-00-11-50-02-05 ideal for automated machinery requiring compact probe installation, reliable axial position measurement, and precise vibration monitoring in confined or high-temperature environments.

Applications

Measure radial vibration on fluid-film bearing shafts
330103-00-11-50-02-05 is installed to monitor radial shaft vibration on compressors, turbines, and pumps. With a 2 mm linear range and a 5-meter extension cable, 330103-00-11-50-02-05 transmits accurate displacement signals to Proximitor sensors and automation controllers for vibration trending and alarm logic.

Track axial shaft position in compact machinery
330103-00-11-50-02-05 measures static axial displacement on shafts where space is limited. The M10x1 probe thread and 110 mm overall case length of 330103-00-11-50-02-05 allow installation in tight housings without modifying existing mounting points.

Provide Keyphasor and speed reference signals
330103-00-11-50-02-05 outputs proportional voltage for speed and phase measurement when paired with Keyphasor targets, enabling automated rotation tracking and control input for machinery.

Enable continuous automated monitoring in high-temperature zones
Rated from −52°C to +177°C, 330103-00-11-50-02-05 operates near hot bearings and compressors while maintaining precise vibration and position readings.

Specifications

Competitive Advantage

Ensures robust mechanical connection
Patented TipLoc molding and CableLoc design provide 330103-00-11-50-02-05 with 330 N pull strength, securing the probe tip and cable for reliable automated monitoring.

Supports fluid isolation in lubricated machinery
Optional FluidLoc cables on 330103-00-11-50-02-05 prevent oil or liquid ingress through the probe cable, maintaining signal integrity in process environments.

Delivers precise signal output under variable supply
With less than 2 mV change per volt supply variation and 50 Ω output resistance, 330103-00-11-50-02-05 maintains consistent measurements for automation systems and monitoring software.

Simplifies installation in confined or extended setups
The 110 mm overall case length, M10x1 thread, and 5-meter standard cable of 330103-00-11-50-02-05 allow flexible routing to Proximitor sensors in panels or machinery without modification.
