Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-00-11-50-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
110 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
20x20x2cm |
|
Weight: |
0.2kg |
Description

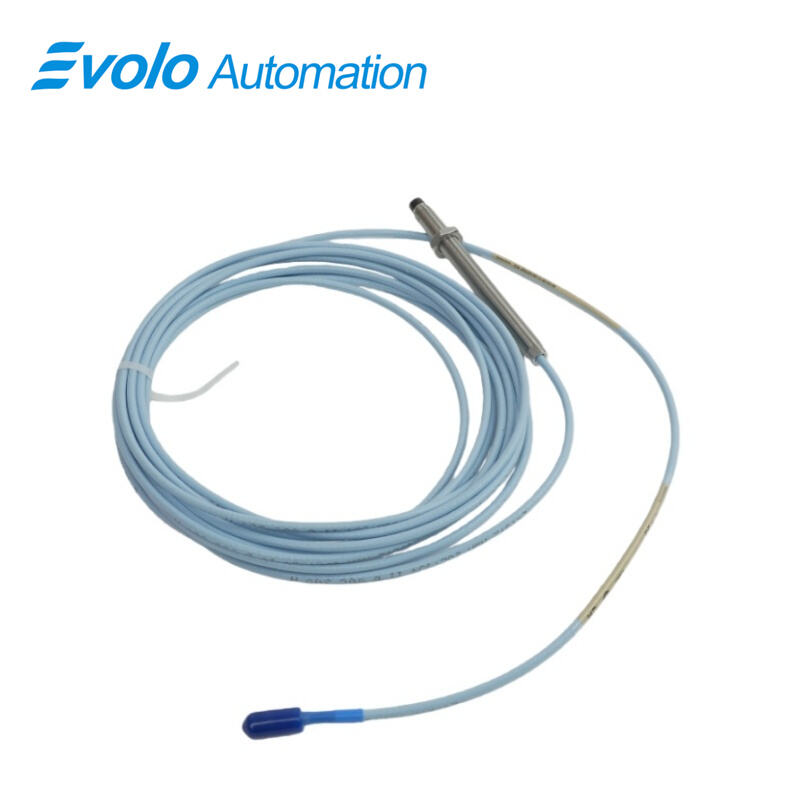

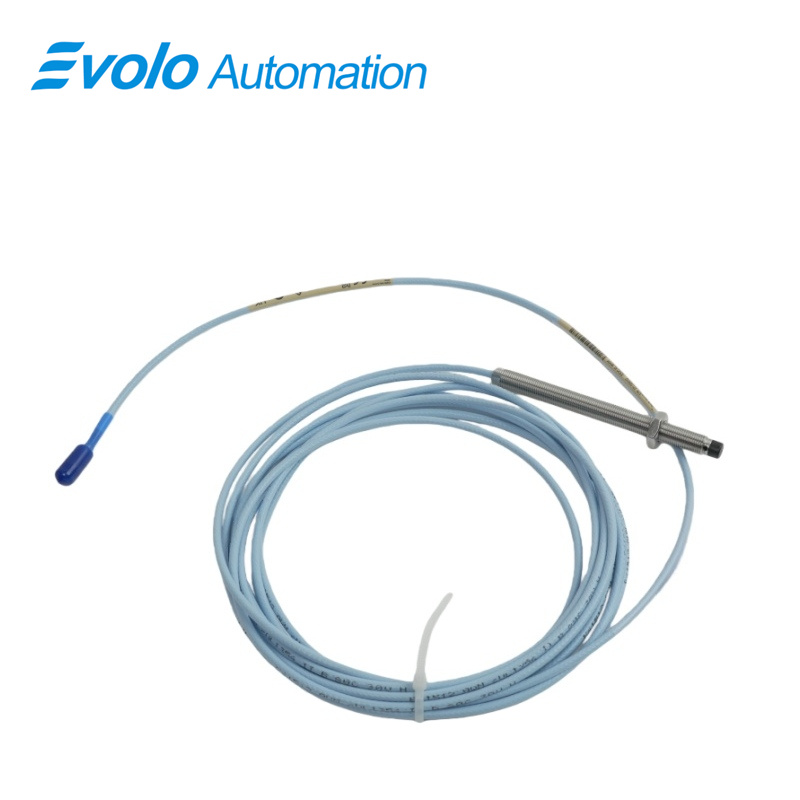

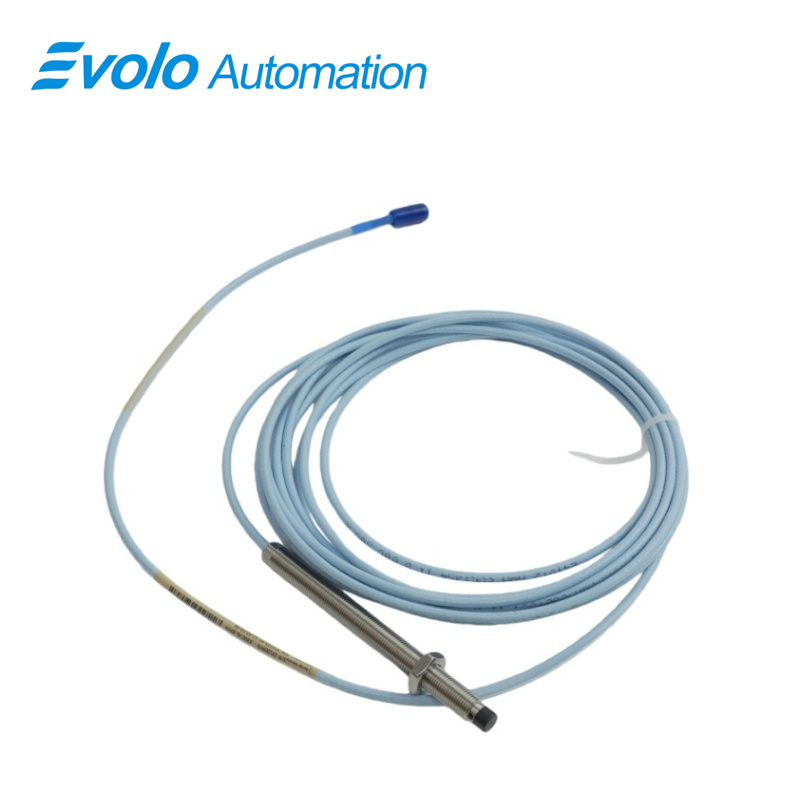

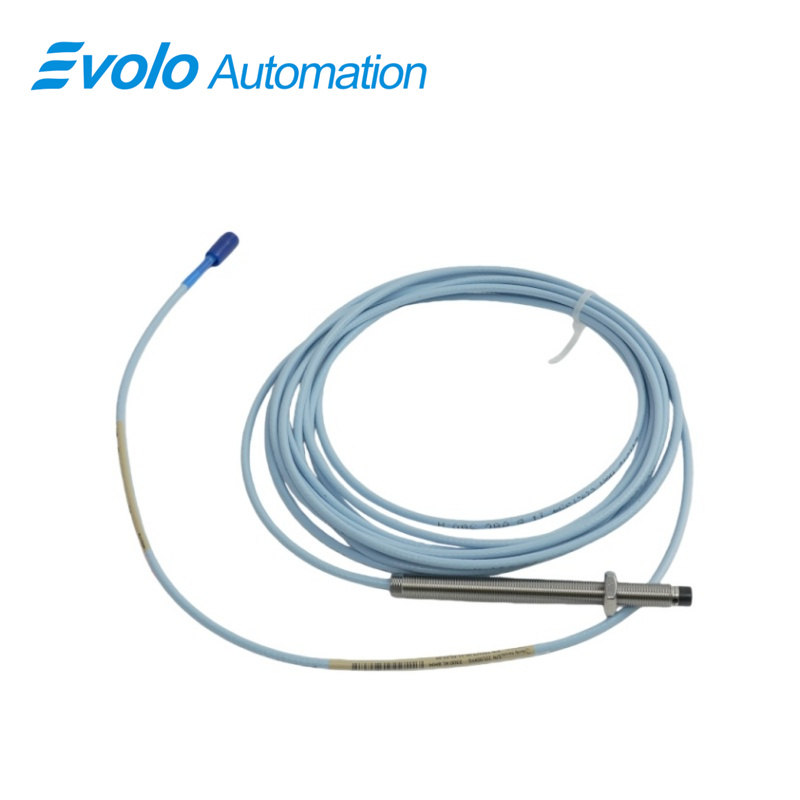

The 330103-00-11-50-02-00 3300 XL 8 mm Proximity Probe delivers precise non-contact measurements of displacement and vibration on fluid-film bearing machines. With a linear range of 2 mm (80 mils) and output resistance of 50 Ω, the 330103-00-11-50-02-00 3300 XL 8 mm transducer outputs a voltage proportional to probe-target distance for both static position and dynamic vibration measurements. The probe includes a M10x1 threaded case, 5-meter standard cable, miniature coaxial ClickLoc connector, and 69.9 pF/m cable capacitance, supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG). Operating temperatures range from -52°C to +177°C, making the 330103-00-11-50-02-00 3300 XL 8 mm suitable for demanding industrial environments. The patented TipLoc and CableLoc designs provide 330 N pull strength, securing the probe tip and cable, while optional FluidLoc cables prevent oil or fluid leakage. Compatible with other 3300 series probes and Proximitor sensors, the 330103-00-11-50-02-00 3300 XL 8 mm ensures seamless integration and maintenance-free operation.
Applications
Axial (thrust) position measurement
Use the 330103-00-11-50-02-00 3300 XL 8 mm to measure axial displacement on shafts in fluid-film bearing machines, utilizing its 2 mm linear range for precise readings.
Radial vibration monitoring
Deploy the 330103-00-11-50-02-00 3300 XL 8 mm for real-time radial vibration data; the probe’s 50 Ω output resistance ensures consistent signal transmission to monitoring systems.
Keyphasor reference signal
Integrate the 330103-00-11-50-02-00 3300 XL 8 mm to generate phase reference signals for tachometer and speed measurement, supported by its 5-meter miniature coaxial ClickLoc cable.
Rod drop detection
Apply the 330103-00-11-50-02-00 3300 XL 8 mm to monitor reciprocating compressor rod position with high accuracy over a 2 mm measurement span.
Ramp differential expansion measurement
Use the 330103-00-11-50-02-00 3300 XL 8 mm to detect thermal expansion differences on turbine components, aided by its 69.9 pF/m extension cable capacitance.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High linear output for precise measurement
The 330103-00-11-50-02-00 3300 XL 8 mm provides 2 mm linear range and 50 Ω output resistance for accurate non-contact displacement detection.
Robust mechanical and electrical connection
Patented TipLoc and CableLoc designs on the 330103-00-11-50-02-00 3300 XL 8 mm secure the probe tip and cable, maintaining 330 N pull strength under vibration.
Extreme temperature range
The 330103-00-11-50-02-00 3300 XL 8 mm operates reliably from -52°C to +177°C, ensuring continuous monitoring in harsh industrial environments.
Fluid-resistant option
Optional FluidLoc cable for the 330103-00-11-50-02-00 3300 XL 8 mm prevents oil or liquid leakage through the cable interior, preserving signal integrity.
Easy integration and upgrade
The 330103-00-11-50-02-00 3300 XL 8 mm is fully compatible with 3300 series extension cables and Proximitor sensors, simplifying system upgrades and maintenance.
