Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-00-11-10-12-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
110 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.6x117cm |
|
Weight: |
0.1kg |
Description

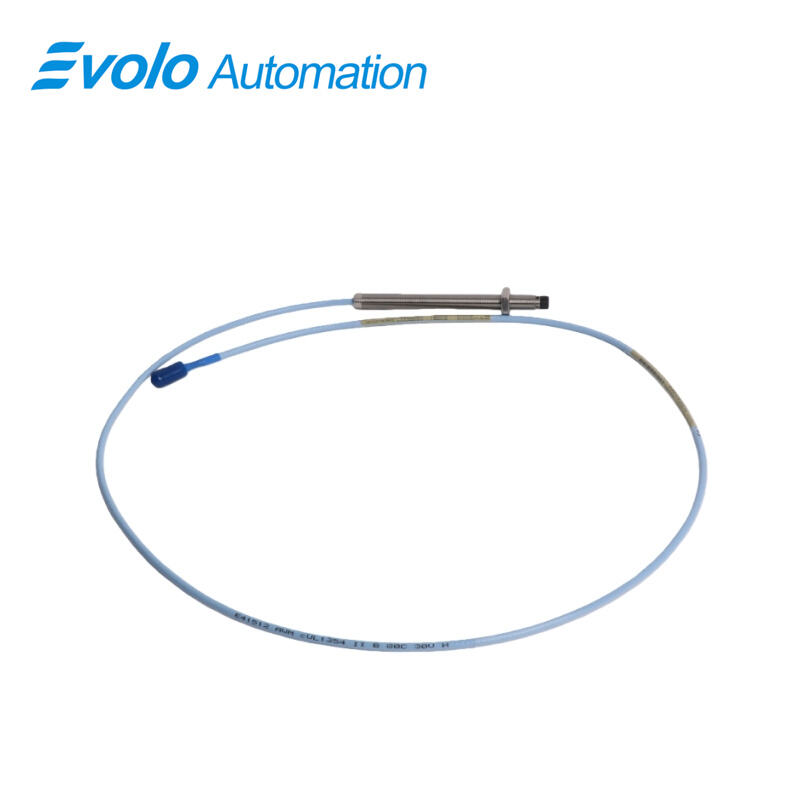

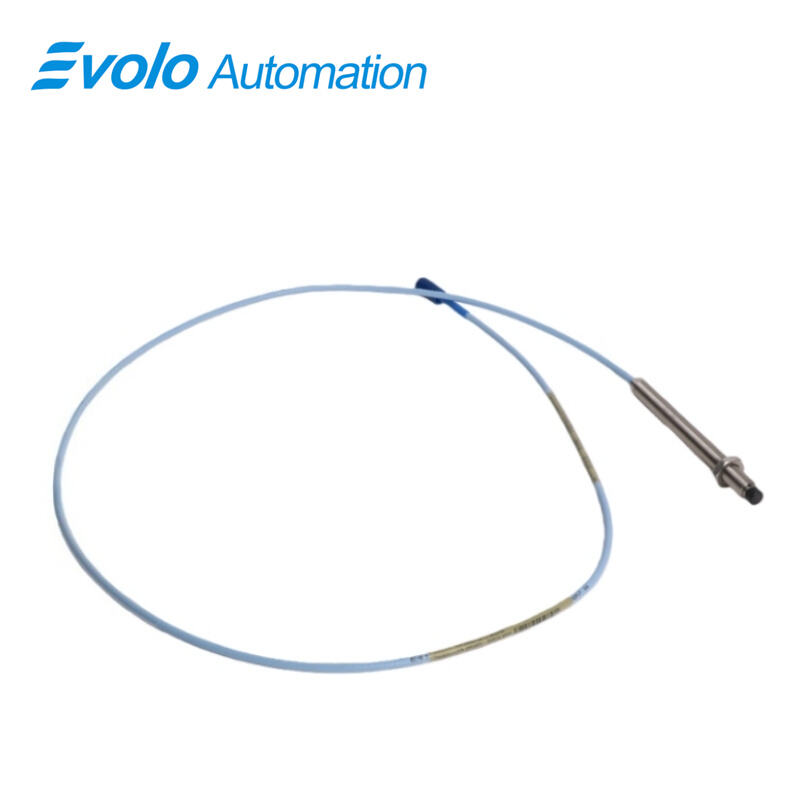

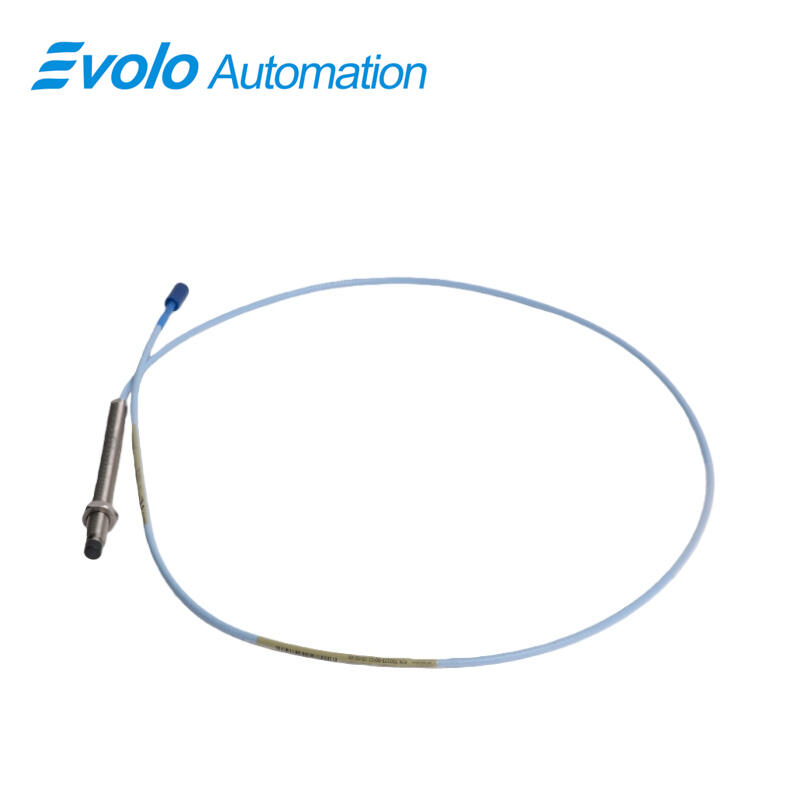

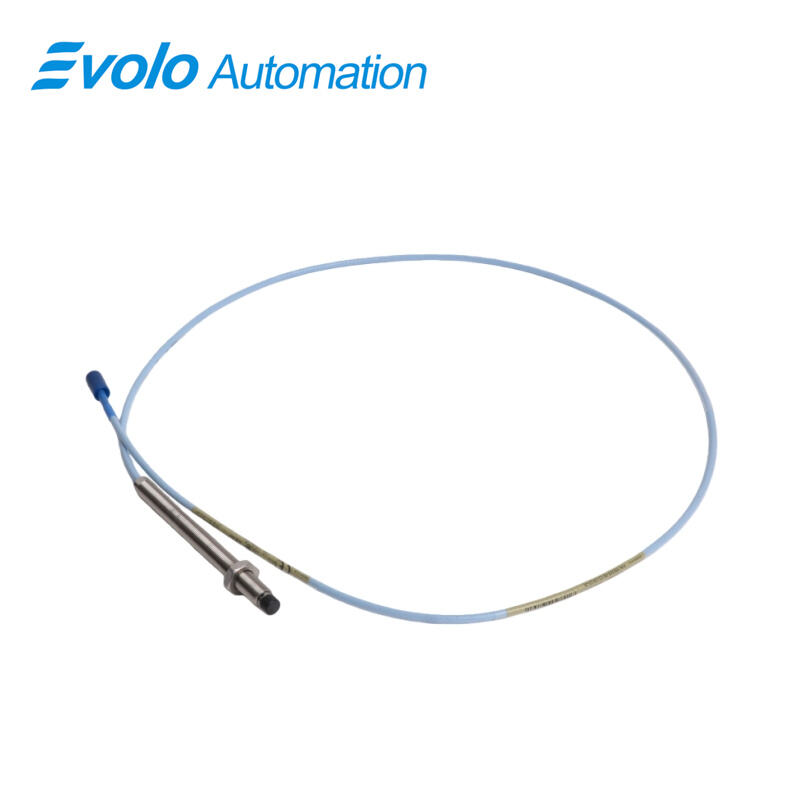

The 330103-00-11-10-12-00 3300 XL 8 mm Proximity Transducer System produces an output voltage directly proportional to the distance between the probe tip and a conductive surface. With a linear range of 2 mm and a total length of 1.0 meter, the 330103-00-11-10-12-00 3300 XL 8 mm probe accurately measures both static (position) and dynamic (vibration) signals in fluid-film bearing machines. The M10x1 threaded probe case with a maximum 15 mm engagement, along with its ClickLoc connector and optional FluidLoc cable, ensures secure installation while preventing oil or fluid leakage. The 330103-00-11-10-12-00 3300 XL 8 mm probe maintains precise readings across -52°C to +177°C operating temperatures and supports field wiring from 16 to 24 AWG.
Applications
Monitor Pump Shaft Vibration
Use the 330103-00-11-10-12-00 3300 XL 8 mm probe to track dynamic shaft vibrations. Its 50 Ω output resistance and 69.9 pF/m extension cable capacitance ensure accurate signal transmission for automated monitoring systems.
Measure Axial Shaft Position
Install the 330103-00-11-10-12-00 3300 XL 8 mm probe to detect axial displacement in turbines and motors. Its 2 mm linear range and M10x1 thread provide precise positioning for machinery protection loops.
Generate Keyphasor Reference Signals
The 330103-00-11-10-12-00 3300 XL 8 mm probe outputs Keyphasor signals for speed and phase detection. The 1.0 meter total length simplifies integration in limited-space applications.
Detect Rod Drop in Compressors
Use the 330103-00-11-10-12-00 3300 XL 8 mm probe for rod drop measurements in reciprocating compressors. Field wiring options from 16 to 24 AWG allow easy connection to control systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Secure Cable Attachment
The 330103-00-11-10-12-00 3300 XL 8 mm probe features a patented CableLoc design with 330 N pull strength, keeping the probe cable firmly attached during continuous machine operation.
Prevent Fluid Leakage
Optional FluidLoc cable on the 330103-00-11-10-12-00 3300 XL 8 mm probe stops oil and other liquids from leaking, ensuring clean signal transmission in automated monitoring systems.
Flexible System Upgrade
The 330103-00-11-10-12-00 3300 XL 8 mm probe is fully interchangeable with existing 3300 series Proximitor sensors and extension cables, enabling quick retrofits without system recalibration.
Operate in Extreme Temperatures
The 330103-00-11-10-12-00 3300 XL 8 mm probe operates from -52°C to +177°C. Combined with a maximum 15 mm thread engagement, it can be installed in harsh thermal environments while maintaining precise measurements.
