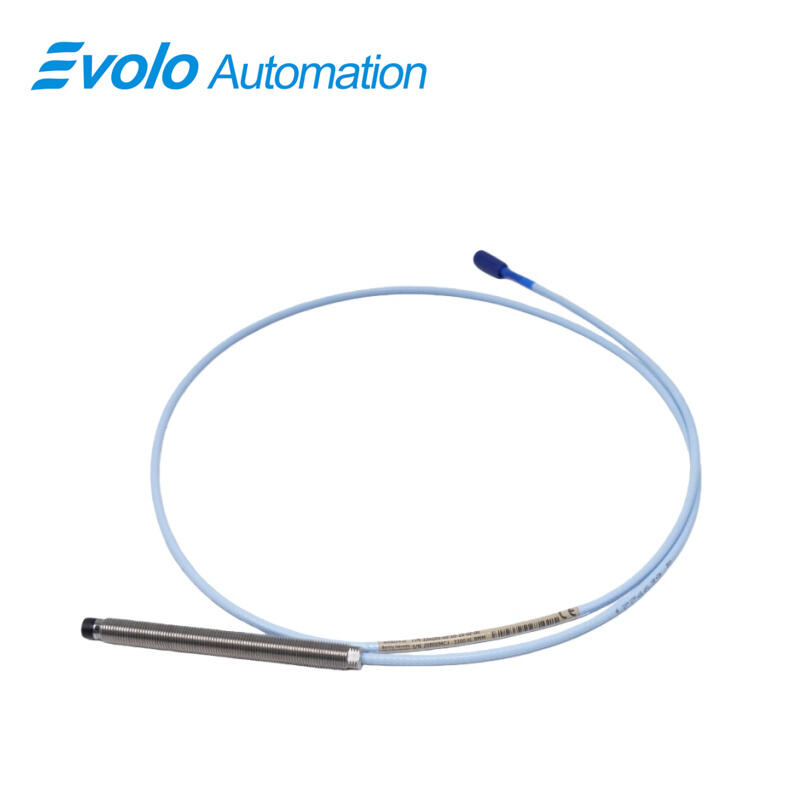

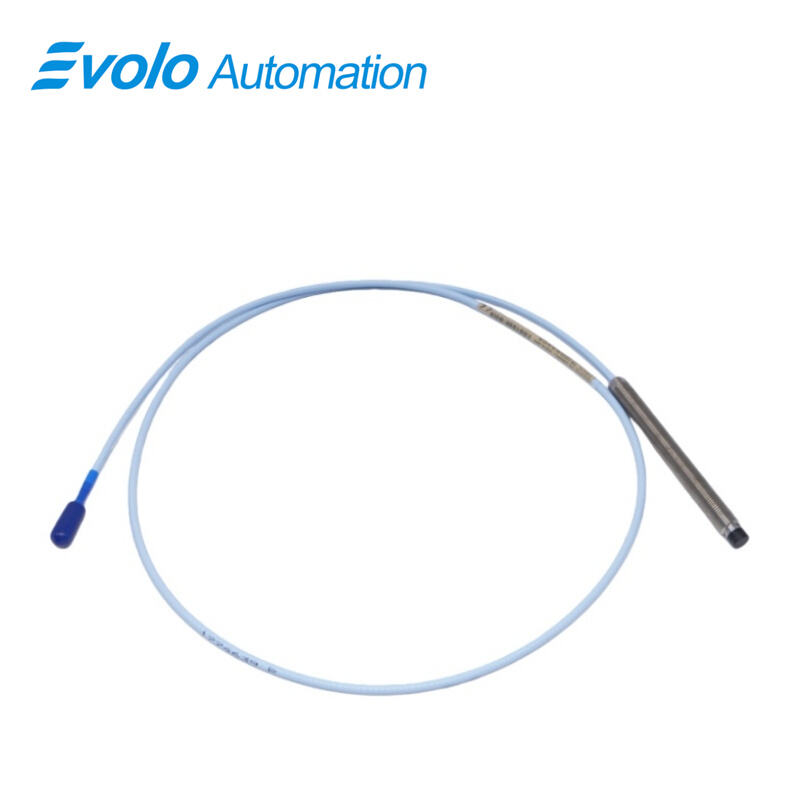

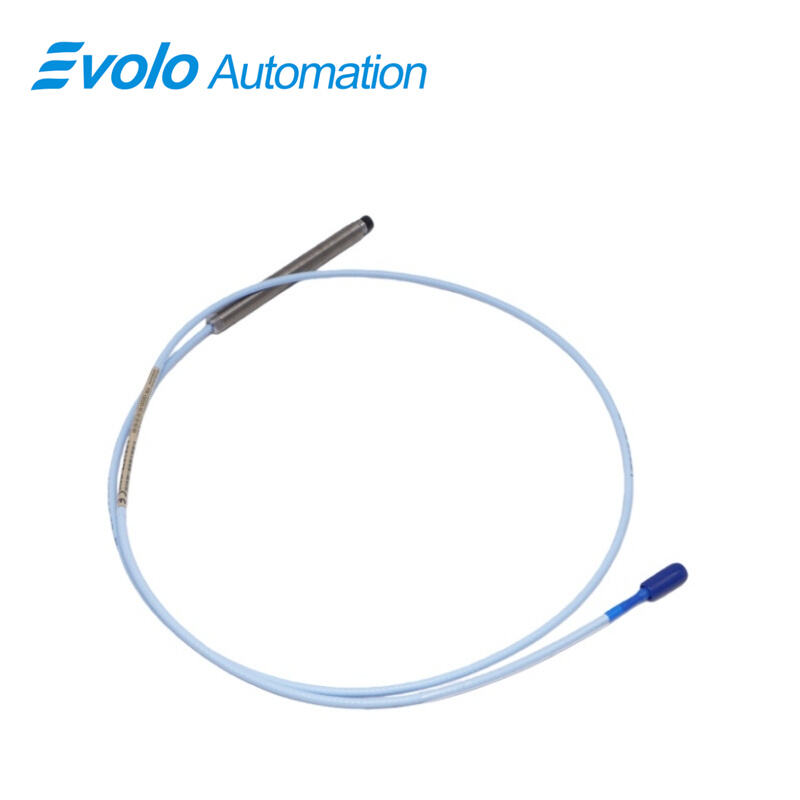

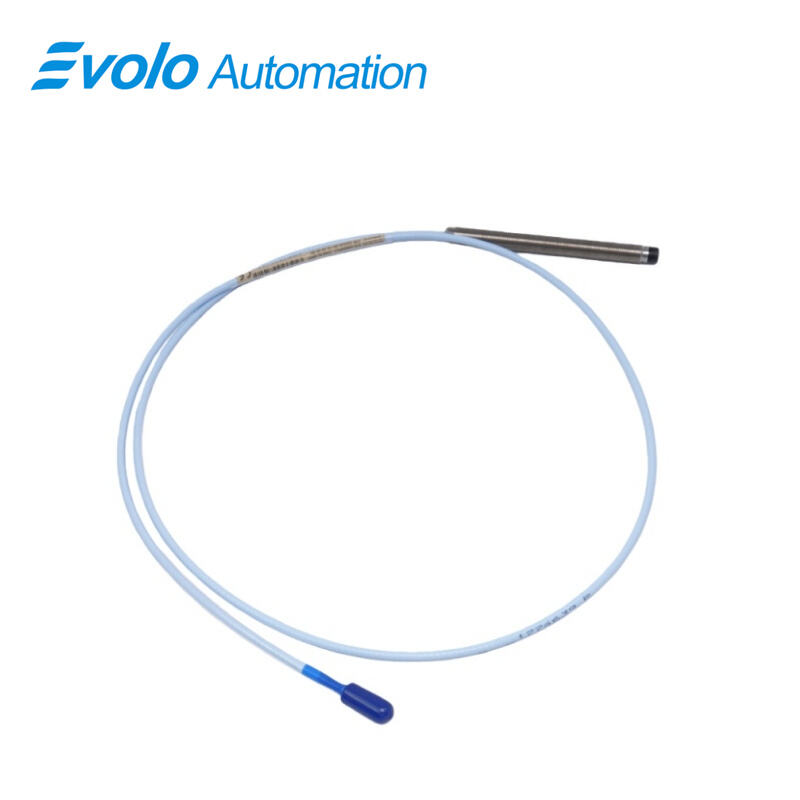

330103-00-10-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-10-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-00-10-10-02-00 3300 XL 8 mm Proximity Probe is designed for precise monitoring of fluid-film bearing machines in industrial automation systems. The 10 mm overall case length and 1.0-meter total cable length of 330103-00-10-10-02-00 allow easy installation in tight machinery spaces. The probe features a Miniature coaxial ClickLoc connector with secure locking, and a M10x1 thread with 15 mm maximum engagement, ensuring reliable mounting. Operating from -52°C to +177°C, the PPS probe tip and robust case deliver consistent measurement under extreme temperatures. The linear range of 2 mm (80 mils) and 50 Ω output resistance provide accurate static (position) and dynamic (vibration) readings, while supply sensitivity below 2 mV per volt ensures signal fidelity. The 330103-00-10-10-02-00 system is backward-compatible with 3300 5 mm and 8 mm probes, supporting interchangeability of extension cables and Proximitor sensors. Patented TipLoc and CableLoc designs improve probe-to-cable attachment, providing up to 330 N (75 lbf) pull strength, and optional FluidLoc cables prevent process fluids from entering the system, making 330103-00-10-10-02-00 ideal for automated vibration and position monitoring in industrial machinery.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 2 mm linear range (80 mils) of 330103-00-10-10-02-00 allows precise measurement of shaft vibration in turbines, compressors, and pumps. The 1.0-meter cable supports connection to monitoring systems without signal loss.

Position Measurement of Rotating Shafts
Using the M10x1 thread and 10 mm overall case length, 330103-00-10-10-02-00 can be installed in confined spaces to measure radial and axial shaft positions, supporting automated alignment and control in machinery.

Speed and Keyphasor Reference
The probe’s 50 Ω output resistance and less than 2 mV supply sensitivity ensure accurate output voltage proportional to the probe-target gap, enabling Keyphasor and speed measurements in real-time industrial monitoring.

Small Target Applications
With a minimum unthreaded length of 0 mm and precise ClickLoc connection, 330103-00-10-10-02-00 can detect small conductive targets in restricted areas, providing reliable data for compact machinery setups.

Specifications

Competitive Advantage

Secure Probe-to-Cable Connection
The 330103-00-10-10-02-00 features a patented CableLoc design providing 330 N (75 lbf) pull strength. This ensures that the 330103-00-10-10-02-00 probe cable remains securely attached during high-vibration automated operations.

Robust Probe Tip Bonding
Using the TipLoc molding method, the 330103-00-10-10-02-00 maintains a strong PPS probe tip bond to the M10x1 probe body. This parameter-specific feature allows the 330103-00-10-10-02-00 to deliver consistent measurement output across a linear range of 2 mm (80 mils).

Fluid Protection for Industrial Environments
Optional FluidLoc cables for the 330103-00-10-10-02-00 prevent oil or other liquids from entering the miniature coaxial ClickLoc connector. This ensures the 330103-00-10-10-02-00 maintains accurate readings in lubrication-heavy machinery and automated systems.

Interchangeable System Components
All 330103-00-10-10-02-00 probes, extension cables, and Proximitor sensors are fully compatible with 3300 series 5 mm and 8 mm transducers. This allows the 330103-00-10-10-02-00 to be upgraded or replaced without recalibration, simplifying maintenance and automation integration.
