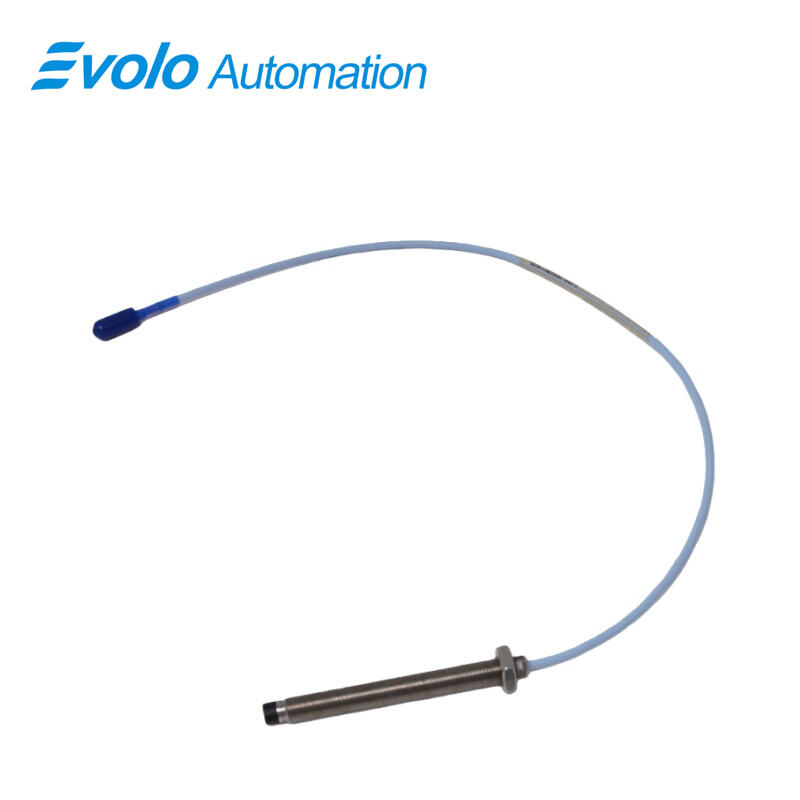

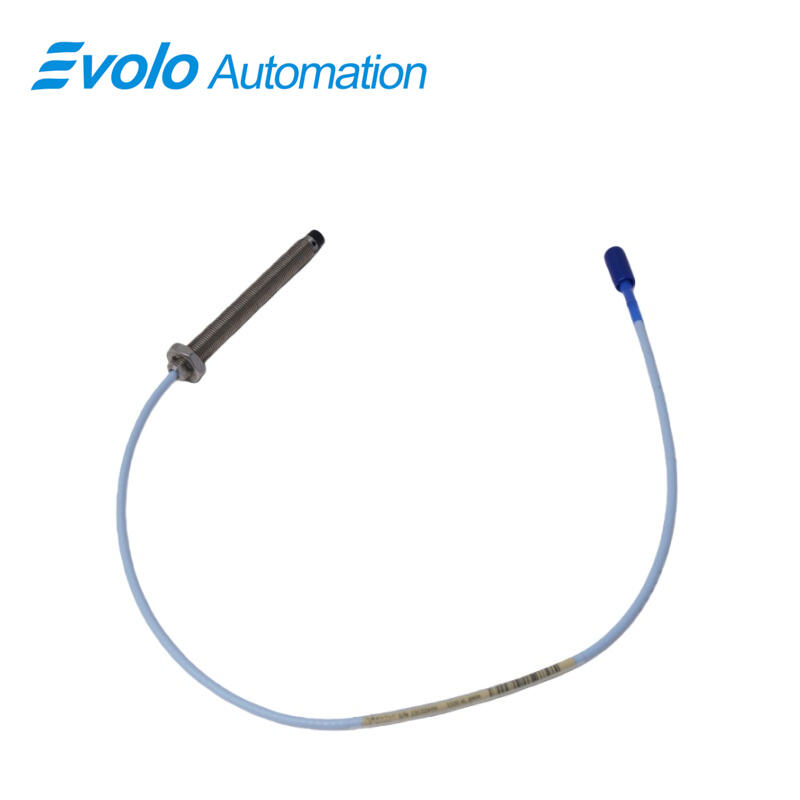

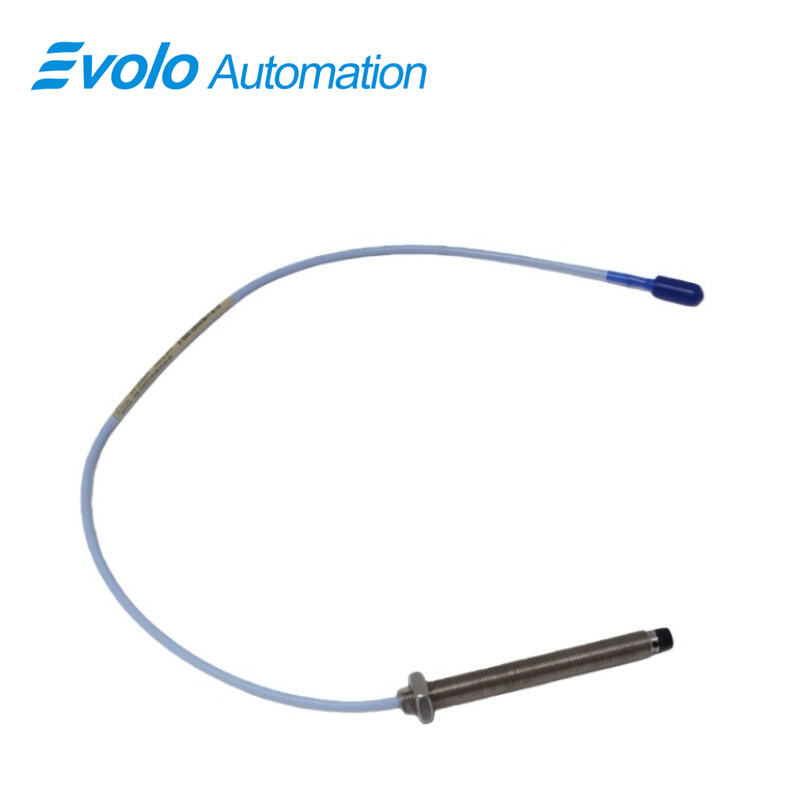

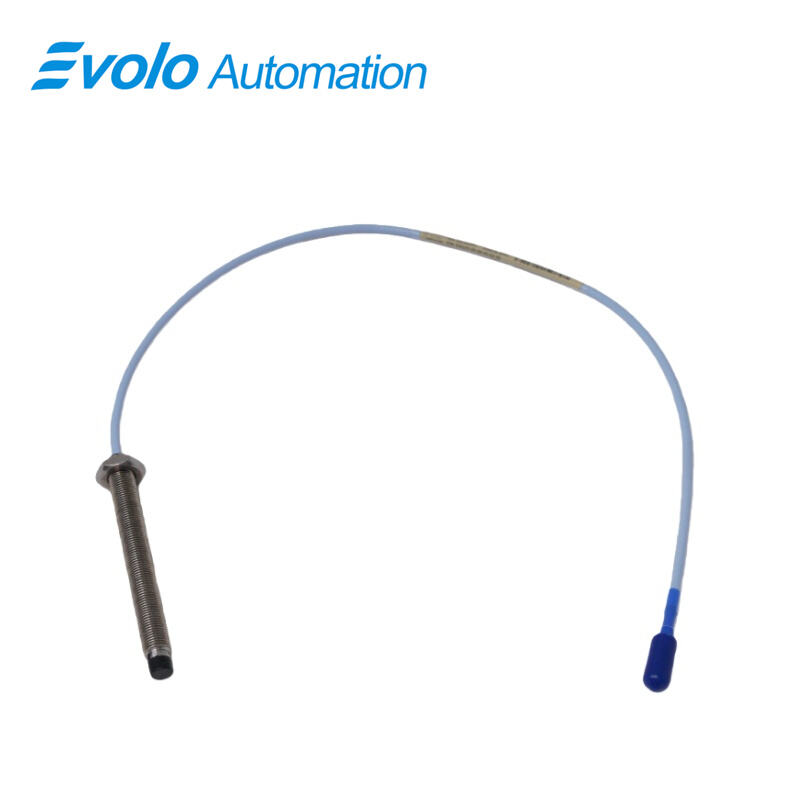

330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-09-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for industrial automation, predictive maintenance, and advanced machinery monitoring. The 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe provides an output voltage directly proportional to the distance between the probe tip and the measured conductive surface, enabling both static position and dynamic vibration measurements. With a linear range of 2 mm (80 mils), 50 Ω output resistance, and supply sensitivity of less than 2 mV per volt, the 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe delivers precise, repeatable measurements. Its M10x1 probe thread with 15 mm maximum thread engagement, 1.0-meter total length, and miniature coaxial ClickLoc connector enable easy integration with extension cables and Proximitor sensors. Operating and storage temperatures range from -52°C to +177°C (-62°F to +350°F), and the probe supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) with an extension cable capacitance of 69.9 pF/m (21.3 pF/ft). Standard 3300 XL 8 mm systems comply with API 670 for mechanical configuration, linear range, accuracy, and temperature stability, and all 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe components are backward compatible with non-XL 3300 series 5 mm and 8 mm transducer systems. The 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe also includes a patented TipLoc molding method for a stronger probe tip bond and CableLoc design providing 330 N (75 lbf) pull strength. Optional FluidLoc cables prevent oil or liquid leakage, ensuring reliable performance in automated industrial machinery. The 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe is ideal for fluid-film bearing machines, Keyphasor reference, speed measurement, and advanced automated condition monitoring systems.

Applications

Vibration Monitoring in Fluid-Film Bearing Machines
The 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe is engineered to measure radial and axial vibration on fluid-film bearing machines with high accuracy. Its linear range of 2 mm (80 mils) and output resistance of 50 Ω provide precise peak-to-peak vibration readings. The probe’s operating temperature range of -52°C to +177°C (-62°F to +350°F) ensures reliable performance in extreme industrial environments, making the 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe ideal for automated machinery condition monitoring and predictive maintenance systems.

Position Measurement and Keyphasor Reference
The 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe delivers highly accurate static position measurements and Keyphasor signals for speed and phase reference in rotating machinery. Featuring an M10x1 probe thread, 15 mm maximum thread engagement, and 1.0-meter total length, the 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe integrates seamlessly with extension cables and Proximitor sensors in industrial automation setups.

Speed and Automated Control Monitoring
The 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe is ideal for measuring rotational speed on motors, compressors, and pumps. Its miniature coaxial ClickLoc connector, extension cable capacitance of 69.9 pF/m (21.3 pF/ft), and support for 0.2–1.5 mm² (16–24 AWG) field wiring ensure accurate, low-noise signal transmission for automated control systems.

Specifications

Competitive Advantage

High Accuracy and Reliable Linear Range
The 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe provides precise measurements with a linear range of 2 mm and supply sensitivity of less than 2 mV per volt, ensuring consistent, high-fidelity vibration and position data for automated monitoring systems.

Rugged Construction for Harsh Industrial Environments
Operating from -52°C to +177°C and certified with CSA, ATEX, and IECEx approvals, the 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe withstands extreme temperatures and hazardous locations. Its TipLoc molding method and CableLoc design provide 330 N (75 lbf) pull strength, ensuring secure probe and cable attachment in automated machinery.

Seamless Compatibility with Existing 3300 XL Systems
The 330103-00-09-10-02-05 3300 XL 8 mm Proximity Probe is backward compatible with 3300 series 5 mm and 8 mm transducer systems. This allows easy integration or upgrades without replacing extension cables or Proximitor sensors, reducing downtime and simplifying installation in automated facilities.
