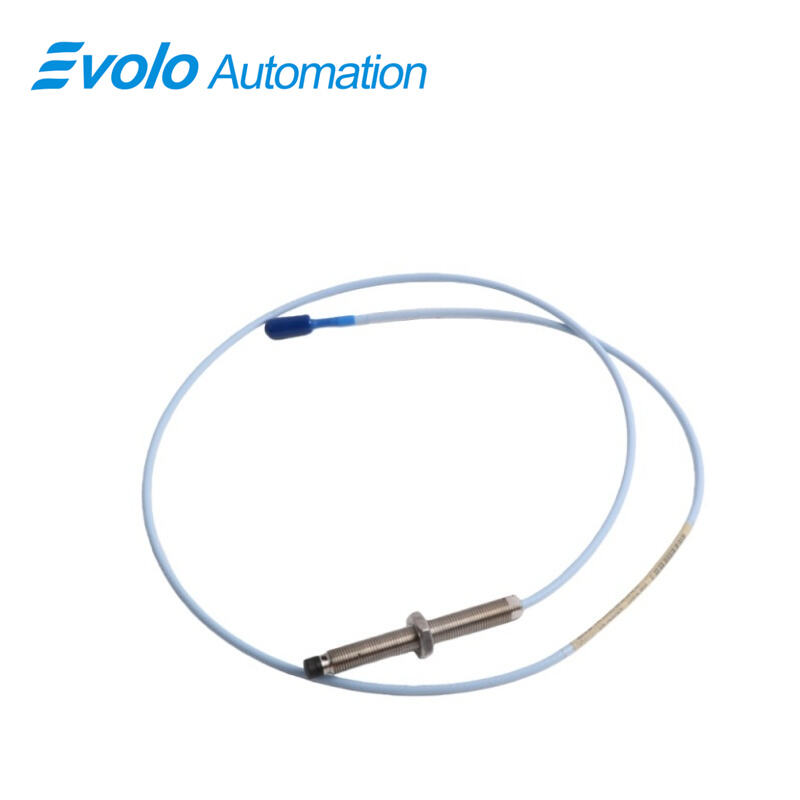

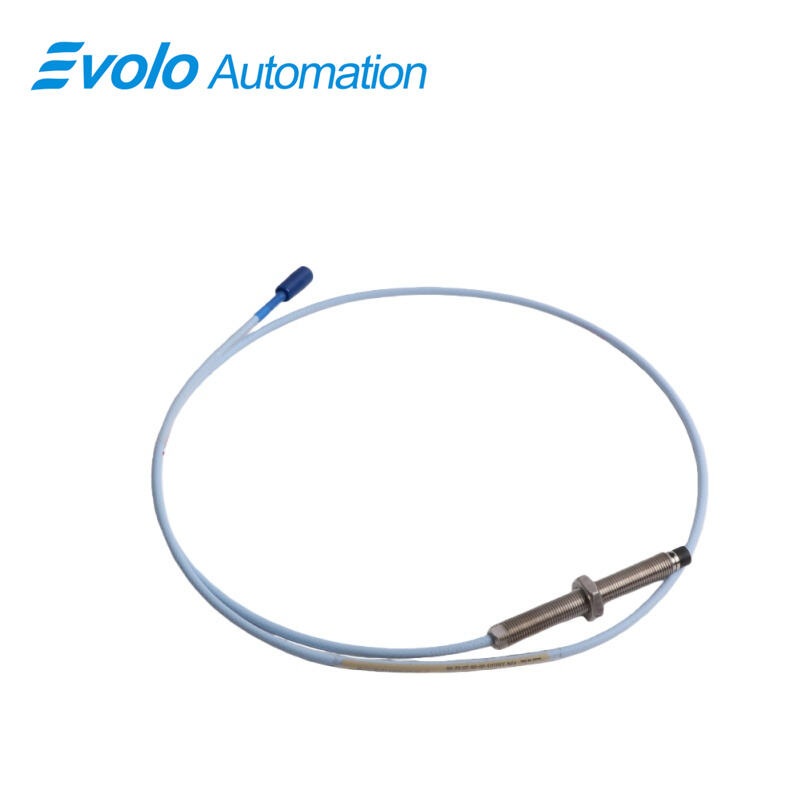

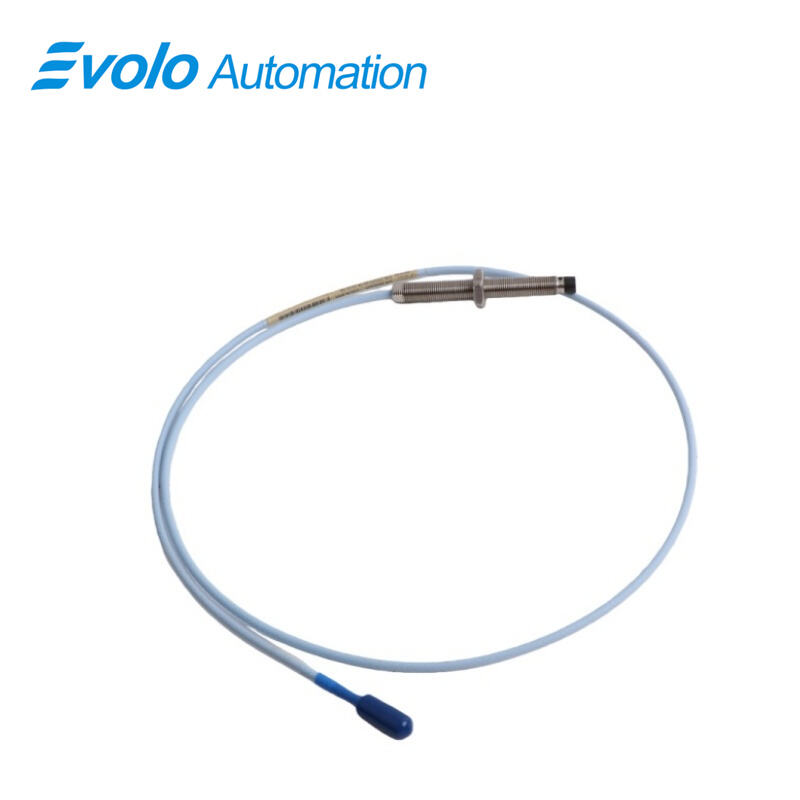

330103-00-08-15-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-08-15-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-00-08-15-02-05 3300 XL 8 mm Proximity Probe is an eddy current sensor engineered for industrial automation, machinery protection, and condition monitoring of rotating equipment. The 330103-00-08-15-02-05 provides a voltage output directly proportional to the distance between the probe tip and a conductive target, supporting accurate shaft vibration, axial position, and speed reference measurement. The 330103-00-08-15-02-05 offers a 2 mm linear range, 50 Ω output resistance, and less than 2 mV/V supply sensitivity, ensuring reliable signal performance in control and monitoring systems. Featuring an M10×1 threaded case, 15 mm maximum thread engagement, 80 mm minimum case length, and a 1.5 m standard cable with a miniature ClickLoc connector, the 330103-00-08-15-02-05 integrates easily into compact automation layouts. With an operating temperature range of -52°C to +177°C and CSA, ATEX, IECEx approvals, the 330103-00-08-15-02-05 is suitable for turbines, compressors, pumps, and other critical automated machinery.

Applications

Shaft Vibration Monitoring in Rotating Machinery
330103-00-08-15-02-05 is widely used for continuous shaft vibration monitoring in turbines, compressors, and large pumps. With a linear measurement range of 2 mm and a low output resistance of 50 Ω, 330103-00-08-15-02-05 delivers accurate dynamic vibration signals to automation and machinery protection systems, enabling early fault detection and reduced unplanned downtime.

Axial Position Measurement for Thrust Control
In axial position measurement applications, 330103-00-08-15-02-05 provides precise displacement feedback by converting probe-to-target distance into a proportional voltage signal. The less than 2 mV/V supply sensitivity ensures stable output even with minor power fluctuations, supporting reliable thrust bearing monitoring in automated control environments.

Speed and Keyphasor Reference Systems
330103-00-08-15-02-05 can be applied as a speed reference probe when used with a Keyphasor configuration. The standard 1.5 m cable and typical extension cable capacitance of 69.9 pF/m support clean signal transmission, allowing accurate rotational speed tracking for control logic and diagnostics.

Specifications

Competitive Advantage

Wide Operating Temperature for Harsh Automation Environments
330103-00-08-15-02-05 operates reliably from -52°C to +177°C, making it suitable for high-temperature turbines and low-temperature industrial installations where standard proximity probes may fail.

Compact Mechanical Design for Limited Mounting Space
With an M10×1 threaded case, 15 mm maximum thread engagement, and 80 mm minimum case length, 330103-00-08-15-02-05 fits easily into compact machinery layouts while maintaining precise probe positioning.

Stable Signal Performance for Control Systems
The combination of a 2 mm linear range, 50 Ω output resistance, and low supply sensitivity allows 330103-00-08-15-02-05 to deliver consistent measurement data, improving the reliability of automation monitoring and closed-loop control systems.

Global Certifications for Regulated Industries
330103-00-08-15-02-05 carries CSA, ATEX, and IECEx approvals, supporting deployment in hazardous and regulated industrial environments without additional system redesign.
