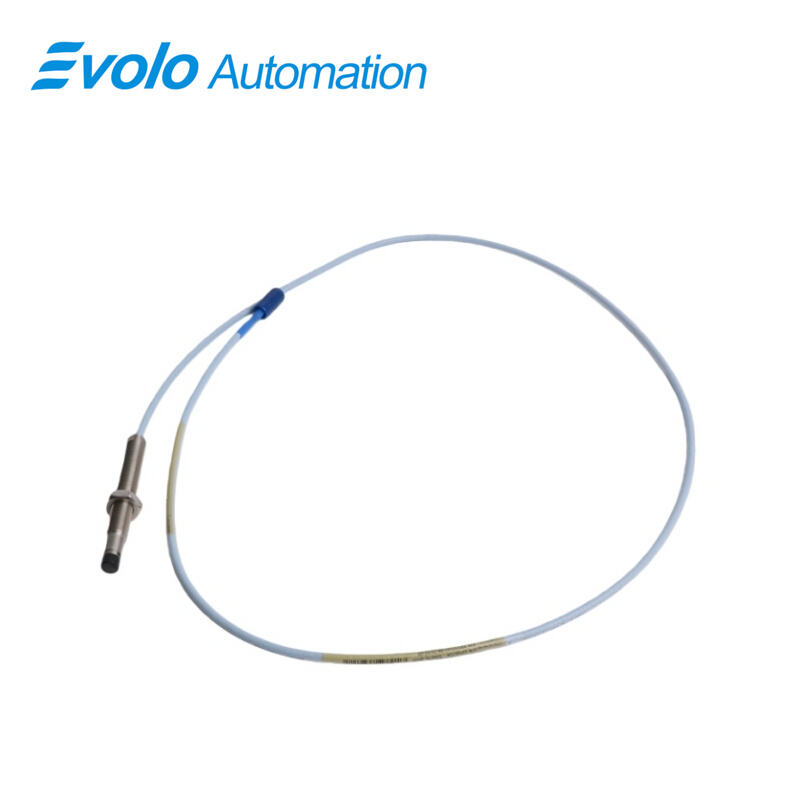

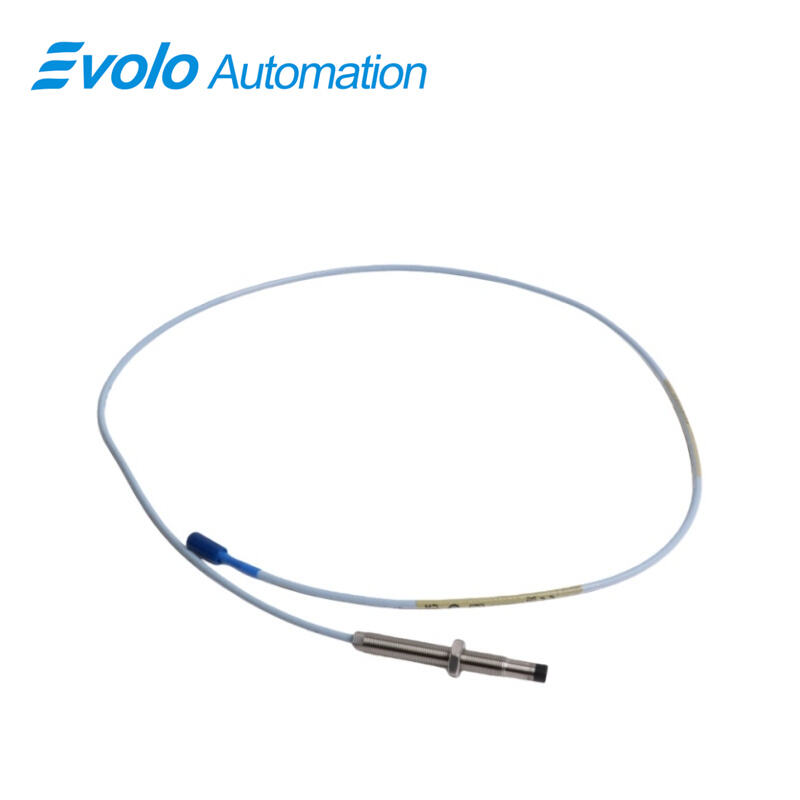

330103-00-08-10-12-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-08-10-12-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-08-10-12-00 3300 XL 8 mm Proximity Probe provides an output voltage directly proportional to the distance between the probe tip and the conductive surface, supporting both static (position) and dynamic (vibration) measurements. The 330103-00-08-10-12-00 3300 XL 8 mm probe features a 2 mm linear range, 50 Ω output resistance, and operates from -52°C to +177°C. Its M10x1 threaded case with 15 mm maximum thread engagement ensures secure mounting, while the 1.0 meter total length and miniature coaxial ClickLoc connector with FluidLoc cable enable reliable signal transmission in automated monitoring systems. The 330103-00-08-10-12-00 3300 XL 8 mm probe is compatible with standard Proximitor sensors and extension cables, facilitating flexible installation in fluid-film bearing machines, turbines, and compressors.

Applications

Measure Shaft Vibration
The 330103-00-08-10-12-00 3300 XL 8 mm probe monitors dynamic shaft vibrations in pumps, motors, and turbines. Its 2 mm linear range and 69.9 pF/m extension cable capacitance allow precise automated readings. Using the 330103-00-08-10-12-00 3300 XL 8 mm probe reduces measurement errors in high-speed machinery.

Axial Thrust Position Monitoring
Install the 330103-00-08-10-12-00 3300 XL 8 mm probe to track axial shaft displacement. With an M10x1 thread and maximum 15 mm engagement, the 330103-00-08-10-12-00 3300 XL 8 mm probe ensures accurate signal delivery to control systems for automated machinery protection.

Keyphasor Signal Generation
The 330103-00-08-10-12-00 3300 XL 8 mm probe produces Keyphasor reference signals for speed and phase detection. Its FluidLoc cable option prevents oil leaks, while the 1.0 meter total length facilitates integration in restricted spaces.

Rod Drop Detection in Compressors
The 330103-00-08-10-12-00 3300 XL 8 mm probe measures rod drop in reciprocating compressors. Field wiring from 16 to 24 AWG allows easy connection to monitoring systems, and its 50 Ω output resistance ensures accurate voltage proportional to displacement.

Specifications

Competitive Advantage

Secure Probe Connection
The 330103-00-08-10-12-00 3300 XL 8 mm probe uses a patented CableLoc design providing 330 N pull strength, firmly attaching the probe cable under vibration. This makes the 330103-00-08-10-12-00 3300 XL 8 mm probe reliable in continuous industrial operation.

Leak Prevention in Fluid Systems
Optional FluidLoc cables on the 330103-00-08-10-12-00 3300 XL 8 mm probe prevent oil and liquid leakage. Combined with a 2 mm linear range, the 330103-00-08-10-12-00 3300 XL 8 mm probe delivers accurate position and vibration data for automated monitoring.

Flexible System Integration
330103-00-08-10-12-00 3300 XL 8 mm probe is fully interchangeable with Proximitor sensors and extension cables. The 1.0 meter total length and ClickLoc connector of 330103-00-08-10-12-00 3300 XL 8 mm probe enable fast retrofits and upgrades in existing 3300 series systems.

High-Temperature Performance
The 330103-00-08-10-12-00 3300 XL 8 mm probe operates from -52°C to +177°C. Its robust M10x1 threaded case and maximum 15 mm thread engagement allow safe measurement under extreme thermal conditions.
