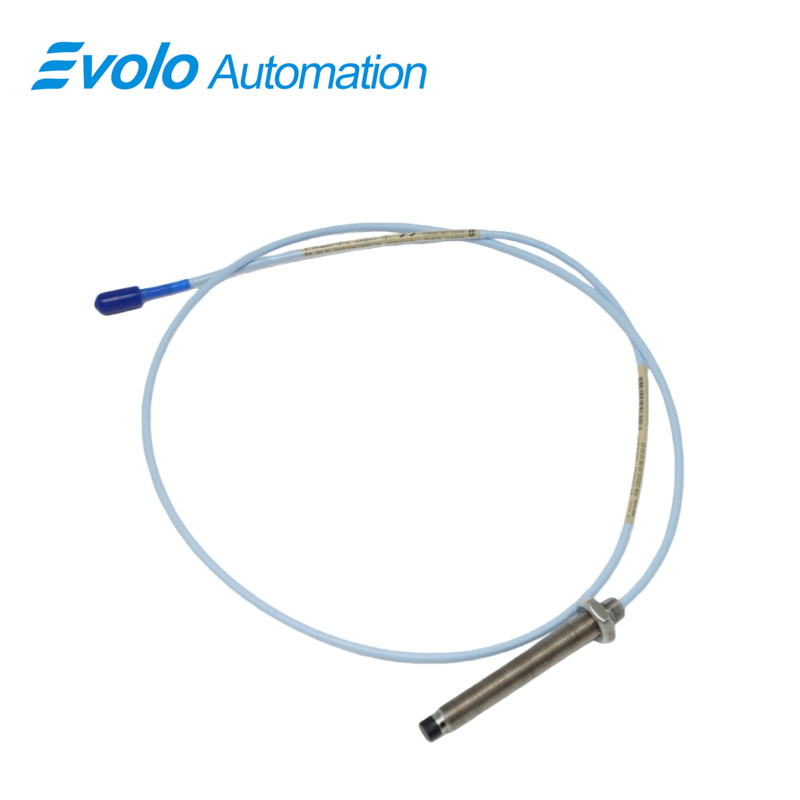

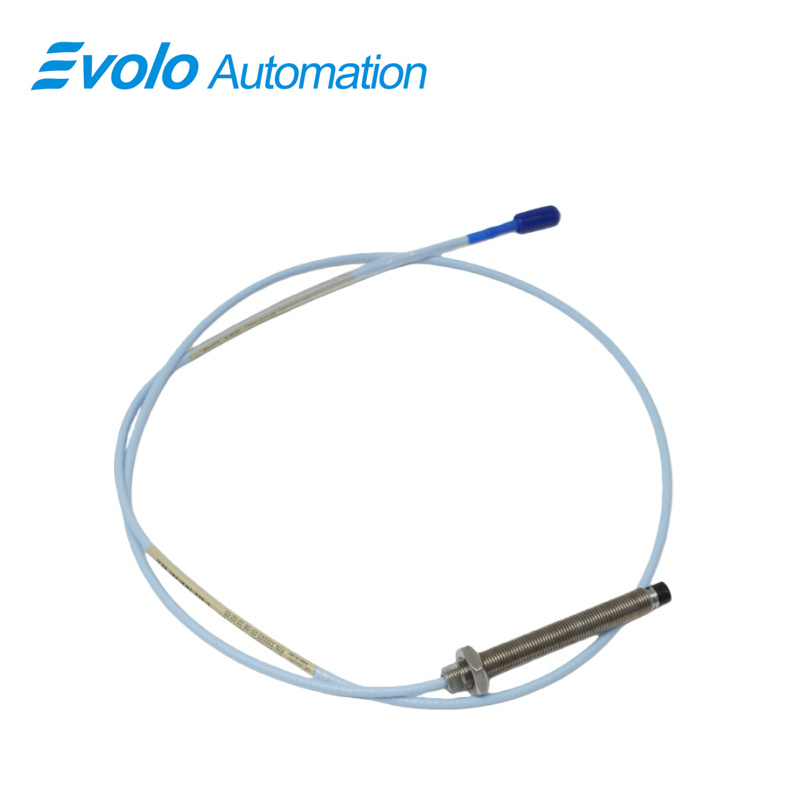

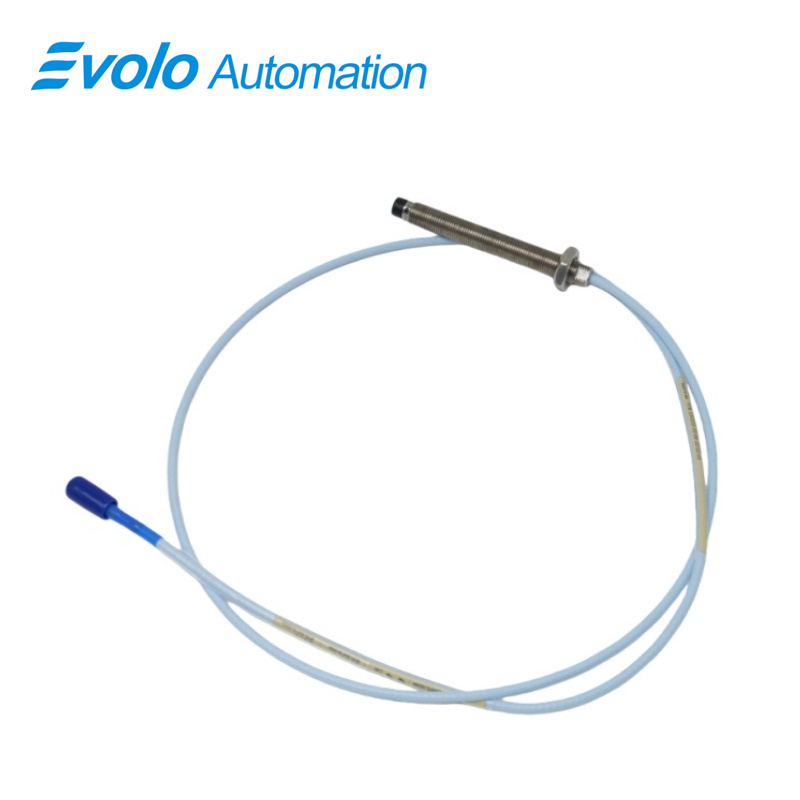

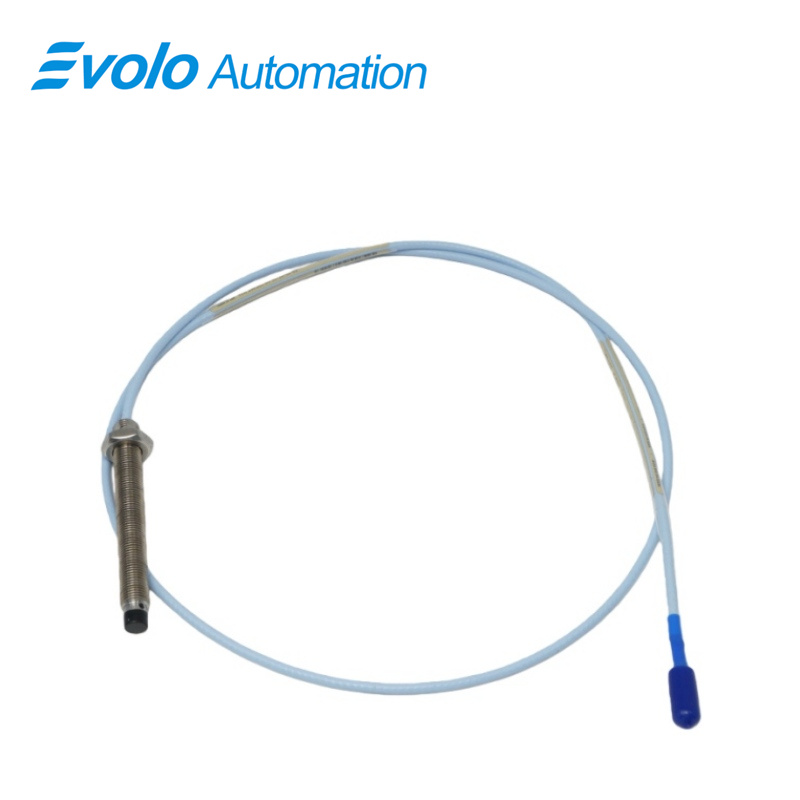

330103-00-08-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-08-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-08-10-02-05 3300 XL 8 mm Proximity Probe provides precise measurement of distance between the probe tip and conductive surfaces, capturing both static (position) and dynamic (vibration) signals. With a 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, the 330103-00-08-10-02-05 3300 XL 8 mm Proximity Probe supports high-fidelity data collection for automated monitoring systems. Its M10x1 thread and 80 mm overall case length allow installation in compact or restricted spaces, while field wiring from 0.2 to 1.5 mm² ensures easy integration into PLC or DCS automation. The probe operates between -52°C and +177°C and features a miniature coaxial ClickLoc connector for secure, low-noise connections. Patented TipLoc and CableLoc designs strengthen the probe tip and cable attachment, and the optional FluidLoc cable prevents oil or fluid ingress. Approved under CSA, ATEX, and IECEx standards, the 330103-00-08-10-02-05 3300 XL 8 mm Proximity Probe is ideal for radial vibration measurement, axial position control, Keyphasor signal generation, and machine condition monitoring in automated industrial systems.

Applications

Application – Radial Vibration Measurement

Use the 330103-00-08-10-02-05 3300 XL 8 mm Proximity Probe to measure radial vibrations on shafts smaller than 50 mm. The 2 mm linear range and 50 Ω output provide reliable data for automated PLC or DCS systems to detect imbalance, misalignment, or wear in rotating equipment.

Application – Axial Position Monitoring

The 330103-00-08-10-02-05 3300 XL 8 mm Proximity Probe measures axial displacement in tight clearances. The M10x1 threaded case and 80 mm probe length allow installation in constrained spaces, enabling precise thrust position monitoring in compressors and turbines.

Application – Keyphasor Signal Generation

Use the 330103-00-08-10-02-05 3300 XL 8 mm Proximity Probe to generate Keyphasor signals for automated speed and phase control. The high-frequency response and low output noise (<2 mV/V supply sensitivity) ensure accurate timing signals for rotor analysis.

Application – Automated Condition Monitoring

The 330103-00-08-10-02-05 3300 XL 8 mm Proximity Probe integrates with PLC, SCADA, or DCS systems for continuous machine monitoring. Its ClickLoc connectors and optional FluidLoc cables simplify connection to 3300 XL NSv extension cables, ensuring reliable signal transfer for automated maintenance alerts.

Specifications

Competitive Advantage

Competitive Advantage – Compact Installation

The 330103-00-08-10-02-05 3300 XL 8 mm Proximity Probe fits small shafts and limited side-view spaces due to its 80 mm case and M10x1 thread, reducing installation constraints compared to standard 3300 XL probes.

Competitive Advantage – High-Fidelity Output

The 330103-00-08-10-02-05 3300 XL 8 mm Proximity Probe delivers 50 Ω output resistance, 2 mm linear range, and low supply sensitivity (<2 mV/V), ensuring precise vibration and position data for automated control systems.

Competitive Advantage – Robust Mechanical Design

The 330103-00-08-10-02-05 3300 XL 8 mm Proximity Probe uses TipLoc and CableLoc patented methods to secure the probe tip and cable, providing long-term reliability in industrial automation without frequent maintenance.
