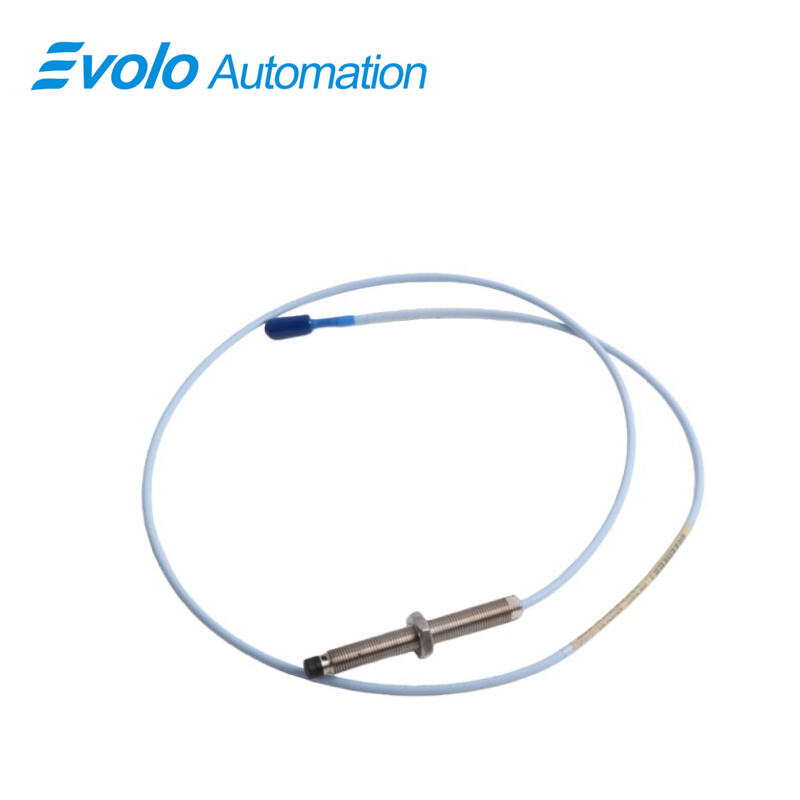

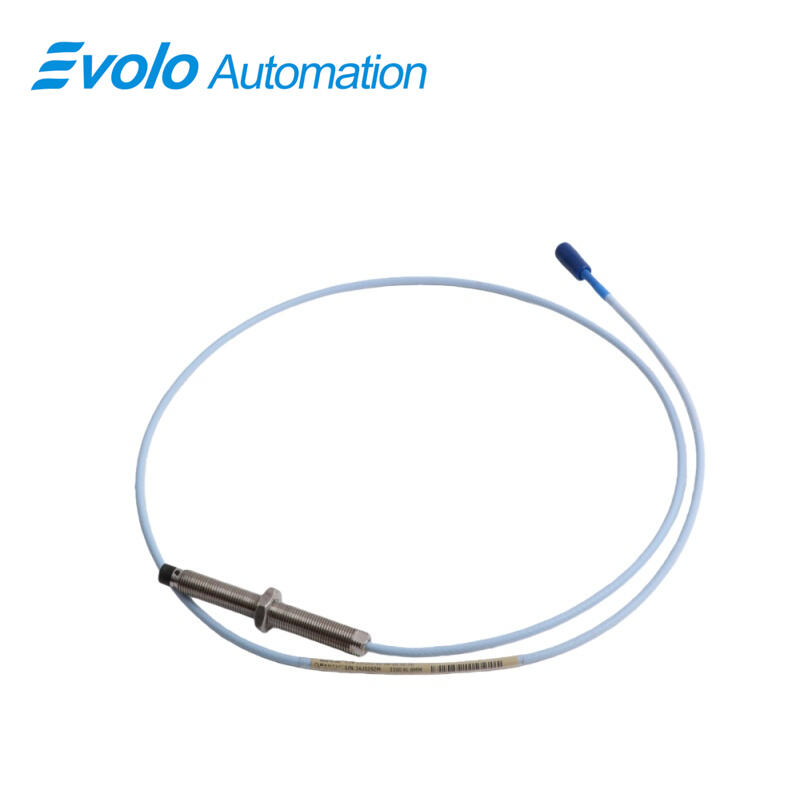

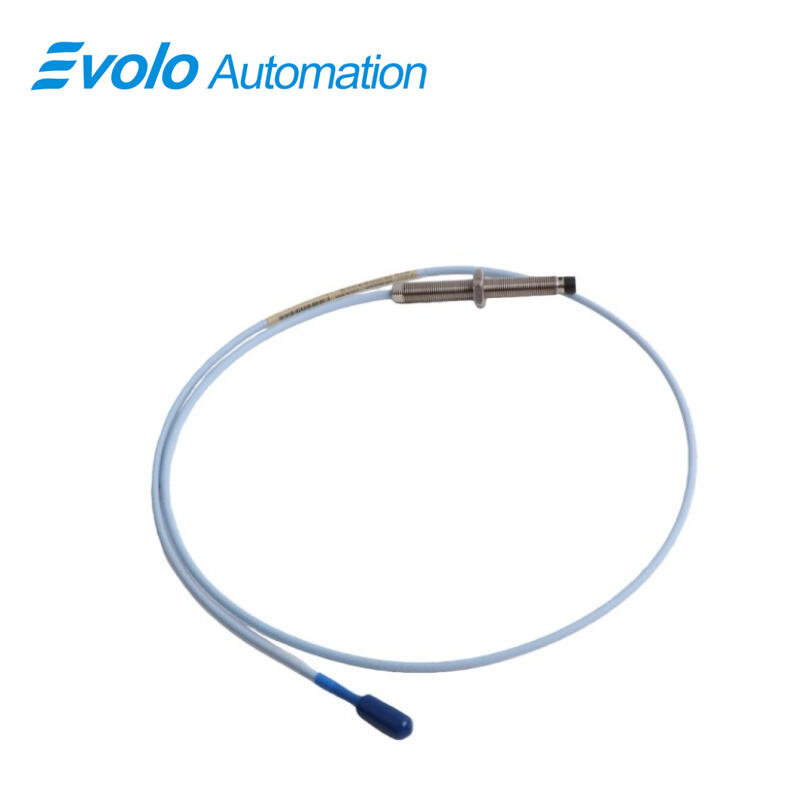

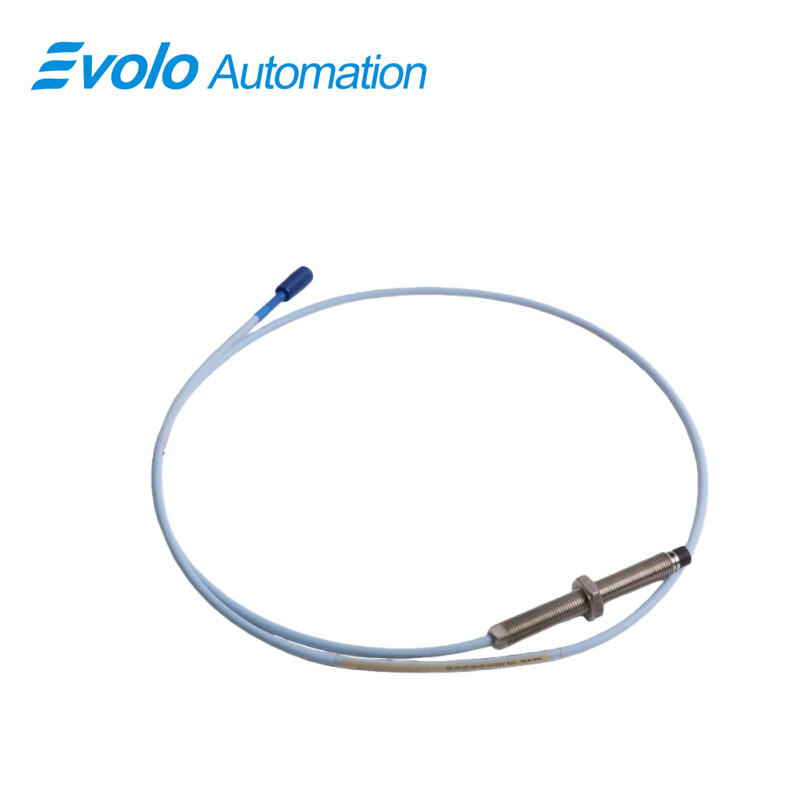

330103-00-08-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-08-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-00-08-10-02-00 3300 XL 8 mm Proximity Probe is a precision eddy current transducer for industrial automation. The 330103-00-08-10-02-00 3300 XL 8 mm probe outputs a voltage proportional to the distance between the probe tip and conductive surfaces, measuring static positions and dynamic vibrations with a 2 mm (80 mils) linear range and 50 Ω output resistance. It operates from -52°C to +177°C (-62°F to +350°F) and has supply sensitivity below 2 mV per volt.

With a compact 80 mm case, M10x1 threaded mounting (max 15 mm engagement), and 1.0-meter (3.3 ft) Miniature ClickLoc cable, the 330103-00-08-10-02-00 3300 XL probe integrates easily into automation systems. Extension cable capacitance is 69.9 pF/m (21.3 pF/ft), supporting 0.2–1.5 mm² (16–24 AWG) field wiring.

The 330103-00-08-10-02-00 3300 XL 8 mm probe is fully API 670 compliant, backward compatible with 3300 series 5 mm and 8 mm probes, and interchangeable with Proximitor sensors and extension cables. Patented TipLoc and CableLoc designs enhance tip-body bonding and cable pull strength (330 N / 75 lbf), while optional FluidLoc prevents oil leakage.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330103-00-08-10-02-00 3300 XL 8 mm probe provides precise vibration measurements on fluid-film bearing machines. Its 2 mm (80 mils) linear range, 50 Ω output resistance, and temperature operation from -52°C to +177°C (-62°F to +350°F) ensure high accuracy and stability in automated industrial systems.

Position Sensing in Rotating Equipment
The 330103-00-08-10-02-00 3300 XL 8 mm probe measures static shaft displacement or alignment with reliable repeatability. Its M10x1 threaded stainless steel case, maximum thread engagement of 15 mm, and 1.0-meter (3.3 ft) Miniature ClickLoc cable make it ideal for integration into compact automation setups.

Keyphasor Speed Reference
Using the 330103-00-08-10-02-00 3300 XL 8 mm probe, engineers can monitor rotational speed and phase for Keyphasor systems. Extension cable capacitance of 69.9 pF/m (21.3 pF/ft) and field wiring support for 0.2–1.5 mm² (16–24 AWG) provide reliable signal integrity for automated monitoring.

Specifications

Competitive Advantage

API 670 Compliance and Interchangeability
The 330103-00-08-10-02-00 3300 XL probe meets API 670 standards for linear range, temperature stability, and mechanical configuration. It is fully backward compatible with earlier 3300 series probes and interchangeable with Proximitor sensors and extension cables, eliminating the need for bench calibration.

Durable Construction and Extreme Temperature Performance
The 330103-00-08-10-02-00 3300 XL 8 mm probe features a polyphenylene sulfide tip and AISI 303/304 stainless steel case, operating reliably from -52°C to +177°C (-62°F to +350°F). Patented TipLoc molding ensures a robust tip-body bond for long-term durability in harsh automation environments.

Enhanced Cable Security and Leak Prevention
The 330103-00-08-10-02-00 3300 XL 8 mm probe incorporates CableLoc design, providing 330 N (75 lbf) pull strength to secure the probe cable. Optional FluidLoc prevents oil or fluid leakage, maintaining clean and safe operation in automated machinery.

High-Precision Measurement Reliability
With low supply sensitivity (less than 2 mV per volt) and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), the 330103-00-08-10-02-00 3300 XL 8 mm probe ensures consistent, accurate position and vibration measurements across automated industrial systems.
