Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-00-07-50-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
70 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
20x20x2cm |
|
Weight: |
0.2 kg |
Description

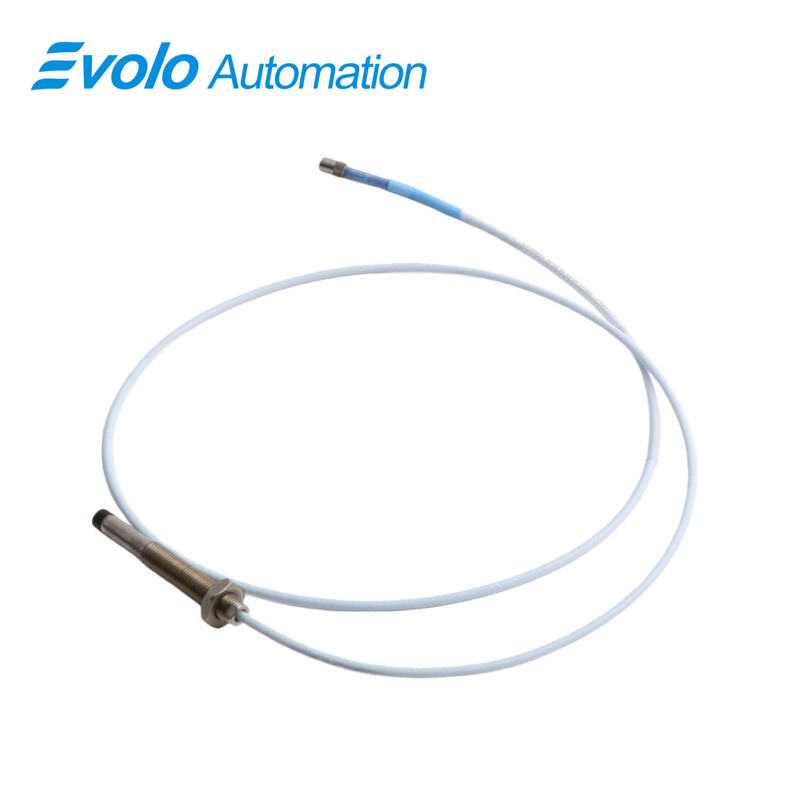

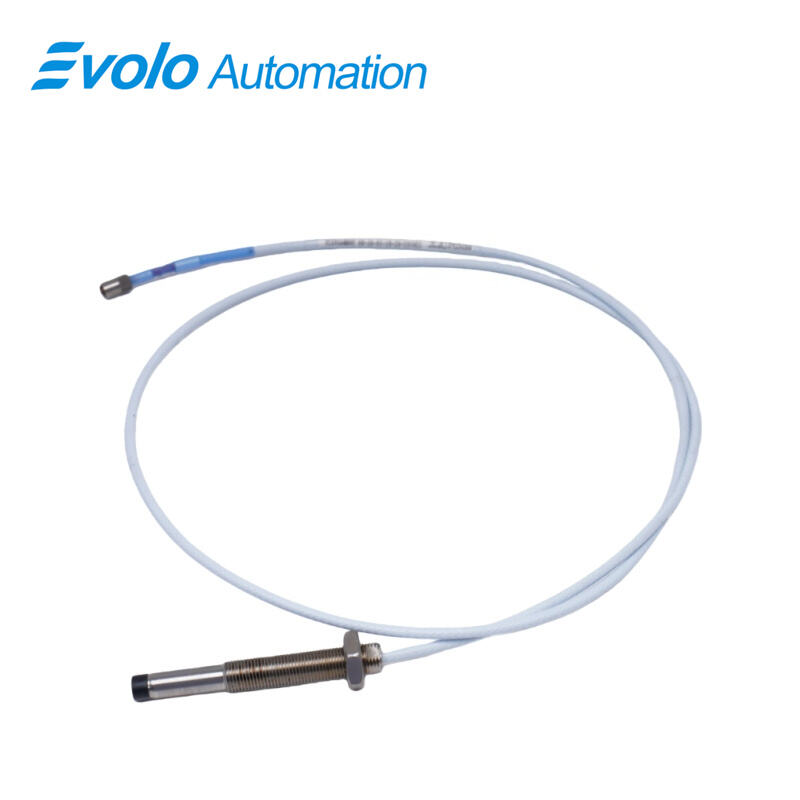

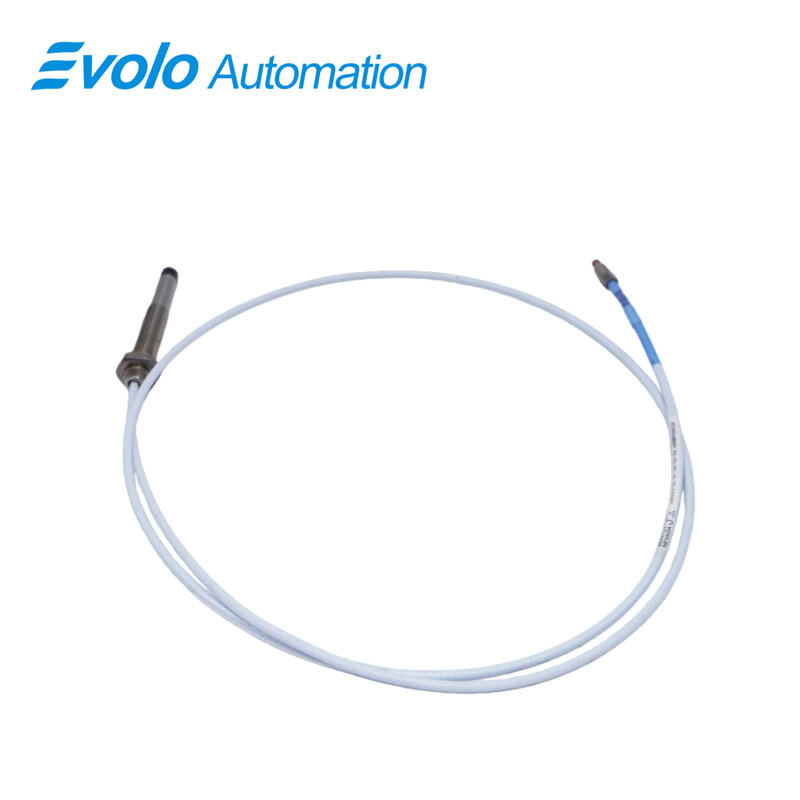

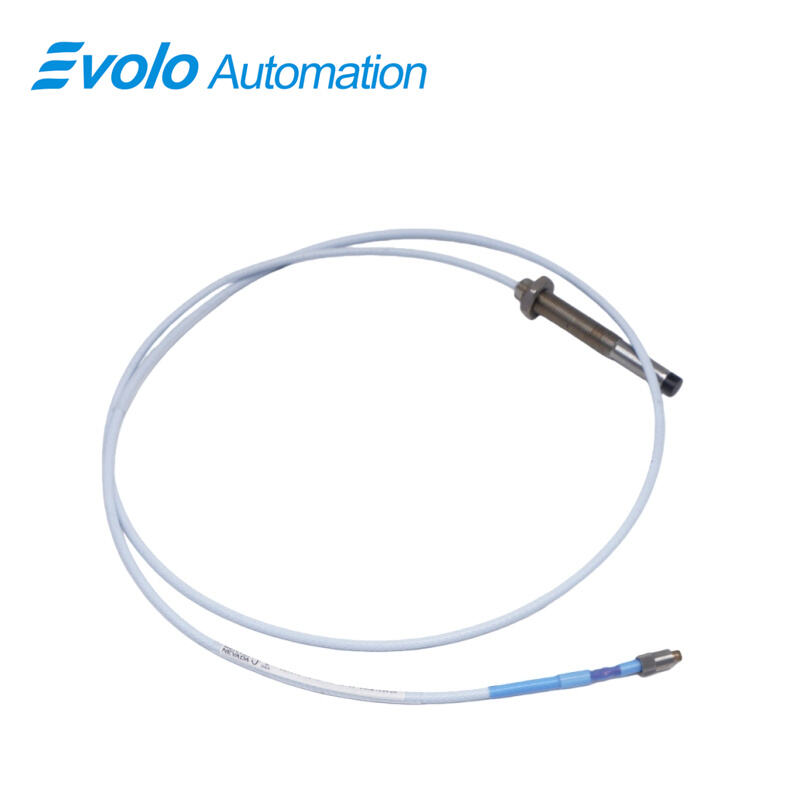

The 330103-00-07-50-02-00 3300 XL 8 mm Proximity Probe delivers an output voltage directly proportional to the distance between the probe tip and conductive surfaces. With a linear range of 2 mm (80 mils) and supply sensitivity below 2 mV per volt, the 330103-00-07-50-02-00 3300 XL ensures precise static and dynamic measurements in automated systems. The 5.0-meter (16.4 ft) total length, M10x1 probe thread, and ClickLoc connector integrate easily with control and monitoring equipment. Its 50 Ω output resistance and 69.9 pF/m cable capacitance optimize signal transfer for vibration, shaft position, and Keyphasor speed monitoring. The 330103-00-07-50-02-00 3300 XL probe supports automation on fluid-film bearing machines and compact installations, with TipLoc molded probe tip and CableLoc design providing secure mechanical connections. Optional FluidLoc cable prevents oil and liquid leakage during operation.
Applications
Measure Radial Shaft Vibration
Use the 330103-00-07-50-02-00 3300 XL probe to track radial vibration on shafts in fluid-film bearing machines. Its 2 mm linear range and 50 Ω output resistance ensure accurate vibration readings.
Monitor Shaft Position for Automation
The 330103-00-07-50-02-00 3300 XL enables precise axial and radial position detection. The 70 mm case length and M10x1 probe thread simplify mounting in automated systems.
Collect Keyphasor Signals for Speed Control
The 330103-00-07-50-02-00 3300 XL provides reliable phase reference signals with less than 2 mV supply sensitivity per volt, supporting speed measurement and automated monitoring.
Remote Monitoring over Long Cable Runs
With a 5.0-meter total cable length and 69.9 pF/m capacitance, the 330103-00-07-50-02-00 3300 XL maintains signal integrity for remote Proximitor sensor connections.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Accurate Output under Variable Supply
The 330103-00-07-50-02-00 3300 XL maintains less than 2 mV voltage change per volt of supply variation, ensuring precision in automated measurements.
Robust Mechanical Connections
TipLoc probe molding and CableLoc cable attachment in the 330103-00-07-50-02-00 3300 XL provide 330 N pull strength, preventing probe or cable movement in high-vibration environments.
Flexible Installation Options
The 330103-00-07-50-02-00 3300 XL’s 5.0-meter cable and ClickLoc connector allow installation in tight or distant automated systems without signal loss.
Liquid-Resistant Design
The optional FluidLoc cable on the 330103-00-07-50-02-00 3300 XL prevents oil or other fluids from entering the connector, protecting automated control signals.
