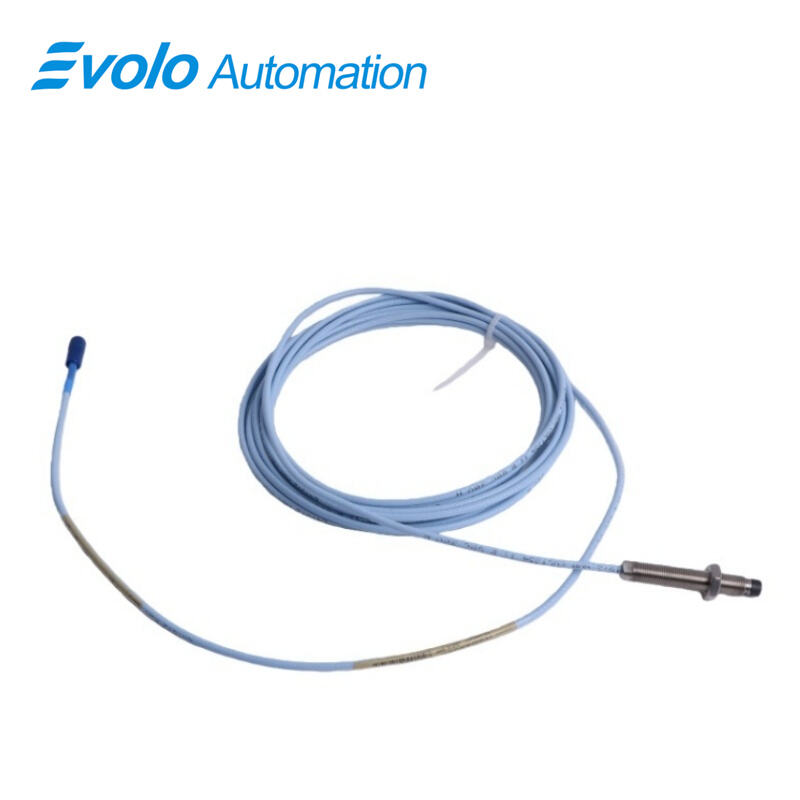

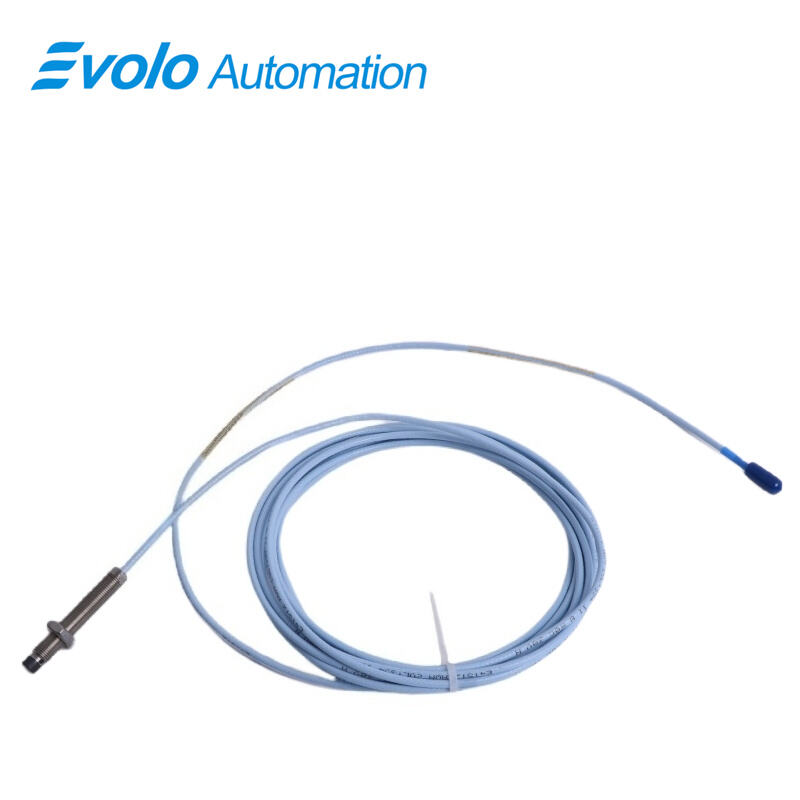

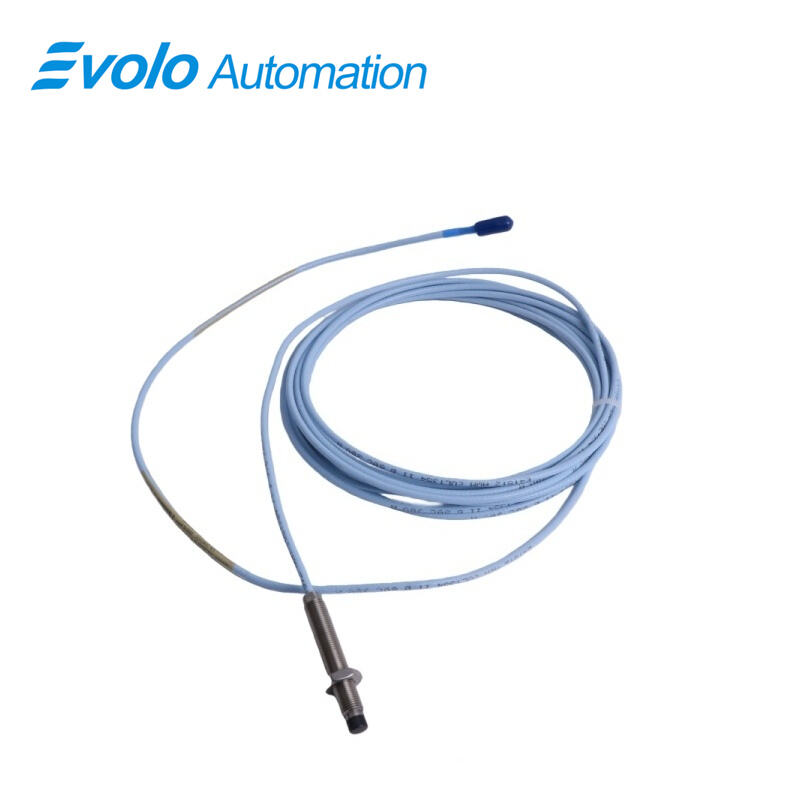

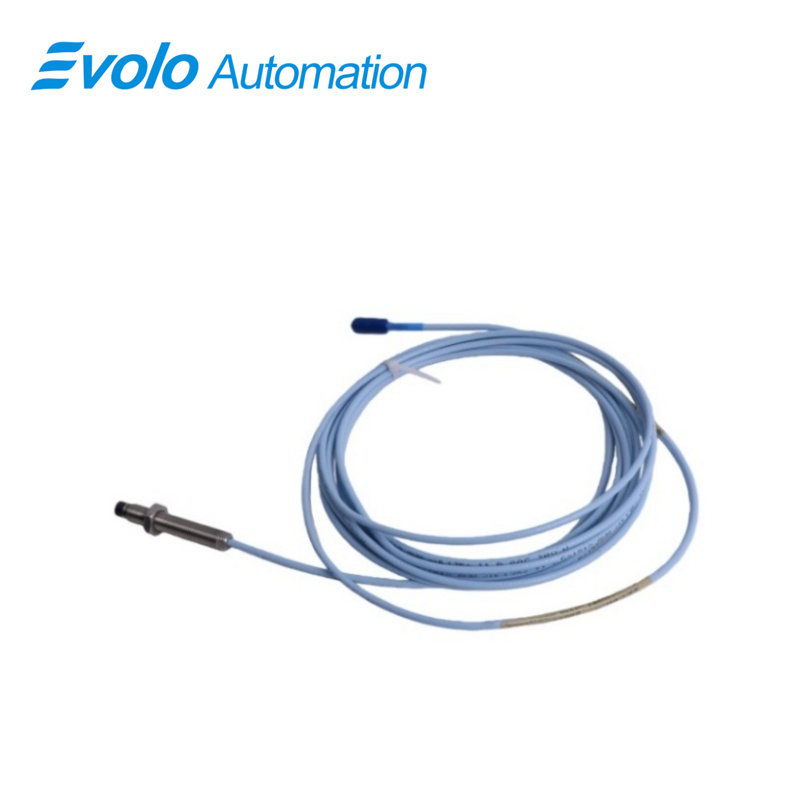

330103-00-06-50-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-06-50-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-06-50-02-05 3300 XL 8 mm Proximity Probe is designed for precise measurement of both static position and dynamic vibration on fluid-film bearing machines. With a 5.0-meter (16.4 ft) total length, M10x1 probe case thread, and a 2 mm (80 mils) linear range, the 330103-00-06-50-02-05 3300 XL 8 mm Proximity Probe delivers accurate Keyphasor reference and speed signals. The probe features a miniature coaxial ClickLoc connector with standard cable and operates from -52°C to +177°C (-62°F to +350°F), maintaining output sensitivity below 2 mV per volt change and a 50 Ω output resistance. The extension cable capacitance is 69.9 pF/m (21.3 pF/ft), with field wiring compatible with 0.2–1.5 mm² (16–24 AWG).

The 330103-00-06-50-02-05 3300 XL 8 mm Proximity Probe fully complies with API 670 standards for mechanical configuration and linear range, and supports complete interchangeability with probes, extension cables, and Proximitor sensors in the 3300 XL series. Patented TipLoc and CableLoc designs provide 330 N pull strength and a secure bond between probe tip and cable, while the optional FluidLoc cable prevents oil or liquid ingress, ensuring accurate automated monitoring in demanding industrial environments.

Applications

Measure Radial Shaft Vibration on Fluid-Film Bearings
The 330103-00-06-50-02-05 3300 XL 8 mm Proximity Probe measures radial vibration on shafts in fluid-film bearing machines, using its 2 mm (80 mils) linear range and 5.0-meter (16.4 ft) cable to deliver precise output voltage proportional to shaft displacement.

Monitor Axial Position on Rotors
With its M10x1 probe thread and miniature coaxial ClickLoc connector, the 330103-00-06-50-02-05 3300 XL 8 mm Proximity Probe captures axial position (thrust) movements on rotating machinery, supporting automated speed and Keyphasor measurements for process control.

Keyphasor and Speed Signal Generation
The 330103-00-06-50-02-05 3300 XL 8 mm Proximity Probe provides high-fidelity Keyphasor reference and speed output signals. Its 50 Ω output resistance and supply sensitivity of less than 2 mV per volt change ensure accurate tachometer readings for industrial monitoring systems.

Extended Cable Measurements for Remote Monitoring
The 5.0-meter (16.4 ft) cable and 69.9 pF/m (21.3 pF/ft) capacitance of the 330103-00-06-50-02-05 3300 XL 8 mm Proximity Probe allow connection to distant monitors without signal degradation, enabling flexible industrial automation layouts.

Specifications

Competitive Advantage

Robust Probe-to-Cable Bonding
The patented TipLoc molding method of the 330103-00-06-50-02-05 3300 XL 8 mm Proximity Probe ensures a secure bond between probe tip and probe body, resisting mechanical pull while maintaining consistent measurements.

Secure Cable Connection
The CableLoc design provides 330 N pull strength to attach the 330103-00-06-50-02-05 3300 XL 8 mm Proximity Probe cable to the probe tip, minimizing disconnection risks in automated monitoring systems.

High Temperature Operation
Operating between -52°C and +177°C (-62°F to +350°F), the 330103-00-06-50-02-05 3300 XL 8 mm Proximity Probe delivers reliable signal output under extreme industrial conditions.
