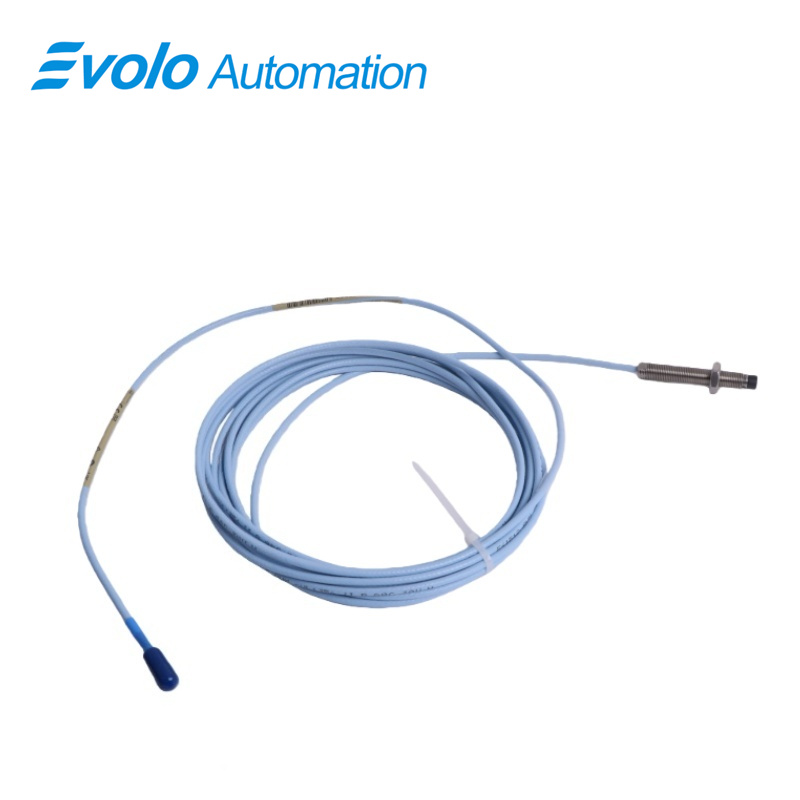

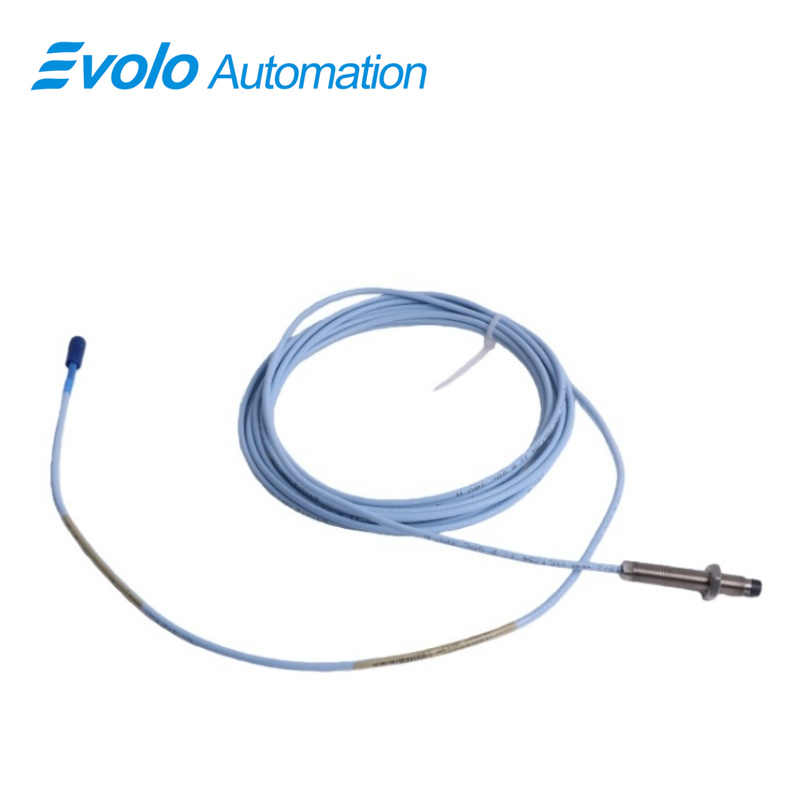

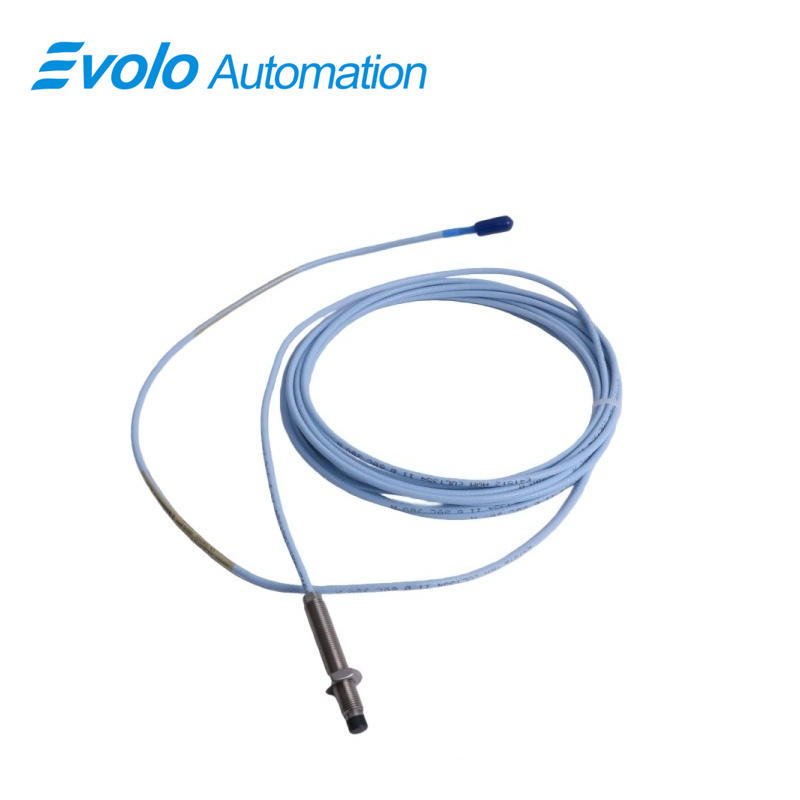

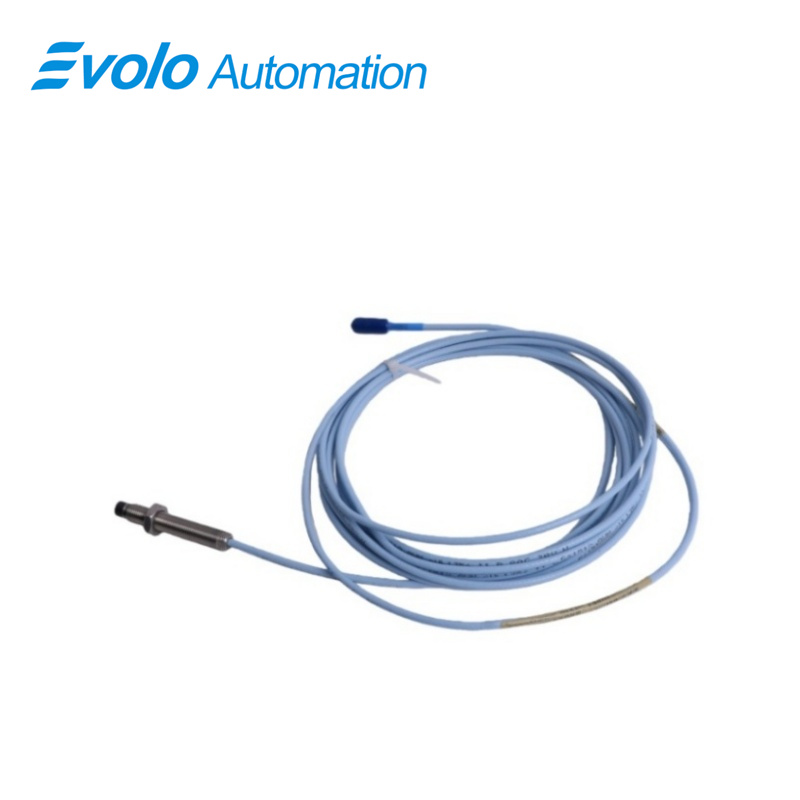

330103-00-06-50-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-06-50-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-00-06-50-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer for industrial automation and machinery monitoring. The 330103-00-06-50-02-00 3300 XL 8 mm probe provides output voltage directly proportional to the distance between the probe tip and conductive surfaces, enabling accurate static position and dynamic vibration measurements. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, supply sensitivity below 2 mV per volt, and operating temperatures from -52°C to +177°C (-62°F to +350°F), it ensures reliable performance in harsh environments.

The 330103-00-06-50-02-00 3300 XL 8 mm probe features a 60 mm case, M10x1 threaded mounting (15 mm max engagement), and a 5-meter (16.4 ft) Miniature ClickLoc standard cable. Extension cable capacitance is 69.9 pF/m (21.3 pF/ft), with field wiring support for 0.2–1.5 mm² (16–24 AWG). Fully API 670 compliant, the 330103-00-06-50-02-00 3300 XL 8 mm probe is interchangeable with all 3300 XL 8 mm system components and backward compatible with 5 mm and 8 mm 3300 series probes. Patented TipLoc and CableLoc designs improve probe tip-body bond and cable pull strength (330 N / 75 lbf), and optional FluidLoc cable prevents fluid leakage, ensuring precise and durable automated monitoring.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330103-00-06-50-02-00 3300 XL 8 mm probe measures dynamic vibrations on fluid-film bearing machines. Its linear range of 2 mm (80 mils), output resistance of 50 Ω, and supply sensitivity below 2 mV per volt allow precise monitoring of rotating machinery in automated industrial systems.

Position Sensing and Shaft Alignment
The 330103-00-06-50-02-00 3300 XL 8 mm probe detects static shaft displacement for alignment verification. Its M10x1 threaded case, 60 mm overall length, and 5-meter Miniature ClickLoc cable provide accurate, repeatable measurements even in confined or high-temperature environments (-52°C to +177°C / -62°F to +350°F).

Keyphasor Reference and Speed Measurement
The 330103-00-06-50-02-00 3300 XL 8 mm probe supports Keyphasor systems, enabling reliable rotor speed monitoring. Extension cable capacitance of 69.9 pF/m (21.3 pF/ft) and field wiring capacity of 0.2–1.5 mm² (16–24 AWG) ensure high-fidelity signals for automated control and condition monitoring.

Specifications

Competitive Advantage

API 670 Compliance and Interchangeability
The 330103-00-06-50-02-00 3300 XL 8 mm probe meets API 670 standards for linearity, mechanical configuration, and temperature stability. It is fully interchangeable with all 3300 XL 8 mm system components and backward compatible with 5 mm and 8 mm 3300 series probes, simplifying upgrades and minimizing downtime.

Robust Construction and Extreme Temperature Operation
With a polyphenylene sulfide probe tip, stainless steel case, and TipLoc molded bonding, the 330103-00-06-50-02-00 3300 XL 8 mm probe withstands high-temperature operation and vibration while maintaining accurate output voltage across its 2 mm linear range.

Enhanced Cable Security and Leak Prevention
The 330103-00-06-50-02-00 3300 XL 8 mm probe features CableLoc design with 330 N (75 lbf) pull strength, and optional FluidLoc cable prevents fluid leakage. This ensures secure, long-term installation in automated machinery while preserving measurement accuracy.

High-Precision Signal Reliability
Low supply sensitivity (<2 mV per volt) and extension cable capacitance of 69.9 pF/m (21.3 pF/ft) make the 330103-00-06-50-02-00 3300 XL 8 mm probe highly reliable for vibration, position, and Keyphasor measurements in automated monitoring systems.
