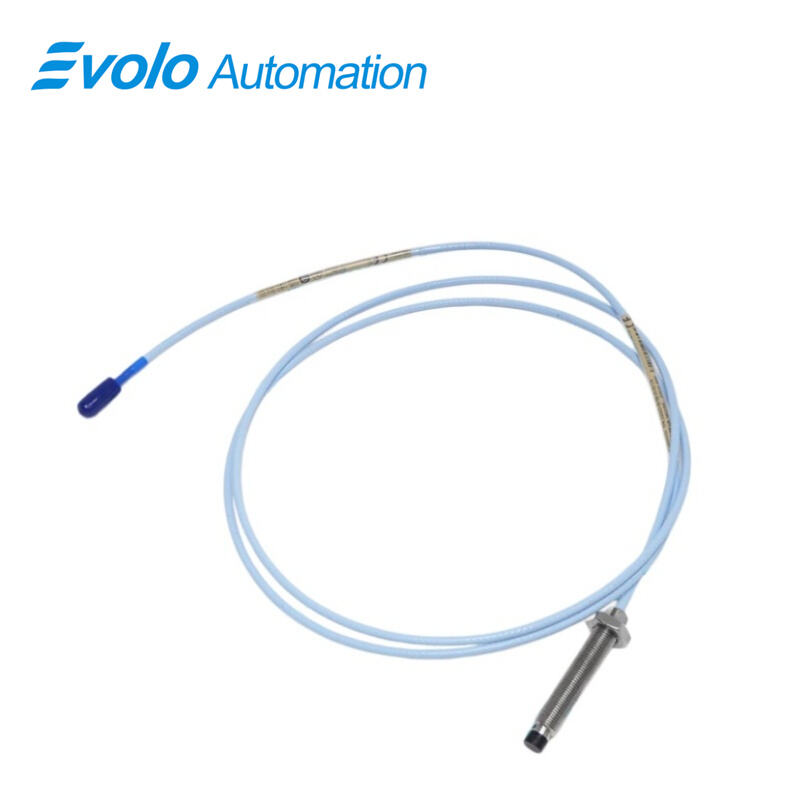

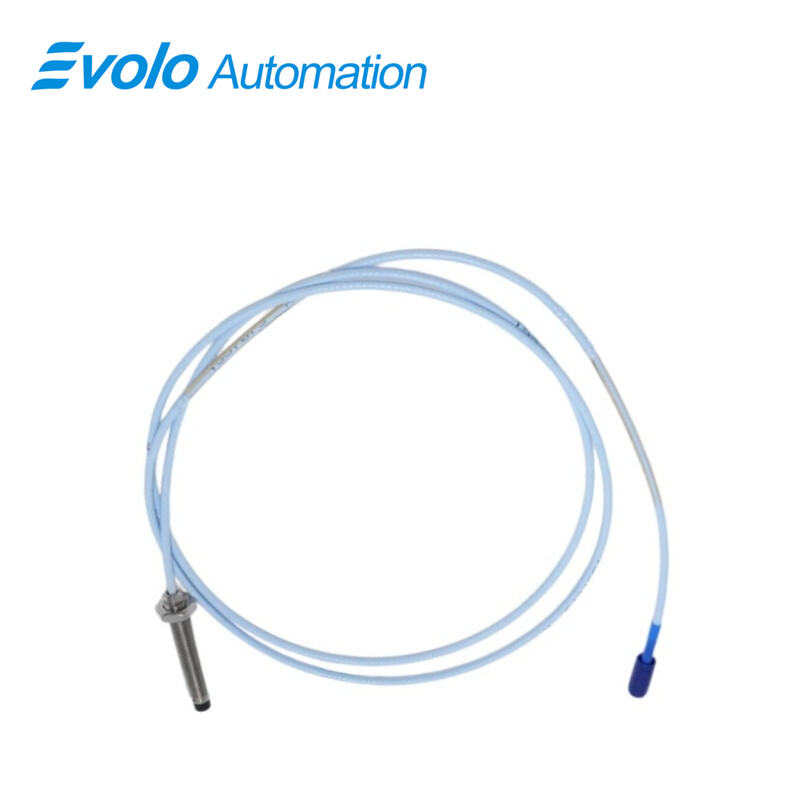

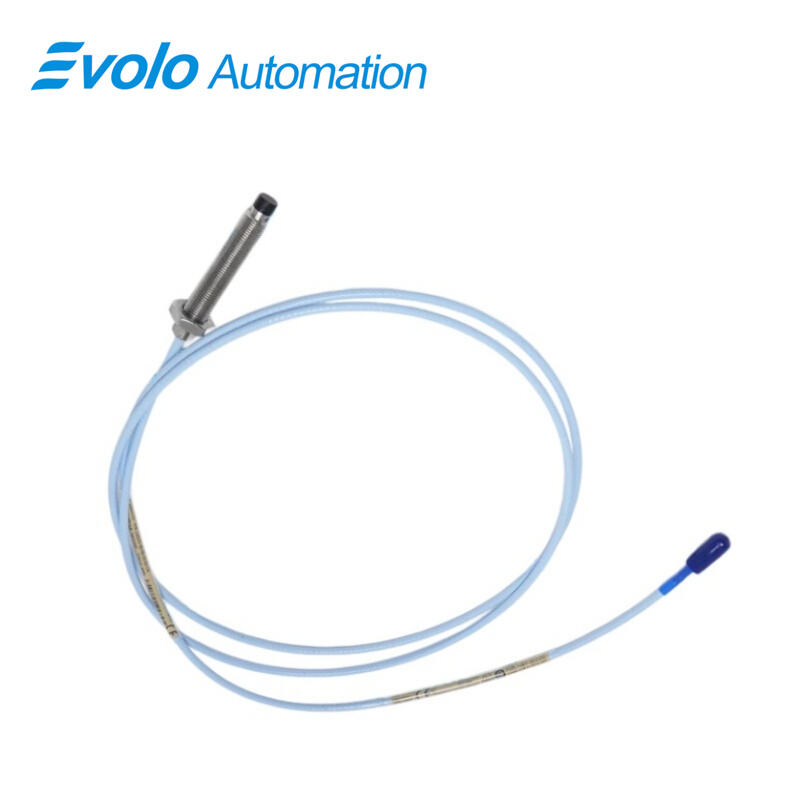

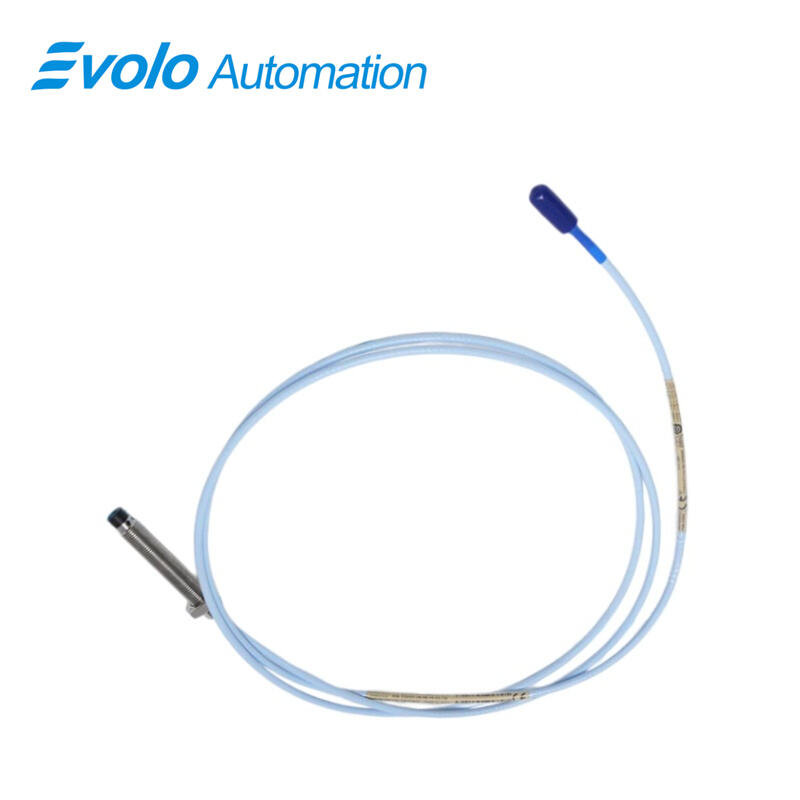

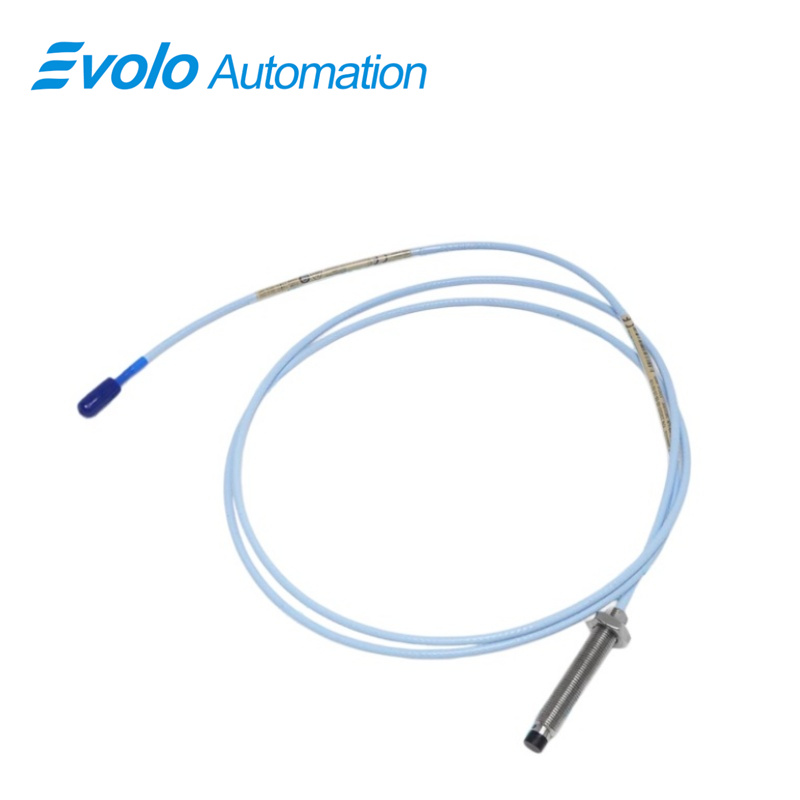

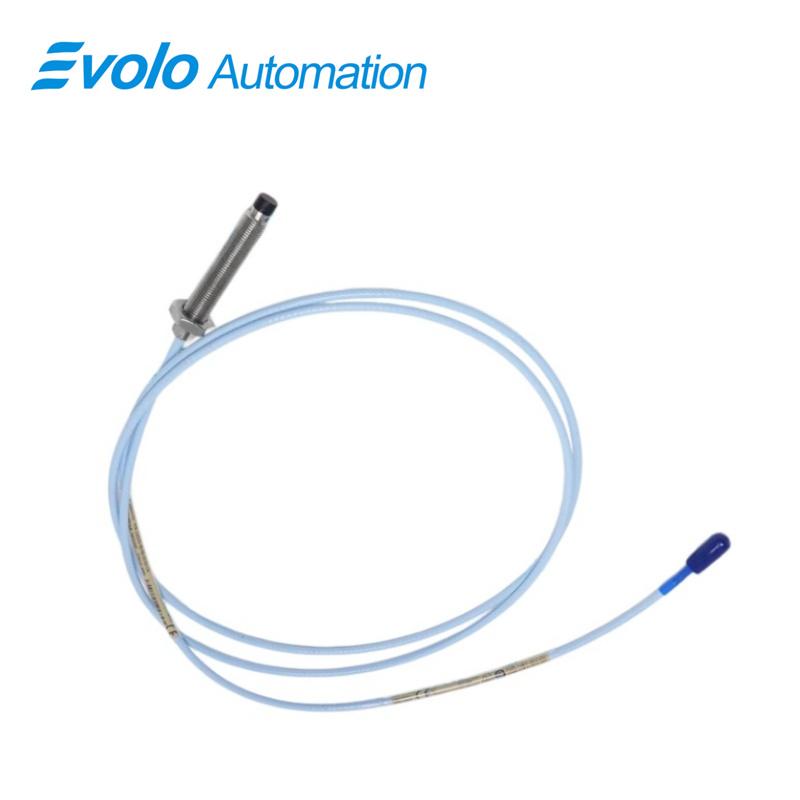

330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-06-15-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe converts distance between its 8 mm probe tip and conductive surfaces into precise voltage signals for static position and dynamic vibration measurements. Rated from -52°C to +177°C (-62°F to +350°F), the 3300 XL 8 mm probe features M10x1 thread with 15 mm engagement, 50 Ω output resistance, 2 mm linear range, and 60 mm case length. Its 1.5 m total cable with miniature coaxial ClickLoc connector and 69.9 pF/m capacitance ensures accurate signal transmission for automated shaft vibration, rotor position, and Keyphasor monitoring. The 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe allows fast installation, and all 3300 XL 8 mm probes and extension cables interchange with Proximitor sensors, reducing setup and maintenance time in industrial automation systems.

Applications

Measure Shaft Vibration in Turbines and Pumps
The 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe detects micrometer-level shaft vibrations. With a 2 mm linear range and 50 Ω output resistance, the 3300 XL 8 mm probe delivers precise signals for automated monitoring of turbines, compressors, and pumps.

Monitor Rotor Alignment in High-Speed Motors
The 3300 XL 8 mm probe tracks rotor position. Its 15 mm thread engagement and 69.9 pF/m cable capacitance allow consistent voltage transmission along the 1.5 m cable, supporting automated rotor alignment in high-speed machinery.

Generate Keyphasor Signals for Speed Measurement
The 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe outputs Keyphasor pulses with supply sensitivity below 2 mV/V, enabling real-time speed monitoring and synchronization in automated industrial equipment.

Measure Axial Displacement in Confined Areas
Use the 3300 XL 8 mm probe to monitor axial shaft movement. Its 60 mm case length and 1.5 m cable allow installation in tight spaces while maintaining accurate voltage output for automated condition monitoring.

Specifications

Competitive Advantage

Operate Across Wide Temperature Range with Low Voltage Variation
The 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe functions from -52°C to +177°C with supply sensitivity under 2 mV/V. The 3300 XL 8 mm probe ensures reliable readings in high-temperature industrial systems for automated shaft and rotor monitoring.

Fast Installation Using ClickLoc Connector
The M10x1 thread and miniature coaxial ClickLoc connector of the 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe allow secure mounting in under a minute. The 3300 XL 8 mm probe’s 15 mm thread engagement guarantees firm attachment for automated equipment.

CableLoc Design Provides Strong Probe-to-Cable Bond
The 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe features CableLoc with 330 N pull strength. The 3300 XL 8 mm probe maintains cable attachment under high vibration, reducing signal interruptions in automated systems.

Prevent Oil Intrusion with FluidLoc Cable
Optional FluidLoc cabling on the 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe blocks oil from entering the 1.5 m cable. The 3300 XL 8 mm probe ensures clean signal transmission for Keyphasor monitoring, shaft vibration, and rotor alignment.
