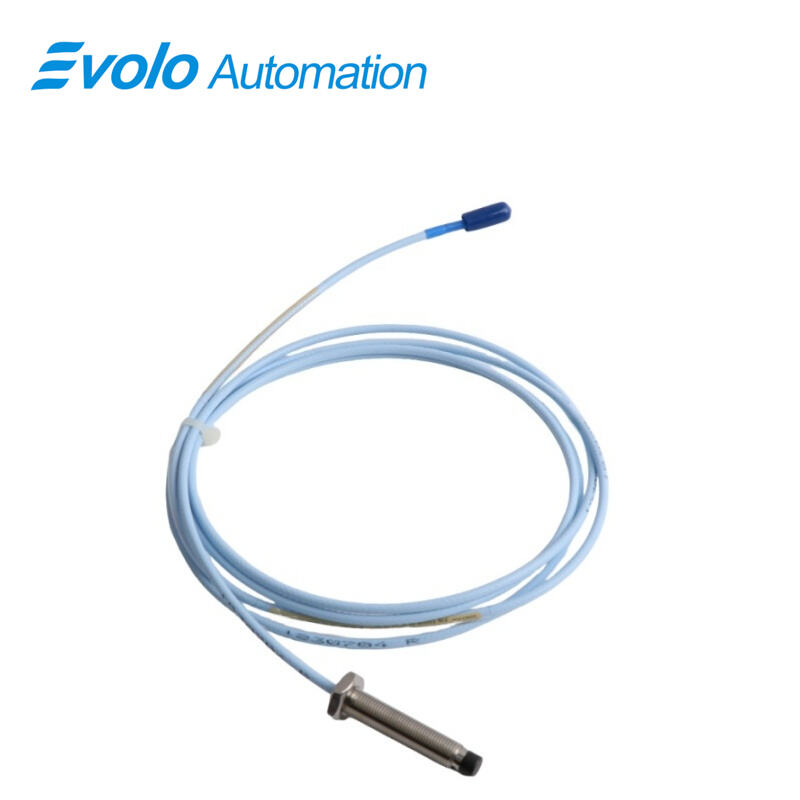

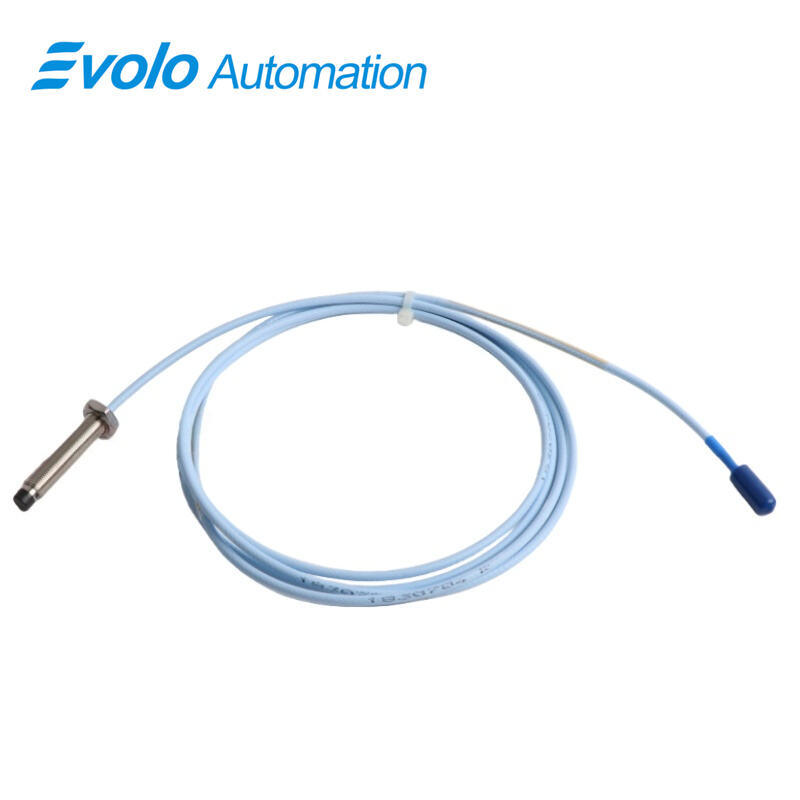

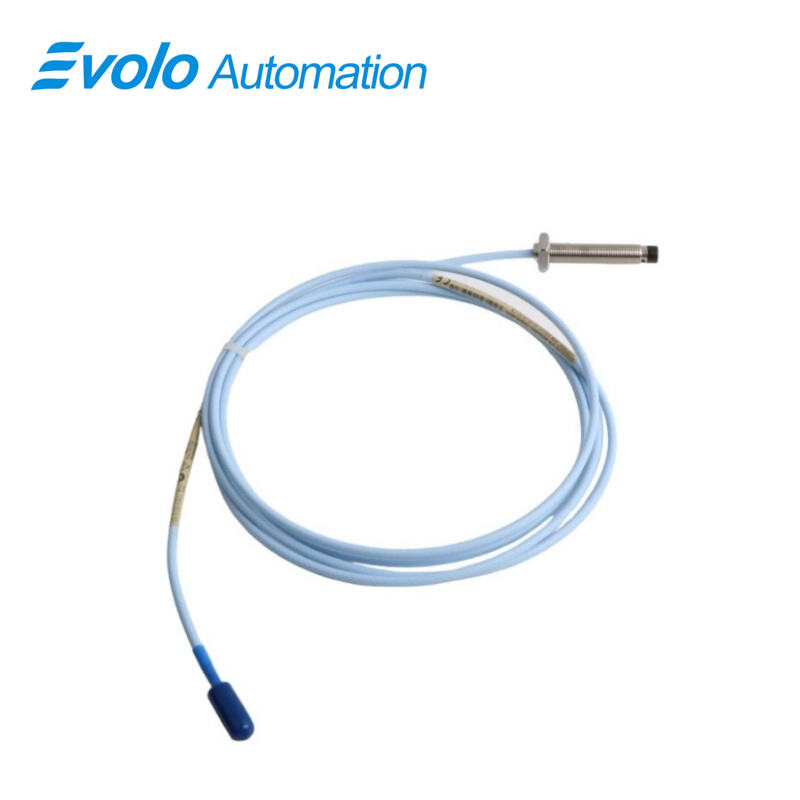

330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-20-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe delivers precise non-contacting measurements of both vibration and shaft position in automated machinery. With a 2 mm (80 mils) linear range, 50 Ω output resistance, and less than 2 mV/V supply sensitivity, the 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe converts shaft displacement into accurate electrical signals for real-time monitoring. Its M10x1 probe thread and 2.0-meter miniature coaxial ClickLoc cable allow flexible installation in tight spaces while maintaining reliable signal transmission. The probe’s extension cable capacitance of 69.9 pF/m (21.3 pF/ft) supports long cable runs, and field wiring accepts 16–24 AWG conductors. Approved by CSA, ATEX, and IECEx, the 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe is ideal for fluid-film bearing machines, enabling Keyphasor reference, speed measurements, and axial or radial displacement detection. Patented TipLoc molding and CableLoc designs provide a secure bond between probe tip and cable, while optional FluidLoc cables prevent leakage of oil or other liquids, ensuring continuous operation in automated industrial systems. All components are fully interchangeable with 3300 XL 5 mm and 8 mm probes, extension cables, and Proximitor sensors, simplifying upgrades and maintenance.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe measures radial and axial vibration on fluid-film bearing machines. Its 2 mm linear range and 50 Ω output resistance provide precise vibration data for real-time monitoring and automated control.

Shaft Position Measurement for Rotating Equipment
With a 2.0-meter miniature coaxial ClickLoc cable and M10x1 probe thread, the 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe accurately tracks shaft displacement in tight or confined spaces, enabling automated feedback in compressors, turbines, and pumps.

Keyphasor Signal Generation
The 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe provides precise Keyphasor reference signals for rotational speed and phase detection. Its less than 2 mV/V supply sensitivity ensures consistent signal output for automation systems.

Axial and Radial Displacement Detection
The probe’s extension cable capacitance of 69.9 pF/m (21.3 pF/ft) supports accurate measurement over long cable runs, allowing automated monitoring of axial and radial shaft positions on industrial machinery.

Specifications

Competitive Advantage

Secure Probe-to-Cable Connection
Patented CableLoc design provides 330 N pull strength, ensuring the 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe cable remains firmly attached during machine operation.

Leak Prevention for Industrial Environments
Optional FluidLoc cables prevent oil and other liquids from entering the probe interior, enabling the 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe to function reliably in automated systems exposed to fluids.

Flexible Installation Options
The 2.0-meter standard cable and M10x1 probe thread allow 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe to be installed in restricted spaces, sideview or rearview locations, accommodating tight industrial automation layouts.

Interchangeable System Components
All 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe components are compatible with 3300 XL 5 mm and 8 mm transducer systems, supporting quick upgrades and reducing maintenance downtime in automated processes.

High-Temperature Operation
The probe operates between -52°C to +177°C (-62°F to +350°F), allowing the 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe to deliver consistent output in high-temperature industrial environments.
