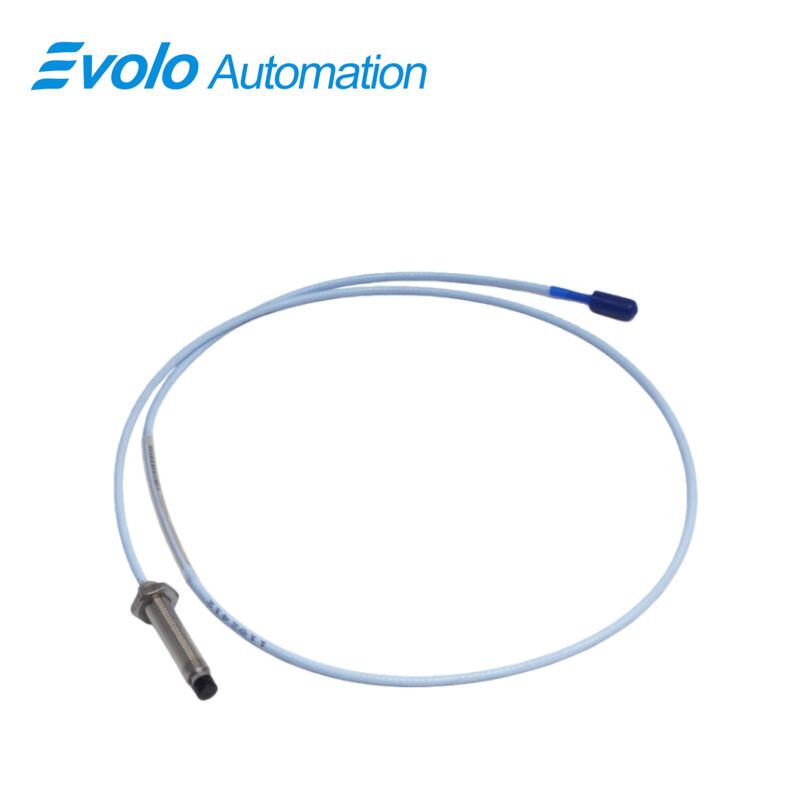

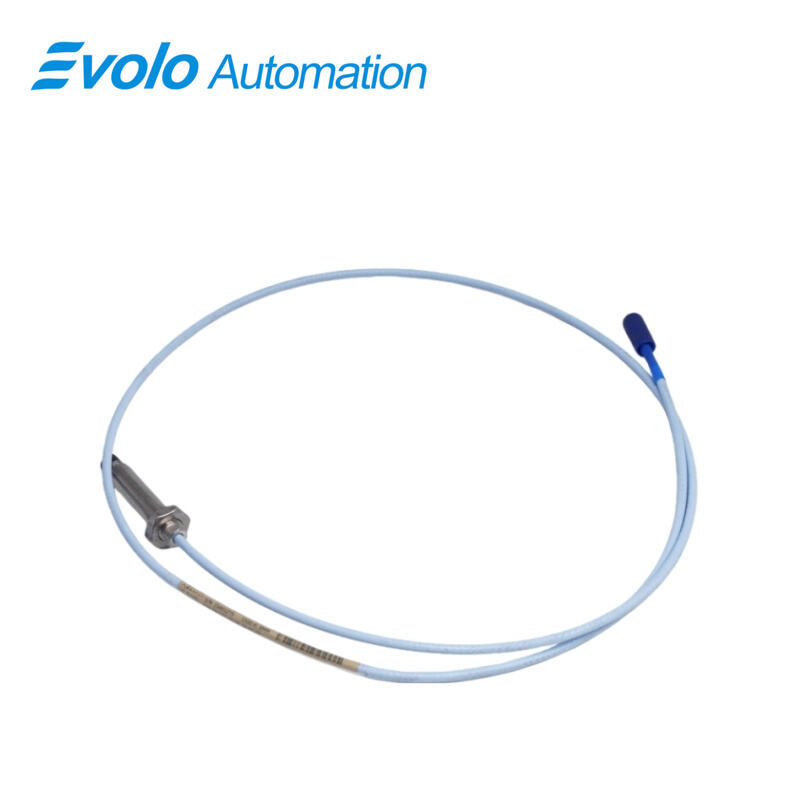

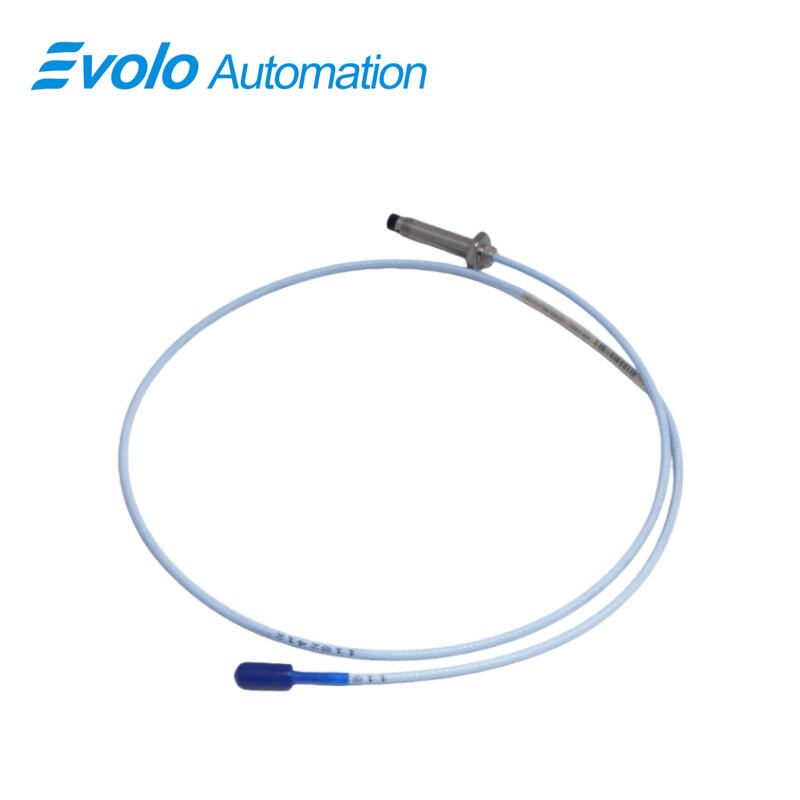

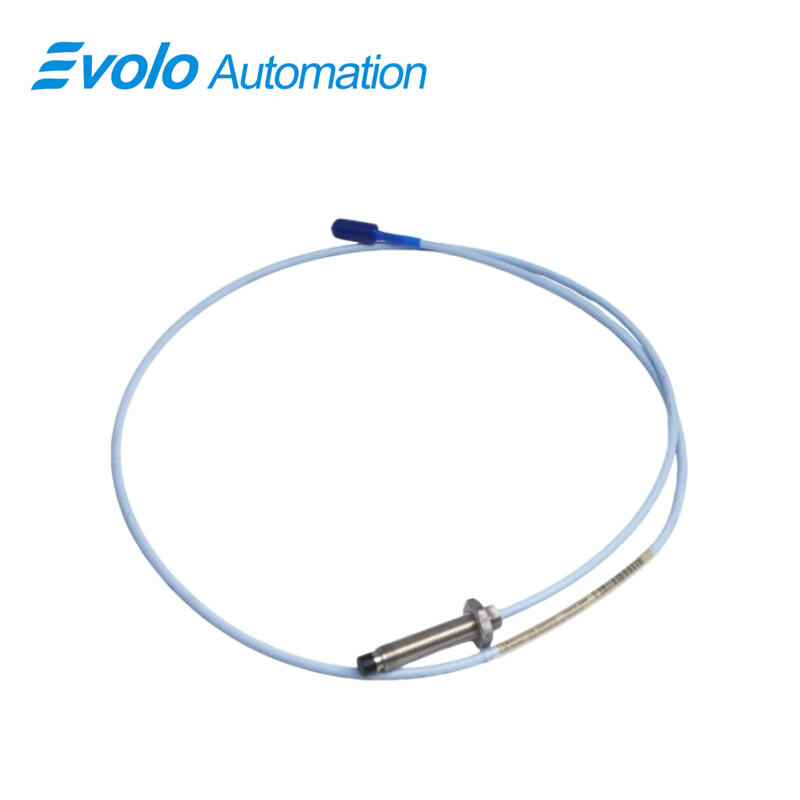

330103-00-05-10-12-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-10-12-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-05-10-12-00 3300 XL 8 mm Proximity Transducer System delivers an output voltage directly proportional to the distance between the probe tip and the conductive surface. With a 2 mm linear range, 50 mm overall case length, and 1.0 meter total length, the 330103-00-05-10-12-00 3300 XL 8 mm probe measures both static (position) and dynamic (vibration) signals in fluid-film bearing machines. The M10x1 threaded case with 15 mm engagement, ClickLoc connector, and optional FluidLoc cable ensures secure installation and prevents fluid leakage. The 330103-00-05-10-12-00 3300 XL 8 mm probe operates across -52°C to +177°C, with extension cable capacitance of 69.9 pF/m and field wiring from 16 to 24 AWG, supporting precise automated monitoring.

Applications

Monitor Shaft Vibration
Use the 330103-00-05-10-12-00 3300 XL 8 mm probe to track dynamic shaft vibrations. With a 50 Ω output resistance and 2 mm linear range, the 330103-00-05-10-12-00 3300 XL 8 mm delivers precise signal measurements for fluid-film bearing machines in automated monitoring systems.

Measure Axial Shaft Position
Install the 330103-00-05-10-12-00 3300 XL 8 mm probe to detect axial displacement in turbines or motors. Its 1.0 meter total length and M10x1 threaded probe case with 15 mm engagement allow accurate axial position measurement in compact machine assemblies.

Generate Keyphasor Signals
The 330103-00-05-10-12-00 3300 XL 8 mm probe outputs Keyphasor signals for speed and phase detection. Its miniature coaxial ClickLoc connector and 69.9 pF/m extension cable capacitance ensure reliable phase reference signals for automated control systems.

Detect Rod Drop in Compressors
Use the 330103-00-05-10-12-00 3300 XL 8 mm probe to measure rod drop in reciprocating compressors. With field wiring support from 16 to 24 AWG, the 330103-00-05-10-12-00 3300 XL 8 mm provides secure signal transmission directly to machinery protection and control modules.

Specifications

Competitive Advantage

Secure Cable Attachment
The 330103-00-05-10-12-00 3300 XL 8 mm probe incorporates a patented CableLoc design with 330 N pull strength, firmly attaching the probe cable and tip to maintain continuous signal integrity in industrial environments.

Prevent Fluid Leakage
Optional FluidLoc cable for the 330103-00-05-10-12-00 3300 XL 8 mm probe prevents oil and other liquids from escaping through the probe cable, ensuring consistent measurement and minimal maintenance.

Flexible System Upgrade
The 330103-00-05-10-12-00 3300 XL 8 mm probe is backward compatible with 3300 series Proximitor sensors and extension cables. Its 1.0 meter cable and 2 mm linear range allow quick integration into existing monitoring systems without bench recalibration.

Operate in Extreme Temperatures
The 330103-00-05-10-12-00 3300 XL 8 mm probe functions from -52°C to +177°C (-62°F to +350°F), enabling precise vibration and position measurement under severe thermal conditions.

High Signal Precision
The 330103-00-05-10-12-00 3300 XL 8 mm probe maintains less than 2 mV change per volt of supply fluctuation and 50 Ω output resistance, ensuring accurate measurements for automated machinery protection systems.
