Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-00-05-05-12-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
50 mm |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
108x1.8x1.5cm |
|
Weight: |
0.06 kg |
Description

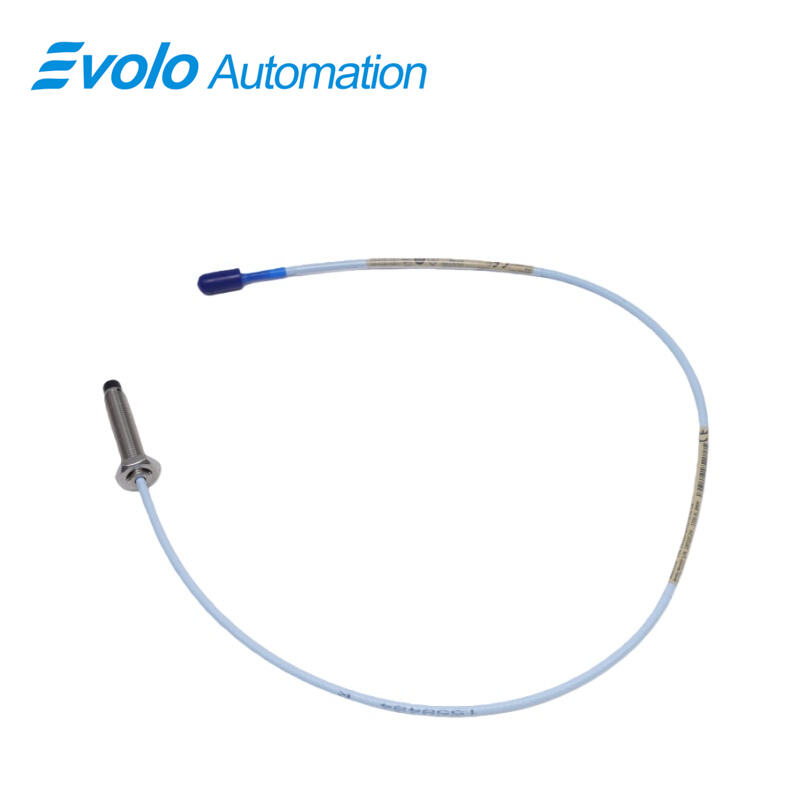

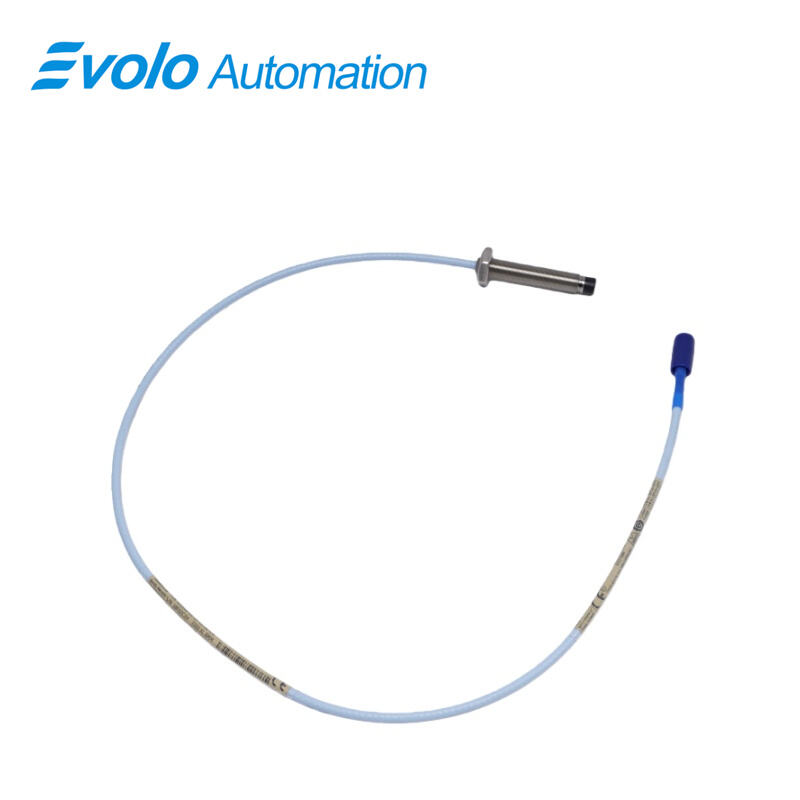

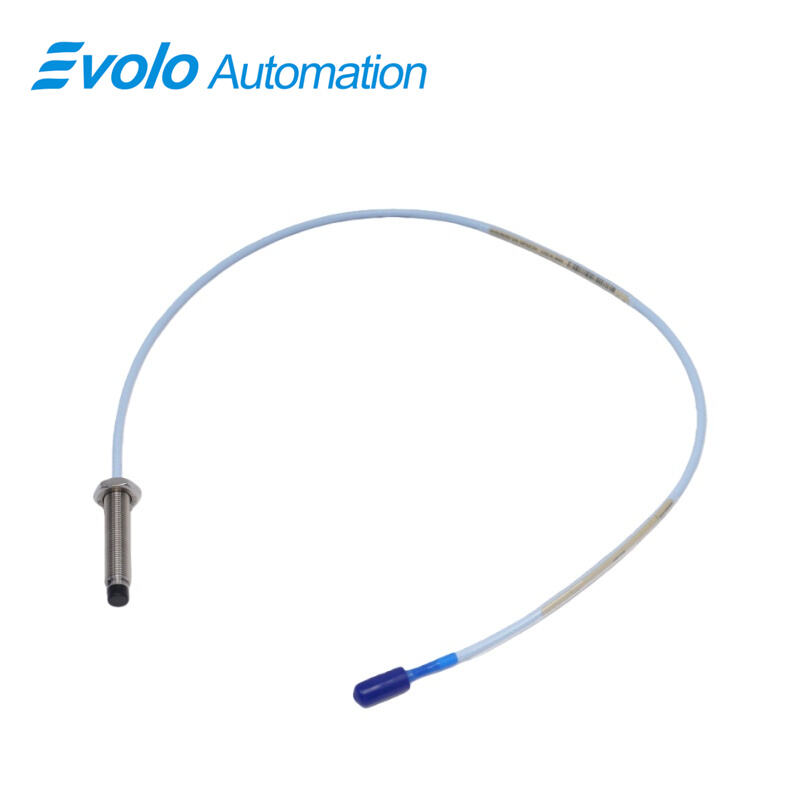

The 330103-00-05-05-12-05 3300 XL 8 mm Proximity Probe is engineered for advanced industrial automation and condition monitoring, providing precise vibration and displacement measurements on rotating machinery. The 330103-00-05-05-12-05 probe delivers a linear output directly proportional to the distance between the probe tip and the conductive surface, enabling both dynamic and static measurements. With a 2 mm linear range, 50 mm overall case length, 0.5 m total length, M10x1 threaded mounting, and optional FluidLoc cable, the 330103-00-05-05-12-05 probe ensures stable signal transmission and reliable operation across −52°C to +177°C environments. CSA, ATEX, and IECEx approvals allow deployment in hazardous areas, while patented TipLoc and CableLoc designs provide 330 N pull strength and a secure probe-cable bond, making the 330103-00-05-05-12-05 probe ideal for automated monitoring of turbines, compressors, pumps, and other critical fluid-film bearing machines.
Applications
Turbine Shaft Vibration Monitoring
The 330103-00-05-05-12-05 probe monitors rotor vibration across −52°C to +177°C using a 2 mm linear range, providing precise Keyphasor and speed reference signals for automated DCS systems.
Compressor Bearing Position Control
Installed in fluid-film compressors, the 330103-00-05-05-12-05 probe’s M10x1 thread and 0.5 m cable length allow accurate axial shaft position measurement for predictive maintenance and trip protection.
Industrial Pump Shaft Displacement
The 330103-00-05-05-12-05 probe delivers reliable displacement feedback using ClickLoc connectors and FluidLoc cable, preventing oil ingress and integrating into automated monitoring platforms for process optimization.
Zero-Speed & Keyphasor Reference
With 50 Ω output and <2 mV/V sensitivity, the 330103-00-05-05-12-05 probe provides high-fidelity signals for speed detection and Keyphasor reference in automated plant control systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Automation-Ready Design
The 330103-00-05-05-12-05 probe’s FluidLoc cable, ClickLoc connectors, and robust TipLoc bonding ensure reliable performance in automated DCS, SCADA, and vibration monitoring systems.
Compact & Flexible Installation
With 50 mm case length and 0.5 m total probe length, the 330103-00-05-05-12-05 probe can be installed in confined machinery housings without compromising measurement accuracy.
High Thermal & Mechanical Reliability
Operating from −52°C to +177°C and with 330 N pull strength, the 330103-00-05-05-12-05 probe withstands extreme vibration and temperature cycles common in turbines, compressors, and pumps.
API 670 Compliance & Signal Integrity
The 330103-00-05-05-12-05 probe maintains linear range, accuracy, and stable output for automated monitoring, fully compatible with 3300 series 5 mm and 8 mm transducer systems.
