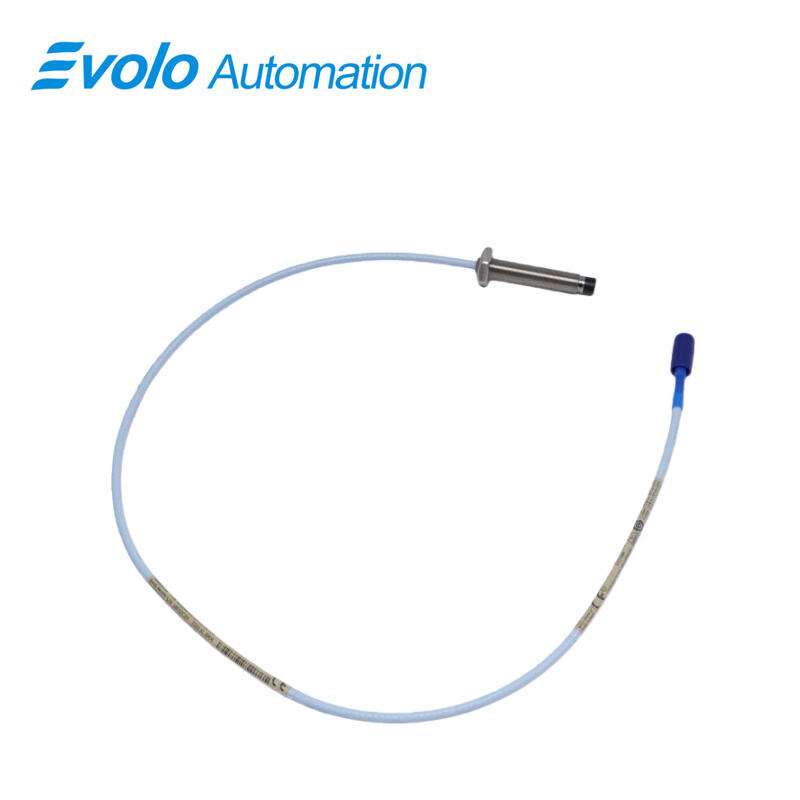

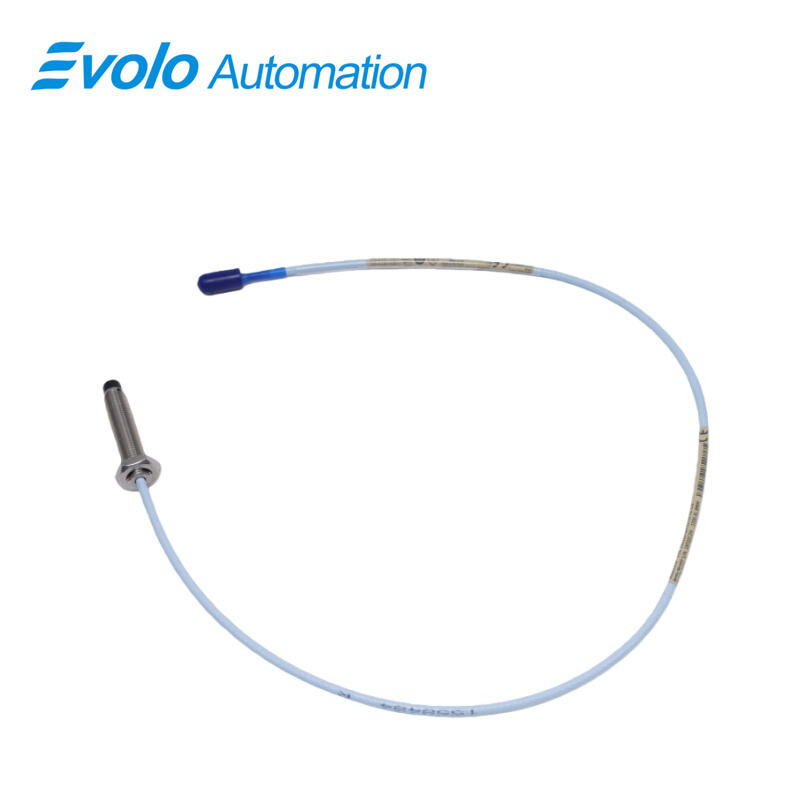

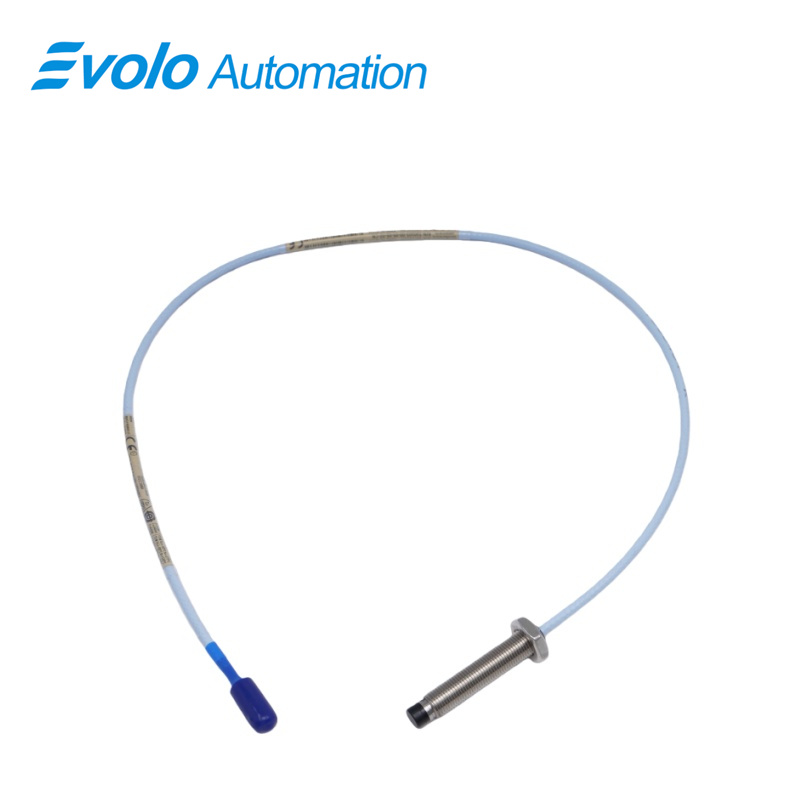

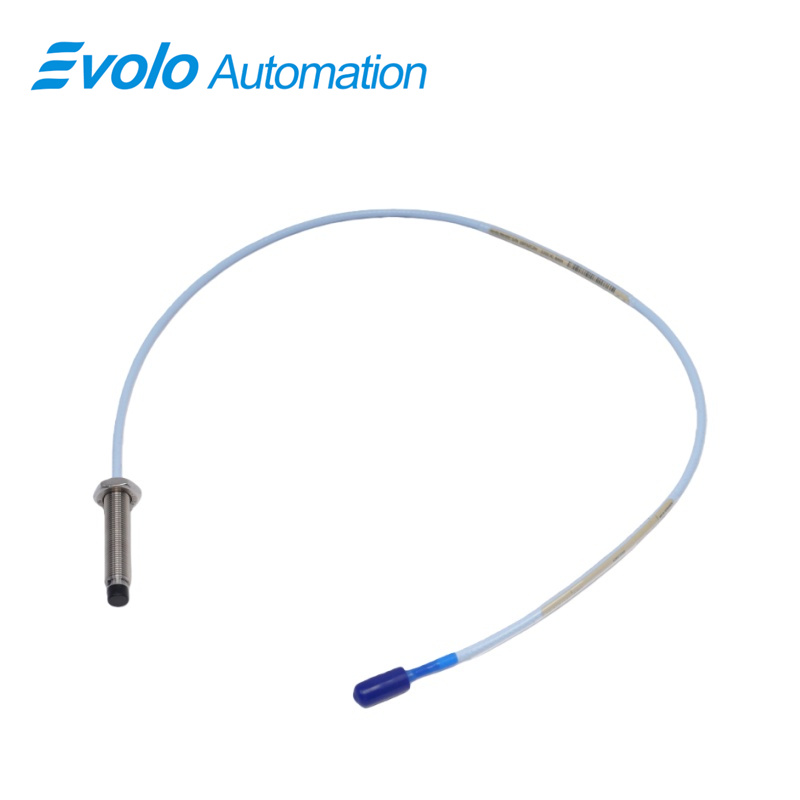

330103-00-05-05-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-05-05-02-00 3300 XL 8 mm Proximity Probe provides precise output voltage proportional to the distance between the probe tip and the conductive surface. Designed for automated monitoring, the 330103-00-05-05-02-00 3300 XL 8 mm Proximity Probe measures both static position and dynamic vibration on fluid-film bearing machines. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, and supply sensitivity below 2 mV per volt, the 330103-00-05-05-02-00 3300 XL 8 mm Proximity Probe ensures reliable signal for Keyphasor reference and speed detection. Its overall case length of 50 mm, M10x1 probe thread, and 0.5 meter total length allow installation in tight spaces. The miniature coaxial ClickLoc connector and standard cable support automated system integration. The 330103-00-05-05-02-00 3300 XL 8 mm Proximity Probe also offers enhanced pull strength of 330 N via CableLoc design, and optional FluidLoc cable prevents oil leakage, making it ideal for automation in high-demand industrial machinery.

Applications

Radial Vibration Measurement on Fluid-Film Bearings
The 330103-00-05-05-02-00 3300 XL 8 mm Proximity Probe measures radial vibration on shafts with diameters down to 50 mm (2 in). Its linear range of 2 mm (80 mils) and supply sensitivity below 2 mV per volt allow accurate vibration monitoring in automated systems.

Axial (Thrust) Position Monitoring
Using the 330103-00-05-05-02-00 3300 XL, axial position of flat targets less than 15 mm (0.6 in) can be detected. The output resistance of 50 Ω ensures consistent signal transfer to automation controllers.

Speed Detection and Keyphasor Reference
The 330103-00-05-05-02-00 3300 XL supports Keyphasor and zero-speed measurements, providing precise timing and phase data for rotational equipment. Its 0.5-meter cable with ClickLoc connector integrates directly with control systems.

Tight Space Installation
The 330103-00-05-05-02-00 3300 XL with overall case length of 50 mm and M10x1 probe thread can be installed where space is limited, such as inside compact compressors or pumps.

Specifications

Competitive Advantage

Enhanced Cable Security
The 330103-00-05-05-02-00 3300 XL features the CableLoc design providing 330 N pull strength, securing the probe cable to the tip and maintaining signal integrity in automated monitoring.

Fluid Containment with Optional Cable
The optional FluidLoc cable of the 330103-00-05-05-02-00 3300 XL prevents oil or liquid leakage through the cable interior, ensuring reliable operation in process machinery.

Direct Output Correlation
The 330103-00-05-05-02-00 3300 XL provides output voltage directly proportional to probe-target distance, making data interpretation straightforward for automation systems without additional calibration.

Wide Temperature Operation
The 330103-00-05-05-02-00 3300 XL operates from -52°C to +177°C, enabling automated monitoring in high-temperature compressors and harsh environments.

Interchangeable Integration
The 330103-00-05-05-02-00 3300 XL probe is mechanically compatible with existing 3300 XL extension cables and Proximitor sensors, allowing automation upgrades without replacing supporting components.
