Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-00-04-10-02-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
40 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x123cm |
|
Weight: |
0.06 kg |
Description

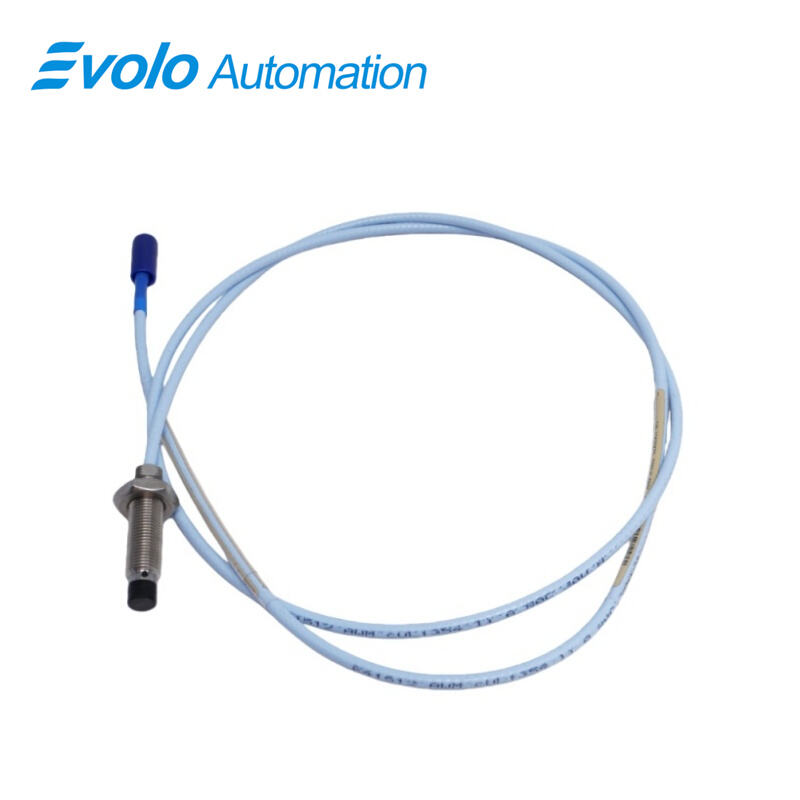

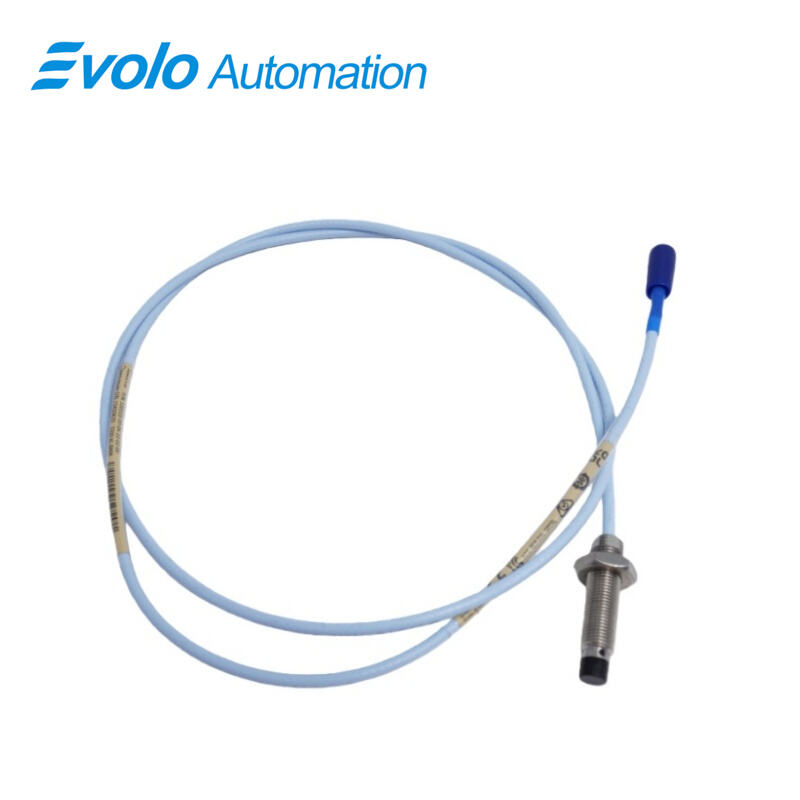

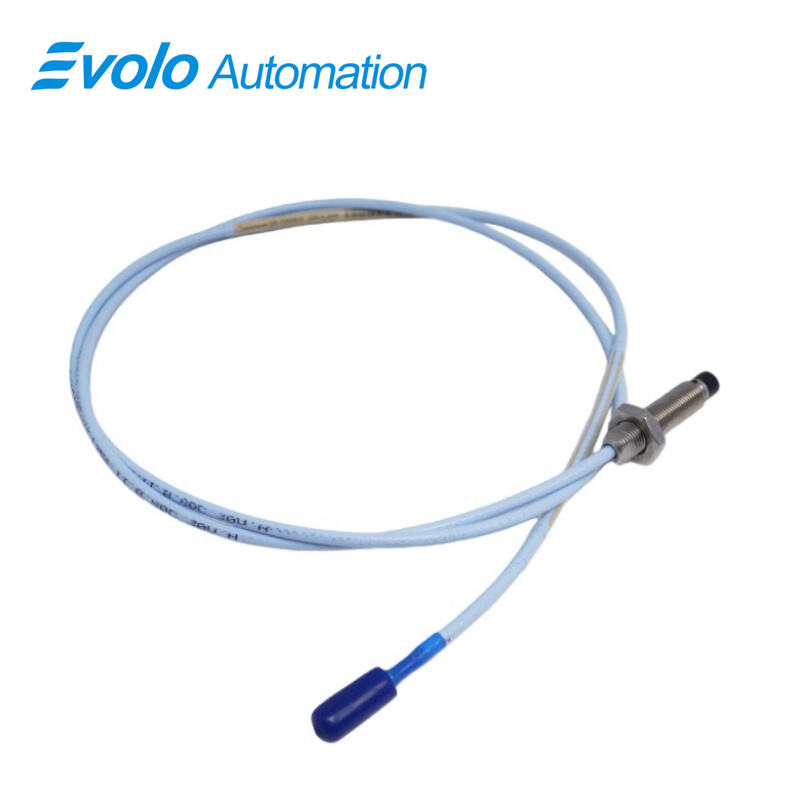

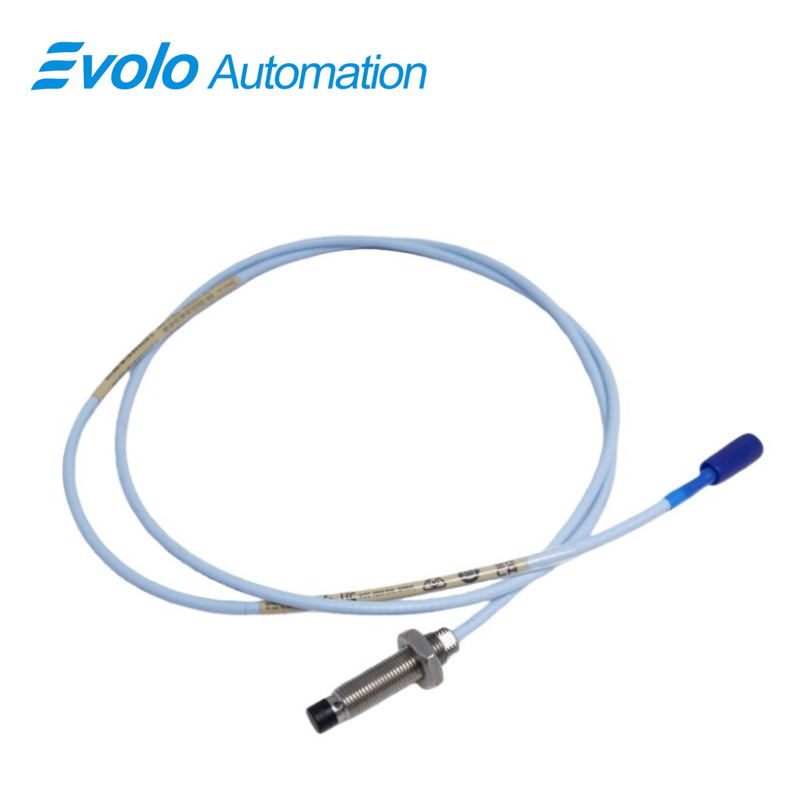

The 330103-00-04-10-02-CN 3300 XL 8 mm Proximity Probe delivers a voltage output directly proportional to the distance between its probe tip and conductive surfaces. With a 2 mm linear range and 50 Ω output resistance, the 330103-00-04-10-02-CN accurately measures both static position and dynamic vibration on fluid-film bearing machines. Its 1.0 meter standard cable with 69.9 pF/m capacitance and miniature ClickLoc connector supports seamless integration into automated monitoring systems. The probe operates across -52°C to +177°C and threads into machinery using M10x1 with 15 mm engagement. Approved by CSA, ATEX, and IECEx, the 330103-00-04-10-02-CN 3300 XL 8 mm Proximity Probe enables precise Keyphasor speed measurements and automated shaft position feedback while preventing oil leakage with optional FluidLoc cabling. This probe is compatible with extension cables and Proximitor sensors for rapid deployment in industrial automation systems.
Applications
Monitor Shaft Vibration on Fluid-Film Bearings
Use the 330103-00-04-10-02-CN 3300 XL 8 mm Proximity Probe with its 2 mm linear range and 50 Ω output resistance to measure vibration amplitudes on turbines and pumps, enabling precise automated shaft position monitoring.
Automated Keyphasor Speed Measurement
Integrate the 330103-00-04-10-02-CN 3300 XL 8 mm Proximity Probe into Keyphasor systems. Its 1.0 meter standard cable and 69.9 pF/m capacitance ensure accurate rotation speed pulses for automated process control.
Position Feedback in Rotating Equipment
The 330103-00-04-10-02-CN 3300 XL 8 mm Proximity Probe outputs linear voltage proportional to displacement, supporting real-time automated control and analysis in industrial machinery.
Fluid Containment Monitoring
With optional FluidLoc cabling, the 330103-00-04-10-02-CN 3300 XL 8 mm Proximity Probe prevents oil leaks while measuring positions in lubricated environments, maintaining reliable automated monitoring.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Precision Measurement
The 330103-00-04-10-02-CN 3300 XL 8 mm Proximity Probe provides precise 2 mm linear range and 50 Ω output, delivering repeatable, automation-ready position and vibration measurements.
Rapid Installation and Integration
Miniature ClickLoc connector and M10x1 mounting thread on the 330103-00-04-10-02-CN 3300 XL 8 mm Proximity Probe allow fast deployment into existing automated systems.
Wide Operating Temperature Range
The 330103-00-04-10-02-CN 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C, ensuring continuous data capture in extreme industrial conditions.
Compatibility with Extension Cables and Proximitor Sensors
The 330103-00-04-10-02-CN 3300 XL 8 mm Proximity Probe works seamlessly with standard 1.0-meter cables (69.9 pF/m) and Proximitor sensors, enabling flexible automated system layouts.
