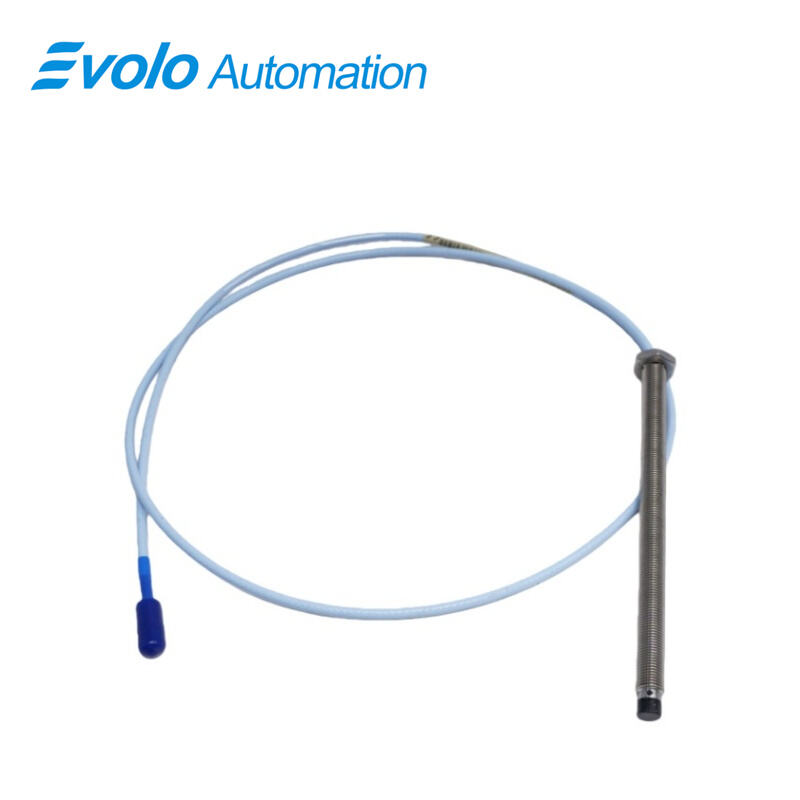

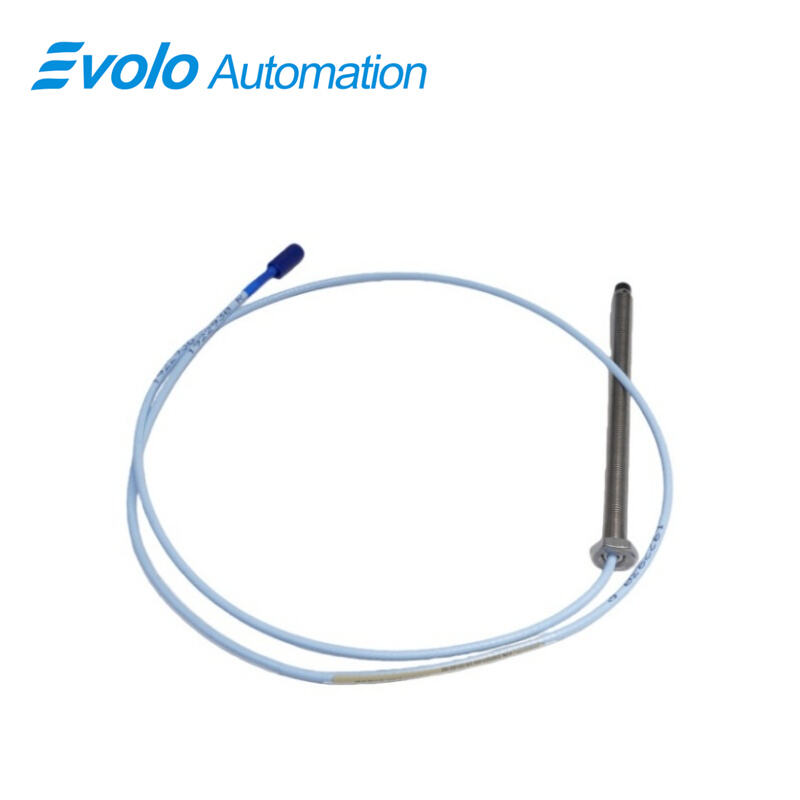

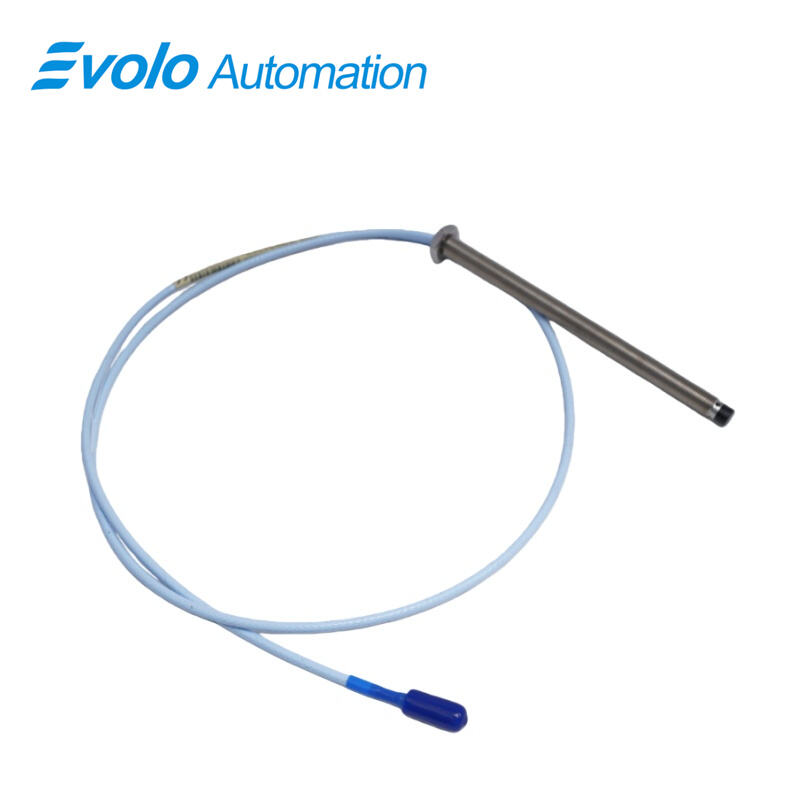

330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-04-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe is an advanced eddy current transducer designed for industrial automation and predictive maintenance applications. The 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe delivers an output voltage directly proportional to the distance between the probe tip and the measured conductive surface, enabling precise static position and dynamic vibration measurements. Featuring a linear range of 2 mm (80 mils), output resistance of 50 Ω, and supply sensitivity of less than 2 mV per volt, the 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe ensures accurate, repeatable readings in automated monitoring systems. Its M10x1 probe thread with 15 mm maximum engagement, overall case length of 40 mm, and total length of 1.0 meter (3.3 feet) allow easy integration with Proximitor sensors and standard extension cables. The 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe operates reliably across extreme conditions, from -52°C to +177°C (-62°F to +350°F), and supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) with extension cable capacitance of 69.9 pF/m (21.3 pF/ft). Fully compliant with CSA, ATEX, and IECEx standards, the 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe also incorporates patented TipLoc molding for a robust probe tip bond and CableLoc design providing 330 N (75 lbf) pull strength. An optional FluidLoc cable prevents oil and liquid leakage, ensuring long-term reliable performance in fluid-film bearing machines, Keyphasor reference measurements, speed monitoring, and automated condition monitoring systems. The 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe combines high accuracy, durability, and backward compatibility for seamless integration into modern industrial automation setups.

Applications

Vibration Monitoring on Fluid-Film Bearing Machines
The 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe is designed for precise vibration monitoring on fluid-film bearing machines. Its linear range of 2 mm (80 mils) and supply sensitivity of less than 2 mV per volt allow accurate measurement of both radial and axial vibrations. The probe’s total length of 1.0 meter (3.3 feet) and M10x1 thread with 15 mm maximum engagement make it easy to install in automated monitoring systems, while its output resistance of 50 Ω ensures reliable signal transmission to Proximitor sensors in industrial automation setups.

Static and Dynamic Position Measurements
With the 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe, static position and dynamic movement of rotating machinery can be accurately captured. The miniature coaxial ClickLoc connector and 40 mm overall case length support integration with standard extension cables. Operating and storage temperatures from -52°C to +177°C (-62°F to +350°F) allow the 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe to function reliably in extreme industrial conditions.

Keyphasor Reference and Speed Detection
The 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe provides Keyphasor reference signals for rotational speed measurements. With extension cable capacitance of 69.9 pF/m (21.3 pF/ft) and compatibility with field wiring from 0.2 to 1.5 mm² (16–24 AWG), the probe delivers consistent, high-fidelity signals to machinery control and predictive maintenance systems in automation environments.

Specifications

Competitive Advantage

High Precision and Measurement Stability
The 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe delivers exceptional measurement accuracy for both static and dynamic applications. With a linear range of 2 mm (80 mils) and an output resistance of 50 Ω, this probe ensures that distance-to-voltage conversion remains precise and repeatable under varying load conditions. The supply sensitivity of less than 2 mV change per volt of input voltage guarantees consistent readings even in fluctuating power supply environments, making the 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe ideal for automation systems requiring reliable vibration or position monitoring.

Extreme Temperature and Environmental Durability
Engineered to operate in harsh industrial environments, the 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe can withstand operating temperatures from -52°C to +177°C (-62°F to +350°F) and storage temperatures of the same range. The probe’s 40 mm overall case length, M10x1 thread, and 15 mm maximum thread engagement provide robust mechanical stability, while the miniature coaxial ClickLoc connector ensures secure and corrosion-resistant electrical connections. This high durability allows the 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe to perform reliably in automated systems exposed to extreme heat, vibration, or contamination.

Robust Mechanical and Electrical Construction
The 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe features Bently Nevada’s patented TipLoc molding method, providing a strong bond between the probe tip and probe body, and the CableLoc design, which delivers 330 N (75 lbf) pull strength. These mechanical enhancements prevent disconnection or signal degradation in automated condition monitoring systems. The extension cable’s capacitance of 69.9 pF/m (21.3 pF/ft) and field wiring capability of 0.2–1.5 mm² (16–24 AWG) ensure that the 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe delivers consistent signals over long distances with minimal loss, even in industrial automation networks.
