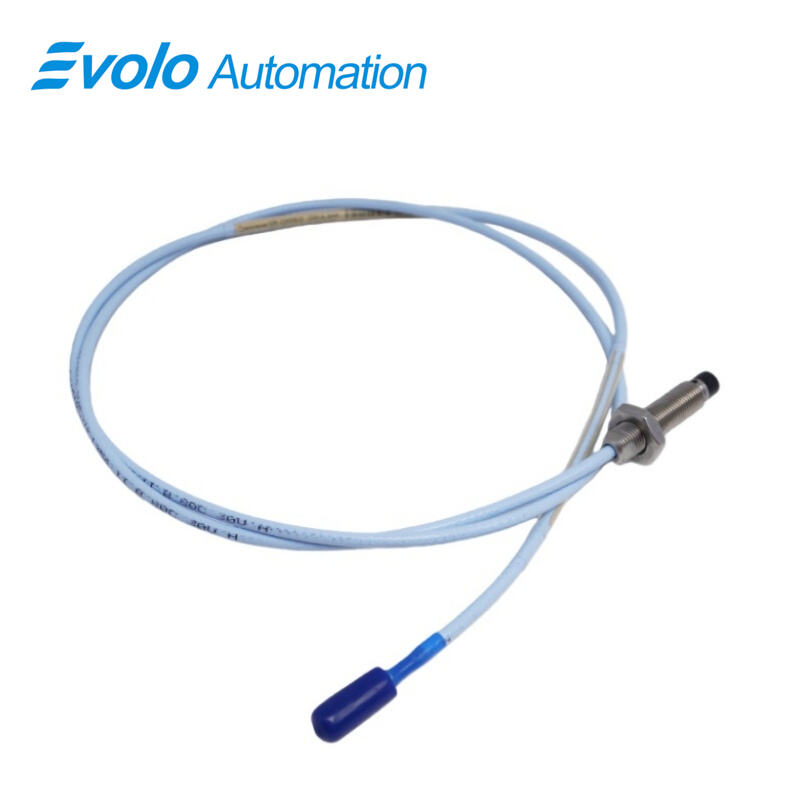

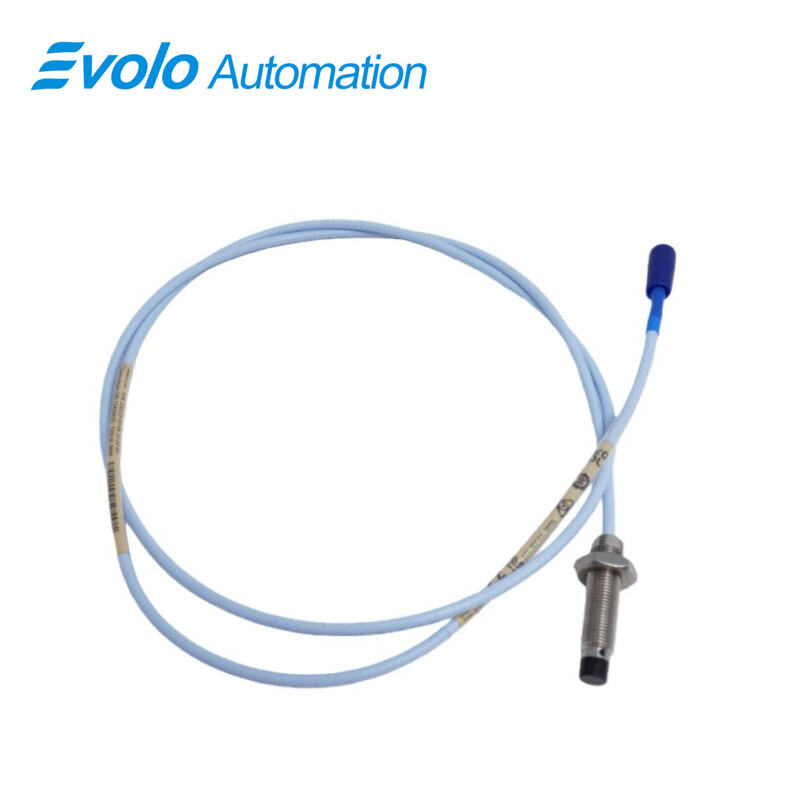

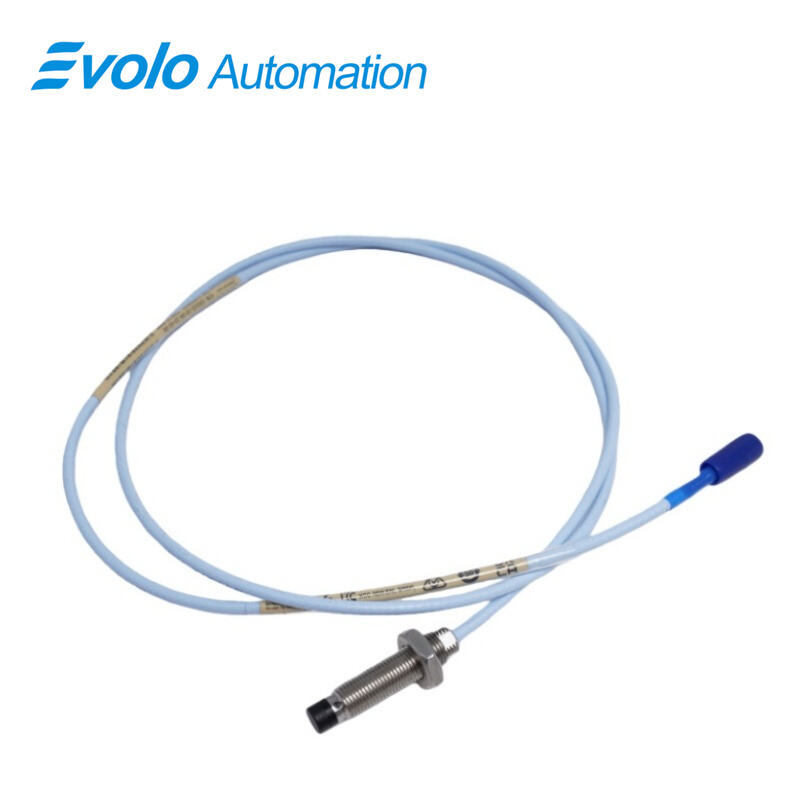

330103-00-04-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-04-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-04-10-02-00 3300 XL 8 mm Proximity Probe provides precise distance measurement between the probe tip and conductive surfaces, enabling both static position and dynamic vibration monitoring in automated fluid-film bearing machines. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, and supply sensitivity below 2 mV per volt input, the 330103-00-04-10-02-00 ensures accurate vibration, position, Keyphasor, and speed measurements. The 330103-00-04-10-02-00 features an M10x1 threaded stainless steel case, maximum thread engagement of 15 mm, and 1.0-meter miniature coaxial ClickLoc cable, providing secure connection in automation systems. Extension cable capacitance of 69.9 pF/m and field wiring support for 16–24 AWG allow reliable signal transmission over distance. Operating temperatures from -52°C to +177°C (-62°F to +350°F) enable the 330103-00-04-10-02-00 to perform in harsh industrial environments. Patented TipLoc and CableLoc designs on the 330103-00-04-10-02-00 improve probe-tip bonding and cable attachment with 330 N (75 lbf) pull strength, while optional FluidLoc cabling prevents oil and liquid ingress. The 330103-00-04-10-02-00 3300 XL 8 mm Proximity Probe is fully compatible with other 3300 series components, allowing easy replacement, system expansion, or upgrades in automated monitoring applications.

Applications

Application – Measure Radial Vibration on Shafts
The 330103-00-04-10-02-00 3300 XL 8 mm Proximity Probe measures radial vibration on shafts in fluid-film bearing machines. With a linear range of 2 mm (80 mils) and output resistance of 50 Ω, the 330103-00-04-10-02-00 provides accurate vibration data for automated monitoring and predictive maintenance systems.

Application – Monitor Shaft Position Changes
The 330103-00-04-10-02-00 probe captures static position shifts on machine shafts. Its M10x1 threaded stainless steel case, maximum thread engagement of 15 mm, and 1.0-meter miniature coaxial ClickLoc cable allow flexible installation in tight spaces for automated measurement setups.

Application – Collect Keyphasor and Speed Signals
The 330103-00-04-10-02-00 3300 XL 8 mm Proximity Probe delivers Keyphasor and speed signals with high precision. Its supply sensitivity below 2 mV per volt input and field wiring for 16–24 AWG ensure consistent data for automated monitoring systems in industrial environments.

Specifications

Competitive Advantage

Competitive Advantage – Secure Probe and Cable Attachment
Patented TipLoc and CableLoc designs on the 330103-00-04-10-02-00 provide strong mechanical bonding between the probe tip and cable, supporting automated monitoring without frequent maintenance. The 330103-00-04-10-02-00 can withstand 330 N (75 lbf) pull strength, ensuring reliable operation.

Competitive Advantage – Operate in High-Temperature Environments
The 330103-00-04-10-02-00 probe operates from -52°C to +177°C (-62°F to +350°F), allowing use in high-temperature industrial machinery while maintaining accurate position and vibration measurements.

Competitive Advantage – Reliable Signal Transmission
The 330103-00-04-10-02-00 3300 XL 8 mm Proximity Probe features extension cable capacitance of 69.9 pF/m, supporting consistent signal output over its 1.0-meter cable, ensuring precise readings in automated monitoring applications.
