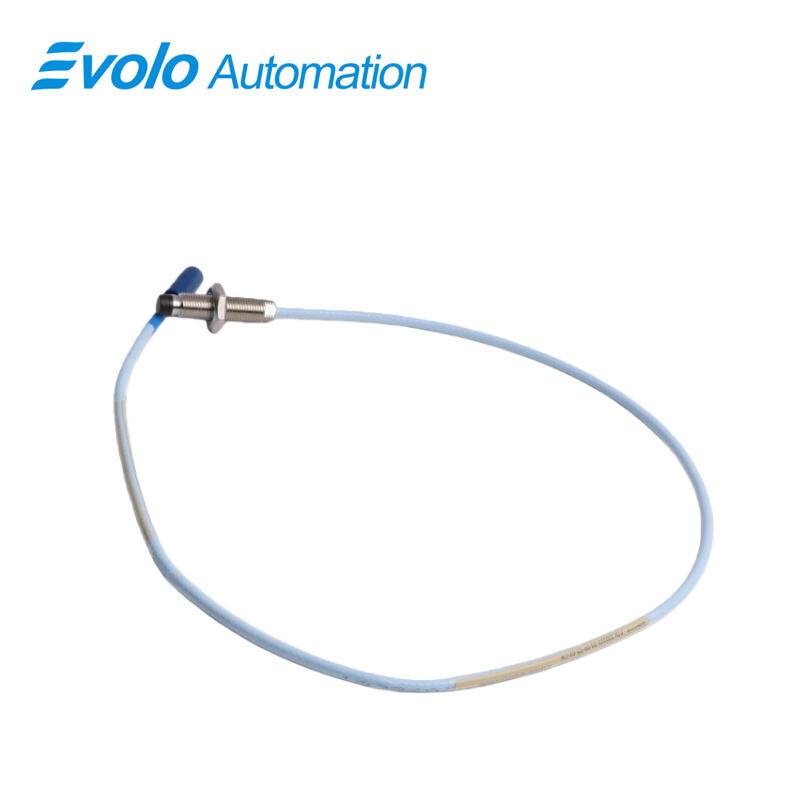

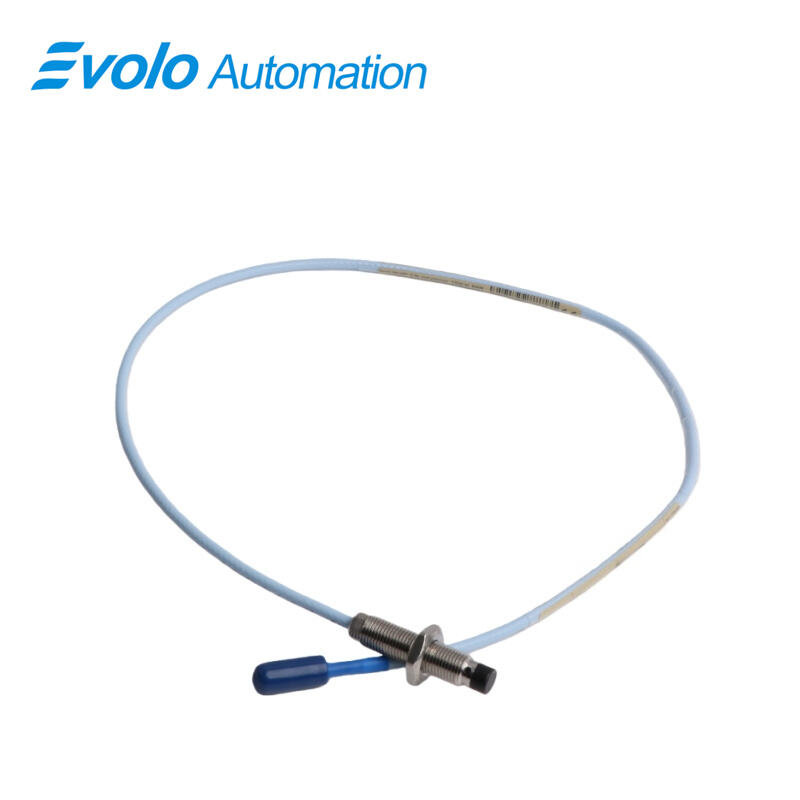

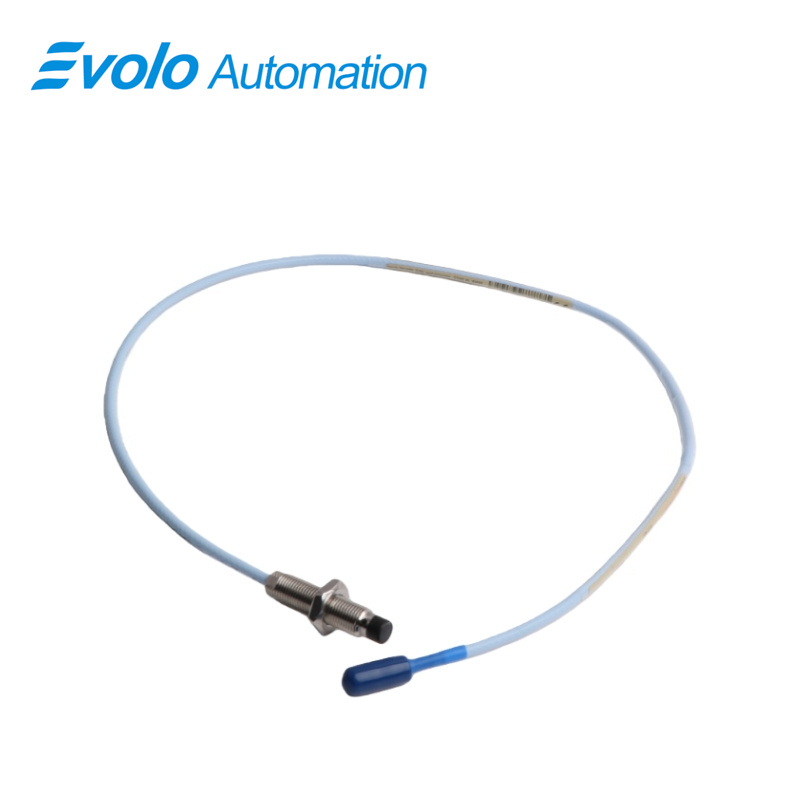

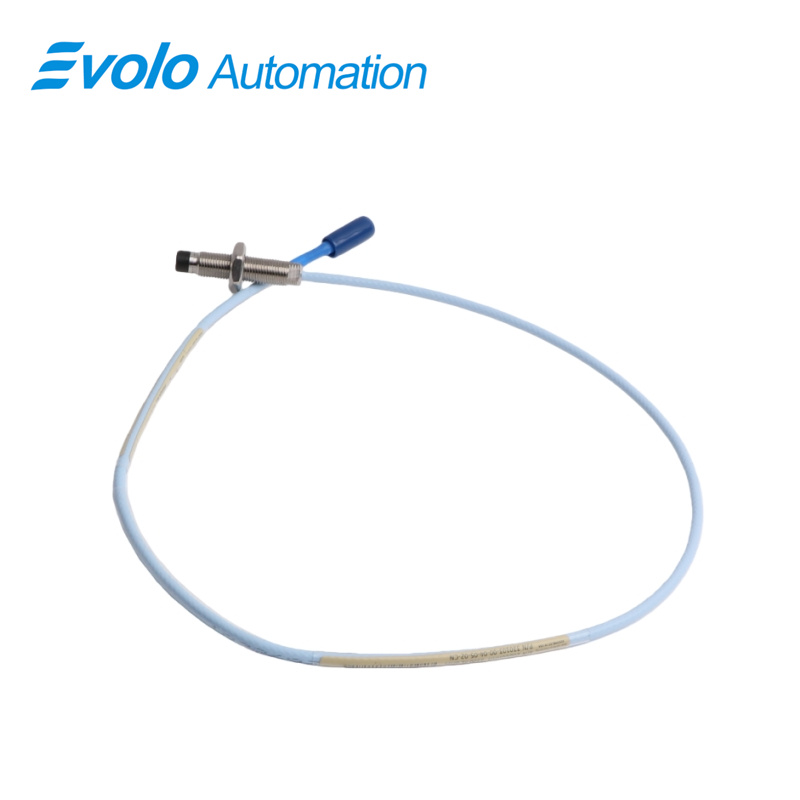

330103-00-04-05-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-04-05-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-04-05-12-05 3300 XL 8 mm Proximity Probe provides a direct output voltage proportional to the distance between the probe tip and the measured conductive surface, enabling precise static (position) and dynamic (vibration) measurements. The 330103-00-04-05-12-05 3300 XL 8 mm Proximity Probe features an M10 x 1 threaded case with 15 mm maximum thread engagement, a 0.5-meter total length, and FluidLoc cable with Miniature ClickLoc connector, supporting automation applications in fluid-film bearing machines. With 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, the 330103-00-04-05-12-05 3300 XL 8 mm Proximity Probe delivers repeatable measurement signals for Keyphasor reference and speed monitoring. Operating between -52°C and +177°C, and compliant with CSA, ATEX, and IECEx approvals, this 330103-00-04-05-12-05 3300 XL 8 mm Proximity Probe ensures reliable installation in automated systems. Patented TipLoc and CableLoc designs provide 330 N pull strength, while the optional FluidLoc cable prevents oil leakage, maintaining continuous automated feedback without manual intervention. The 330103-00-04-05-12-05 3300 XL 8 mm Proximity Probe is fully interchangeable with other 3300 XL and 5 mm probes, simplifying integration and reducing setup time in industrial monitoring systems.

Applications

Application – Shaft Vibration Monitoring
The 330103-00-04-05-12-05 3300 XL 8 mm probe measures turbine shaft vibration with a linear range of 2 mm, enabling automated systems to detect ±80 mils displacement in real time. The 50 Ω output resistance ensures signal integrity across 0.5 m to 5 m extension cables, supporting high-frequency monitoring for fluid-film bearings.

Application – Rotor Position Control
With a 2 mm linear range and 69.9 pF/m cable capacitance, the 330103-00-04-05-12-05 3300 XL 8 mm probe delivers precise rotor position data to automated control loops. Input sensitivity <2 mV/V allows consistent output despite voltage fluctuations, critical for compressors and pumps in real-time control systems.

Application – Rod Drop Detection in Reciprocating Machines
The 330103-00-04-05-12-05 3300 XL 8 mm measures rod displacement from 0.25 mm to 2 mm, integrating directly into automated monitoring systems to trigger alarms or corrective actions when displacement exceeds safe thresholds. The probe’s high-temperature tolerance (-52°C to +177°C) allows operation in harsh reciprocating compressor environments.

Specifications

Competitive Advantage

Competitive Advantage – Strong Cable Retention
The CableLoc design on the 330103-00-04-05-12-05 3300 XL 8 mm provides 330 N pull strength, ensuring the probe remains securely attached under machine vibration. This parameter supports uninterrupted automated data collection, reducing false alarms.

Competitive Advantage – Fluid Leakage Prevention
Optional FluidLoc on the 330103-00-04-05-12-05 3300 XL 8 mm prevents oil ingress, maintaining electrical isolation and signal quality. The 0.5 m standard cable ensures proper routing without leakage, supporting reliable automated monitoring in fluid-laden systems.

Competitive Advantage – Backward Compatibility and Interchangeability
The 330103-00-04-05-12-05 3300 XL 8 mm probe is fully compatible with 3300 XL 5 mm and 8 mm systems. Combined with the 50 Ω output resistance and <2 mV/V supply sensitivity, this allows seamless integration into existing automated systems without recalibration, simplifying upgrades.

Competitive Advantage – Extreme Temperature Performance
Operating from -52°C to +177°C, the 330103-00-04-05-12-05 3300 XL 8 mm ensures accurate output across a wide thermal range. The 2 mm linear range and stable output enable automated systems to continue precise monitoring in environments with rapid temperature changes.
