330103-00-04-05-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-04-05-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

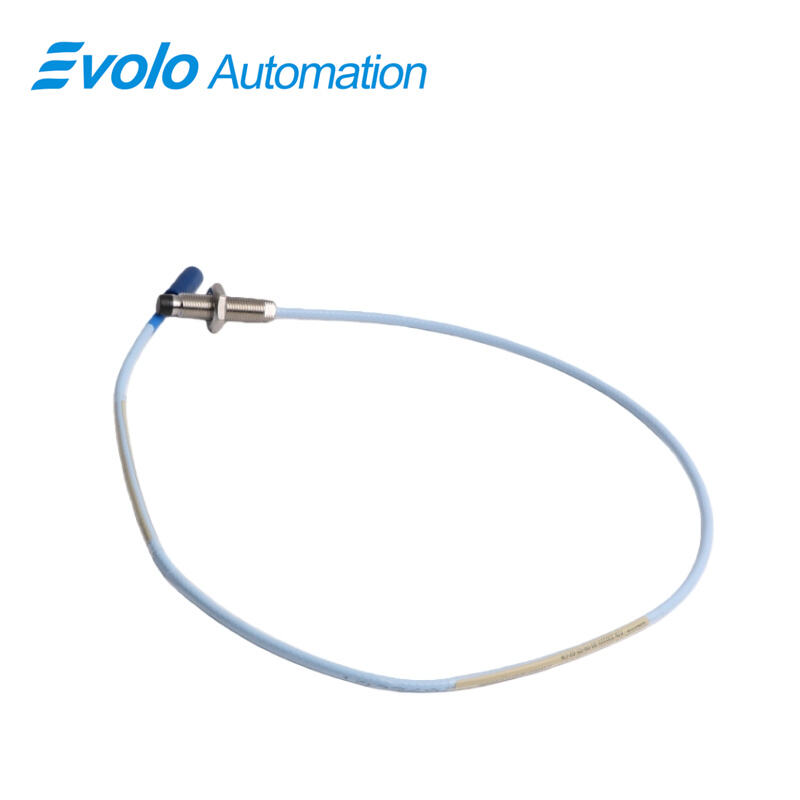

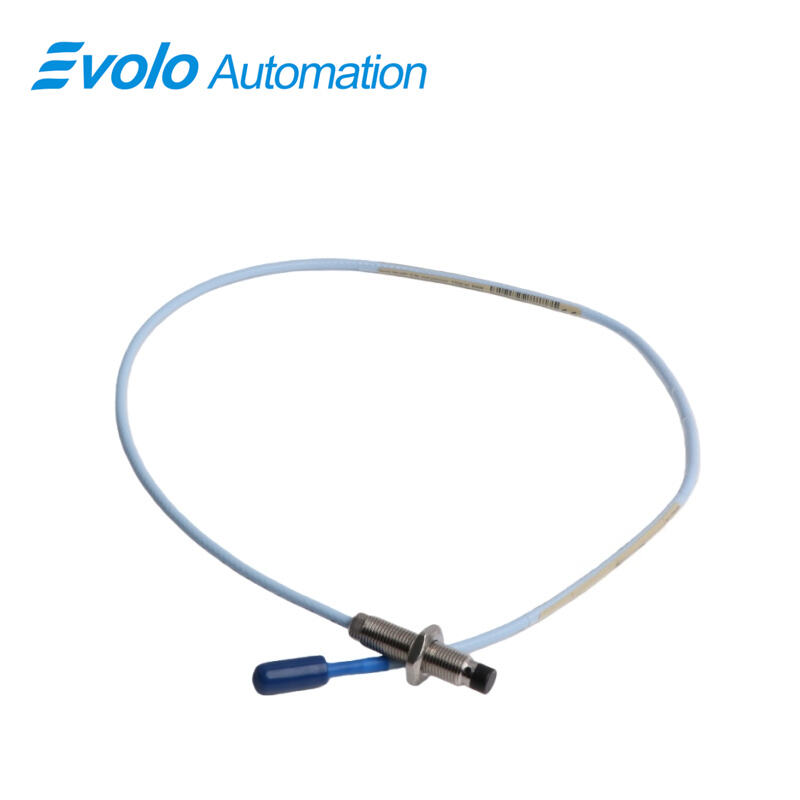

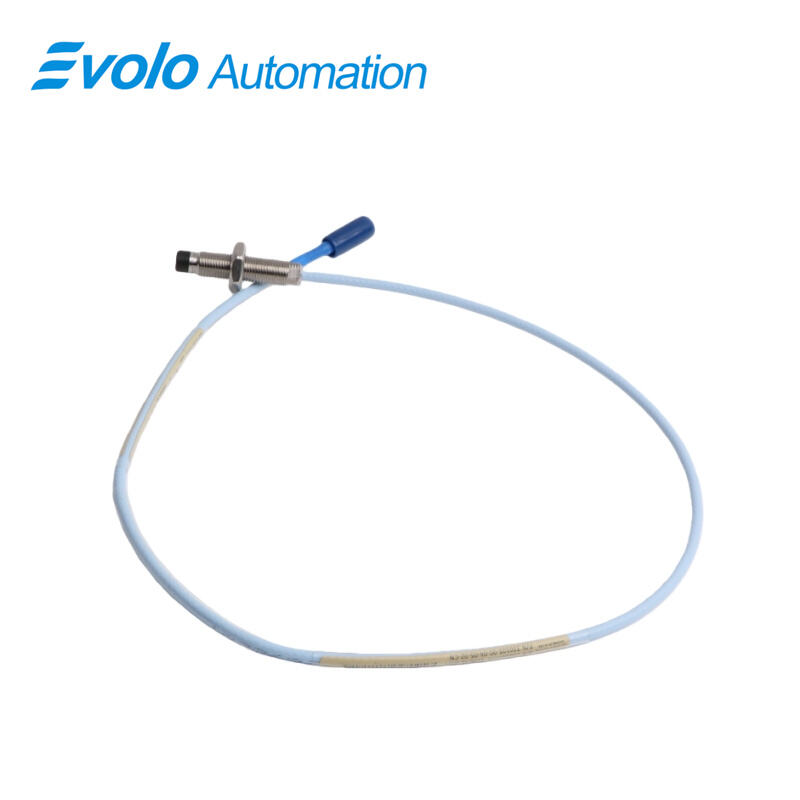

The Bently Nevada 330103-00-04-05-02-CN 3300 XL 8 mm Proximity Probe is engineered for precision vibration and displacement monitoring in fluid-film bearing machinery and industrial automation protection systems. Featuring an M10 x 1 threaded housing, 40 mm case length and a 0.5 m standard coaxial ClickLoc cable, this probe provides proportional voltage output for both static and dynamic measurements including shaft vibration, thrust position, Keyphasor reference and rotational speed feedback. The 330103-00-04-05-02-CN model offers a 2 mm linear range, low supply sensitivity, and robust mechanical construction with patented TipLoc and CableLoc interface, delivering up to 330 N pull strength for stable field performance. Certified with CSA, ATEX and IECEx approvals, the 3300 XL 8 mm Proximity Probe is suitable for oil and gas, petrochemical, and power generation environments requiring hazardous area compliance. With a broad operating temperature range from -52°C to +177°C and compatibility with API 670-compliant monitoring platforms, the probe supports predictive maintenance strategies and enhances asset reliability for OEM and retrofit installations. Complete interchangeability across 3300 XL components reduces calibration requirements while supporting backward integration with 5 mm and non-XL 8 mm systems in applications where mounting space is limited.

Applications

Rotating Machinery Monitoring
The 330103-00-04-05-02-CN measures axial and radial shaft vibration with a 2 mm linear range, detecting misalignment or imbalance in turbines, motors, and compressors to prevent mechanical failures.

Compact Industrial Installations
With a 40 mm overall case and 0.5-meter cable, the 330103-00-04-05-02-CN is ideal for tight machinery spaces requiring precise displacement and vibration monitoring.

Predictive Maintenance Programs
The 330103-00-04-05-02-CN provides continuous high-fidelity data for predictive maintenance, reducing downtime and supporting efficient maintenance schedules.

Hazardous Environment Operation
CSA, ATEX, and IECEx approvals combined with a temperature range of -52°C to +177°C allow the 330103-00-04-05-02-CN to operate safely in extreme or explosive industrial environments.

Specifications

Competitive Advantage

API 670-Compliant Measurement Performance
Ensures linearity, accuracy and thermal stability for high-end turbomachinery control and diagnostics.

Full Series Interchangeability for Retrofit and Upgrades
Reduces installation cost by supporting backward compatibility with existing 3300 5 mm and 8 mm transducer components.

Hazardous Area Certification for Global Deployment
CSA, ATEX and IECEx approvals expand applicability in oil and gas, petrochemical and offshore environments.

Enhanced Mechanical Reliability via TipLoc and CableLoc
Patented mechanical bonding and cable strengthening deliver up to 330 N pull strength for field robustness.

Low Supply Sensitivity and High Output Integrity
Maintains less than 2 mV variation across supply fluctuations, improving data quality in automation systems.
