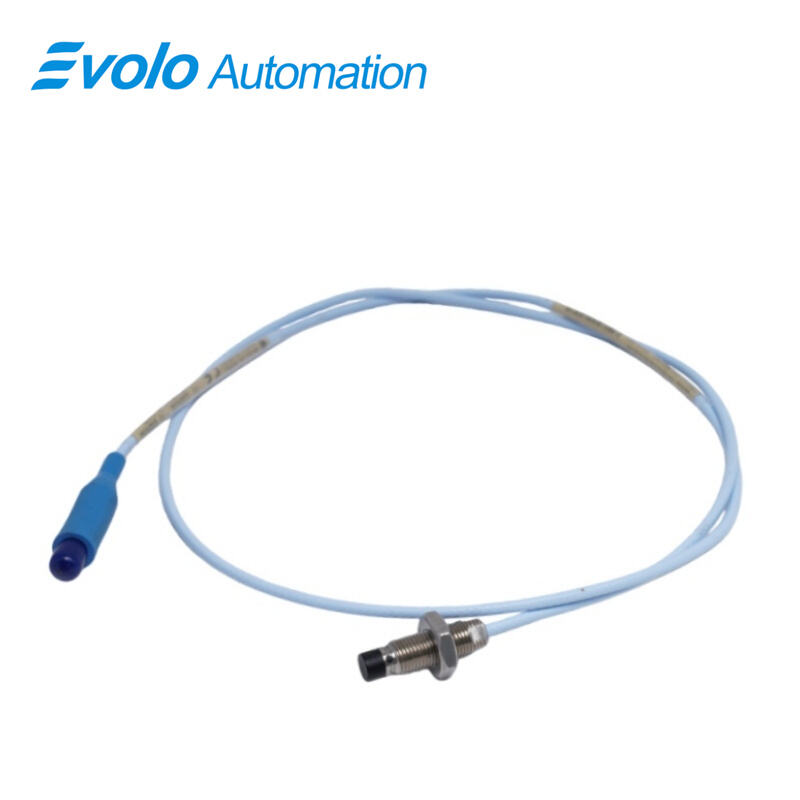

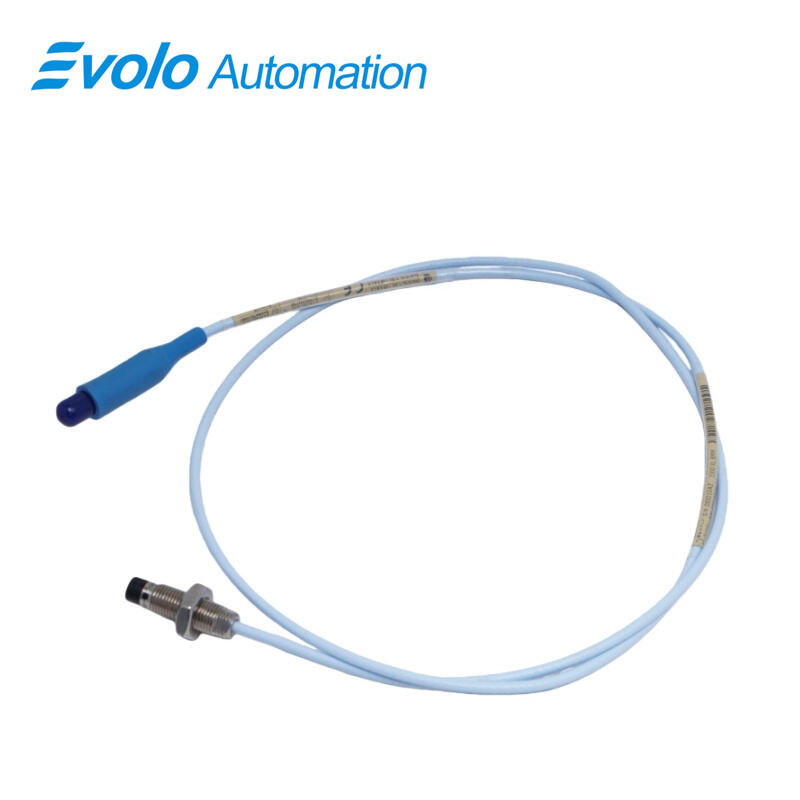

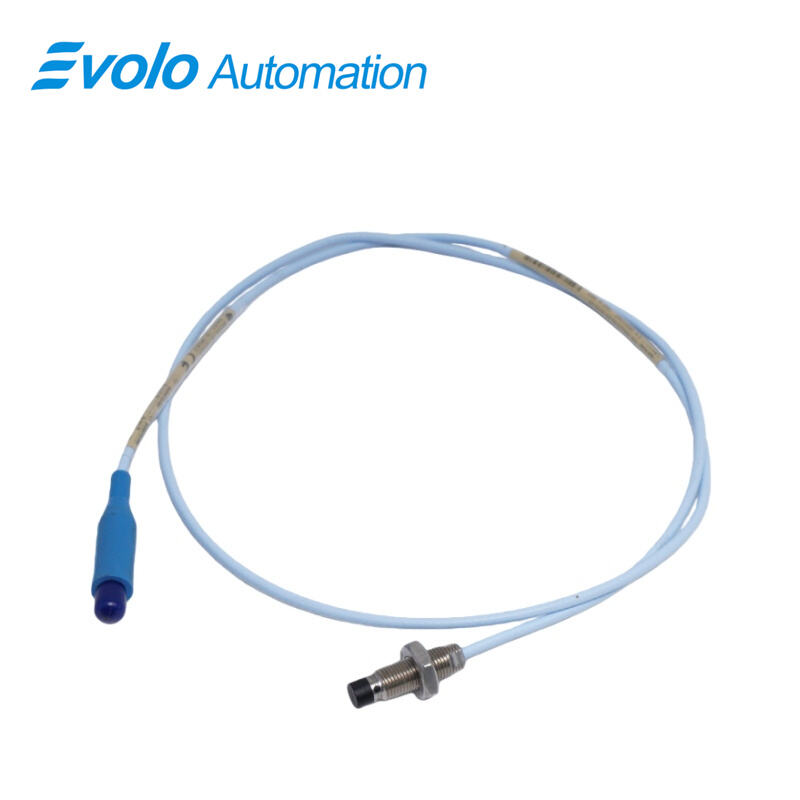

330103-00-03-10-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-03-10-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-03-10-01-05 3300 XL 8 mm Proximity Probe provides an output voltage proportional to the distance between the probe tip and the conductive surface, enabling precise static (position) and dynamic (vibration) measurements. Its linear range of 2 mm (80 mils) and recommended cable length of 1.0 meter (3.3 feet) make the 330103-00-03-10-01-05 3300 XL 8 mm ideal for monitoring fluid-film bearing machines, Keyphasor reference, and speed measurement applications.

The probe features a miniature coaxial ClickLoc connector with a connector protector and a 50 Ω output resistance. Its case thread is M10x1 with a maximum engagement of 15 mm, and it operates across -52°C to +177°C (-62°F to +350°F). The 330103-00-03-10-01-05 3300 XL 8 mm is CSA, ATEX, and IECEx approved, ensuring suitability for automated process environments.

Patented TipLoc and CableLoc designs enhance the bond between the probe tip and cable, providing 330 N (75 lbf) pull strength. Optional FluidLoc cables prevent oil and liquid ingress. Backward-compatible with 3300 series 5 mm and 8 mm systems, the 330103-00-03-10-01-05 3300 XL 8 mm enables seamless upgrades without replacing monitoring hardware.

Applications

Radial Vibration Measurement on Shafts
The 330103-00-03-10-01-05 3300 XL 8 mm probe can measure radial vibration on fluid-film bearing machines with shafts as small as 51 mm (2 in), providing precise monitoring within its 2 mm (80 mils) linear range. The probe’s 1.0 meter (3.3 ft) cable allows flexible installation in compact machinery.

Axial Position Detection
With a 50 Ω output resistance and recommended gap of 1.0 mm (40 mils), the 330103-00-03-10-01-05 3300 XL 8 mm measures axial (thrust) position on flat targets smaller than 15 mm (0.6 in), ensuring accurate positioning data for automated control systems.

Keyphasor Signal Generation
The 330103-00-03-10-01-05 3300 XL 8 mm supports phase reference measurement and speed detection in rotating machinery. Its CSA, ATEX, and IECEx approvals allow integration into industrial PLC and DCS systems for predictive maintenance and rotational analysis.

Speed Measurement on High-Temperature Machines
The probe operates reliably across -52°C to +177°C (-62°F to +350°F), enabling velocity and position measurements in high-temperature compressors or turbines where other probes fail.

Specifications

Competitive Advantage

Durable Probe-Cable Bonding
The 330103-00-03-10-01-05 3300 XL 8 mm uses patented TipLoc and CableLoc designs, providing 330 N (75 lbf) pull strength to prevent accidental cable disconnections, enhancing continuous data acquisition.

Flexible Upgrade Path
Backward compatibility with 3300 series 5 mm and 8 mm systems allows existing installations to upgrade to 330103-00-03-10-01-05 3300 XL 8 mm without replacing monitoring hardware, saving installation time and cost.

Liquid Protection Option
Optional FluidLoc cables prevent oil or other liquids from entering the probe, maintaining accurate measurements in process environments prone to contamination.

High-Temperature Operation
Operating across -52°C to +177°C (-62°F to +350°F), the 330103-00-03-10-01-05 3300 XL 8 mm ensures reliable automation data in compressors, turbines, or other heat-exposed machinery.
