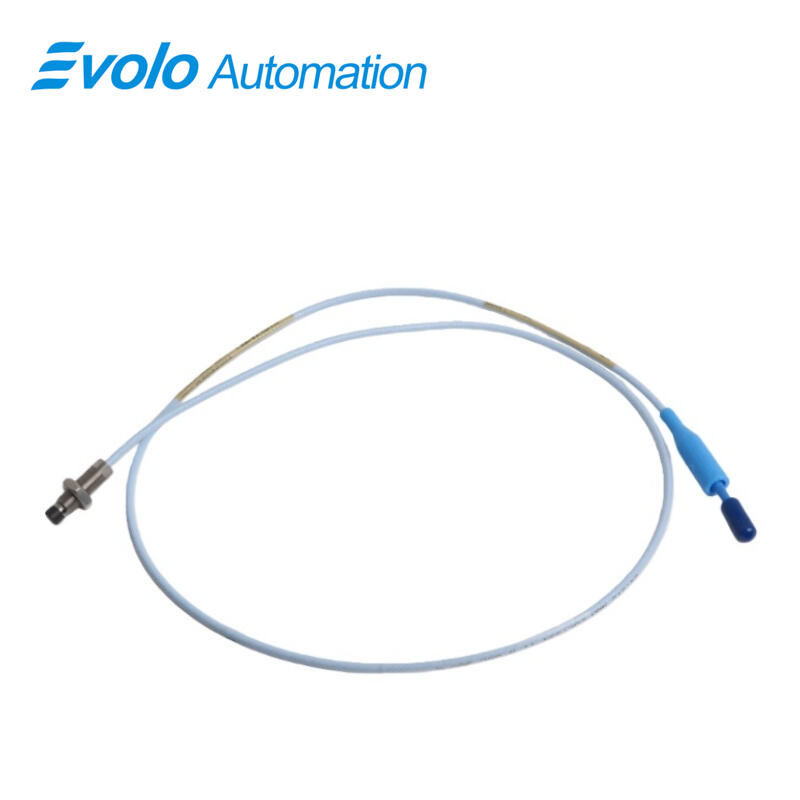

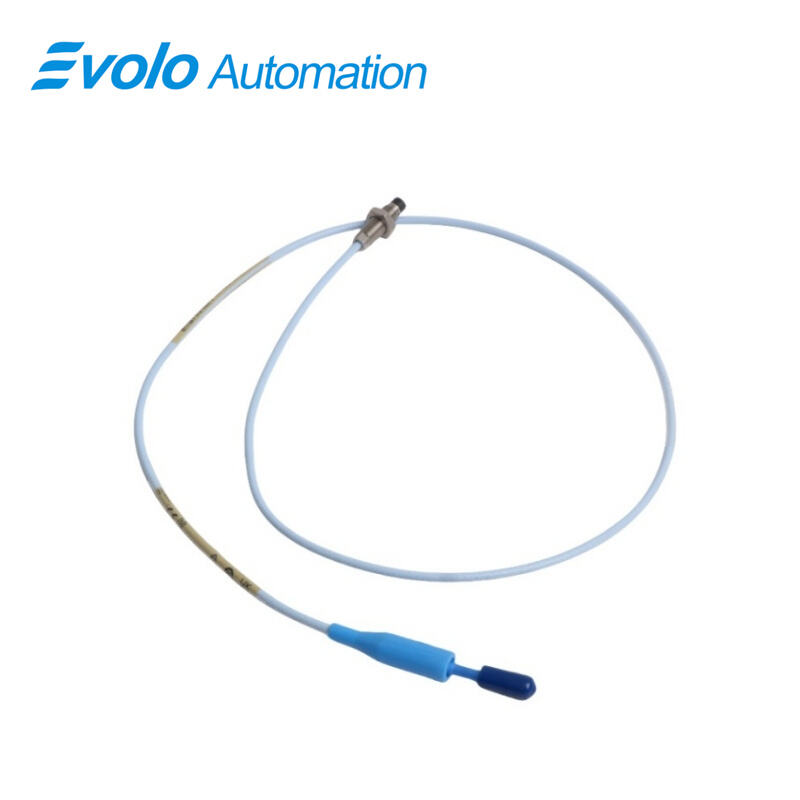

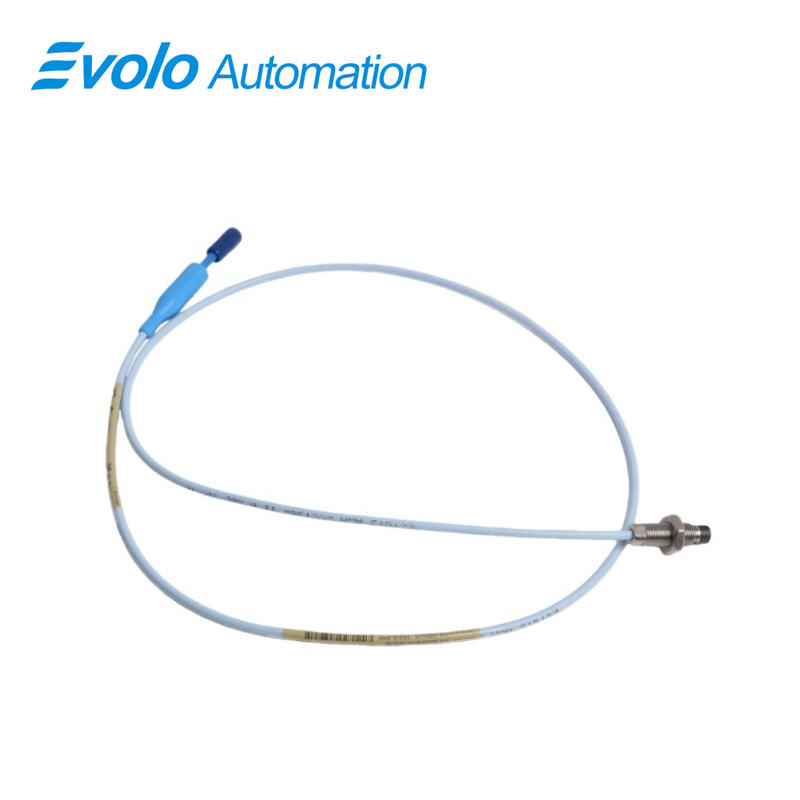

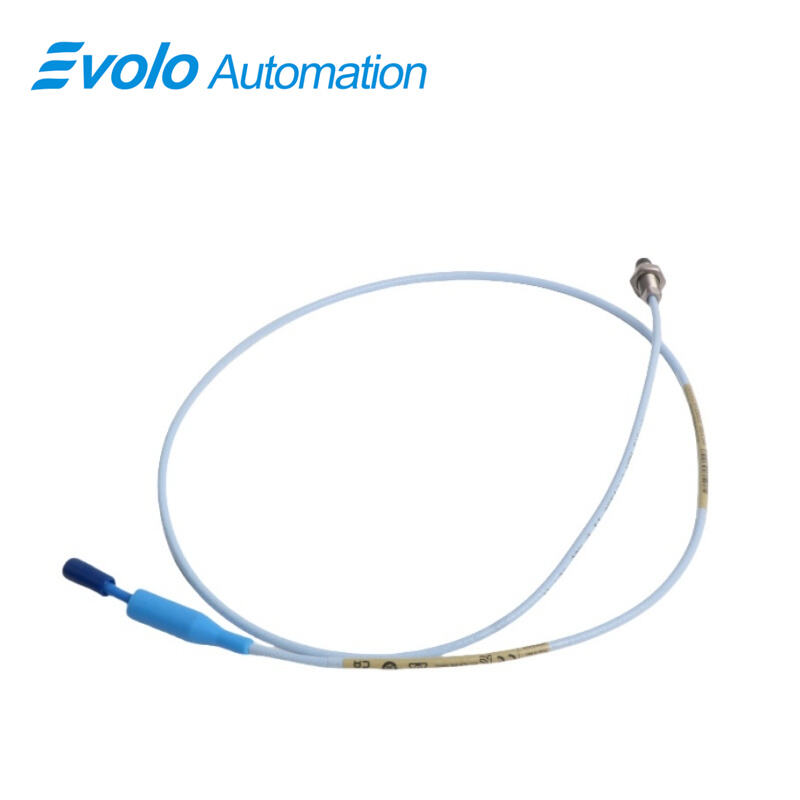

330103-00-03-10-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-03-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-03-10-01-00 3300 XL 8 mm Proximity Transducer provides a voltage output directly proportional to the distance between its probe tip and the observed conductive surface. Its 2 mm (80 mils) linear range and M10x1 threaded probe tip support precise static position and dynamic vibration measurements in automated systems. The 330103-00-03-10-01-00 3300 XL 8 mm operates over a wide temperature range (-52°C to +177°C) and uses a miniature coaxial ClickLoc connector with protector for secure signal transmission. With a total length of 1.0 meter (3.3 feet) and 69.9 pF/m extension cable capacitance, this probe ensures accurate data for Keyphasor reference and speed measurements on fluid-film bearing machines. The 330103-00-03-10-01-00 3300 XL 8 mm is backward compatible with other 3300 series 5 mm and 8 mm components, allowing easy integration without bench calibration. Its patented TipLoc molding and CableLoc designs provide a robust probe-to-cable bond with 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents oil or liquid leakage, supporting clean, reliable automated monitoring.

Applications

Vibration Monitoring on Turbines
The 330103-00-03-10-01-00 3300 XL 8 mm Proximity Probes track high-speed vibration on steam and gas turbines. Its linear range of 2 mm (80 mils) enables detection of sub-millimeter shaft movements. The output resistance of 50 Ω ensures stable voltage signals for accurate vibration analysis.

Position Measurement in Fluid-Film Bearings
The 330103-00-03-10-01-00 3300 XL 8 mm Proximity Probes measure shaft displacement in fluid-film bearings. The maximum thread engagement of 15 mm and M10x1 threaded case allow secure installation, while the total length of 1.0 meter (3.3 feet) facilitates flexible placement even in tight spaces.

Keyphasor Reference for Rotating Equipment
Using the 330103-00-03-10-01-00 3300 XL 8 mm Proximity Probes, precise voltage proportional to shaft position enables Keyphasor reference and speed measurements. Its supply sensitivity below 2 mV per volt guarantees accurate rotational timing under varying input conditions.

Industrial Machinery Integration
The 330103-00-03-10-01-00 3300 XL 8 mm Proximity Probes are backward compatible with 5 mm and 8 mm 3300 series probes, enabling easy retrofits. The Miniature coaxial ClickLoc connector ensures reliable connection without recalibration, and extension cable capacitance of 69.9 pF/m supports long-distance signal transmission.

Specifications

Competitive Advantage

Robust Mechanical Design
The 330103-00-03-10-01-00 3300 XL 8 mm Proximity Probes feature patented TipLoc molding for stronger probe tip-to-body bonding and CableLoc design with 330 N pull strength, providing superior attachment even in high-vibration environments.

Extreme Temperature Operation
The 330103-00-03-10-01-00 3300 XL 8 mm Proximity Probes operate from -52°C to +177°C (-62°F to +350°F), maintaining accuracy for turbines, compressors, and motors in extreme conditions.

Fluid Contamination Prevention
Optional FluidLoc cables on the 330103-00-03-10-01-00 3300 XL 8 mm Proximity Probes prevent oil or liquids from entering the machine through the cable, reducing maintenance downtime and protecting measurement reliability.

Full API 670 Compliance
The 330103-00-03-10-01-00 3300 XL 8 mm Proximity Probes comply with API 670 for linear range, accuracy, and temperature stability, ensuring dependable performance for critical rotating machinery monitoring.
