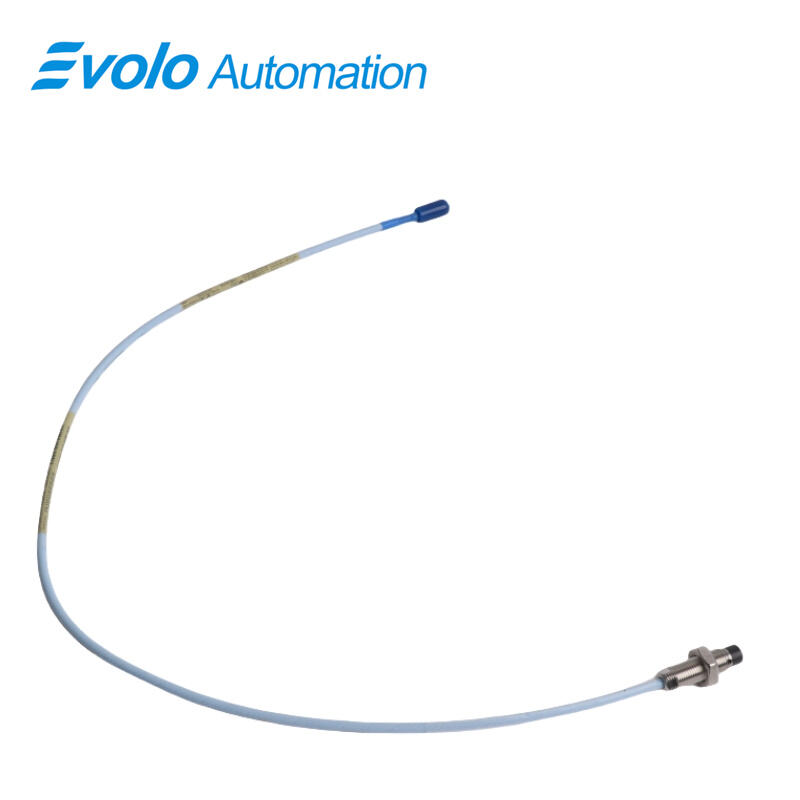

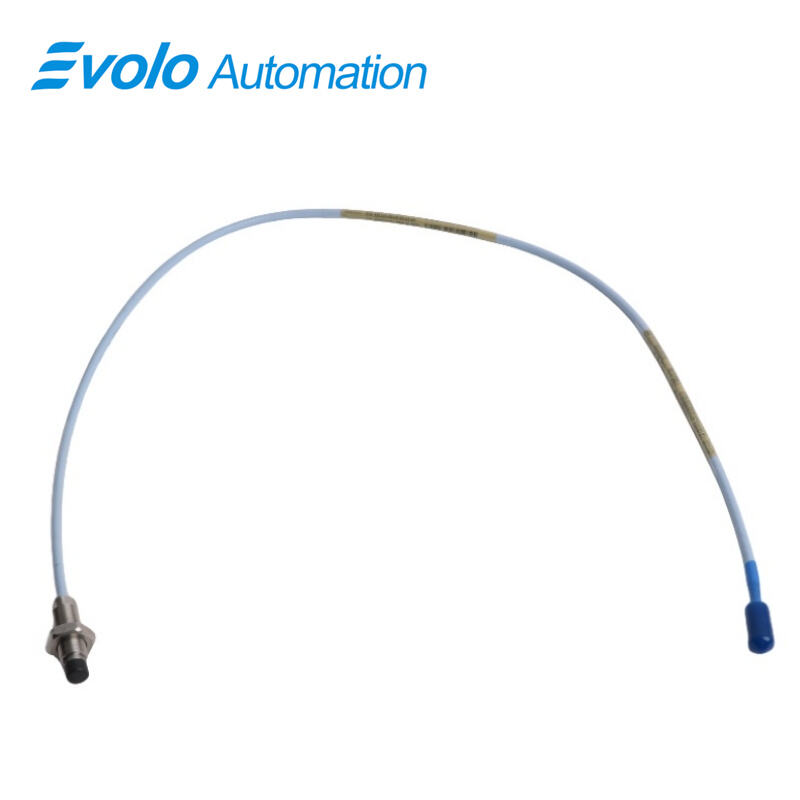

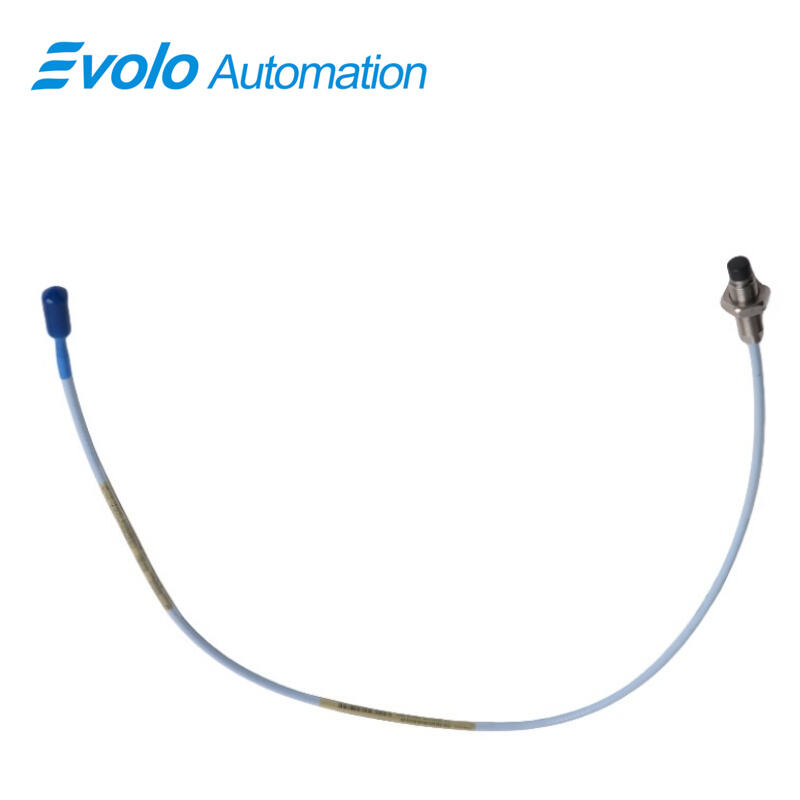

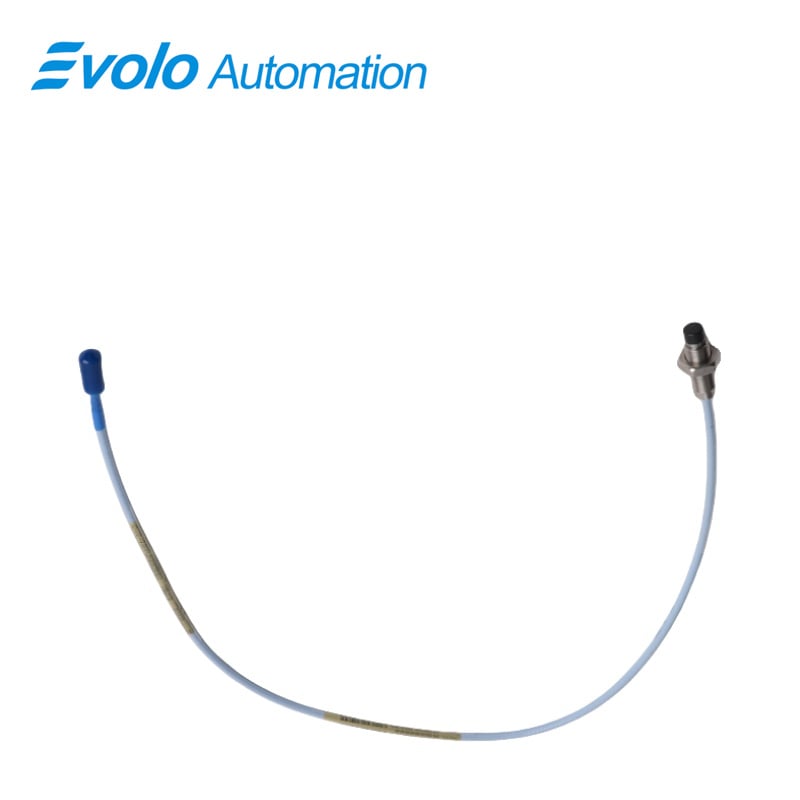

330103-00-03-05-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-03-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-03-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for industrial automation, machinery monitoring, and vibration analysis. This probe provides an output voltage directly proportional to the distance between the probe tip and the monitored conductive surface, enabling accurate measurement of both static (position) and dynamic (vibration) signals.

With a linear range of 2 mm (80 mils), a robust M10x1 threaded stainless steel case, and an operating temperature from -52°C to +177°C, the 3300 XL 8 mm probe is engineered for fluid-film bearing machines, high-speed rotors, and tight installation spaces. Its miniature coaxial ClickLoc connector and 0.5-meter standard cable ensure quick, secure connections, while the optional FluidLoc cable prevents oil or other liquids from leaking through the cable interface.

The probe also incorporates Bently Nevada’s patented TipLoc molding method for a strong bond between probe tip and body, and a CableLoc design providing 330 N (75 lbf) pull strength to enhance mechanical reliability. Fully compliant with API 670 standards for linearity, accuracy, and temperature stability, the 3300 XL 8 mm probe offers interchangeability with other 3300 series probes and Proximitor sensors, minimizing the need for recalibration.

This model is ideal for applications where high measurement precision, mechanical robustness, and integration with predictive maintenance systems are required.

Applications

Rotating Machinery Monitoring
The 330103-00-03-05-02-00 measures axial and radial shaft vibration in turbines, motors, and pumps with a 2 mm linear range, providing early detection of misalignment or imbalance to prevent mechanical failures.

Compact Industrial Installations
With a total length of 0.5 meter and 30 mm case, the 330103-00-03-05-02-00 is ideal for tight machinery spaces where short-range, precise monitoring is required.

Harsh Environment Operation
Operating between -52°C and +177°C, the 330103-00-03-05-02-00 performs reliably under extreme temperatures, electrical fluctuations, and mechanical stress.

Specifications

Competitive Advantage

Compact Size and Flexible Installation
The 330103-00-03-05-02-00 combines a short 30 mm case and 0.5-meter cable with M10 × 1 mounting, allowing installation in confined or complex machinery layouts.

High-Precision Measurement
With a 2 mm linear range, 50 Ω output resistance, and low supply sensitivity (<2 mV/V), the 330103-00-03-05-02-00 delivers accurate vibration and displacement readings in industrial automation systems.

Reliable Performance in Extreme Conditions
Operating from -52°C to +177°C, the 330103-00-03-05-02-00 maintains stable output under thermal stress, mechanical vibration, and electrical variations.

Seamless Integration with Control Systems
Equipped with a Miniature coaxial ClickLoc connector and field wiring support for 16–24 AWG, the 330103-00-03-05-02-00 integrates easily into condition monitoring and automated control systems.

Durable Construction
The 330103-00-03-05-02-00 features robust M10 × 1 mounting and low capacitance cable (69.9 pF/m), ensuring long-term reliability in industrial operations.
