Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330102-60-90-10-02-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
6.0 in |
|
Overall Case Length Option(Minimum case length): |
9.0 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.3x114cm |
|
Weight: |
0.15kg |
Description

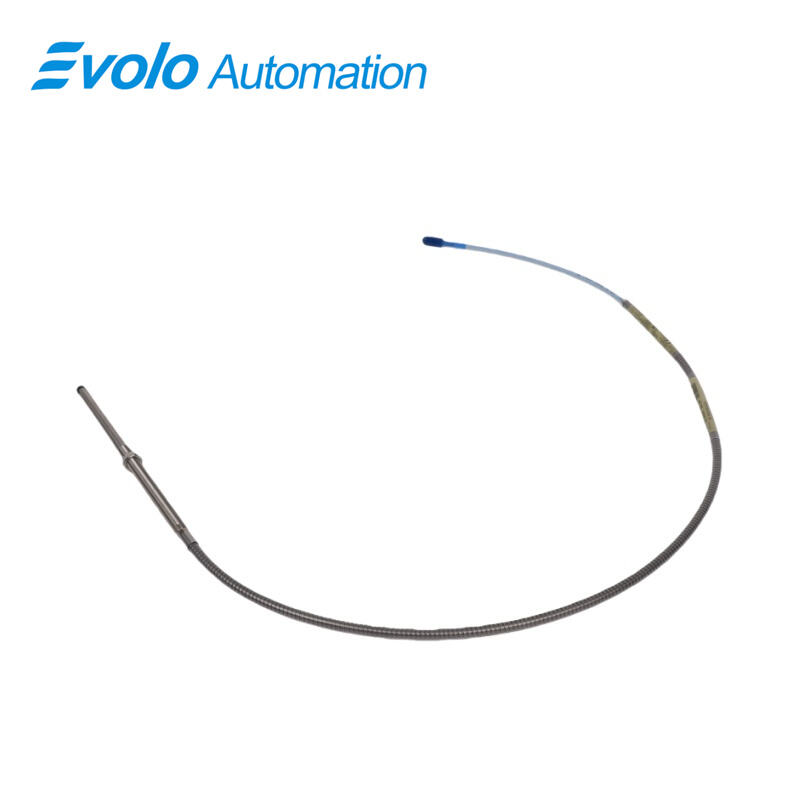

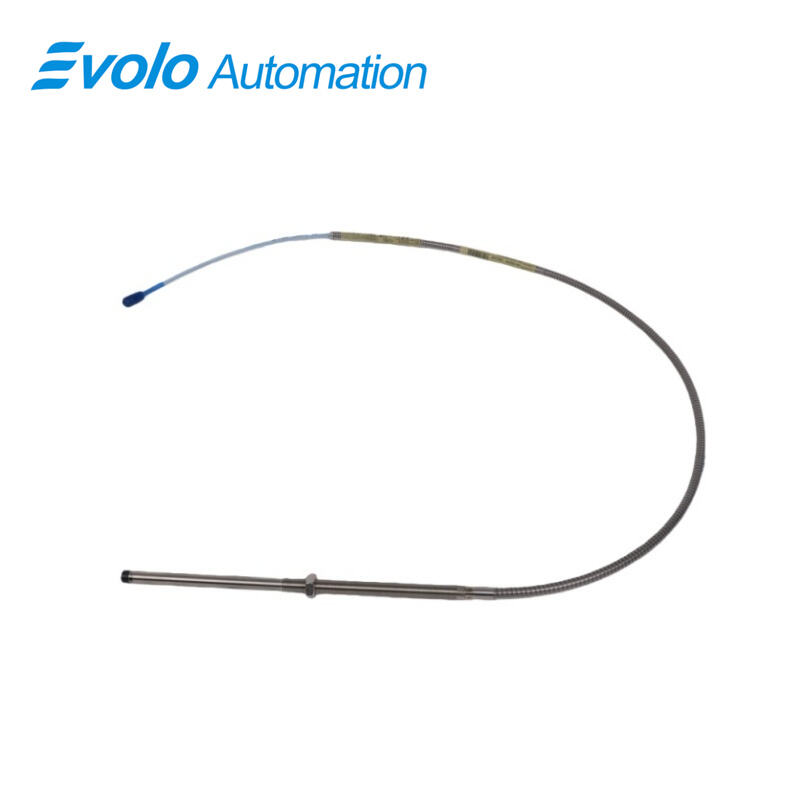

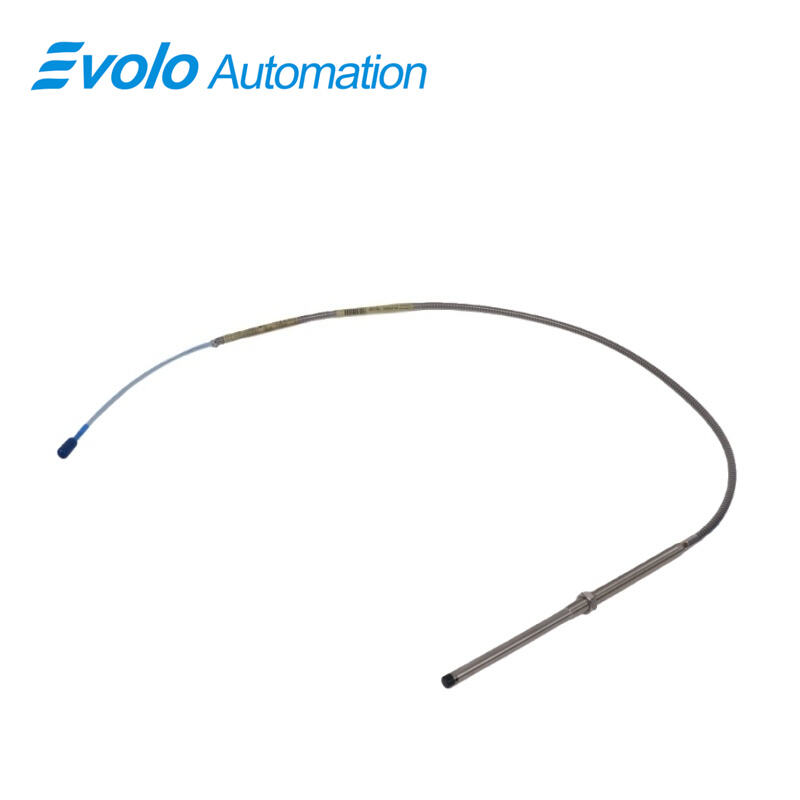

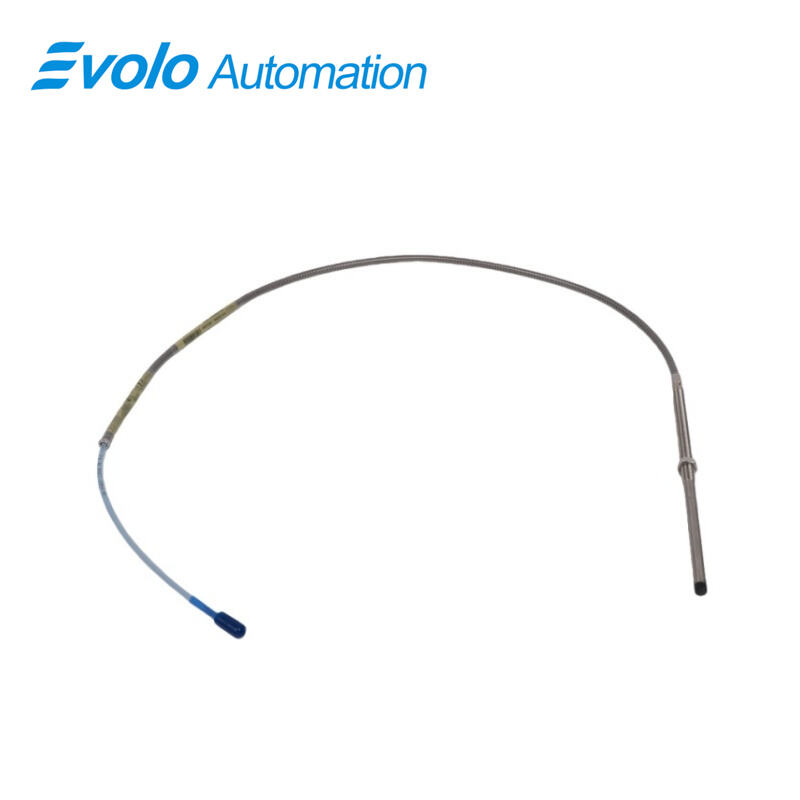

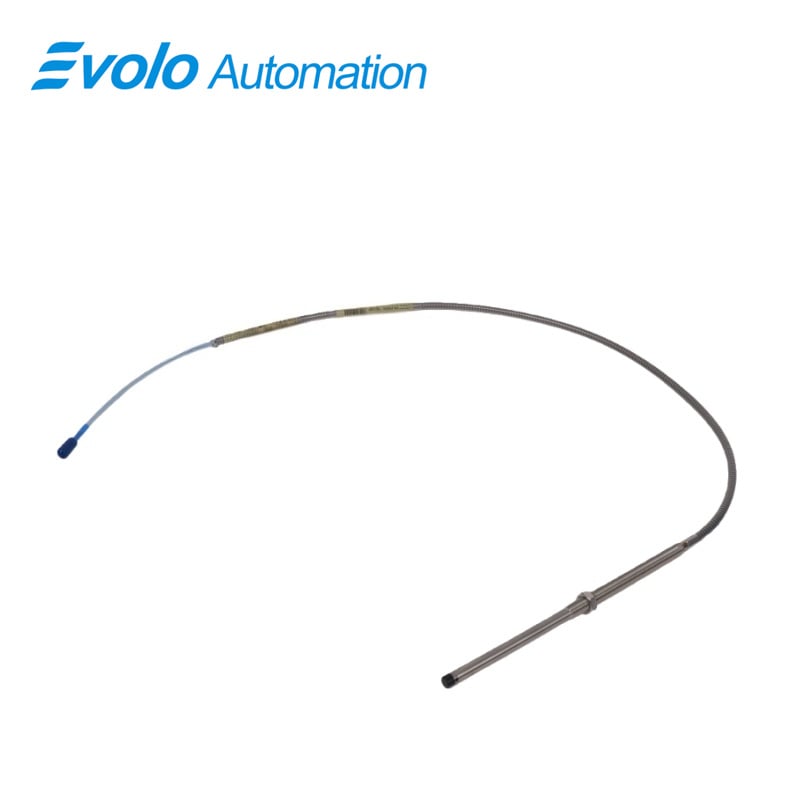

The 330102-60-90-10-02-CN 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer engineered for industrial automation, vibration monitoring, and shaft position measurement in fluid-film bearing machines. It provides an output voltage directly proportional to the gap between the probe tip and the conductive target, enabling accurate measurement of both static position and dynamic vibration. With a linear range of 2 mm (80 mils) and a full temperature rating of -52°C to +177°C (-62°F to +350°F), this probe is suitable for harsh industrial environments. The probe features a 3/8-24 UNF threaded stainless steel housing, Miniature coaxial ClickLoc connector, and field wiring compatibility from 0.2 to 1.5 mm² (16 to 24 AWG). Its robust design incorporates TipLoc molding for strong tip attachment and CableLoc technology providing 330 N (75 lbf) pull strength, ensuring reliability under extreme vibration and industrial conditions. CSA, ATEX, and IECEx approvals make this probe suitable for global hazardous and non-hazardous automation applications, while optional FluidLoc cable sealing prevents fluid ingress into the cable interior, enhancing system longevity.
Applications
Keyphasor Reference and Speed Measurement
Generates precise Keyphasor signals for speed monitoring and phase reference in industrial automation and rotor control systems.
Integration in Hazardous Area Automation
Compatible with CSA, ATEX, and IECEx standards, making it ideal for automated chemical, petrochemical, or gas compressor environments.
Compact and High-Precision OEM Machinery
Supports OEM installations in tight mechanical clearances where 8 mm probes are required, providing both static and dynamic measurements without modification of existing monitoring systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Precision and Linear Range
Provides a 2 mm (80 mils) linear range with minimal output variation (<2 mV per volt supply change), enabling highly accurate automation measurements.
Robust Industrial Design
Stainless steel probe housing and PPS tip allow operation in harsh environments from -52°C to +177°C, supporting long-term reliability in automated systems.
Enhanced Mechanical Integrity
TipLoc and CableLoc technology ensure secure probe and cable attachment, maintaining signal integrity under heavy vibration or mechanical stress.
Global Safety Approvals
CSA, ATEX, and IECEx certifications allow deployment in hazardous industrial zones, enabling integration into automated safety-critical systems worldwide.
