Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330102-08-96-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.8 in |
|
Overall Case Length Option(Minimum case length): |
9.6 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.3x113cm |
|
Weight: |
0.1kg |
Description

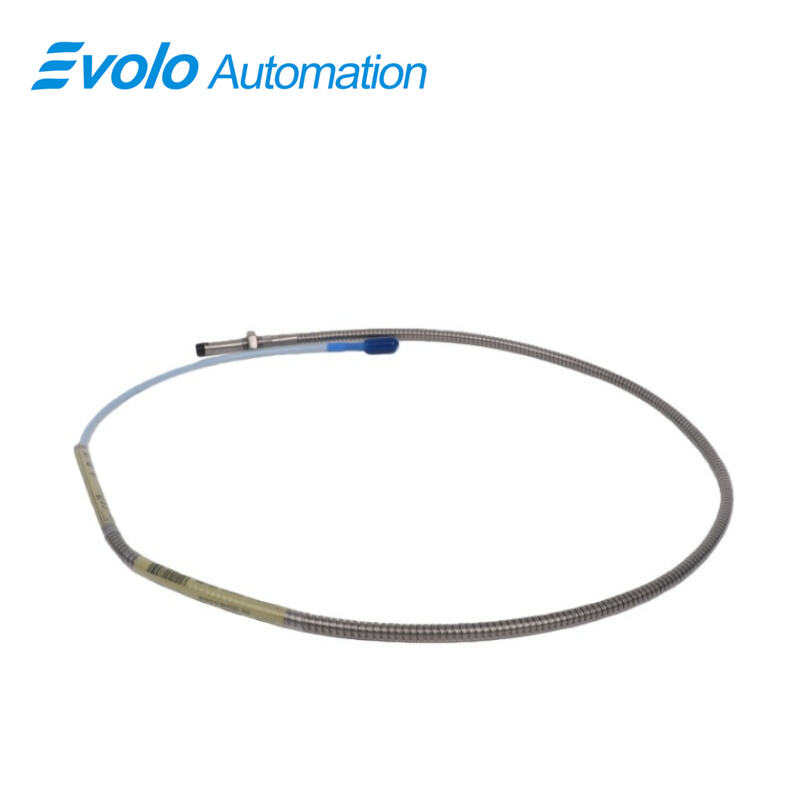

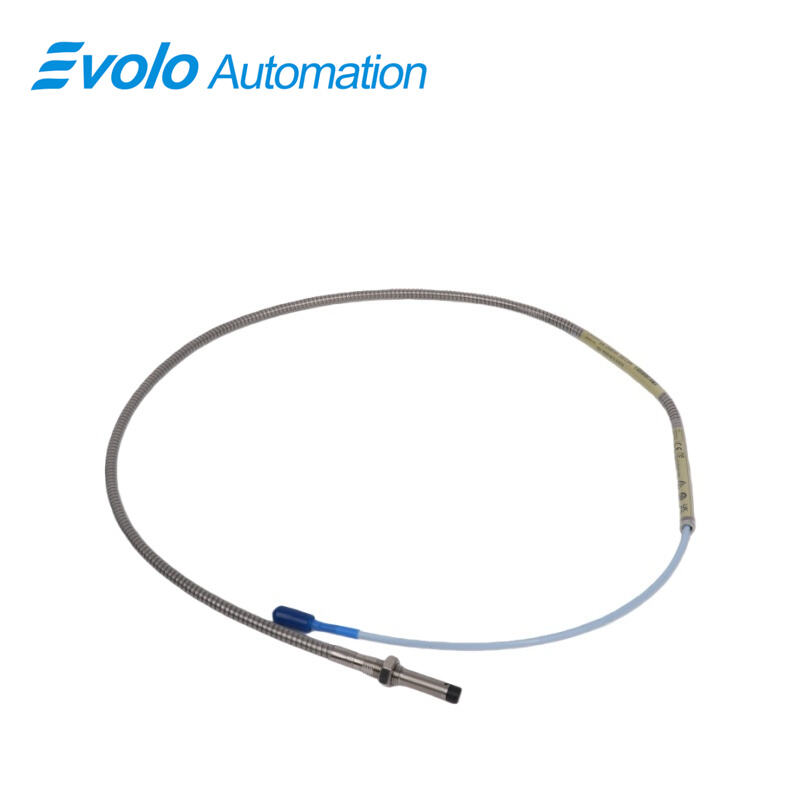

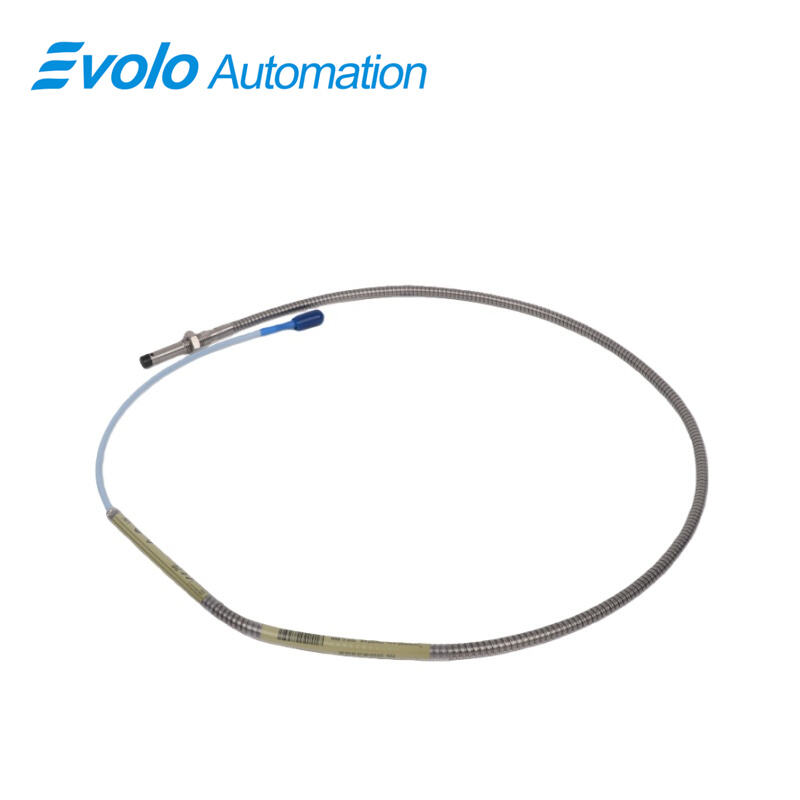

The 330102-08-96-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for both static position and dynamic vibration measurements in automated machinery. Its 2 mm (80 mils) linear range, 50 Ω output resistance, and supply sensitivity of less than 2 mV per volt ensure accurate monitoring of fluid-film bearing machines. The 330102-08-96-10-02-00 3300 XL 8 mm Proximity Probe operates reliably from -52°C to +177°C (-62°F to +350°F) and is fully compatible with 3300 series components, making it ideal for modern automated industrial systems.
Applications
Axial and Radial Position Monitoring
The 330102-08-96-10-02-00 3300 XL 8 mm Proximity Probe accurately measures axial and radial positions in turbines, pumps, and compressors. Its 8 mm probe tip, 3/8-24 UNF thread, and 0.563 in maximum thread engagement ensure secure mounting and consistent output, supporting automated position control and machine protection systems.
Vibration Analysis in Fluid-Film Bearings
The 330102-08-96-10-02-00 3300 XL 8 mm Proximity Probe provides high-fidelity vibration measurements with a 2 mm linear range and 69.9 pF/m (21.3 pF/ft) extension cable capacitance, enabling predictive maintenance and early fault detection in automated industrial operations.
Keyphasor and Tachometer Signals
Using the 330102-08-96-10-02-00 3300 XL 8 mm Proximity Probe, engineers can generate precise phase reference and speed signals. Its miniature coaxial ClickLoc connector, standard 1.0-meter cable, and CableLoc design with 330 N pull strength maintain reliable signal integrity in automation systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Extended Compatibility and Interchangeability
The 330102-08-96-10-02-00 3300 XL 8 mm Proximity Probe is fully compatible with other 3300 series probes, extension cables, and Proximitor sensors, eliminating the need for component matching or bench calibration, reducing system downtime and simplifying automated system upgrades.
Robust Mechanical Design
With TipLoc molded probe tips and CableLoc cable attachment, the 330102-08-96-10-02-00 3300 XL 8 mm Proximity Probe resists vibration and mechanical stress. Its 3/8-24 UNF thread ensures secure installation in demanding industrial environments.
Environmental and Operational Reliability
The 330102-08-96-10-02-00 3300 XL 8 mm Proximity Probe operates in extreme temperatures (-52°C to +177°C) and supports field wiring from 0.2 to 1.5 mm² (16–24 AWG). Optional FluidLoc cables prevent oil leakage, maintaining continuous operation in automated machinery monitoring.
