330102-05-40-05-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-05-40-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

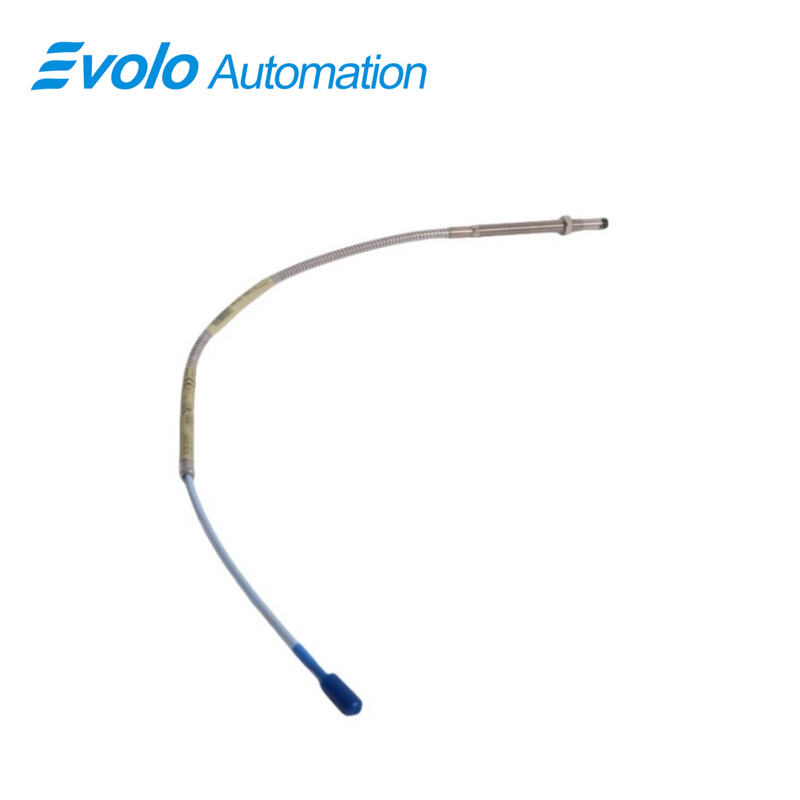

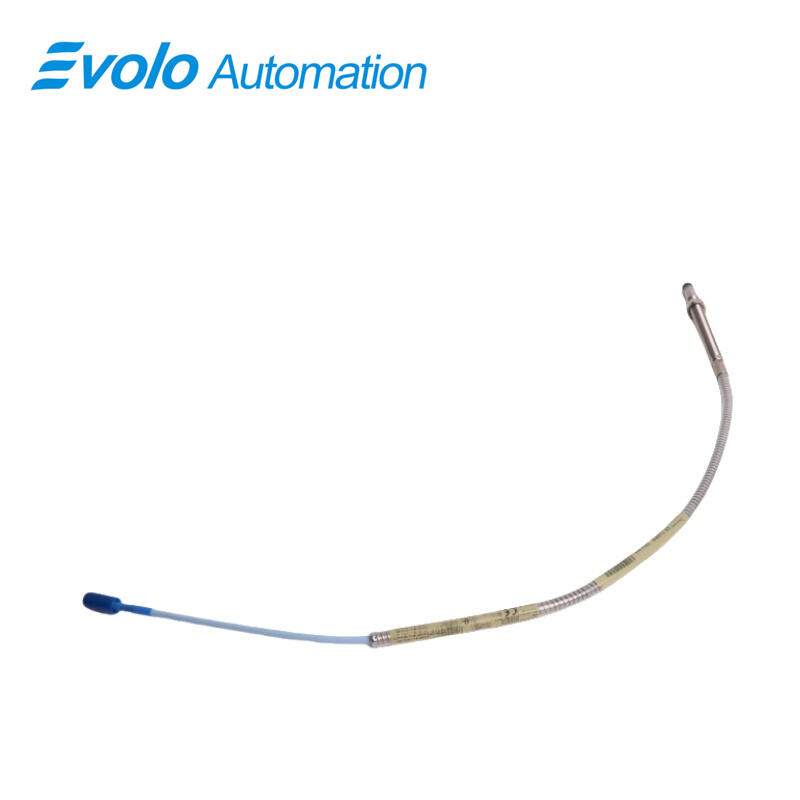

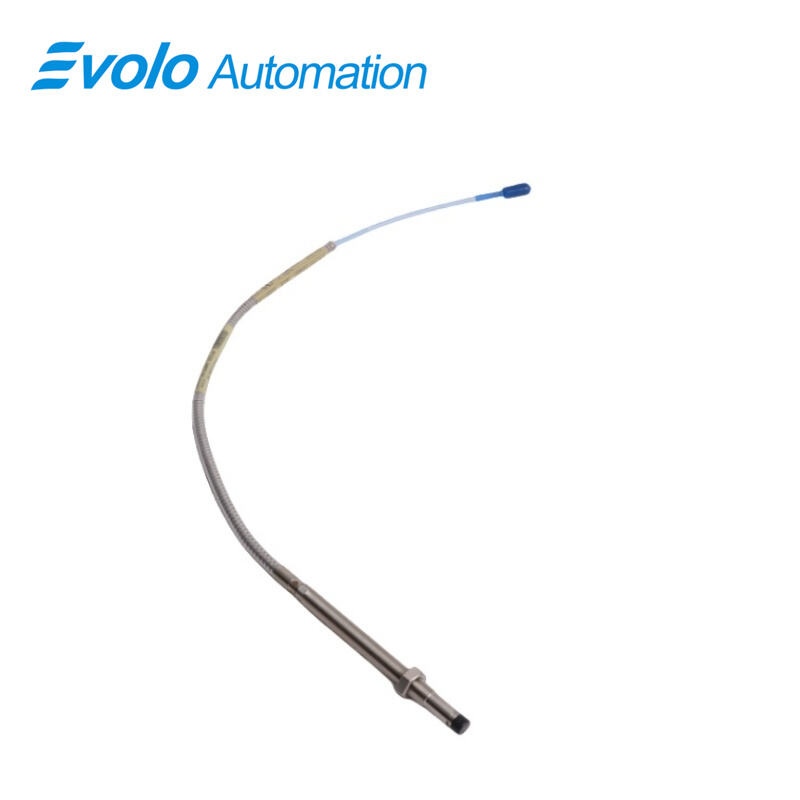

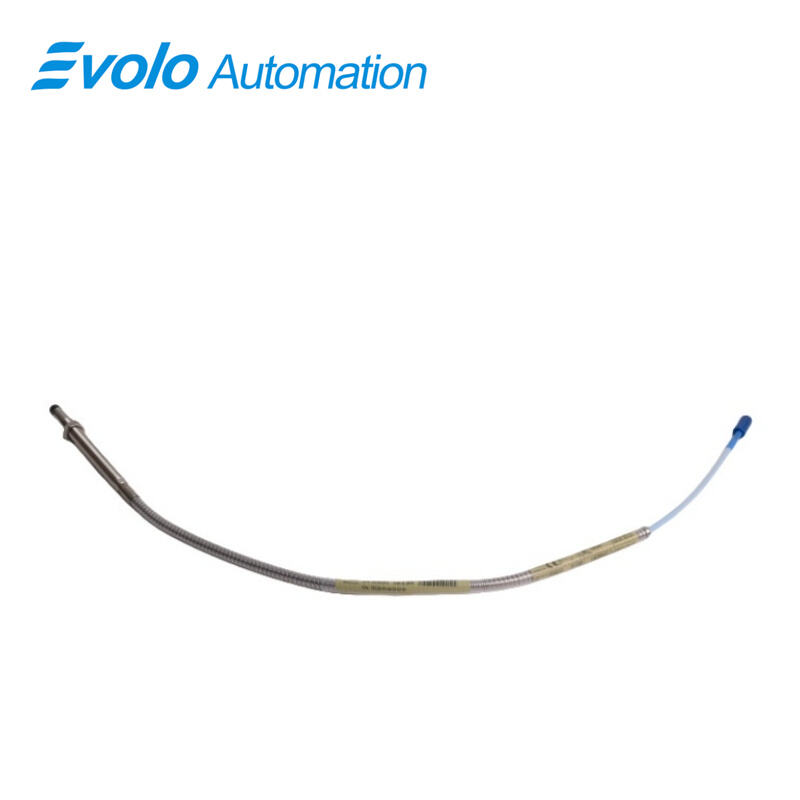

The 330102-05-40-05-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for precision automation applications. This probe delivers an output voltage directly proportional to the distance between its tip and the measured conductive surface, supporting both static position and dynamic vibration measurements. With a linear range of 2 mm (80 mils) and recommended engagement of 0.563 in, the 330102-05-40-05-02-05 3300 XL ensures accurate and repeatable results in fluid-film bearing machines, high-speed motors, pumps, and fans. The probe features a 3/8-24 UNF threaded case, miniature coaxial ClickLoc connector, and a 0.5 meter (1.6 ft) standard cable with 69.9 pF/m capacitance, maintaining signal integrity even in automated industrial environments. Operating over a wide temperature range of −52°C to +177°C (−62°F to +350°F), the 330102-05-40-05-02-05 3300 XL probe is certified with CSA, ATEX, and IECEx approvals, making it suitable for hazardous areas. Its patented TipLoc molding method and CableLoc design provide 330 N (75 lbf) pull strength to securely attach the cable, preventing disconnection and ensuring reliable automation system operation. Backward compatibility with other 3300 series components allows seamless integration and easy upgrades, making the 330102-05-40-05-02-05 3300 XL 8 mm Proximity Probe a trusted choice for high-precision monitoring and control in automated industrial processes.

Applications

Radial Vibration Measurement
The 330102-05-40-05-02-05 3300 XL probe measures radial vibration on shafts with diameters smaller than 51 mm, providing precise monitoring in high-speed motors, pumps, and fluid-film bearing machines. Its linear range of 2 mm (80 mils) ensures accurate detection of minute shaft displacements for predictive maintenance in automated systems.

Axial (Thrust) Position Measurement
Equipped with a 3/8-24 UNF threaded case and recommended gap of 0.563 in, the 330102-05-40-05-02-05 3300 XL probe accurately measures axial thrust positions in compressors and turbines, supporting automated control and safety interlocks.

Keyphasor and Tachometer Signals
The 330102-05-40-05-02-05 3300 XL 8 mm probe provides high-fidelity Keyphasor reference signals and zero-speed detection for machinery control systems. Its miniature coaxial ClickLoc connector and 0.5 m standard cable with 69.9 pF/m capacitance maintain signal integrity over short runs in automated setups.

Small Target Applications
Designed for restricted installations, the 330102-05-40-05-02-05 3300 XL probe excels in measuring radial vibration or axial position on targets smaller than 15 mm. Its compact overall case length of 4 in allows installation in tight automation spaces where larger probes cannot fit.

Specifications

Competitive Advantage

High Reliability and Chemical Resistance
The 330102-05-40-05-02-05 3300 XL probe is constructed from AISI 304 stainless steel with a PPS probe tip, offering superior chemical resistance and durability in process compressors and harsh industrial environments.

Secure Cable Attachment
Featuring patented TipLoc molding and CableLoc design, the 330102-05-40-05-02-05 3300 XL 8 mm probe provides 330 N (75 lbf) pull strength, ensuring the cable remains securely attached during operation, preventing downtime in automated systems.

Wide Operating Range
The 330102-05-40-05-02-05 3300 XL probe operates from −52°C to +177°C (−62°F to +350°F), maintaining stable and accurate performance under extreme temperature variations, essential for automated processes in industrial plants.

Connector Protection
Equipped with gold-plated ClickLoc connectors and optional connector protectors, the 330102-05-40-05-02-05 3300 XL probe minimizes moisture and oil ingress, ensuring reliable signal transmission in automation-critical applications.
