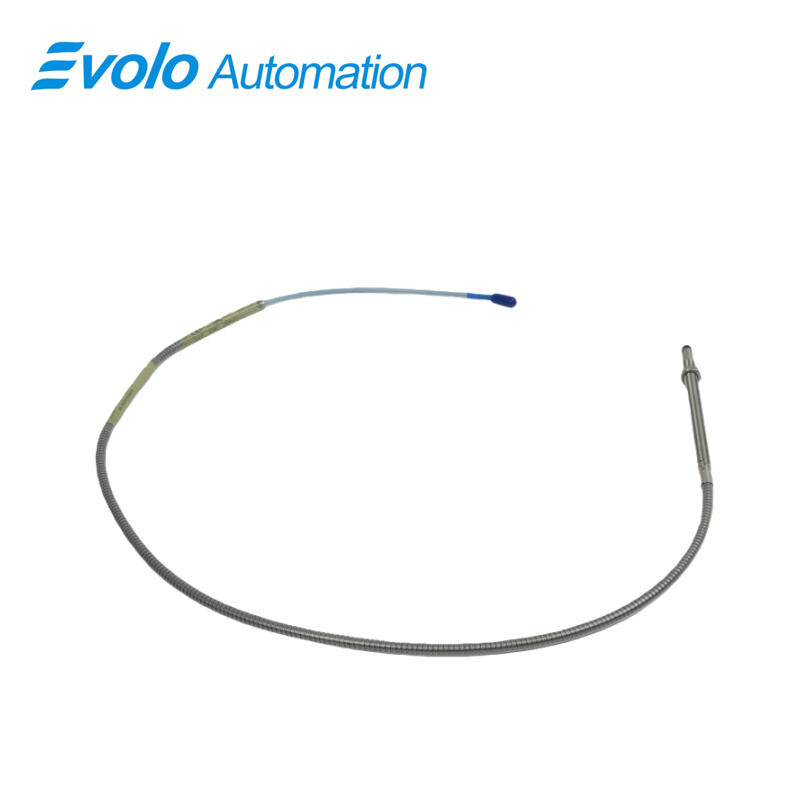

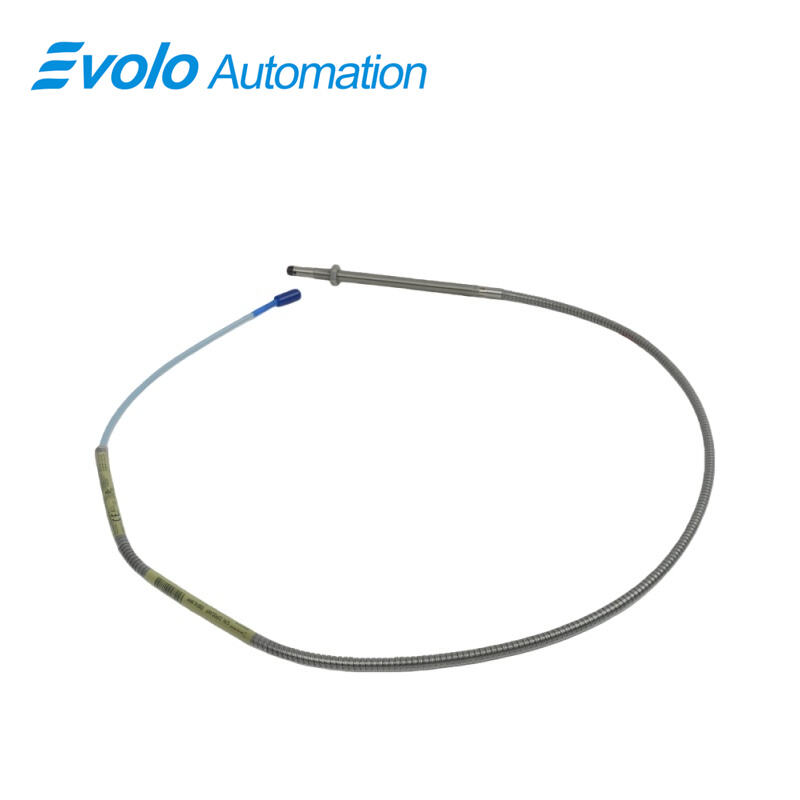

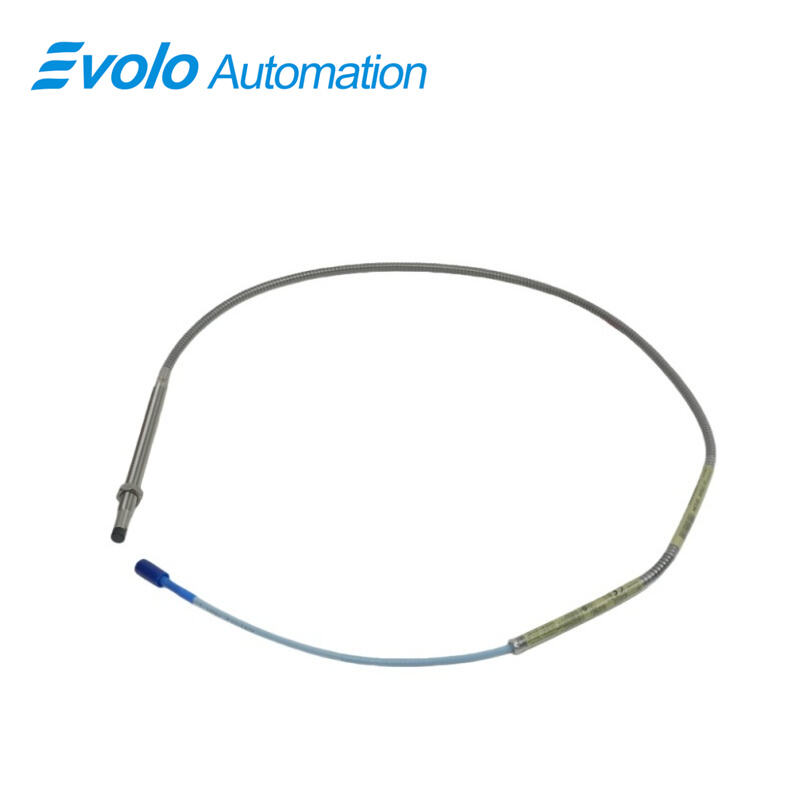

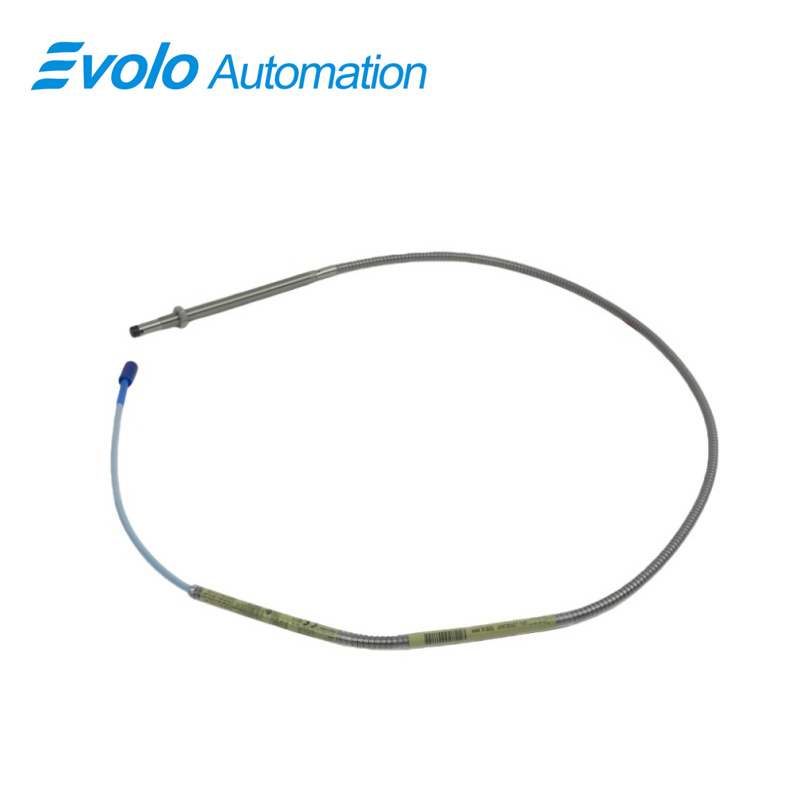

330102-05-30-50-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-05-30-50-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-05-30-50-02-05 3300 XL 8 mm Proximity Probe provides precise non-contact measurement of shaft position and vibration, with an output voltage proportional to the distance between the probe tip and the target surface. Equipped with a 5.0-meter (16.4 feet) standard cable, 330102-05-30-50-02-05 3300 XL probes feature a 3/8-24 UNF threaded case and a maximum thread engagement of 0.563 in, supporting installation in compact industrial assemblies. Operating from -52°C to +177°C (-62°F to +350°F), the 330102-05-30-50-02-05 3300 XL probe maintains less than 2 mV change in output per volt input fluctuation. Its 50 Ω output resistance and 69.9 pF/m cable capacitance ensure reliable signal integrity, while the patented TipLoc and CableLoc design provides 330 N (75 lbf) pull strength to secure the probe and cable. The 330102-05-30-50-02-05 3300 XL 8 mm probe is fully compliant with API 670 standards and interchangeable with 3300 series probes, extension cables, and Proximitor sensors. Optional FluidLoc cables prevent oil or liquid leakage, making 330102-05-30-50-02-05 3300 XL probes ideal for vibration and position monitoring on fluid-film bearing machines, with Keyphasor and speed measurement capabilities.

Applications

Measure Radial Vibration on Fluid-Film Bearings
The 330102-05-30-50-02-05 3300 XL 8 mm probe measures radial vibration on shafts in fluid-film bearing machines. Its 2 mm linear range and 5.0-meter cable allow the 330102-05-30-50-02-05 3300 XL probe to capture dynamic shaft movement accurately.

Track Axial Shaft Position
The 330102-05-30-50-02-05 3300 XL probe monitors axial positions on turbines and compressors. With a 3/8-24 UNF threaded case and maximum thread engagement of 0.563 in, the 330102-05-30-50-02-05 3300 XL probe installs easily in tight industrial spaces.

Provide Keyphasor and Speed Reference Signals
The 330102-05-30-50-02-05 3300 XL probe outputs Keyphasor signals for rotational speed measurement. Its 50 Ω output resistance and 69.9 pF/m cable capacitance ensure the 330102-05-30-50-02-05 3300 XL probe delivers consistent signals to monitoring systems.

Monitor Shaft Position in High-Temperature Environments
The 330102-05-30-50-02-05 3300 XL probe operates from -52°C to +177°C (-62°F to +350°F), allowing the 330102-05-30-50-02-05 3300 XL probe to record accurate shaft data in high-temperature industrial machinery.

Specifications

Competitive Advantage

Secure Probe and Cable Connection
The 330102-05-30-50-02-05 3300 XL probe uses TipLoc and CableLoc designs with 330 N pull strength to attach the probe tip and cable securely. The 330102-05-30-50-02-05 3300 XL probe maintains connection reliability during vibration and mechanical stress.

Compliant with API 670 Mechanical Standards
The 330102-05-30-50-02-05 3300 XL probe meets API 670 standards for linear range, mechanical configuration, and temperature performance. Using the 330102-05-30-50-02-05 3300 XL probe ensures data consistency and interchangeability with other 3300 series components.

Support Dynamic and Static Measurements
With less than 2 mV change per volt of input fluctuation, the 330102-05-30-50-02-05 3300 XL probe accurately measures both static shaft positions and dynamic vibrations. This allows the 330102-05-30-50-02-05 3300 XL probe to deliver high-fidelity monitoring for critical rotating machinery.

Enable Easy Installation in Tight Spaces
The 330102-05-30-50-02-05 3300 XL probe features a compact 3/8-24 UNF threaded case and 5.0-meter cable, making the 330102-05-30-50-02-05 3300 XL probe easy to install in compact industrial setups without custom modifications.
