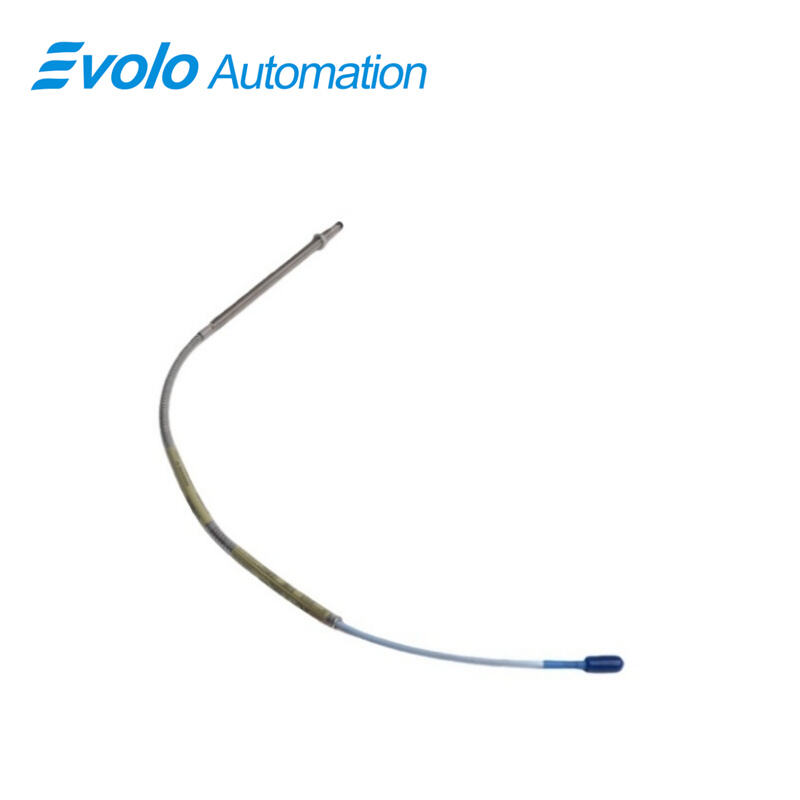

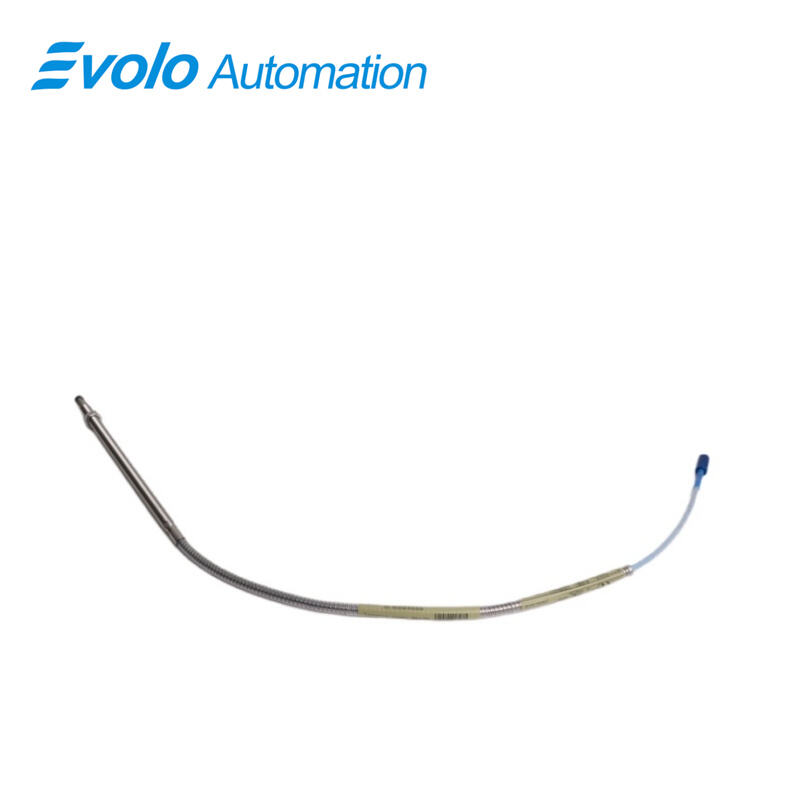

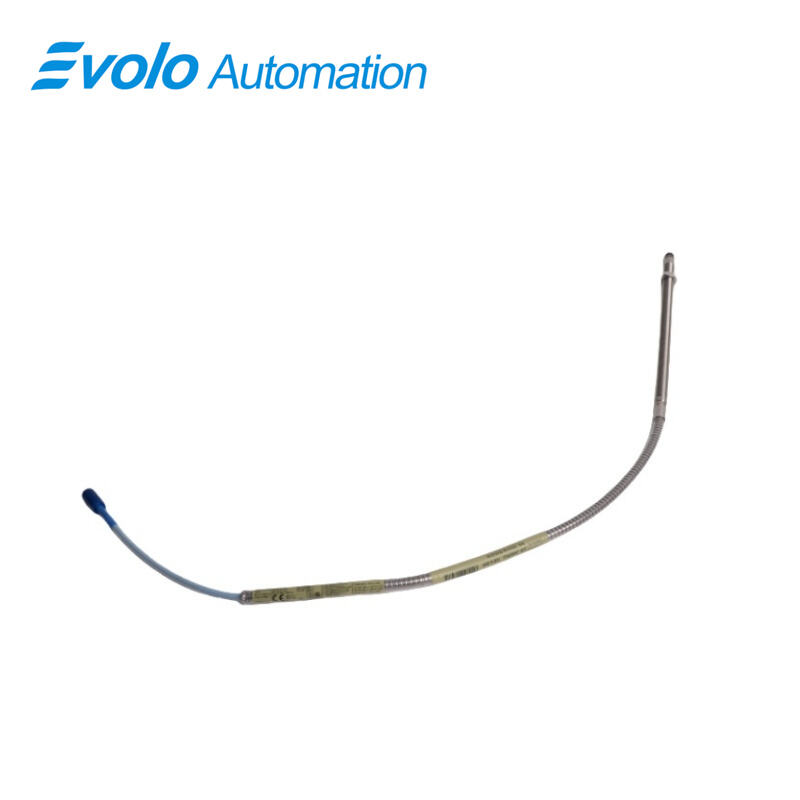

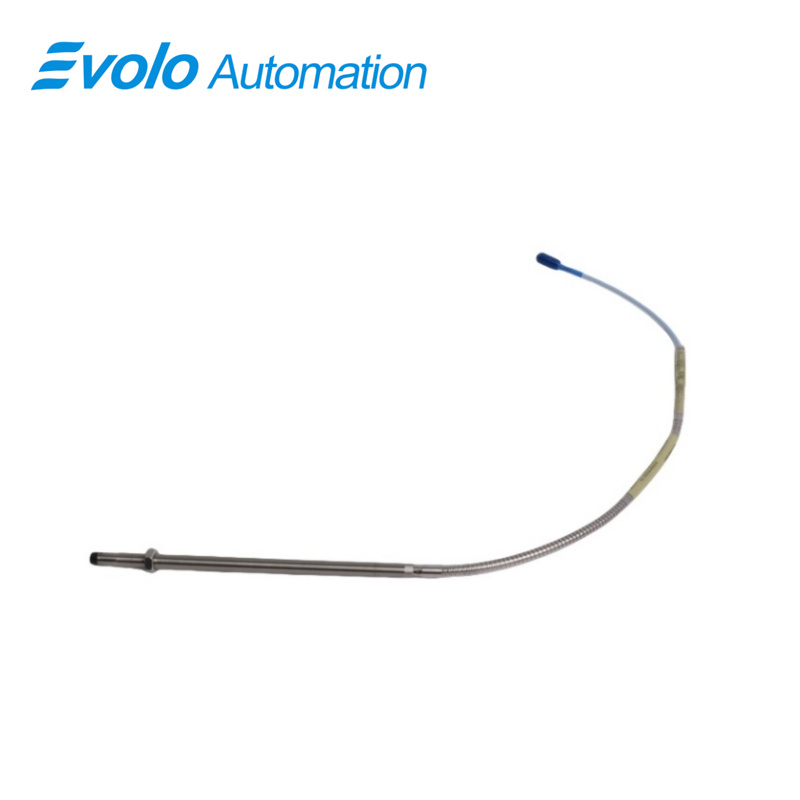

330102-04-45-50-01-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-04-45-50-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330102-04-45-50-01-00 3300 XL 8 mm Proximity ProbeV is a high-precision eddy current transducer designed for automated vibration and position monitoring on fluid-film bearing machines. 330102-04-45-50-01-00 converts the distance between the probe tip and the conductive surface into a proportional voltage signal, supporting both static (position) and dynamic (vibration) measurements.

The 330102-04-45-50-01-00 probe has a total length of 5.0 meters (16.4 ft), an unthreaded length of 0.4 in, and an overall case length of 4.5 in. It features a 3/8-24 UNF probe thread with 0.563 in maximum engagement, a linear range of 2 mm (80 mils), an output resistance of 50 Ω, and extension cable capacitance of 69.9 pF/m. Operating and storage temperatures range from -52°C to +177°C (-62°F to +350°F).

Equipped with a miniature coaxial ClickLoc connector with protector, 330102-04-45-50-01-00 allows secure field wiring using 16–24 AWG cables and optional FluidLoc cable for fluid isolation. Its patented TipLoc and CableLoc designs ensure robust probe-to-cable attachment, making 330102-04-45-50-01-00 ideal for Keyphasor reference, speed, vibration, and position measurements in automated industrial systems.

Applications

Vibration Monitoring on Fluid-Film Bearings
330102-04-45-50-01-00 3300 XL 8 mm Proximity ProbeV measures shaft vibration on turbines, pumps, and compressors. With a linear range of 2 mm (80 mils), an output resistance of 50 Ω, and extension cable capacitance of 69.9 pF/m, 330102-04-45-50-01-00 provides precise voltage signals to automated control and monitoring systems.

Shaft Position Measurement
330102-04-45-50-01-00 monitors axial and radial shaft positions with a 3/8-24 UNF probe thread and 0.563 in maximum thread engagement. The overall case length of 4.5 in and total probe length of 5.0 meters allow 330102-04-45-50-01-00 to be installed in machines with limited clearance for automated gap adjustments.

Keyphasor Reference Signal Generation
330102-04-45-50-01-00 provides Keyphasor reference signals for automated speed and phase monitoring. Its miniature coaxial ClickLoc connector and 5.0-meter cable length enable direct connection to PLCs or DCS modules without intermediate components.

Fluid Isolation During Operation
The optional FluidLoc cable in 330102-04-45-50-01-00 prevents oil or other liquids from entering the probe cable, maintaining uninterrupted automated signal transmission and reducing maintenance intervals.

Specifications

Competitive Advantage

Robust Probe-to-Cable Attachment
330102-04-45-50-01-00 uses patented TipLoc and CableLoc designs providing 330 N pull strength, ensuring the probe tip and cable remain securely attached during high-vibration operation.

Extended Temperature Range
330102-04-45-50-01-00 operates from -52°C to +177°C (-62°F to +350°F), supporting industrial turbines, compressors, and other machinery without additional cooling hardware.

Interchangeable Components
All components of 330102-04-45-50-01-00 are compatible with 3300 series 5 mm and 8 mm probes and extension cables, simplifying automated system upgrades and replacements while maintaining measurement accuracy.

Direct Signal Transmission
330102-04-45-50-01-00 connects directly to monitoring systems via a miniature coaxial ClickLoc connector, eliminating intermediate connections, reducing signal loss, and improving data reliability in automated operations.
