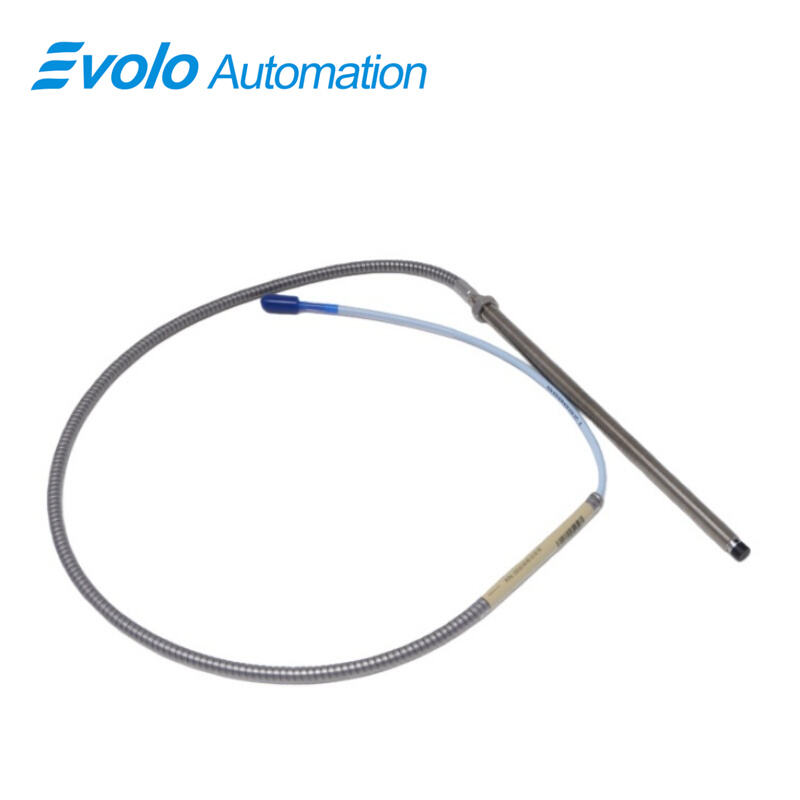

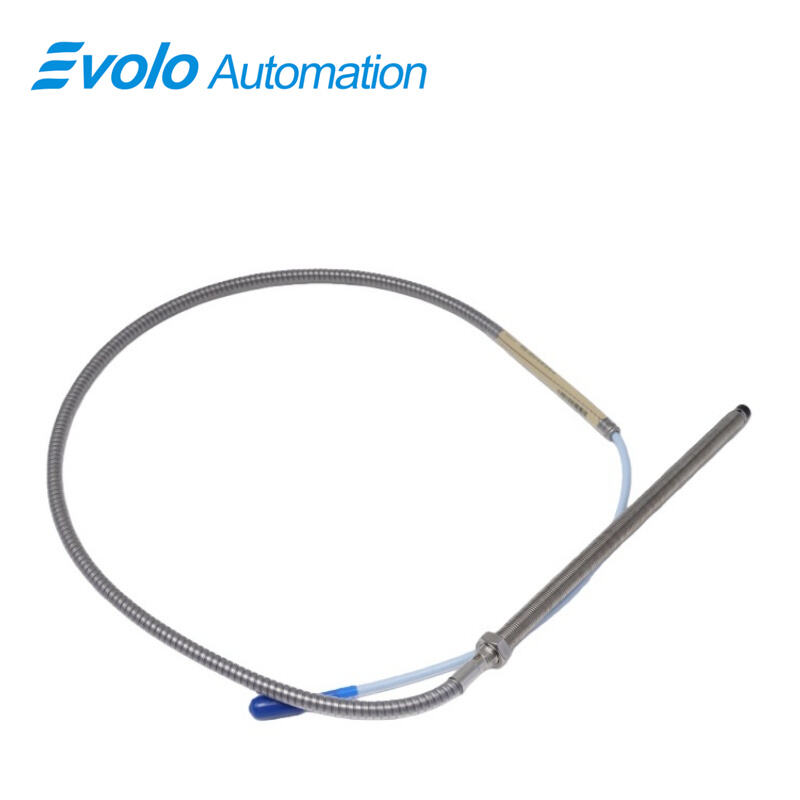

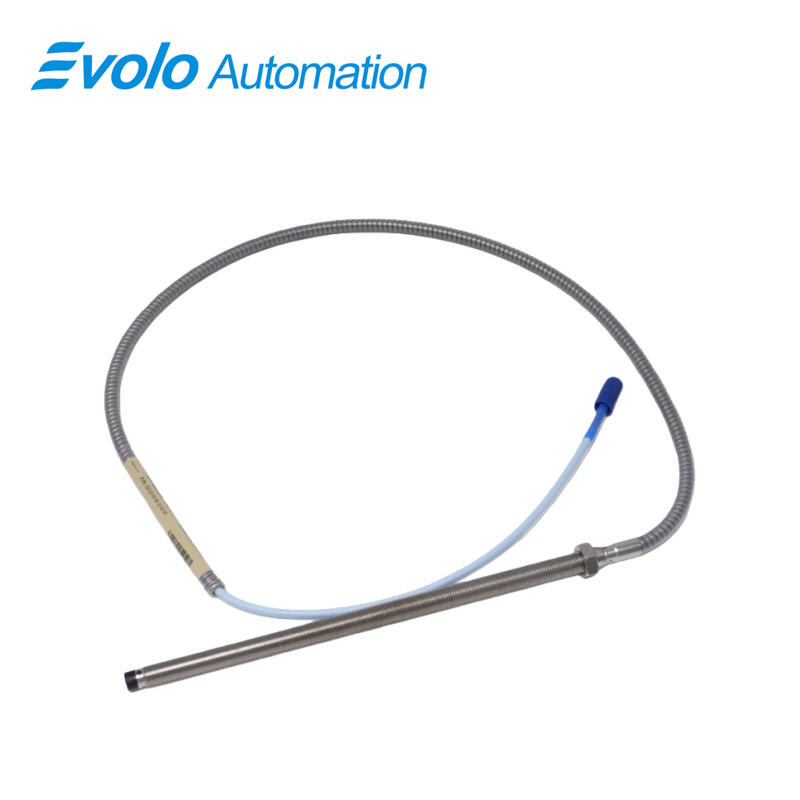

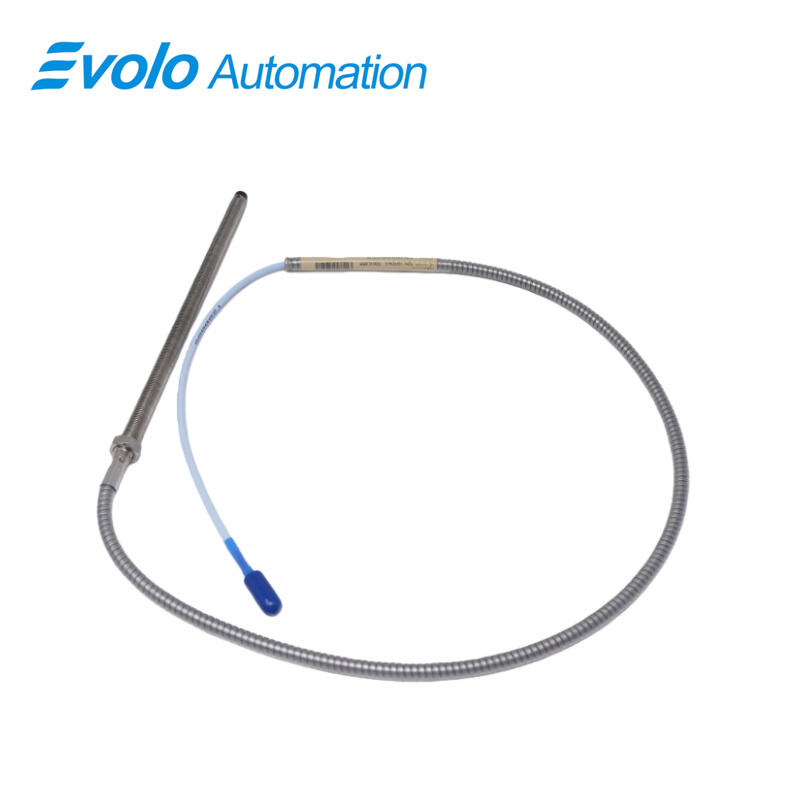

330102-00-80-10-11-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-80-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330102-00-80-10-11-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for automated machinery monitoring and control. 330102-00-80-10-11-00 converts the distance between the probe tip and a conductive target into a proportional voltage signal, supporting both static position and dynamic vibration measurements on fluid-film bearing machines.

The 330102-00-80-10-11-00 probe has a total length of 1.0 m, a minimum case length of 8.0 in, and an unthreaded length of 0.0 in. With a 3/8-24 UNF case thread and maximum engagement of 0.563 in, 330102-00-80-10-11-00 mounts securely on bearing housings. The probe operates from -52°C to +177°C, provides a linear range of 2 mm, an output resistance of 50 Ω, and extension cable capacitance of 69.9 pF/m.

Equipped with a miniature coaxial ClickLoc connector and optional FluidLoc cable, 330102-00-80-10-11-00 delivers reliable signal transmission through 16–24 AWG field wiring while preventing oil and fluid leakage. Its patented TipLoc and CableLoc designs ensure robust mechanical attachment, making 330102-00-80-10-11-00 suitable for Keyphasor reference, speed, vibration, and position measurements in automated industrial environments.

Applications

Vibration Measurement on Fluid-Film Bearings
330102-00-80-10-11-00 3300 XL 8 mm Proximity Probe is installed on turbines, pumps, and compressors to monitor shaft vibration. With a linear range of 2 mm and a 50 Ω output resistance, 330102-00-80-10-11-00 delivers proportional voltage signals directly to machinery protection systems and control racks.

Axial and Radial Position Measurement
330102-00-80-10-11-00 allows measurement of shaft axial and radial positions through precise placement on bearing housings. The 3/8-24 UNF case thread and 0.563 in maximum engagement enable secure mounting while maintaining probe access for automated gap adjustment.

Keyphasor Reference Signal Generation
330102-00-80-10-11-00 provides Keyphasor signals for speed and phase reference in automated monitoring systems. The 1.0 m total probe length and miniature coaxial ClickLoc connector support direct routing to PLCs, DCS modules, or speed monitoring units.

Specifications

Competitive Advantage

Robust Probe-to-Body Connection
The patented TipLoc molding method in 330102-00-80-10-11-00 ensures a strong mechanical bond between probe tip and body, maintaining accurate measurements under high-vibration conditions.

Secure Cable Attachment
330102-00-80-10-11-00 uses a patented CableLoc design with 330 N pull strength to firmly secure the probe cable, reducing installation errors in automated machinery setups.

Wide Operating Temperature Range
Operating from -52°C to +177°C, 330102-00-80-10-11-00 supports high-temperature industrial applications such as steam turbines and compressors without requiring additional cooling hardware.

Interchangeable Components
330102-00-80-10-11-00 is backward compatible with 3300 series 5 mm and 8 mm probes and extension cables, allowing easy upgrades or replacements in existing automated monitoring systems without recalibration.
