Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330102-00-50-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
5.0 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.3x113cm |
|
Weight: |
0.14kg |
Description

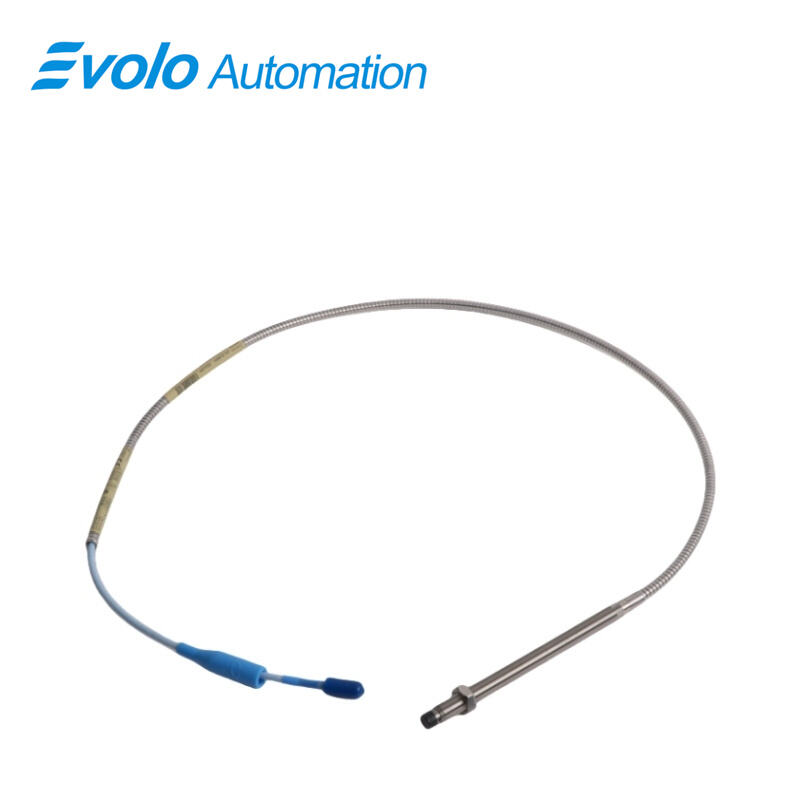

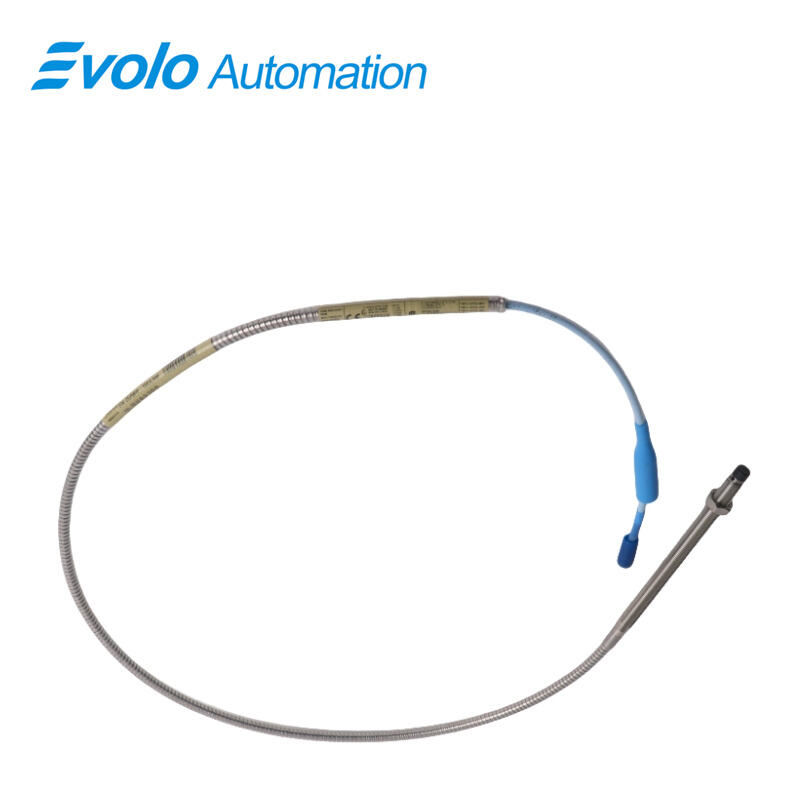

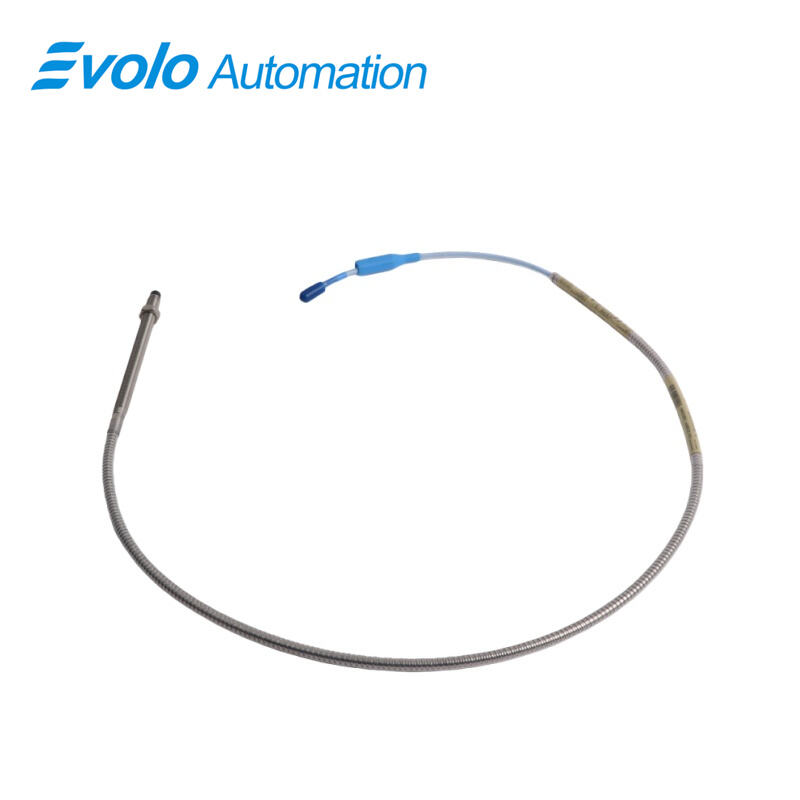

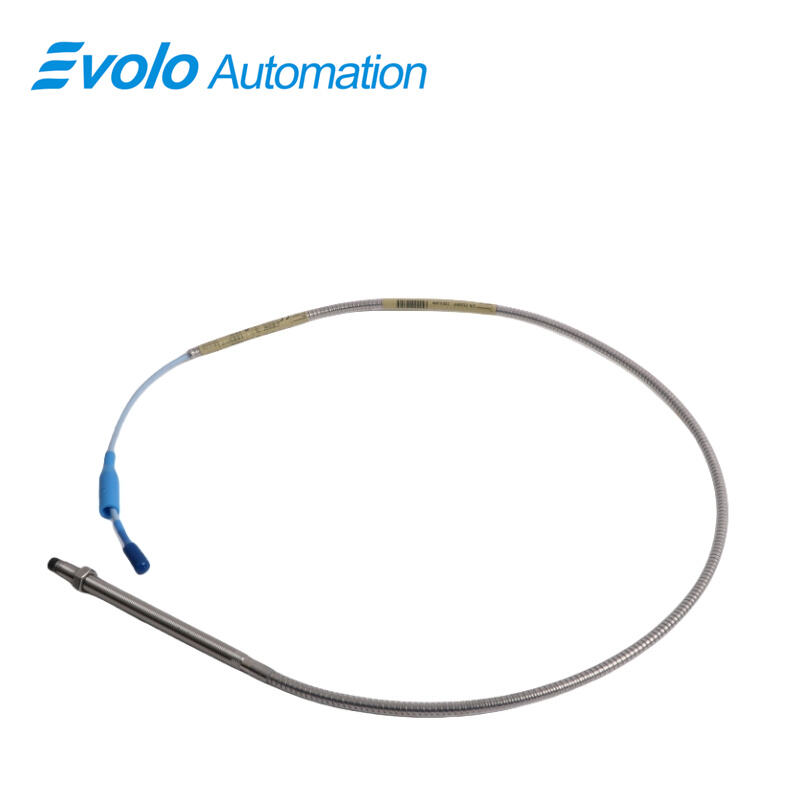

The 330102-00-50-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance automation sensor designed for precise non-contact measurement of vibration and shaft displacement in fluid-film bearing machinery. The 330102-00-50-10-02-05 3300 XL 8 mm probe features a 2 mm linear range, 3/8-24 UNF threaded mounting, and 5.0 in overall case length, delivering accurate and reliable data for industrial automation systems. Equipped with a 1.0 meter total cable and miniature coaxial ClickLoc connector, the 330102-00-50-10-02-05 probe ensures stable 50 Ω output resistance and less than 2 mV per volt supply sensitivity. Fully approved under CSA, ATEX, and IECEx standards, the 330102-00-50-10-02-05 3300 XL 8 mm probe is ideal for predictive maintenance, process automation, and integrated control systems where precision, durability, and ease of installation are critical.
Applications
Vibration Monitoring in Rotating Machinery
The 330102-00-50-10-02-05 3300 XL 8 mm probe captures high-frequency vibrations on pumps, turbines, and compressors, providing critical data for automated predictive maintenance and condition monitoring systems.
Static and Dynamic Shaft Position Measurement
With 2 mm linear range and 5.0 in case length, the 330102-00-50-10-02-05 probe enables precise measurement of axial and radial shaft positions in automated process control.
Keyphasor and Speed Reference Signals
The 330102-00-50-10-02-05 3300 XL 8 mm probe supports Keyphasor reference and tachometer measurements, ensuring accurate rotor phase monitoring for integrated automation systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Seamless Automation Integration
The 330102-00-50-10-02-05 probe is designed with ClickLoc connectors and optional FluidLoc cables, allowing plug-and-play connection into SCADA, PLC, and DCS systems.
High Accuracy and Thermal Stability
Operating across −52°C to +177°C, the 330102-00-50-10-02-05 3300 XL 8 mm probe provides consistent and precise measurements even under extreme industrial conditions.
Robust Mechanical Design
Featuring TipLoc molding and CableLoc with 330 N pull strength, the 330102-00-50-10-02-05 probe ensures long-term durability and reliable operation in harsh environments.
