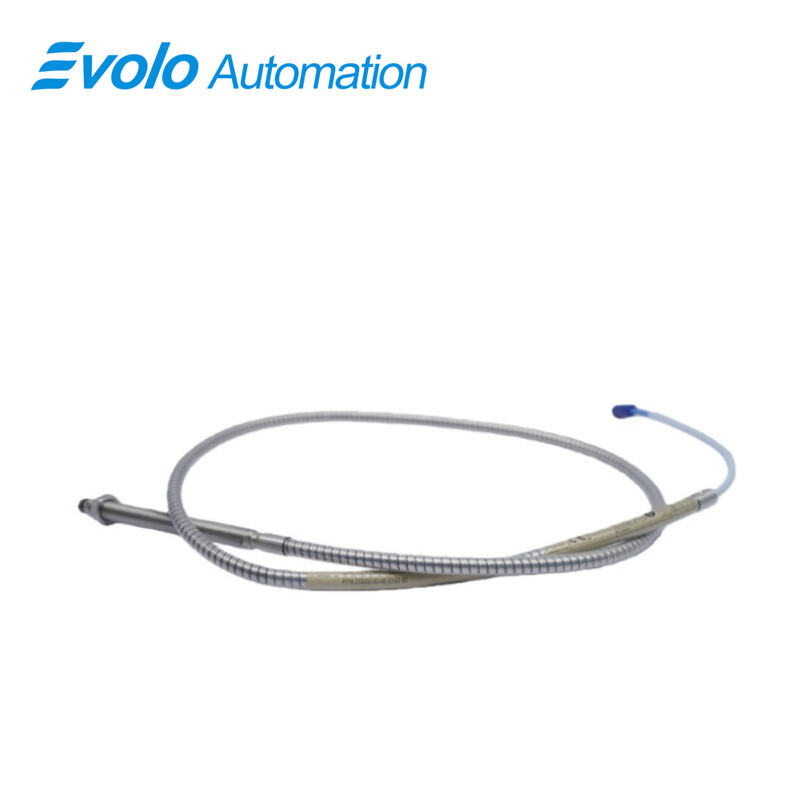

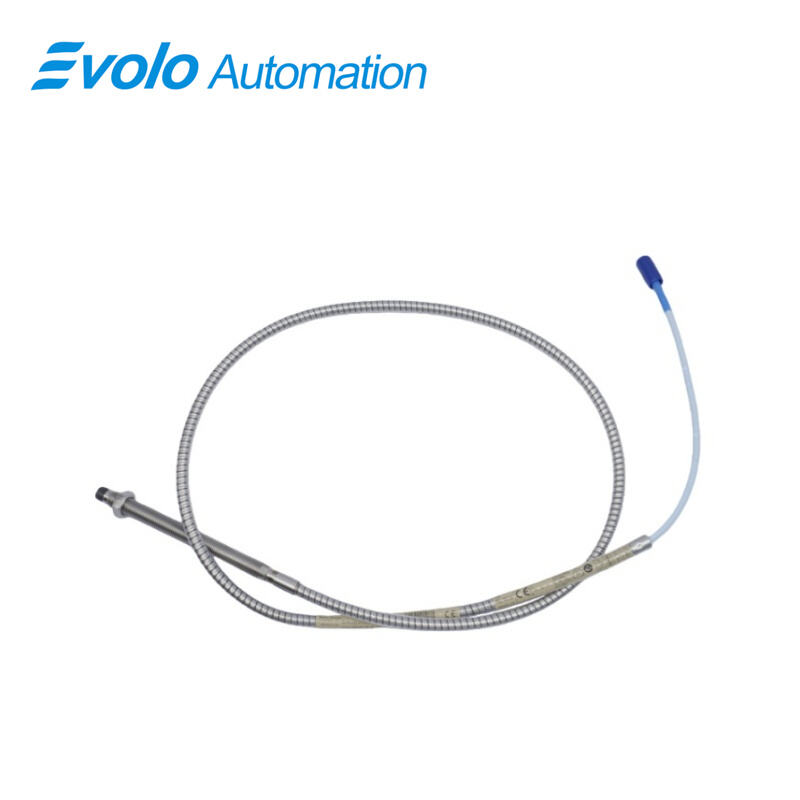

330102-00-42-05-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-42-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-42-05-02-00 3300 XL 8 mm Proximity Probe features a 0.5-meter total length and a 3/8-24 UNF thread, providing precise static (position) and dynamic (vibration) measurements on fluid-film bearing machinery. The 330102-00-42-05-02-00 delivers a 2 mm (80 mils) linear range with output resistance of 50 Ω and a supply sensitivity of less than 2 mV per volt, ensuring consistent voltage proportional to shaft or component displacement. Its miniature coaxial ClickLoc connector and standard cable enable secure connection with extension cables and Proximitor sensors. Operating between -52°C and +177°C (-62°F to +350°F), the 330102-00-42-05-02-00 is compatible with 3300 and 9000 Monitoring Systems, supporting Keyphasor reference, speed, and vibration measurements in automated industrial setups. The probe’s patented TipLoc molding and CableLoc design provide a secure bond between the probe tip and cable, and optional FluidLoc cables prevent fluid ingress during machine operation.

Applications

Radial Shaft Vibration Measurement
The 330102-00-42-05-02-00 3300 XL 8 mm Proximity Probe measures radial vibration on pumps, turbines, and compressors. Using its 2 mm linear range, it provides accurate displacement readings directly proportional to the distance between the probe tip and the shaft surface.

Axial (Thrust) Position Measurement
For axial position monitoring, the 330102-00-42-05-02-00 3300 XL 8 mm Proximity Probe calculates real-time thrust displacement on fluid-film bearing machines. Its operating temperature range (-52°C to +177°C) allows deployment in harsh industrial conditions without affecting output.

Keyphasor Reference and Speed Measurement
The 330102-00-42-05-02-00 3300 XL 8 mm Proximity Probe generates Keyphasor signals and rotational speed data for automated control systems. Its output impedance of 50 Ω and low supply sensitivity ensure consistent signal quality over distances up to 0.5 m.

Specifications

Competitive Advantage

High-Precision Linear Measurement
The 330102-00-42-05-02-00 3300 XL 8 mm Proximity Probe delivers a 2 mm (80 mils) linear range with an average scale factor of 7.87 V/mm, allowing automated systems to detect small displacements and vibration amplitudes accurately. Its 50 Ω output resistance ensures precise signal transmission to Proximitor sensors without loading errors.

Robust Electrical Performance
With less than 2 mV change per volt of supply sensitivity, the 330102-00-42-05-02-00 3300 XL 8 mm Proximity Probe maintains accurate output over voltage fluctuations. The extension cable capacitance of 69.9 pF/m (21.3 pF/ft) enables consistent signal integrity over 0.5 m connection lengths, ensuring reliable monitoring in automated machinery.

Mechanical Security
The 330102-00-42-05-02-00 3300 XL 8 mm Proximity Probe features a 3/8-24 UNF thread with 0.563 in maximum engagement, combined with patented TipLoc and CableLoc designs. This allows the probe to resist mechanical displacement, pull, or torque, ensuring the probe tip and cable remain firmly attached during continuous machine operation.

Wide Temperature Operation
Capable of operating from -52°C to +177°C (-62°F to +350°F), the 330102-00-42-05-02-00 3300 XL 8 mm Proximity Probe delivers reliable vibration and position readings in extreme industrial conditions without impacting output accuracy.
