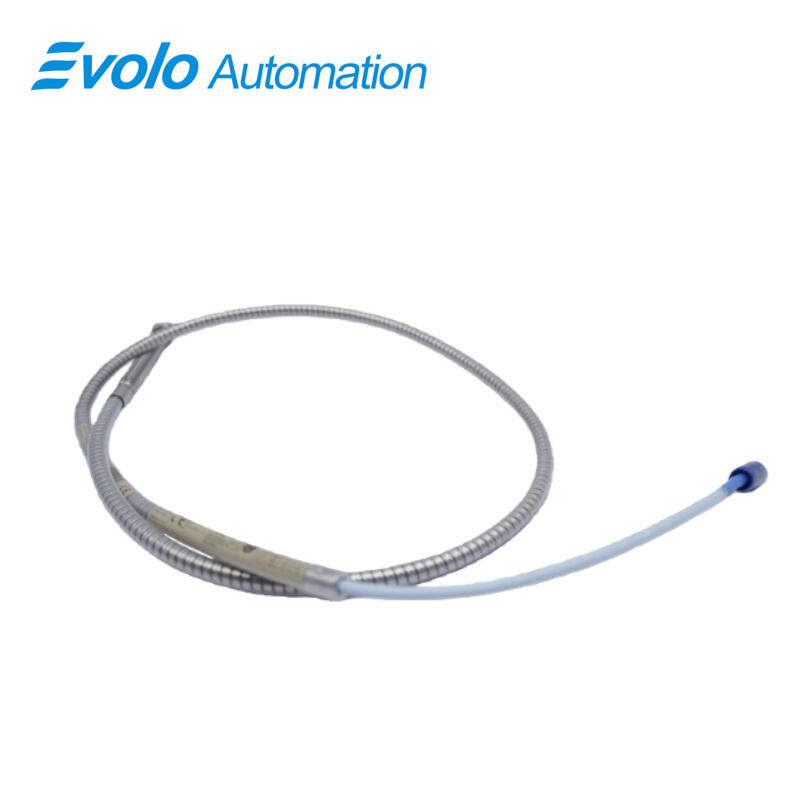

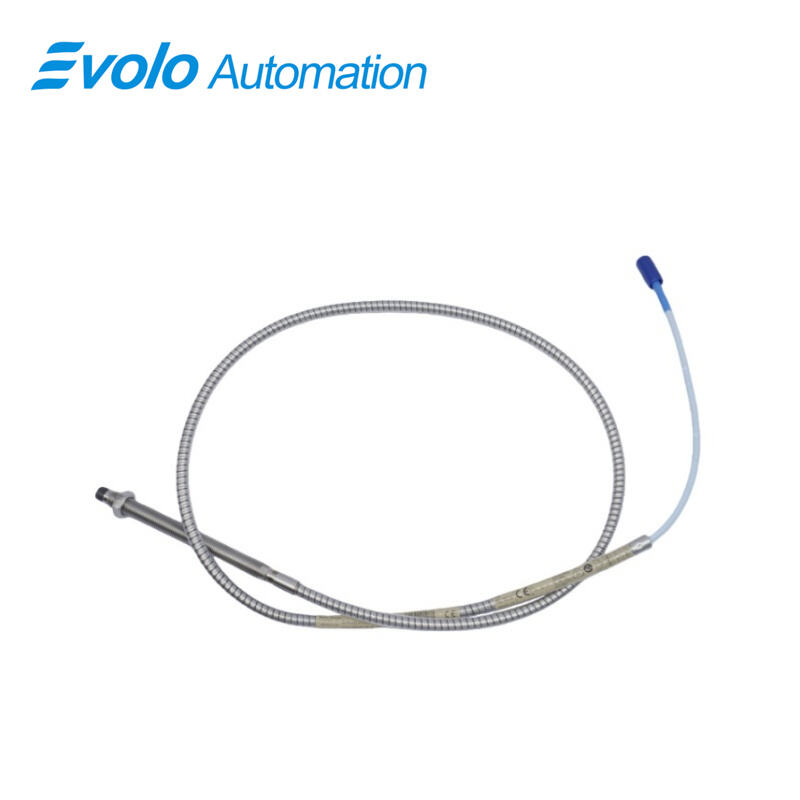

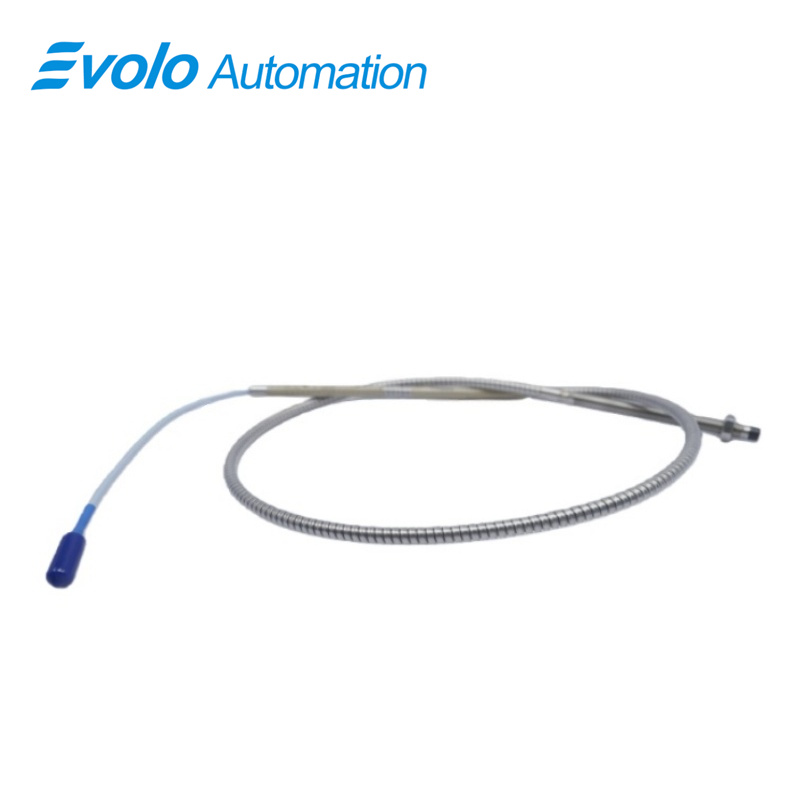

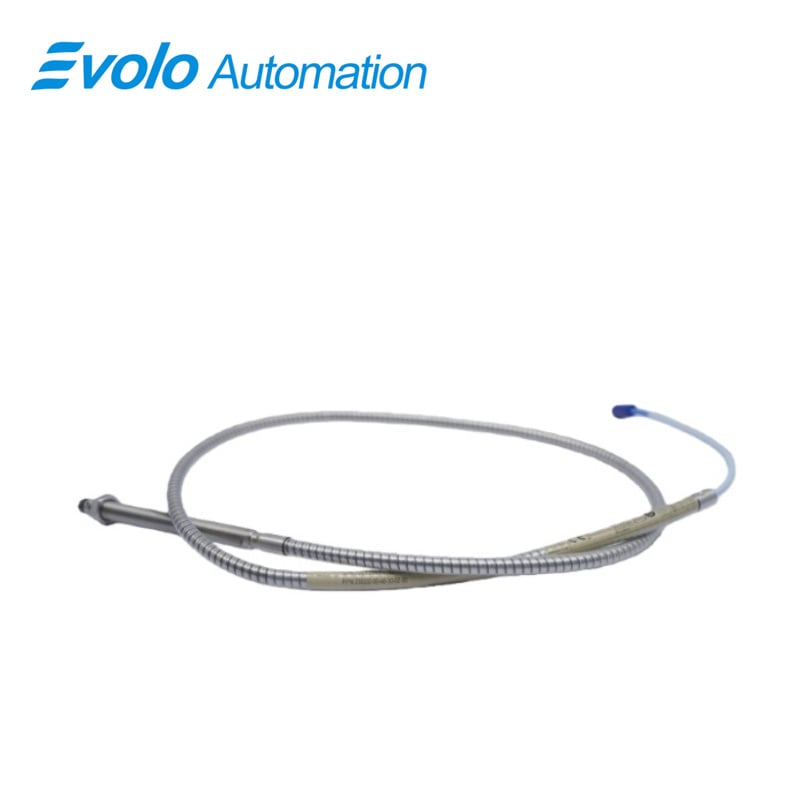

330102-00-40-50-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-40-50-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-40-50-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy-current transducer engineered for industrial automation, vibration monitoring, and position sensing applications. It delivers an output voltage directly proportional to the gap between the probe tip and the target conductive surface, supporting both static (position) and dynamic (vibration) measurements on fluid-film bearing machinery. This 3300 XL 8 mm probe features a 3/8-24 UNF thread, a linear range of 2 mm (80 mils), and a 5-meter standard extension cable, ensuring accurate data over long distances. The probe operates reliably in extreme conditions, with a temperature range of -52°C to +177°C (-62°F to +350°F), and its ClickLoc connector with protector provides secure, contamination-resistant connections. The patented TipLoc molding and CableLoc designs enhance mechanical robustness and cable integrity, while the optional FluidLoc cable prevents fluid ingress, safeguarding measurement accuracy. Fully compliant with API 670 standards for mechanical configuration, linear range, and temperature stability, the 3300 XL 8 mm system offers interchangeability with previous 3300 series probes and Proximitor sensors, enabling seamless integration and upgrades in critical automation systems.

Applications

1. Rotating Machinery Vibration Monitoring
Ideal for turbines, compressors, and pumps, the probe measures dynamic vibration to support predictive maintenance strategies, reducing unplanned downtime.

2. Shaft and Axial Position Detection
Provides precise static position measurements on rotating shafts, ensuring accurate alignment and operational control in automated production lines.

3. Keyphasor Reference and Speed Measurement
Generates phase reference signals and speed data for rotating equipment, supporting condition monitoring systems and SCADA integration.

4. Harsh Environment Industrial Automation
Operates in extreme temperatures from -52°C to +177°C, suitable for petrochemical, energy, and heavy industrial plants with demanding conditions.

5. Fluid-Film Bearing Applications
Accurately monitors bearing clearances and radial vibrations on machinery with fluid-film bearings, improving operational safety and lifespan.

Specifications

Competitive Advantage

1. High Accuracy and Stability
Maintains linearity across 2 mm range with less than 2 mV voltage variation per volt change, providing highly reliable measurements for critical systems.

2. Robust Mechanical Design
316L stainless steel body, patented TipLoc molding, and CableLoc design provide 330 N (75 lbf) pull strength, ensuring durability in harsh industrial environments.

3. Extended Cable Compatibility
5-meter extension cable with 69.9 pF/m capacitance allows long-distance installation without signal degradation, supporting flexible industrial layouts.

4. API 670 Compliance
Meets industry standards for mechanical configuration, linearity, accuracy, and temperature stability, ensuring trusted performance for critical rotating machinery.

5. Optional FluidLoc Protection
Prevents oil or liquid ingress through the cable, maintaining process safety and protecting electrical signals in fluid-laden environments.
