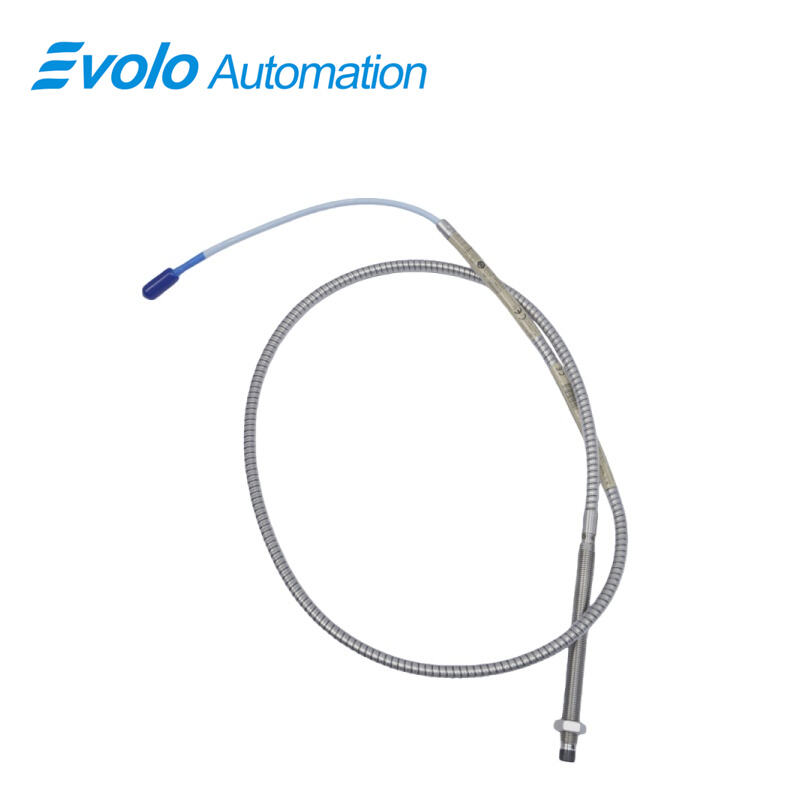

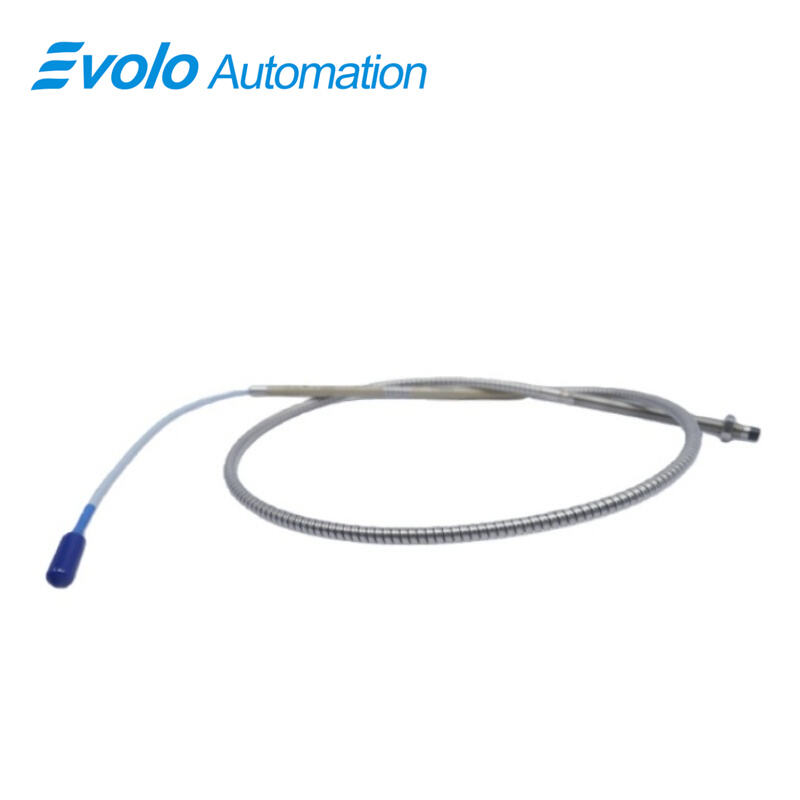

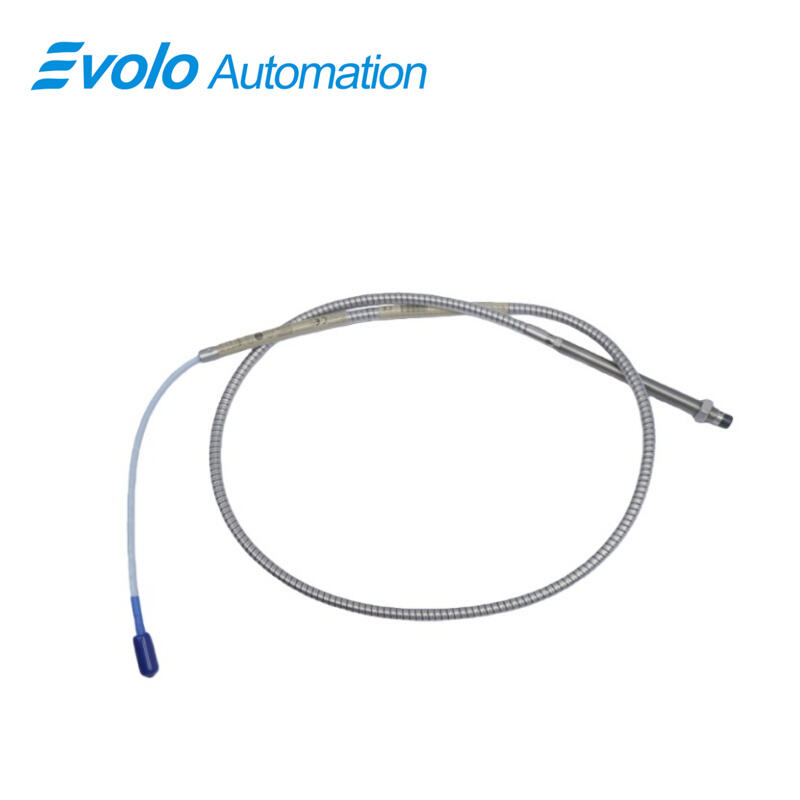

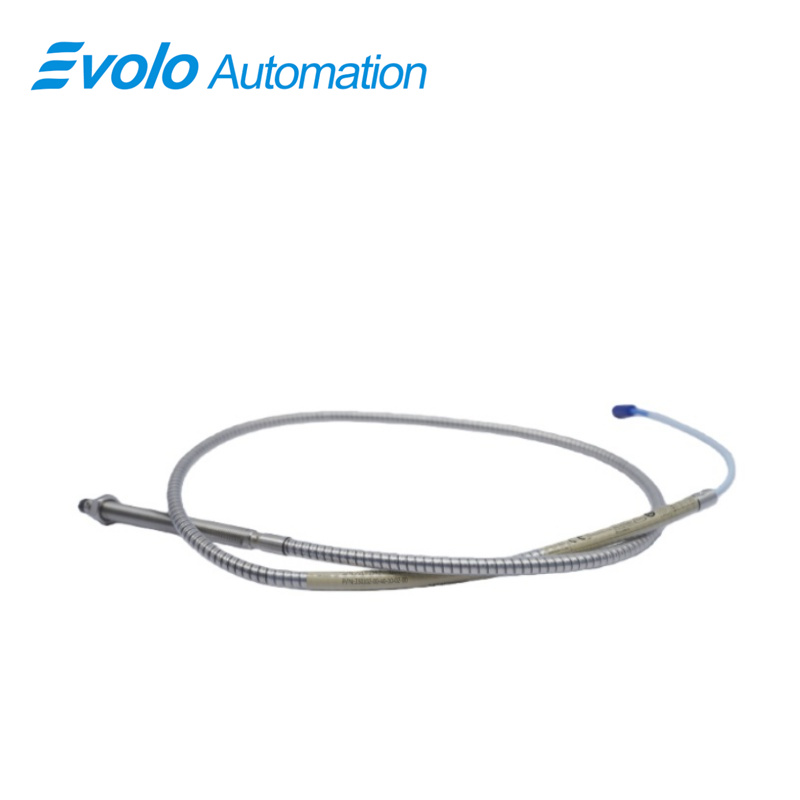

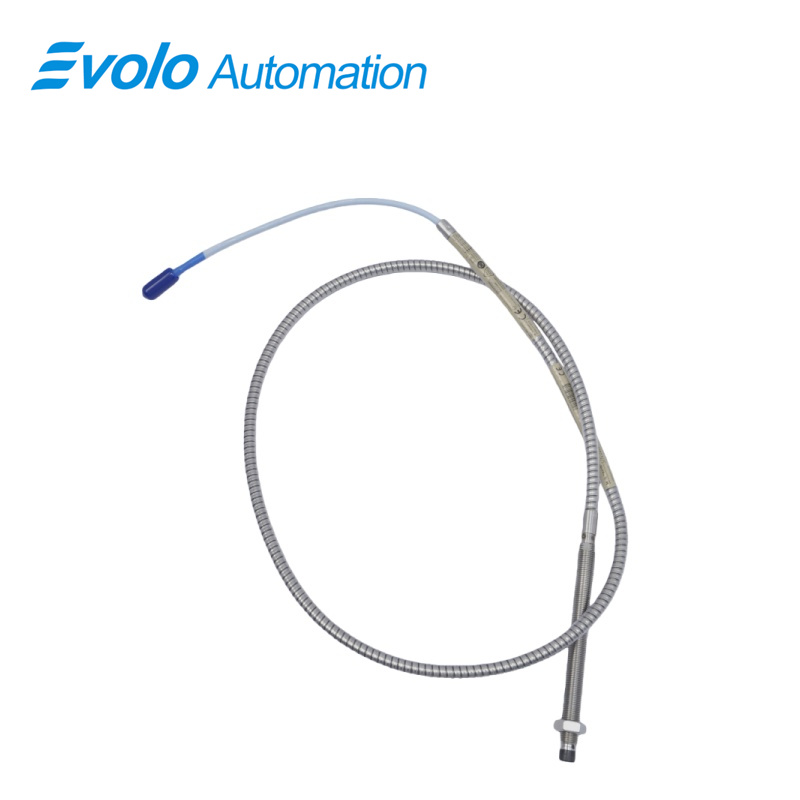

330102-00-40-10-11-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-40-10-11-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-40-10-11-05 3300 XL 8 mm Proximity Probe provides precise non-contact vibration and position measurements on fluid-film bearing machines. With a 8 mm probe tip, 4 in overall case length, 1.0 m total cable, 3/8-24 UNF thread, 2 mm linear range, and 50 Ω output resistance, the 330102-00-40-10-11-05 3300 XL 8 mm probe delivers high-resolution readings for axial, radial, and Keyphasor monitoring. It includes miniature coaxial ClickLoc connectors with protector, FluidLoc cable option, and braided shielding. Operating range is -52°C to +177°C, compatible with CSA, ATEX, and IECEx approvals. The 330102-00-40-10-11-05 3300 XL 8 mm probe features patented TipLoc and CableLoc designs for secure probe-to-cable attachment and direct integration with 3300 XL monitoring systems, enabling reliable automated shaft and vibration tracking.

Applications

Monitor Radial Shaft Vibration
The 330102-00-40-10-11-05 3300 XL 8 mm probe is ideal for measuring radial vibration on shafts as small as 2 in (50.8 mm). With a 2 mm linear range and 3.94 V/mm output, the 330102-00-40-10-11-05 3300 XL 8 mm probe provides precise non-contacting displacement measurements for fluid-film bearing machines.

Measure Axial (Thrust) Shaft Position
Use the 330102-00-40-10-11-05 3300 XL 8 mm probe to track axial movement on steam turbines or compressors. Its 8 mm probe tip and 3/8-24 UNF thread allow consistent alignment and repeatable gap settings of 1.27 mm, ensuring accurate thrust measurement.

Generate Keyphasor and Speed Signals
The 330102-00-40-10-11-05 3300 XL 8 mm probe provides high-quality Keyphasor output for tachometer systems. Its 50 Ω output resistance and less than 2 mV supply sensitivity change guarantee accurate phase reference signals, enabling automated rotational monitoring.

Integrate with Automated Monitoring Systems
The 330102-00-40-10-11-05 3300 XL 8 mm probe works seamlessly with 3300 XL Proximitor sensors and 5-meter extension cables. ClickLoc connectors and optional FluidLoc cable reduce installation time while providing reliable automated signal transfer.

Specifications

Competitive Advantage

Direct Integration with 3300 XL Monitoring Systems
The 330102-00-40-10-11-05 3300 XL 8 mm probe connects directly to 3300 XL monitoring systems using gold-plated ClickLoc connectors, eliminating extra junction boxes and minimizing wiring errors.

High-Precision Linear Measurement
With a 2 mm linear range and 3.94 V/mm output, the 330102-00-40-10-11-05 3300 XL 8 mm probe captures subtle radial and axial shaft movements, providing detailed data for automated vibration analysis.

Durable Mechanical Attachment
The 330102-00-40-10-11-05 3300 XL 8 mm probe uses patented TipLoc and CableLoc designs to secure the probe tip to the cable, maintaining reliable signal integrity during automated monitoring cycles.

Wide Operating Temperature and Environment
Rated IP67 and operating from -52°C to +177°C, the 330102-00-40-10-11-05 3300 XL 8 mm probe performs in dusty, humid, and high-temperature environments, supporting continuous automated measurements.

Connector and Cable Liquid Protection
The 330102-00-40-10-11-05 3300 XL 8 mm probe’s FluidLoc cable and connector protector prevent fluid ingress, ensuring the probe maintains accurate output voltage in wet or oily operating conditions.
