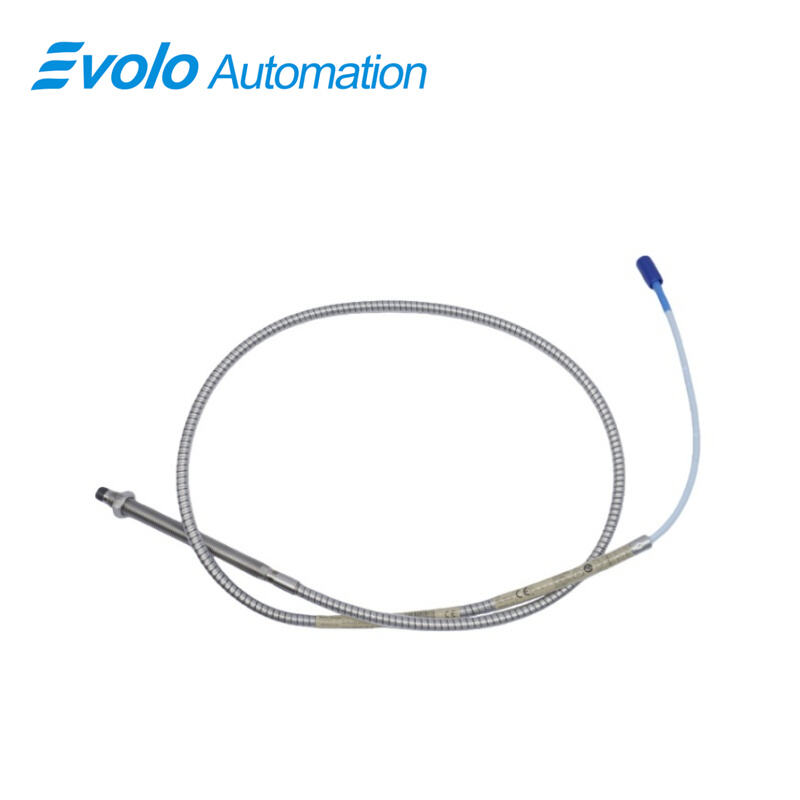

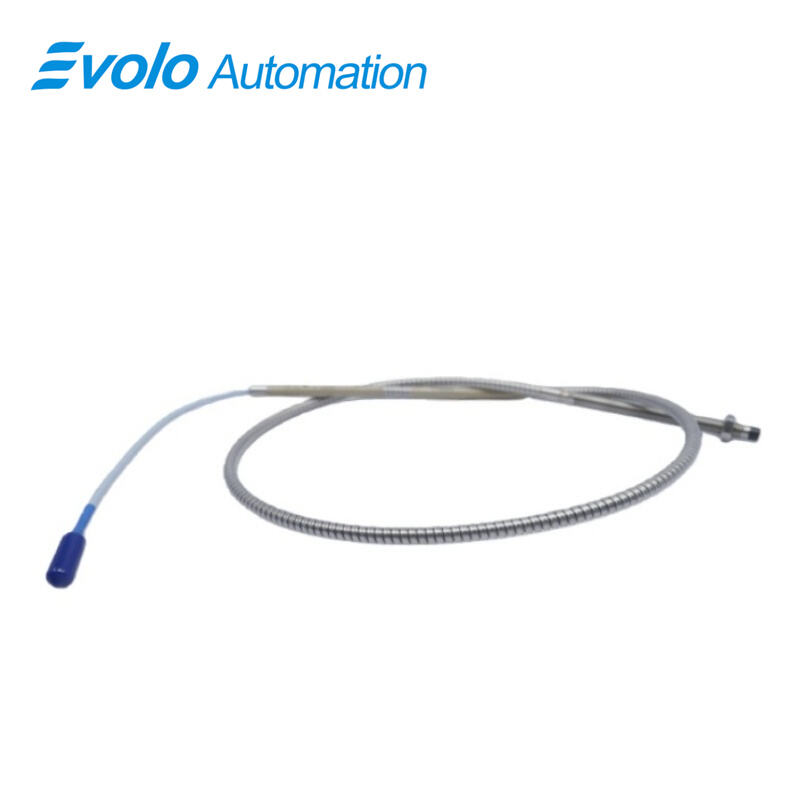

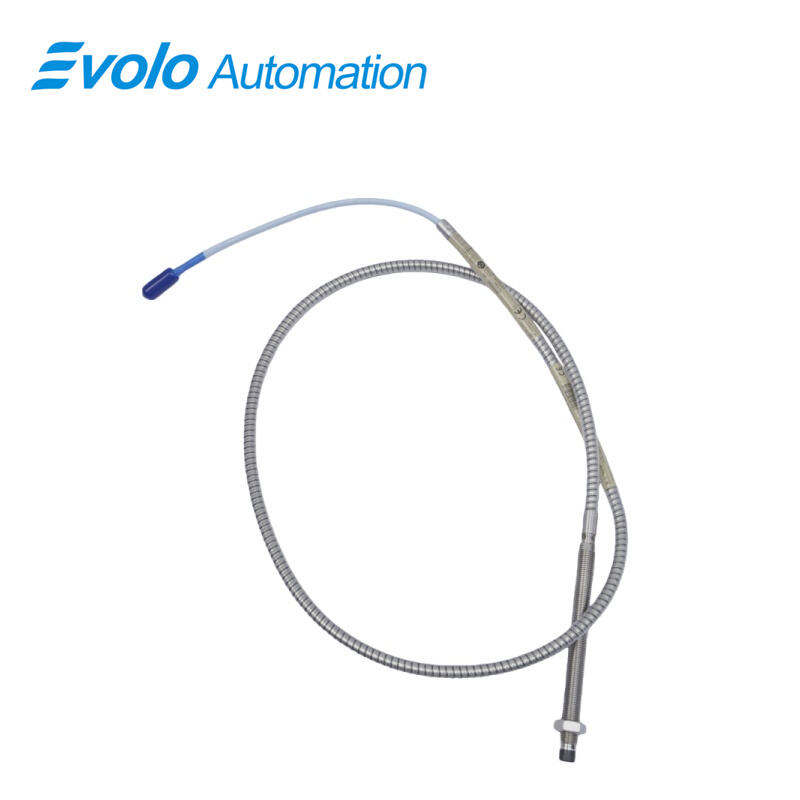

330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-40-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer specifically designed for industrial automation applications, providing highly accurate measurement of both static position and dynamic vibration on fluid-film bearing machines. The 330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe delivers output voltage directly proportional to the distance between the probe tip and the measured conductive surface, with a linear range of 2 mm (80 mils) and output resistance of 50 Ω. This probe system features a miniature coaxial ClickLoc connector with connector protector and optional FluidLoc cable for enhanced sealing, preventing fluid leakage and ensuring long-term reliability in automated environments. The 330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe operates across a wide temperature range from -52°C to +177°C (-62°F to +350°F) and maintains supply sensitivity under 2 mV change per volt of input, ensuring stable and accurate readings for critical industrial monitoring. The probe’s 3/8-24 UNF thread and maximum engagement of 0.563 in provide secure installation, while the robust TipLoc and CableLoc designs offer 330 N (75 lbf) pull strength for durable connections. Fully compatible with standard 3300 series transducer components, the 330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe supports interchangeability with Proximitor sensors and extension cables, eliminating the need for individual component calibration and providing seamless integration into automated monitoring and predictive maintenance systems.

Applications

Fluid-Film Bearing Vibration Monitoring
The 330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe is ideal for automated vibration analysis on fluid-film bearing machines. Its 2 mm linear range and sensitivity ensure accurate detection of shaft displacement and vibration amplitudes, enabling predictive maintenance and early fault detection.

Keyphasor and Rotational Speed Measurement
In industrial automation, the 330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe provides precise Keyphasor reference signals and speed measurements, supporting condition-based monitoring systems. Its miniature coaxial ClickLoc connector ensures reliable signal transmission in high-speed rotational applications.

Specifications

Competitive Advantage

High Accuracy and Linear Response
With a linear range of 2 mm and output resistance of 50 Ω, the 330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe provides highly accurate position and vibration readings, critical for automated condition monitoring.

Rugged Design for Harsh Environments
Operating from -52°C to +177°C and designed with 3/8-24 UNF thread engagement and robust TipLoc and CableLoc designs, the 330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe withstands extreme industrial conditions while maintaining signal integrity.

Enhanced Sealing and Reliability
Optional FluidLoc cable and miniature coaxial ClickLoc connector protect the 330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe from oil and liquid ingress, ensuring continuous operation in automated machinery and reducing downtime.
