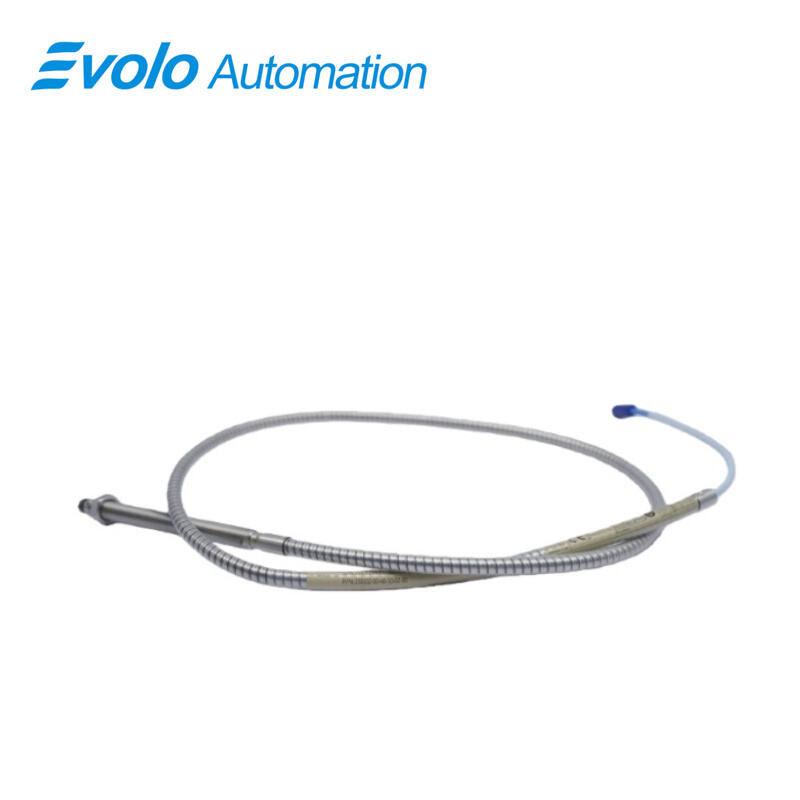

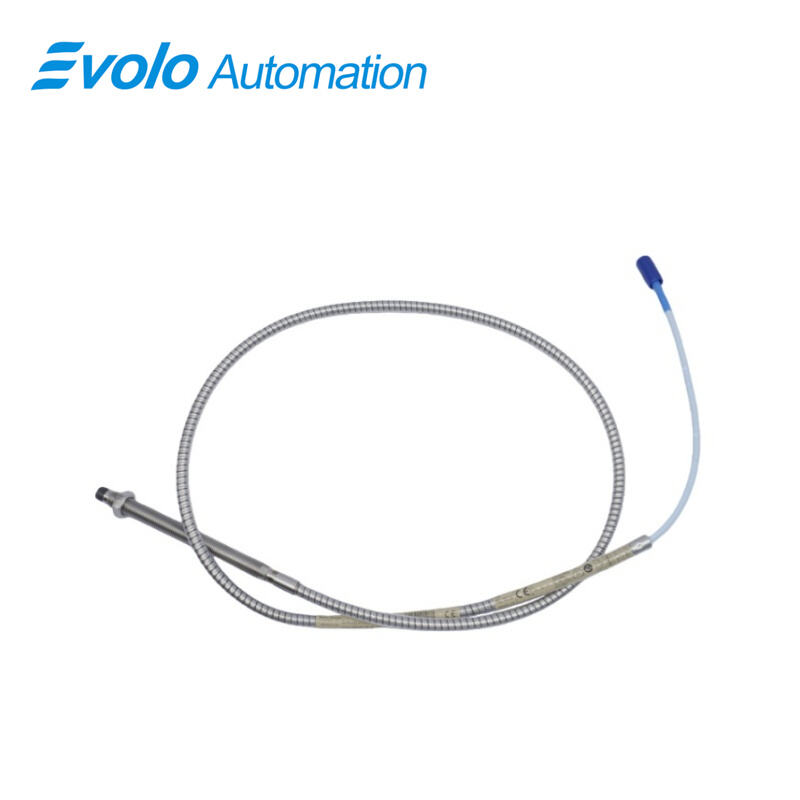

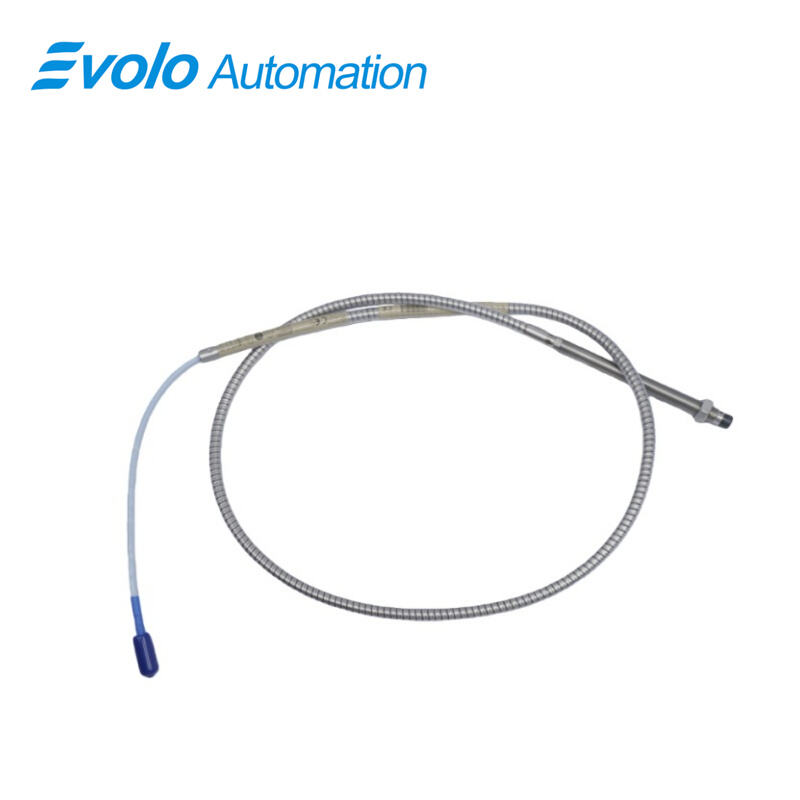

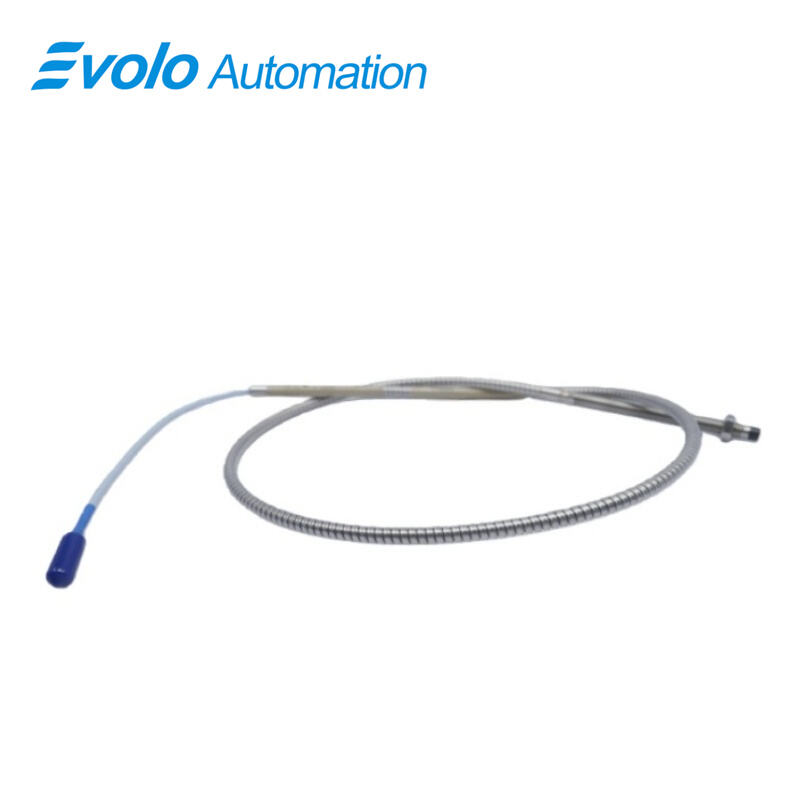

330102-00-40-05-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-40-05-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-40-05-01-05 3300 XL 8 mm Proximity Probe is a high-performance eddy-current transducer designed for industrial automation, precision vibration monitoring, and shaft position measurement. This probe delivers an output voltage that is directly proportional to the distance between the probe tip and the target conductive surface, supporting both static (position) and dynamic (vibration) measurements. Engineered with a 3/8-24 UNF thread, a linear range of 2 mm (80 mils), and a 0.5-meter standard extension cable, it provides accurate readings in compact installations. Operating in extreme conditions from -52°C to +177°C (-62°F to +350°F), the probe is equipped with a ClickLoc connector with protector, enhancing durability and maintaining signal integrity. Advanced mechanical features, including TipLoc molding and CableLoc design providing 330 N (75 lbf) pull strength, ensure robust cable and probe attachment. Optional FluidLoc cable protection prevents oil and other liquids from compromising measurements. Fully compatible with previous 3300 series probes and Proximitor sensors, the 3300 XL 8 mm probe enables seamless upgrades and integration into existing monitoring systems, while complying with API 670 standards for accuracy, linearity, and mechanical configuration.

Applications

1. Rotating Machinery Vibration Monitoring
Provides precise vibration measurements on pumps, turbines, and compressors, supporting predictive maintenance and reducing unplanned downtime in automated facilities.

2. Shaft and Axial Position Detection
Measures static shaft positions for alignment and control in industrial machinery, ensuring operational accuracy in fluid-film bearing systems.

3. Keyphasor Reference and Speed Measurement
Generates phase reference and speed signals for rotating equipment, essential for SCADA integration and condition-based monitoring.

4. High-Temperature and Harsh Environment Operation
Functions reliably in extreme environments from -52°C to +177°C, suitable for petrochemical, energy, and heavy industrial applications.

5. Compact and Tight Installation Applications
Its 0.5-meter cable and compact 8 mm probe design enable installation in areas with restricted space, ensuring measurement in confined or hard-to-reach locations.

Specifications

Competitive Advantage

1. High Accuracy and Linear Range
Maintains linearity across a 2 mm range with less than 2 mV variation per volt, delivering precise readings for critical machinery monitoring.

2. Robust Mechanical Design
316L stainless steel body with patented TipLoc molding and CableLoc design offers 330 N pull strength, enhancing durability in harsh industrial environments.

3. Compact and Flexible Installation
Short extension cable and miniature probe design allow installation in limited spaces without compromising performance.

4. API 670 Compliance
Meets American Petroleum Institute standards for linearity, temperature stability, and mechanical configuration, ensuring reliability in mission-critical monitoring.

5. Optional Fluid Protection
Optional FluidLoc cable prevents oil or liquid ingress, maintaining signal integrity and protecting measurement accuracy in fluid-exposed environments.
