Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330102-00-35-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
3.5 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.3x120cm |
|
Weight: |
0.14kg |
Description

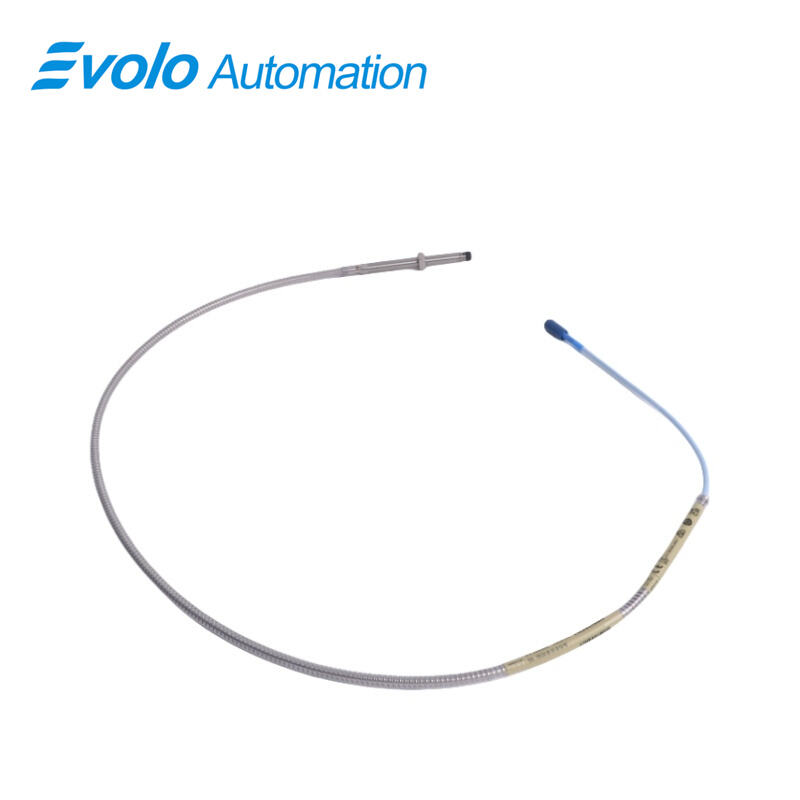

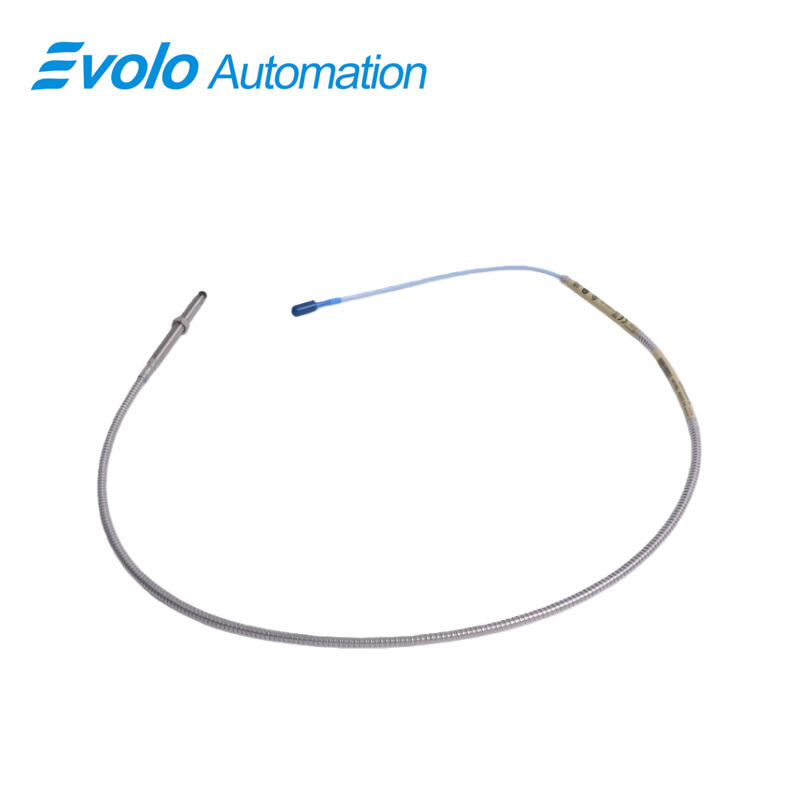

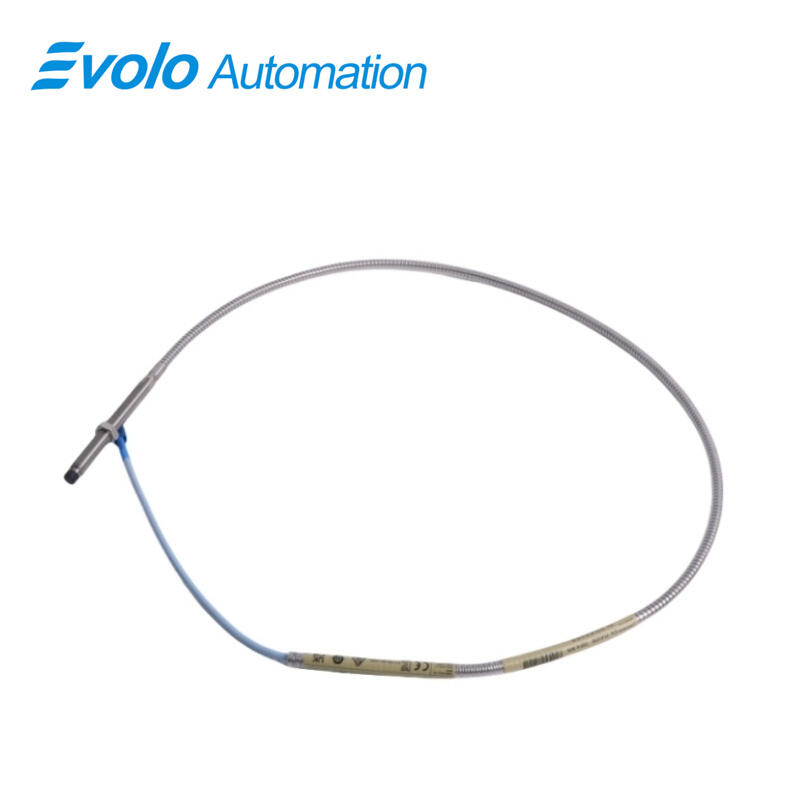

The 330102-00-35-10-02-00 3300 XL 8 mm Proximity Probe delivers precise displacement and vibration measurements in automated industrial systems. With a 2 mm linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, the 330102-00-35-10-02-00 3300 XL 8 mm Proximity Probe provides accurate monitoring of static position and dynamic vibration on fluid-film bearing machines. Its miniature coaxial ClickLoc connector and standard cable support 0.2–1.5 mm² (16–24 AWG) field wiring, while 69.9 pF/m extension cable capacitance ensures signal integrity over 1.0-meter (3.3 feet) connections. Operating from -52°C to +177°C (-62°F to +350°F), the 330102-00-35-10-02-00 3300 XL 8 mm Proximity Probe withstands harsh industrial environments without additional cooling. The 3/8-24 UNF threaded case with 0.563 in engagement allows secure mounting. This probe integrates seamlessly with 3300 XL systems, enabling Keyphasor speed reference and shaft position tracking without calibration of individual components. Optional FluidLoc cables prevent oil and liquid leakage, keeping automated machinery safe and operational.
Applications
Measure Rotating Shaft Vibration
Use the 330102-00-35-10-02-00 3300 XL 8 mm Proximity Probe to record real-time vibration on fluid-film bearing machines, leveraging the 2 mm linear range for precise motion detection.
Track Shaft Position Changes
Install the 330102-00-35-10-02-00 3300 XL 8 mm Proximity Probe on critical shafts to monitor position deviations during operation, using its 50 Ω output resistance and voltage-proportional readings.
Provide Keyphasor Speed Reference
Connect the 330102-00-35-10-02-00 3300 XL 8 mm Proximity Probe to a control system to generate Keyphasor signals, enabling speed calculation and rotational monitoring in automated machinery.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Secure Probe Installation
The 330102-00-35-10-02-00 3300 XL 8 mm Proximity Probe features a 3/8-24 UNF threaded case with 0.563 in engagement to ensure firm attachment in automated equipment.
Maintain Signal Quality Over Cable
With a 1.0-meter standard cable and 69.9 pF/m capacitance, the 330102-00-35-10-02-00 3300 XL 8 mm Proximity Probe delivers accurate voltage readings without interference.
Prevent Fluid Entry
Optional FluidLoc cable on the 330102-00-35-10-02-00 3300 XL 8 mm Proximity Probe blocks oil and other liquids from leaking into the probe or machine interior.
Operate in Extreme Temperatures
The 330102-00-35-10-02-00 3300 XL 8 mm Proximity Probe functions between -52°C and +177°C, allowing continuous operation in harsh industrial conditions.
