Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330102-00-20-30-12-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
2.0 in |
|
Total Length Option: |
3.0 meters (9.8 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.2x120cm |
|
Weight: |
0.15kg |
Description

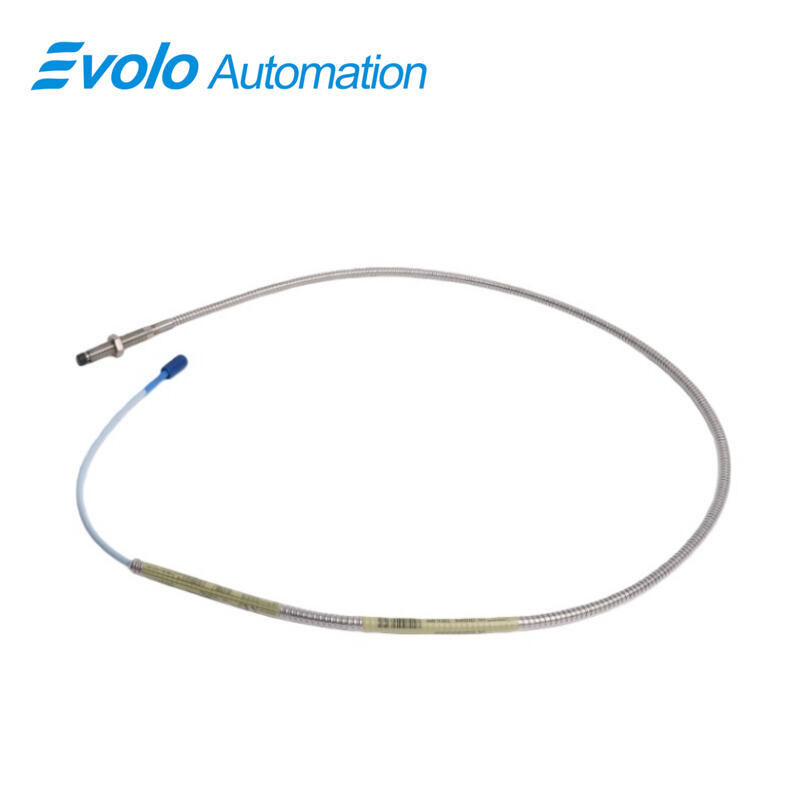

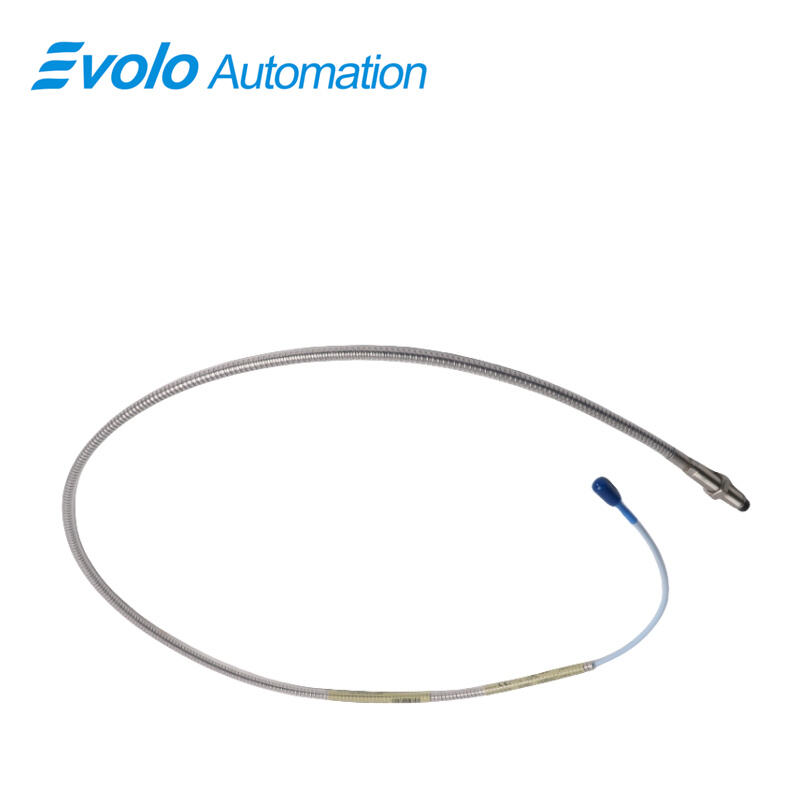

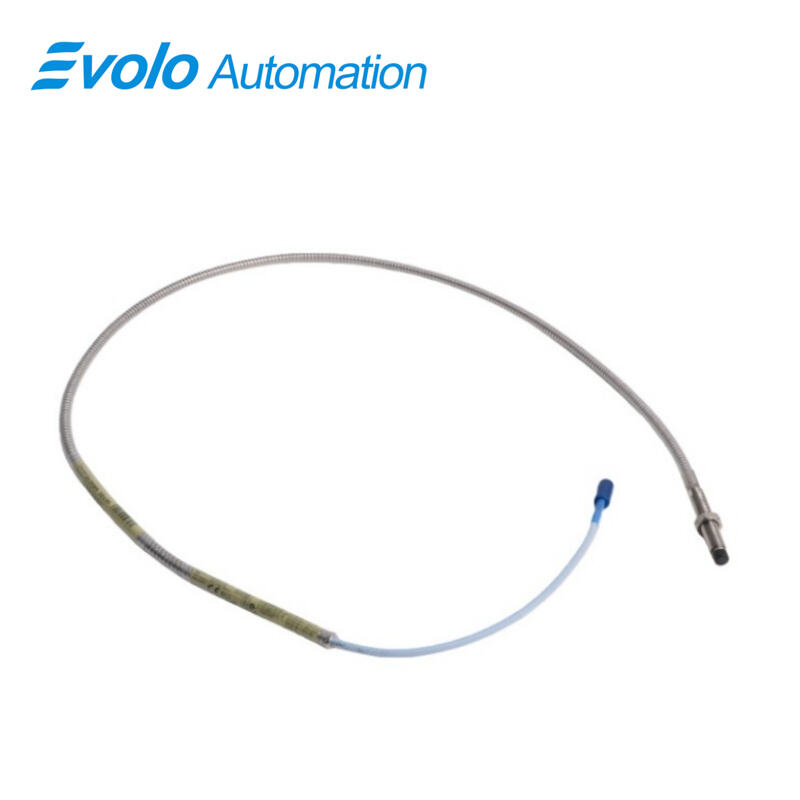

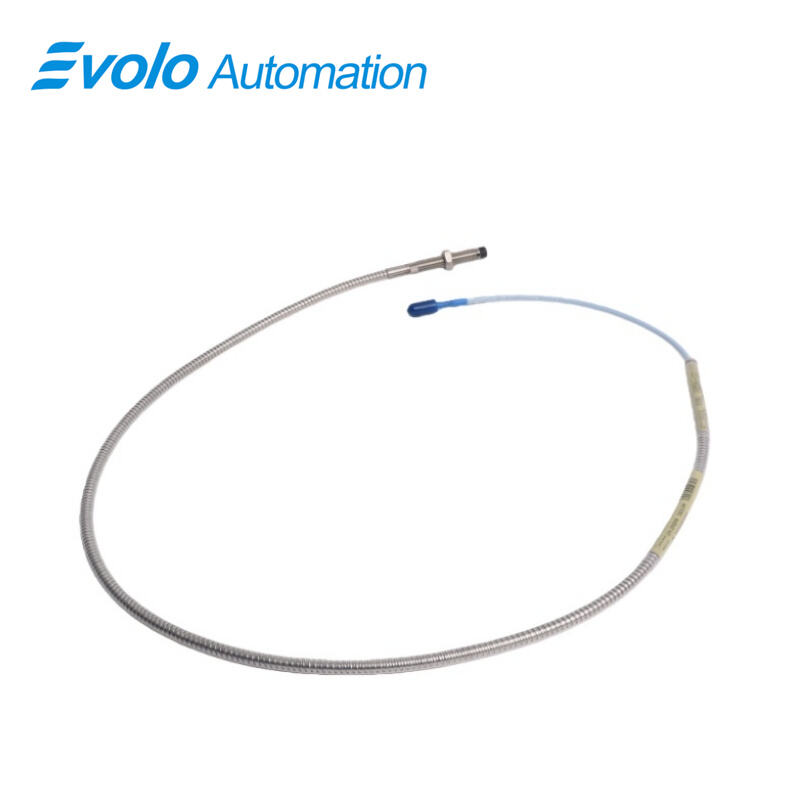

The 330102-00-20-30-12-CN 3300 XL 8 mm Proximity Probe converts the distance between the probe tip and conductive surfaces into a proportional voltage output, enabling real-time monitoring of static position and dynamic vibration in automated machinery. The 330102-00-20-30-12-CN features a 2.0 in overall case length, 3.0-meter total cable, and 3/8-24 UNF threaded case with 0.563 in engagement, allowing installation in compact bearing housings. Its 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance ensure accurate signal delivery under variable machine conditions. The miniature ClickLoc connector with FluidLoc cable prevents oil migration along the cable path. Operating from -52°C to +177°C, the 330102-00-20-30-12-CN is CSA, ATEX, and IECEx approved for industrial automation and hazardous applications.
Applications
Radial Vibration Monitoring on Medium Shafts
The 330102-00-20-30-12-CN delivers precise radial vibration measurements on shafts from 20 mm to 50 mm diameter, feeding data directly to automation controllers for real-time condition assessment.
Axial (Thrust) Position Measurement
The 330102-00-20-30-12-CN monitors axial displacement in thrust bearings, with its 2 mm linear range allowing accurate detection of minor positional changes in high-speed machinery.
Keyphasor Reference for Speed Detection
The 330102-00-20-30-12-CN provides phase reference signals for rotational speed and zero-speed detection. Its supply sensitivity under 2 mV/V ensures stable signal transmission to control systems.
Compact Installation for Automated Compressors
The 2.0 in case length of the 330102-00-20-30-12-CN allows installation in compact spaces such as centrifugal compressors, pumps, and turbines, without the need for adapter hardware.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Easy Mounting in Confined Spaces
The 3/8-24 UNF threaded case and 0.563 in thread engagement allow the 330102-00-20-30-12-CN to be installed in compact bearing housings without additional adapters.
Accurate Signal Transmission to Automation Systems
The combination of 50 Ω output resistance, 69.9 pF/m cable capacitance, and 2 mm linear range ensures that the 330102-00-20-30-12-CN delivers precise voltage to automation controllers under dynamic conditions.
Reduced Oil and Fluid Migration
The 330102-00-20-30-12-CN incorporates a miniature ClickLoc connector and FluidLoc cable to prevent oil or fluid migration along the cable path, ensuring clean signal paths.
High-Temperature Operation
The 330102-00-20-30-12-CN operates between -52°C and +177°C, supporting installation near hot compressors, turbines, or pumps without extending cable runs.
Hazardous Area Compliance
CSA, ATEX, and IECEx approvals make the 330102-00-20-30-12-CN suitable for automated processes in regulated and hazardous industrial environments.
