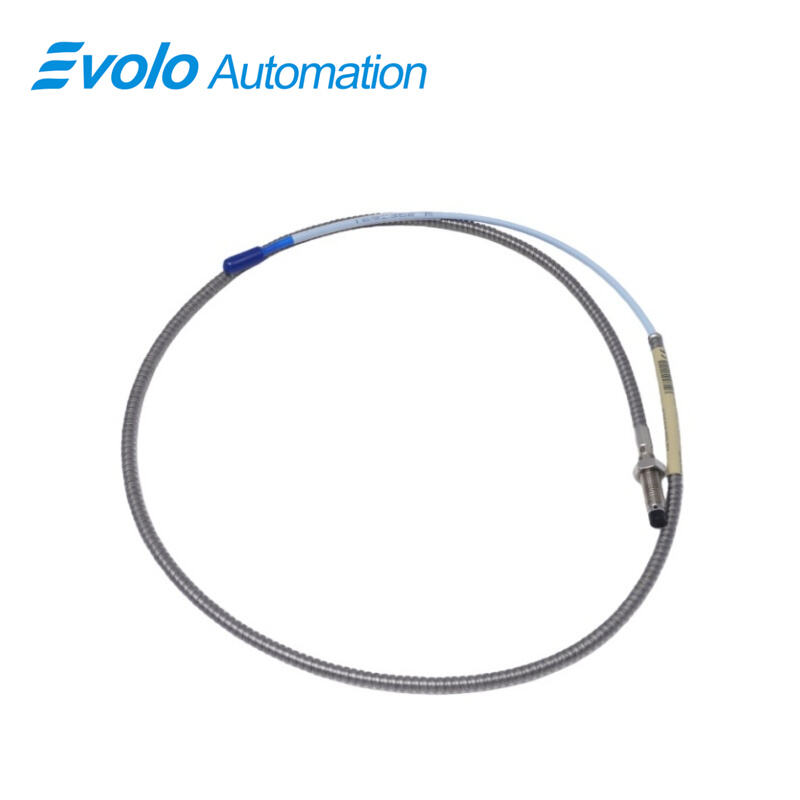

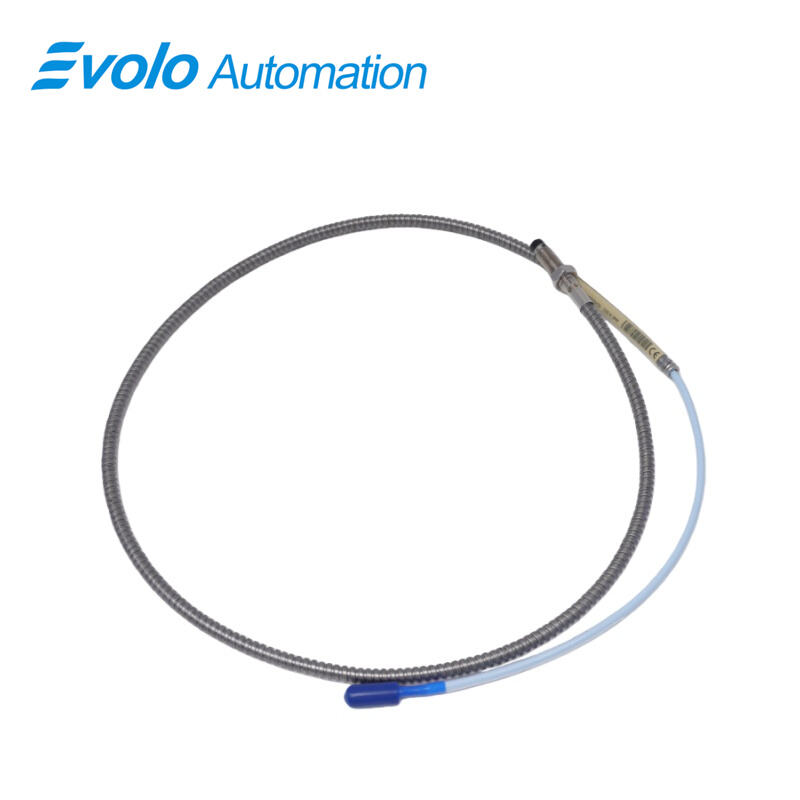

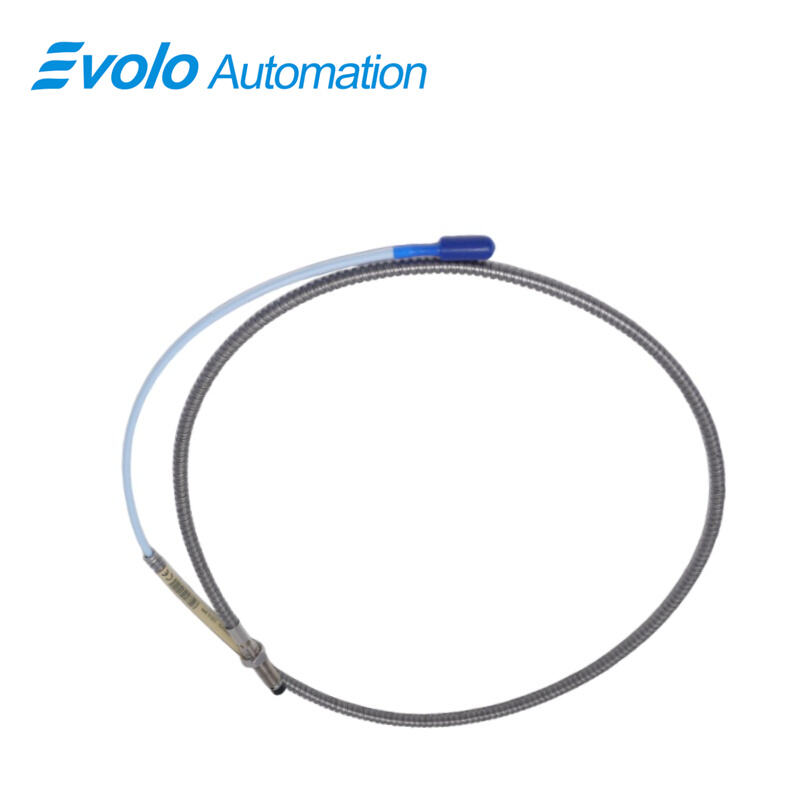

330102-00-13-15-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-13-15-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-13-15-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for automated machinery monitoring. With a total length of 1.5 meters (4.9 feet), unthreaded length of 0.0 in, and overall case length of 1.3 in, the 330102-00-13-15-02-05 delivers accurate static and dynamic measurements in fluid-film bearing applications. Its 3/8-24 UNF probe thread and 0.563 in maximum thread engagement ensure secure installation, while operating temperatures from -52°C to +177°C (-62°F to +350°F) suit extreme industrial environments.

The 330102-00-13-15-02-05 provides output voltage proportional to probe-to-surface distance, supporting vibration, position, Keyphasor reference, and rotational speed measurements. Standard miniature coaxial ClickLoc connectors and extension cables (69.9 pF/m capacitance) simplify integration in automated systems. Its <2 mV sensitivity variation per volt input and 50 Ω output resistance guarantee stable readings. Optional FluidLoc cables prevent leaks, enhancing reliability in oil-lubricated machinery.

Compliant with API 670 standards, the 330102-00-13-15-02-05 3300 XL 8 mm Proximity Probe ensures backward compatibility with 5 mm and 8 mm 3300 series components. Patented TipLoc and CableLoc designs strengthen probe-tip and cable connections, providing long-term performance in industrial automation monitoring.

Applications

Vibration Monitoring
The 330102-00-13-15-02-05 is widely used for vibration measurements on fluid-film bearing machines. Its linear range of 2 mm (80 mils) and output resistance of 50 Ω ensure precise detection of dynamic movement, enabling early fault detection in rotating equipment.

Position Measurement
With output voltage directly proportional to the distance between the probe tip and the conductive surface, the 330102-00-13-15-02-05 provides accurate static position monitoring. Its miniature coaxial ClickLoc connector and 1.5-meter total length facilitate seamless integration into automated systems.

Keyphasor and Speed Sensing
The 330102-00-13-15-02-05 supports Keyphasor reference and speed measurements for real-time rotational analysis. The probe operates reliably from -52°C to +177°C (-62°F to +350°F), suitable for harsh industrial conditions.

Specifications

Competitive Advantage

API 670 Compliance and Interchangeability
The 330102-00-13-15-02-05 fully complies with API 670 standards. Its backward compatibility with 5 mm and 8 mm 3300 series probes, extension cables, and Proximitor sensors eliminates the need for component-specific calibration.

Robust Probe and Cable Design
Patented TipLoc molding ensures a durable bond between probe tip and body, while CableLoc provides 330 N (75 lbf) pull strength for secure connections. Optional FluidLoc cables prevent oil leakage, enhancing reliability in automated lubrication systems.

High Precision and Stability
With less than 2 mV change in output per volt input variation and extension cable capacitance of 69.9 pF/m, the 330102-00-13-15-02-05 delivers highly stable measurements, supporting accurate automated process monitoring and predictive maintenance.
