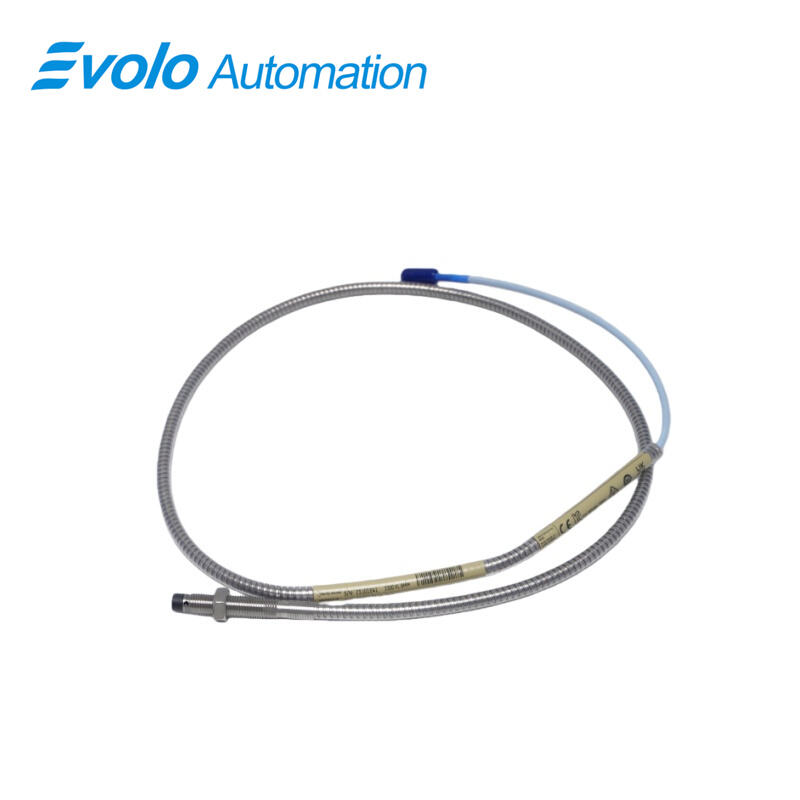

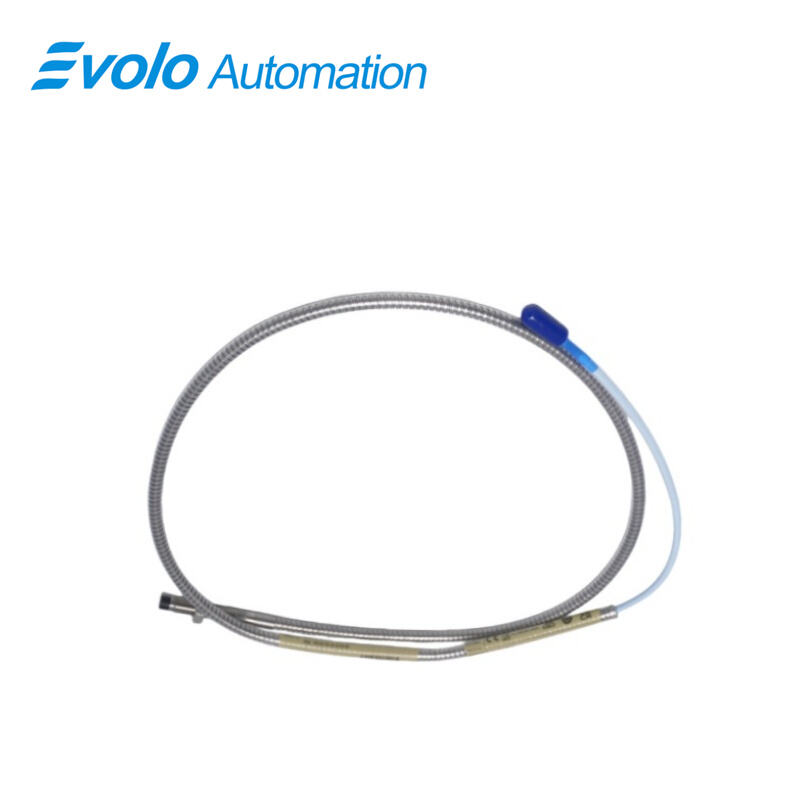

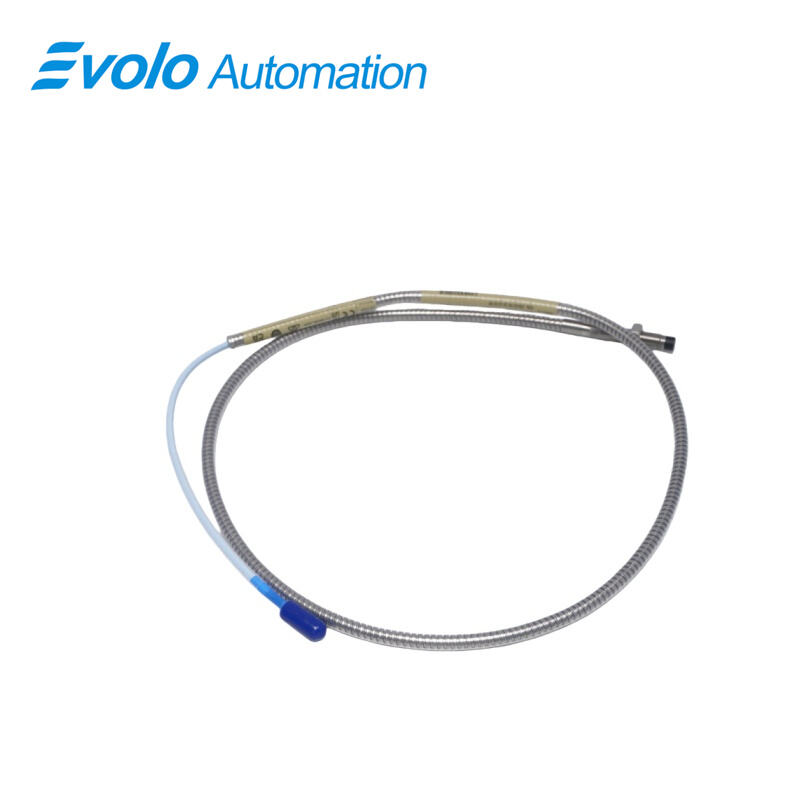

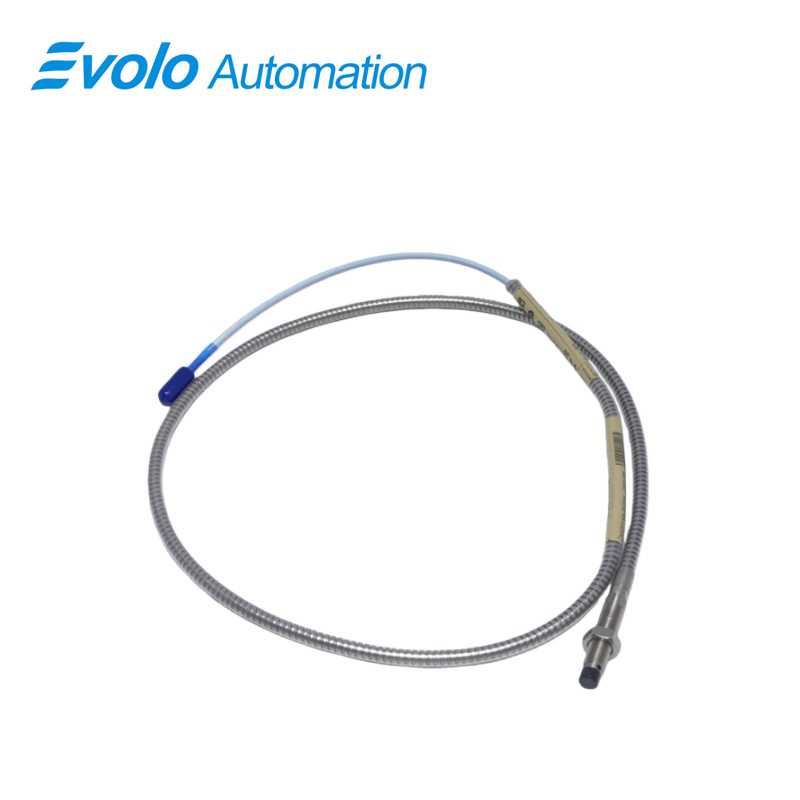

330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-12-90-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe provides precise measurement of both static (position) and dynamic (vibration) signals by generating an output voltage directly proportional to the distance between the probe tip and the conductive target. Designed for automation in fluid-film bearing machinery, the 330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe supports Keyphasor reference and rotational speed monitoring. It features a 9-meter total length, 3/8-24 UNF probe thread, 2 mm linear range, and a miniature coaxial ClickLoc connector for secure connections. The extension cable has 50 Ω output resistance, 69.9 pF/m capacitance, and supports 16–24 AWG field wiring. Operating from -52°C to +177°C and approved by CSA, ATEX, and IECEx, the 330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe ensures reliable automated measurements across extreme environments. Patented TipLoc molding bonds the probe tip to the body, while CableLoc design provides 330 N pull strength, and optional FluidLoc cable prevents fluid ingress, enabling high-precision monitoring without component recalibration.

Applications

Monitor Vibration on Fluid-Film Bearings
The 330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe measures high-frequency vibration in rotating machines, capturing movement with 2 mm linear range, allowing automated detection of bearing wear or imbalance.

Position Measurement for Rotating Shafts
Use the 330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe to track shaft displacement. Its 9-meter total length and ClickLoc connector simplify installation in automated systems without affecting accuracy.

Keyphasor Reference for Speed Control
The 330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe provides precise timing signals for Keyphasor systems, supporting automated speed and phase monitoring in large turbines or compressors.

Extended Range Field Wiring for Automation Integration
The probe’s 69.9 pF/m capacitance and 16–24 AWG wiring allow connection to automation controllers up to 9 meters away, enabling flexible system layout and reliable data acquisition.

Specifications

Competitive Advantage

High Pull Strength Cable Attachment
Patented CableLoc design on the 330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe ensures 330 N pull resistance, reducing installation errors and improving probe retention in automated environments.

Enhanced Tip Bonding
TipLoc molding on the 330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe reinforces the connection between probe tip and body, ensuring precise gap measurements under dynamic conditions.

Fluid Leakage Prevention
Optional FluidLoc cable on the 330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe prevents oil and liquid ingress, maintaining accuracy without frequent maintenance in automated lubrication or hydraulic systems.

Wide Temperature Operation
Operating range of -52°C to +177°C allows the 330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe to function reliably in harsh industrial environments, supporting continuous automation monitoring.

Standards Compliance
CSA, ATEX, and IECEx approvals allow the 330102-00-12-90-02-05 3300 XL 8 mm Proximity Probe to be used safely in hazardous area automation, eliminating the need for additional safety modifications.
