Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-48-71-20-02-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
4.8 in |
|
Overall Case Length Option(Minimum case length): |
7.1 in |
|
Total Length Option: |
2.0 meters (6.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.3x110cm |
|
Weight: |
0.1kg |
Description

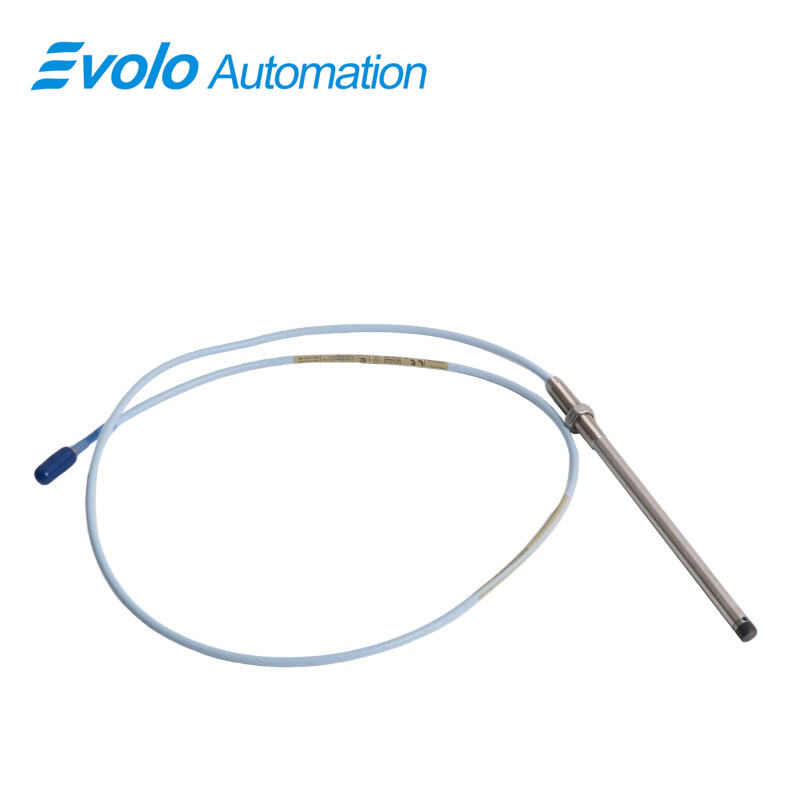

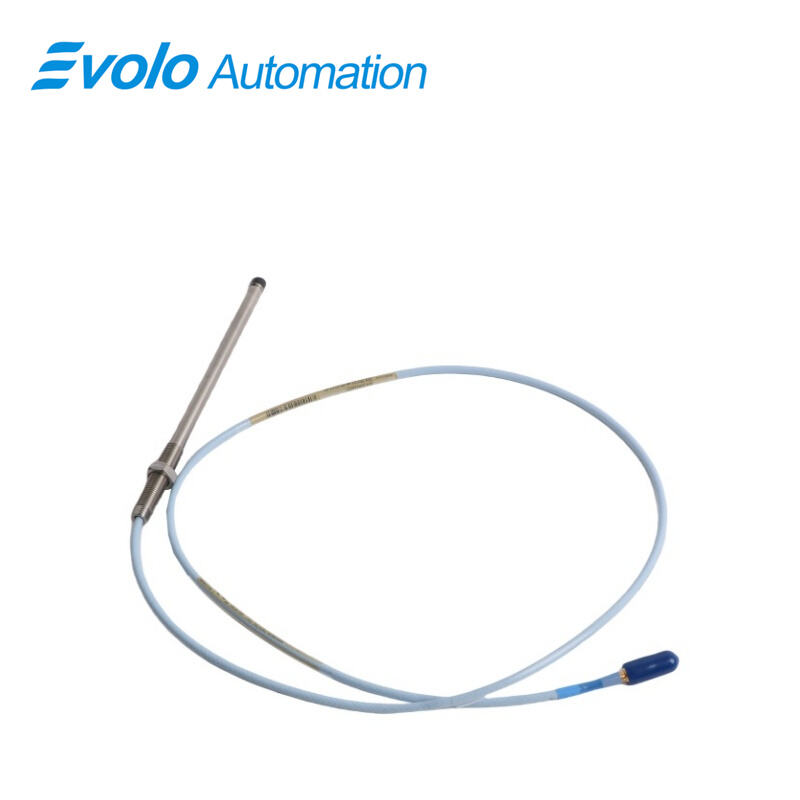

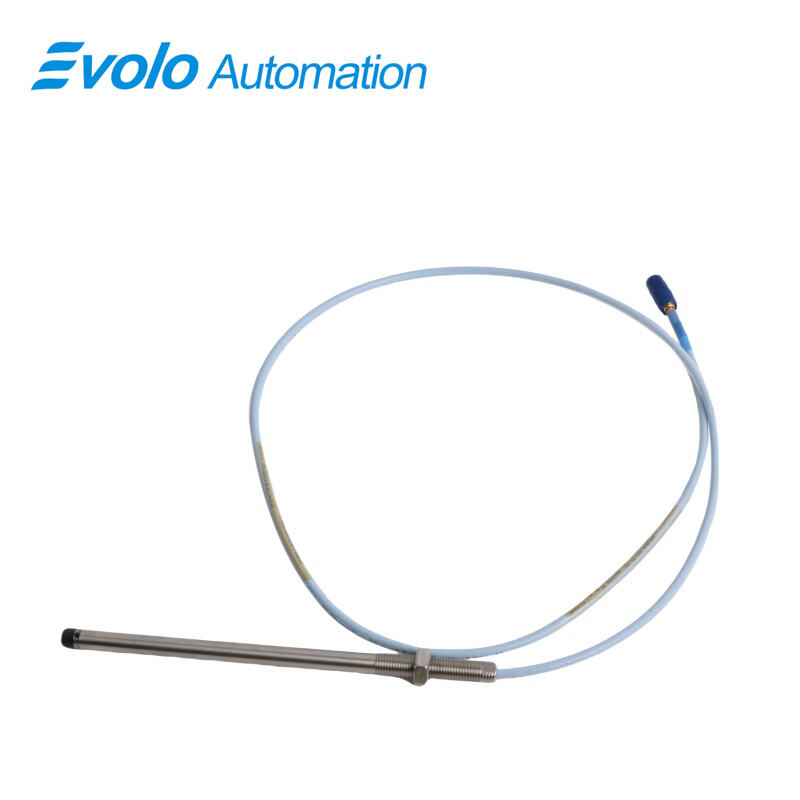

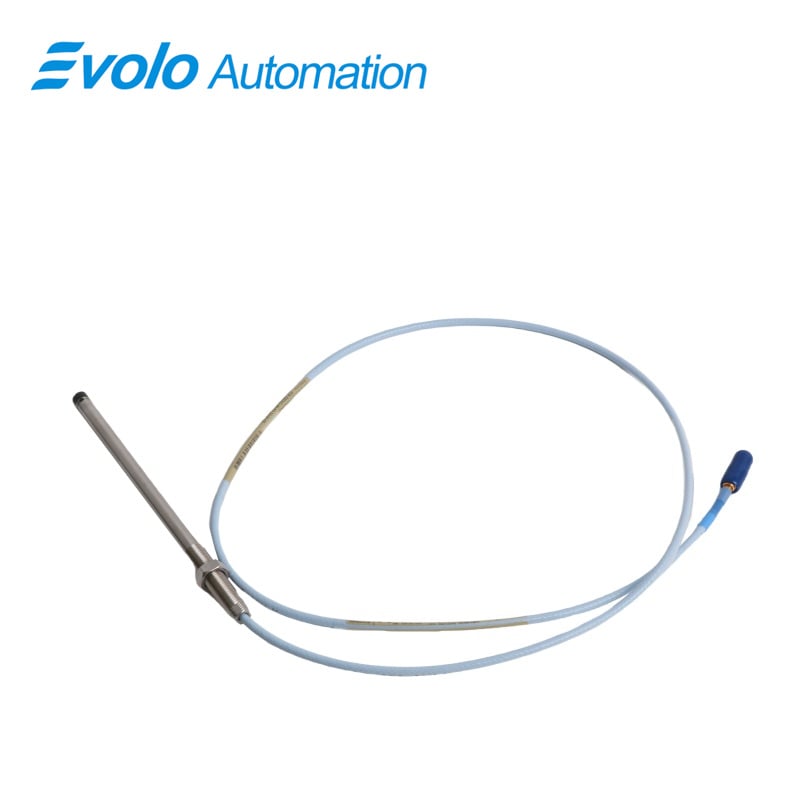

The 330101-48-71-20-02-CN 3300 XL 8 mm Proximity Probe is a precision eddy current transducer engineered for industrial automation, rotor vibration monitoring, and high-accuracy shaft position measurement. It delivers an output voltage directly proportional to the distance between the probe tip and the conductive target, capturing both static (position) and dynamic (vibration) signals. With a 2 mm (80 mils) linear range, 3/8-24 UNF stainless steel probe case, and Miniature coaxial ClickLoc connector, it ensures robust performance in harsh environments. The probe operates over a wide temperature range of -52°C to +177°C (-62°F to +350°F) and supports field wiring of 0.2 to 1.5 mm² (16 to 24 AWG). Mechanical reliability is enhanced with TipLoc molded probe tips and CableLoc cable retention providing 330 N (75 lbf) pull strength. Optional FluidLoc sealing prevents ingress of oil or process fluids, supporting continuous operation in demanding industrial applications. CSA, ATEX, and IECEx approvals make it suitable for hazardous-area deployment, while backward compatibility with other 3300 series probes and extension cables enables seamless system integration and upgrades for automated machinery monitoring and protection.
Applications
Keyphasor and Speed Reference
Generates precise Keyphasor signals for phase and rotational speed monitoring, supporting industrial automation systems.
Hazardous Area Machinery Integration
CSA, ATEX, and IECEx certifications allow safe monitoring in chemical, petrochemical, and gas-processing plants.
Compact Machine Installation
Optimized 8 mm probe diameter allows installation in tight spaces, suitable for retrofitting existing machinery or OEM designs with minimal clearance.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Measurement Accuracy
Provides a linear range of 2 mm and <2 mV output variation per volt of supply, ensuring precision in automation and machinery protection.
Extreme Temperature Reliability
Operates reliably in temperatures from -52°C to +177°C, supporting industrial applications in both cold and high-temperature environments.
Mechanical Strength and Longevity
TipLoc molded probe tips and CableLoc design with 330 N pull strength secure the probe cable and tip, reducing maintenance needs.
Global Hazardous Area Compliance
CSA, ATEX, and IECEx approvals enable deployment in explosive atmospheres, meeting strict industrial safety standards.
