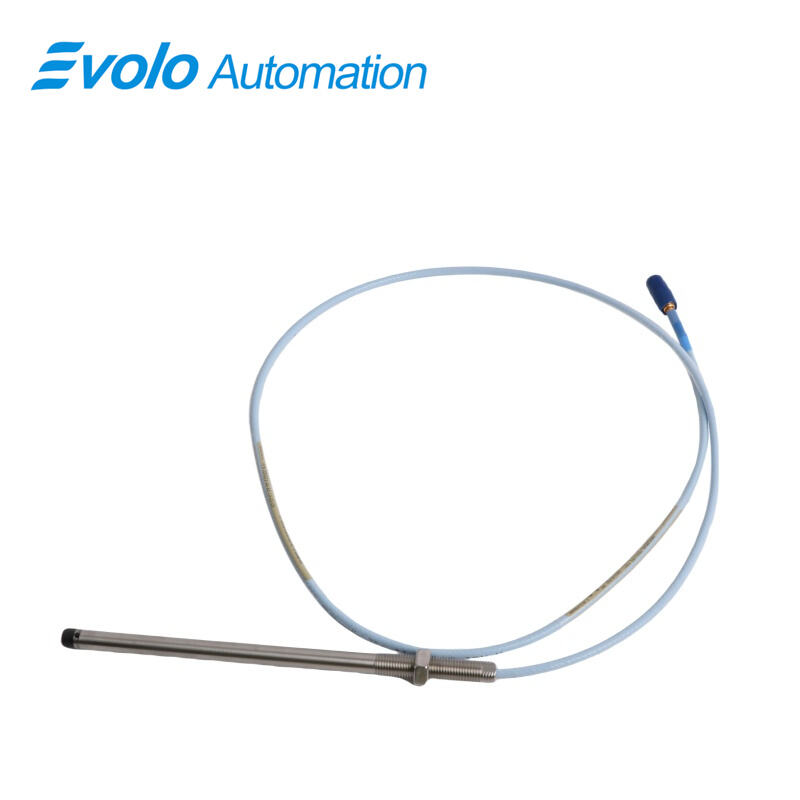

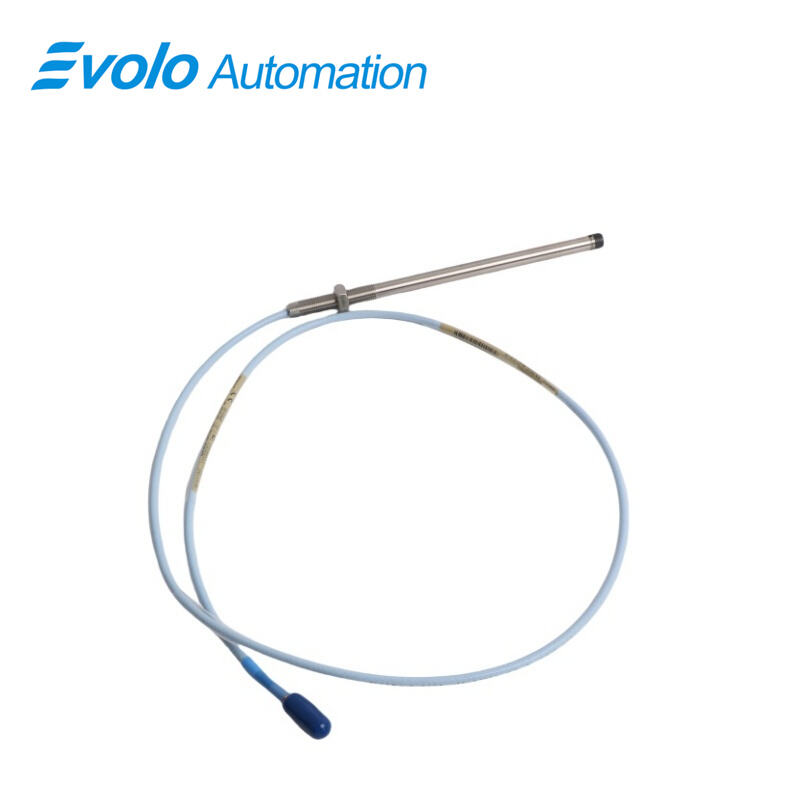

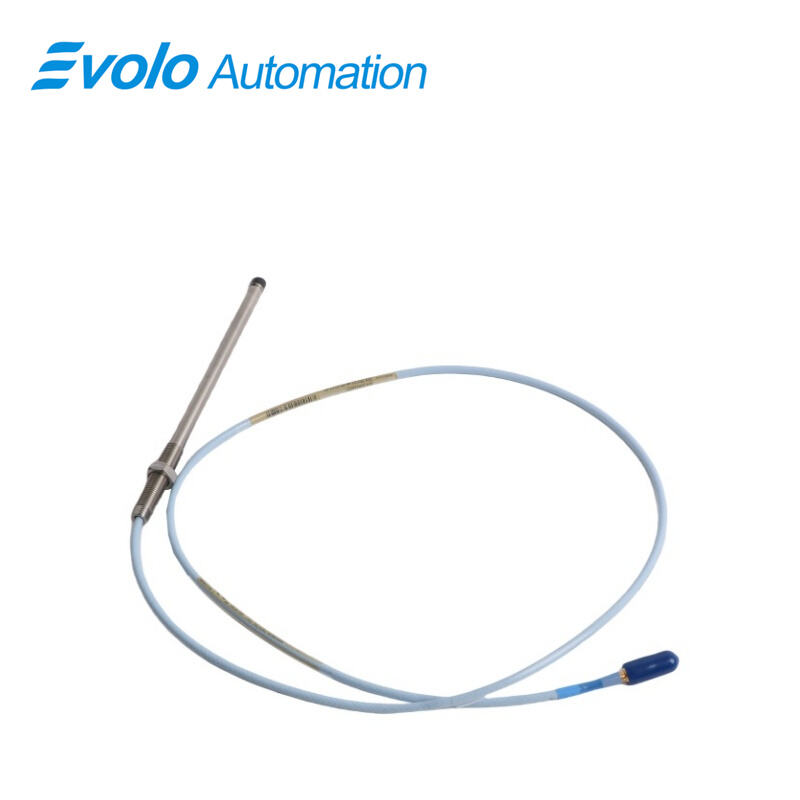

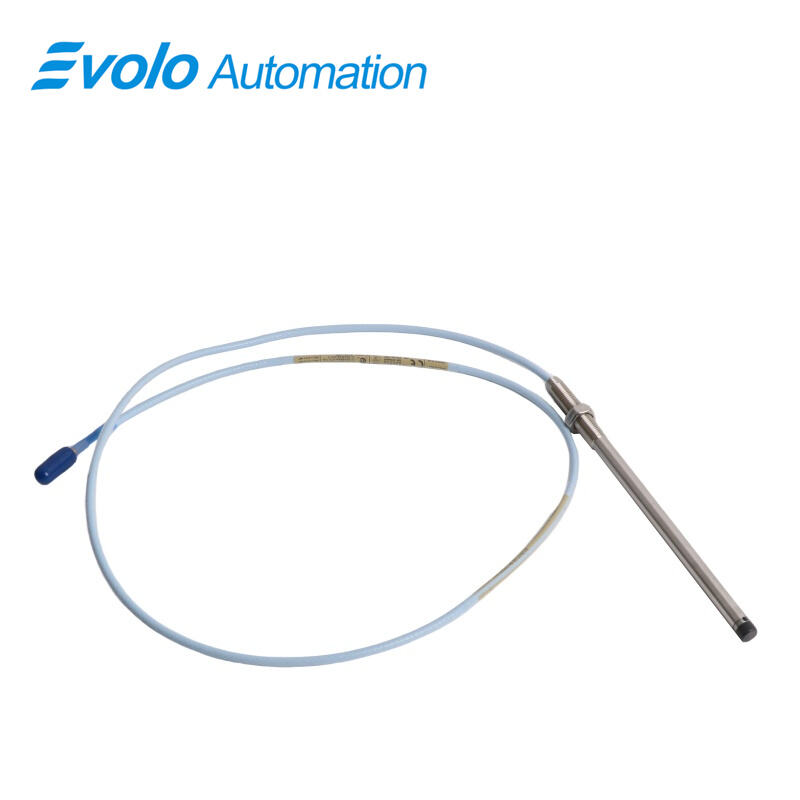

330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-40-60-05-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for industrial automation and precise machinery monitoring. The 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe delivers a voltage output directly proportional to the distance between its probe tip and a conductive surface, enabling accurate measurement of both static positions and dynamic vibrations. With a 2 mm (80 mils) linear range, operating and storage temperatures from -52°C to +177°C (-62°F to +350°F), and a 3/8-24 UNF threaded case, the 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe excels in space-constrained applications, particularly in fluid-film bearing machines. Its miniature ClickLoc coaxial connector with standard cable ensures reliable connectivity, while the patented TipLoc and CableLoc designs provide a robust bond and 330 N (75 lb) pull strength between probe tip and cable. Optional FluidLoc cables prevent oil or liquid leakage, maintaining signal integrity. Fully compliant with API 670 standards, the 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe is backward compatible with non-XL 3300 series 5 mm and 8 mm transducer components, simplifying system upgrades and ensuring seamless integration into automated industrial monitoring solutions. This combination of precision, durability, and compatibility makes the 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe ideal for advanced automation in compressors, turbines, and other high-speed rotating machinery.

Applications

1. Vibration Measurement in Fluid-Film Bearings
The 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe monitors radial vibrations on shafts with diameters as small as 50 mm, enabling predictive maintenance and reducing unplanned downtime in high-speed rotating machinery.

2. Axial and Radial Position Sensing
Using its 2 mm linear range, the 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe measures both axial (thrust) and radial positions on fluid-film bearing machines, improving operational control and automation precision.

3. Keyphasor and Tachometer Signal Generation
The 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe provides reliable Keyphasor signals for phase-based vibration analysis, rotor speed measurement, and automated process synchronization.

4. Compact or Confined Installation Areas
With its 3/8-24 UNF thread and 0.5-meter cable, the 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe fits in counter bore, side-view, or reverse-mount configurations where standard probes cannot, optimizing automation in space-restricted machinery.

5. API 670 Compliant System Integration
The 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe is fully interchangeable with 3300 series 5 mm and 8 mm components, allowing straightforward upgrades in automated industrial monitoring systems without bench calibration.

Specifications

Competitive Advantage

1. High Precision and Linear Output
The 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe offers precise 2 mm (80 mils) linear range output, ensuring accurate detection of dynamic and static movements in automated monitoring systems.

2. Extreme Temperature and Chemical Resistance
Operating from -52°C to +177°C, the 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe maintains accuracy in harsh industrial environments, with a PPS probe tip and stainless steel casing providing robust chemical resistance.

3. Superior Mechanical Stability
The 330101-40-60-05-02-CN 3300 XL 8 mm Proximity Probe features patented TipLoc and CableLoc designs, providing 330 N pull strength to prevent loosening and ensure consistent signal transmission over long-term operations.
