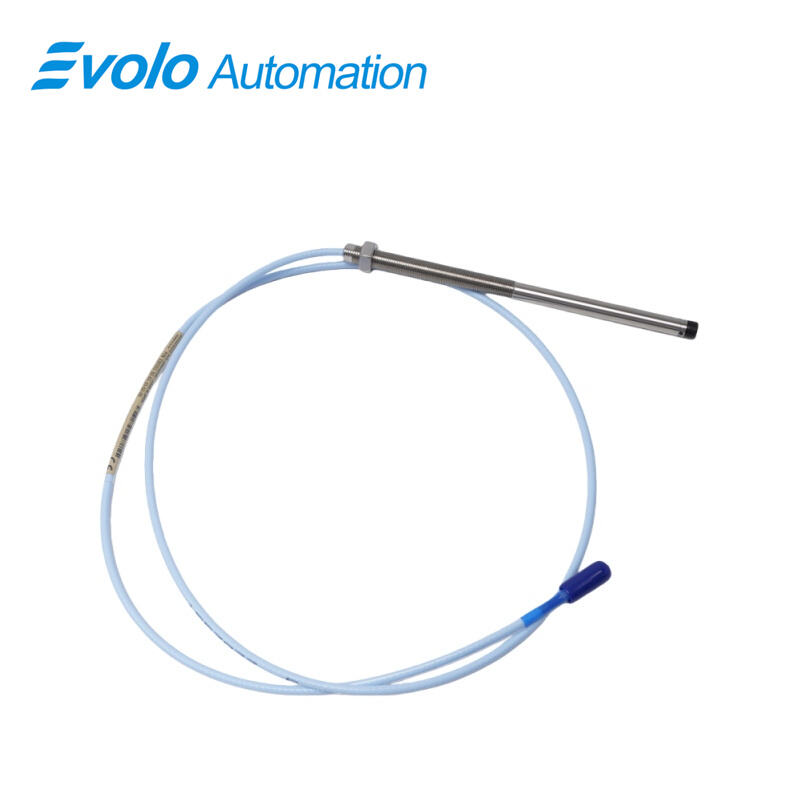

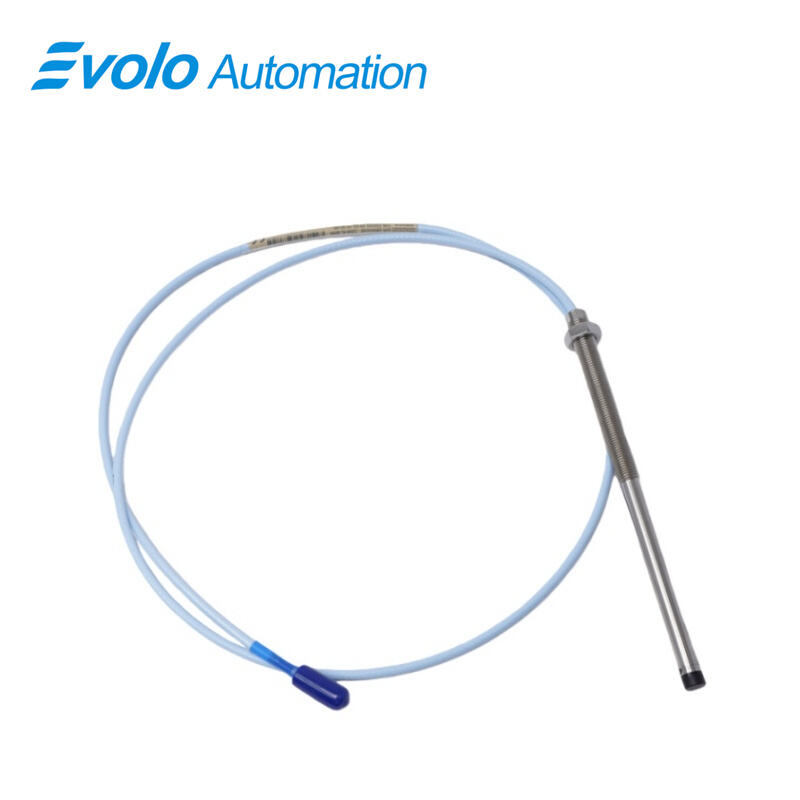

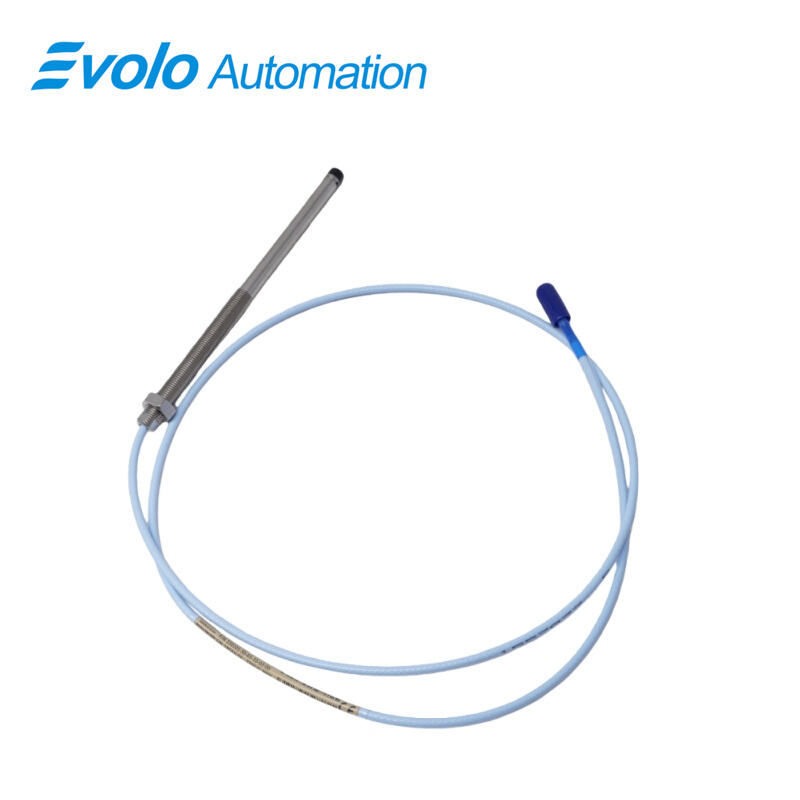

330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-32-70-10-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe measures both static position and dynamic vibration on fluid-film bearing machines, transmitting signals for Keyphasor and speed monitoring in automated control systems. The 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe features a 2 mm linear range, 50 Ω output resistance, and less than 2 mV per volt supply sensitivity. Its 1.0-meter total length and miniature coaxial ClickLoc connector with FluidLoc cable allow secure installation in tight machine spaces. Operating from -52°C to +177°C (-62°F to +350°F) and approved under CSA, ATEX, and IECEx, the 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe delivers precise displacement and vibration signals, while patented TipLoc and CableLoc designs provide strong mechanical connections, preventing cable or probe loosening during operation.

Applications

Measure Shaft Vibration in Fluid-Film Bearings
The 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe captures radial vibration on shafts smaller than 51 mm (2 in) or axial displacement on flat targets ≥0.6 in, providing precise input to automated vibration monitoring systems.

Track Rotational Speed and Keyphasor Signals
With 50 Ω output resistance and less than 2 mV per volt supply sensitivity, the 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe transmits tachometer and Keyphasor signals for high-speed compressors and turbines.

Install in Compact or Dense Machine Spaces
Featuring 1.0-meter total length and miniature coaxial ClickLoc connector with FluidLoc cable, the 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe can be mounted in restricted side-view or counter-bore areas without affecting signal quality.

Operate Across Extreme Temperatures
Rated for -52°C to +177°C (-62°F to +350°F), the 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe provides reliable measurement in automated industrial applications involving high-temperature compressors or refrigeration machinery.

Specifications

Competitive Advantage

Secure Mechanical Connections
Patented TipLoc molding and CableLoc designs on the 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe provide 330 N (75 lbf) pull strength, preventing probe or cable loosening in vibration-intensive machinery.

Support Fluid Containment
The FluidLoc cable option on the 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe prevents oil or other liquids from leaking out of the machine through the cable interior.

Deliver Accurate Signals in Harsh Environments
Operating temperature range of -52°C to +177°C (-62°F to +350°F) ensures the 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe maintains consistent linear output of 2 mm (80 mils) even under extreme industrial conditions.

Enable Automated Vibration and Position Control
The 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe integrates directly with control systems to provide high-resolution radial and axial measurements for automated machinery protection, Keyphasor timing, and speed feedback loops.

Reduce Installation Time
Miniature coaxial ClickLoc connectors and 1.0-meter total length on the 330101-32-70-10-12-05 3300 XL 8 mm Proximity Probe simplify field wiring and allow fast mounting in tight or high-density machine areas.
