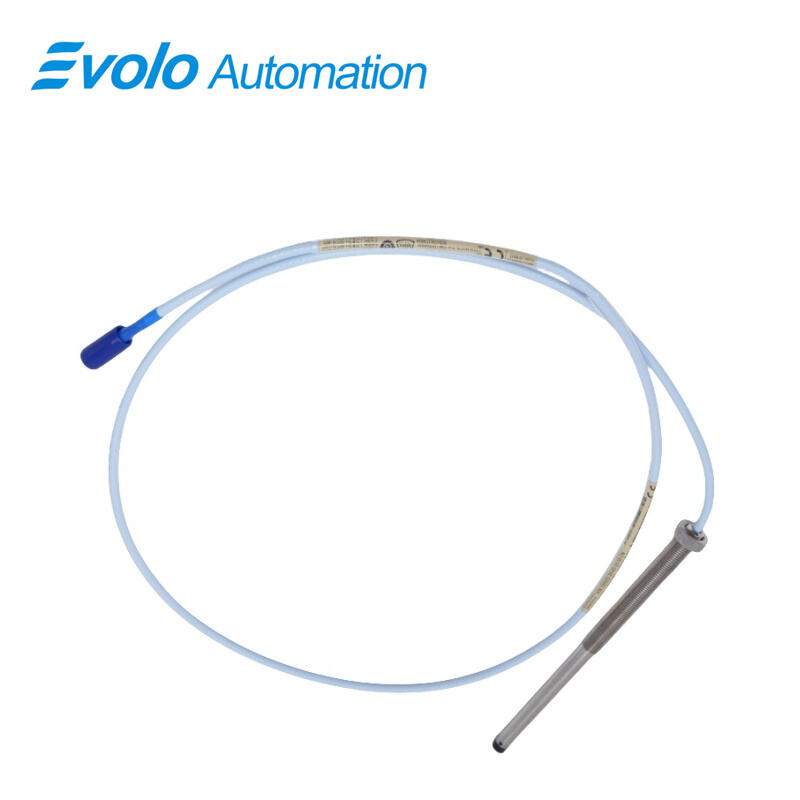

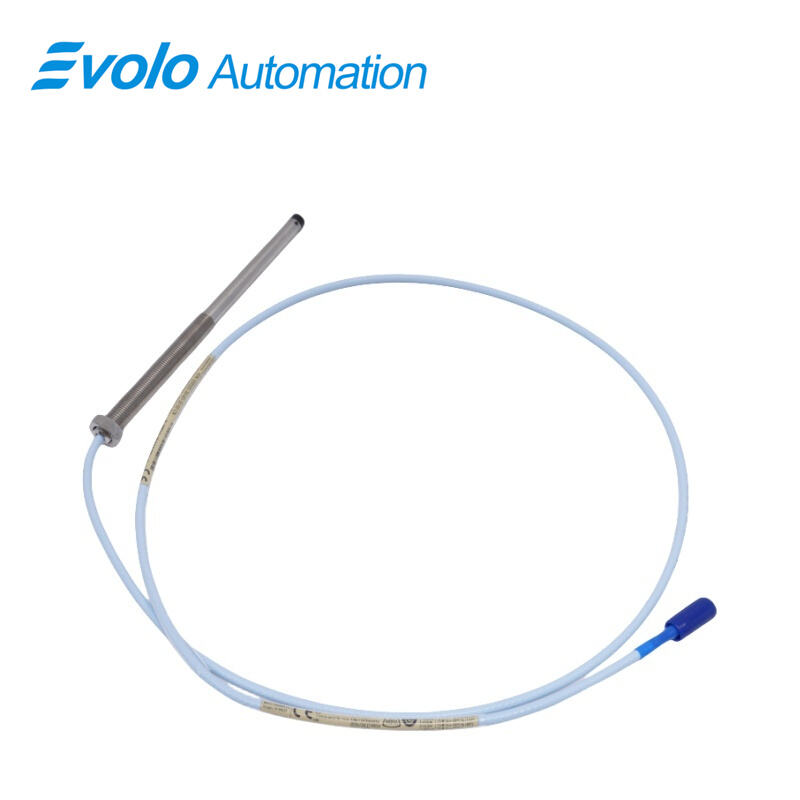

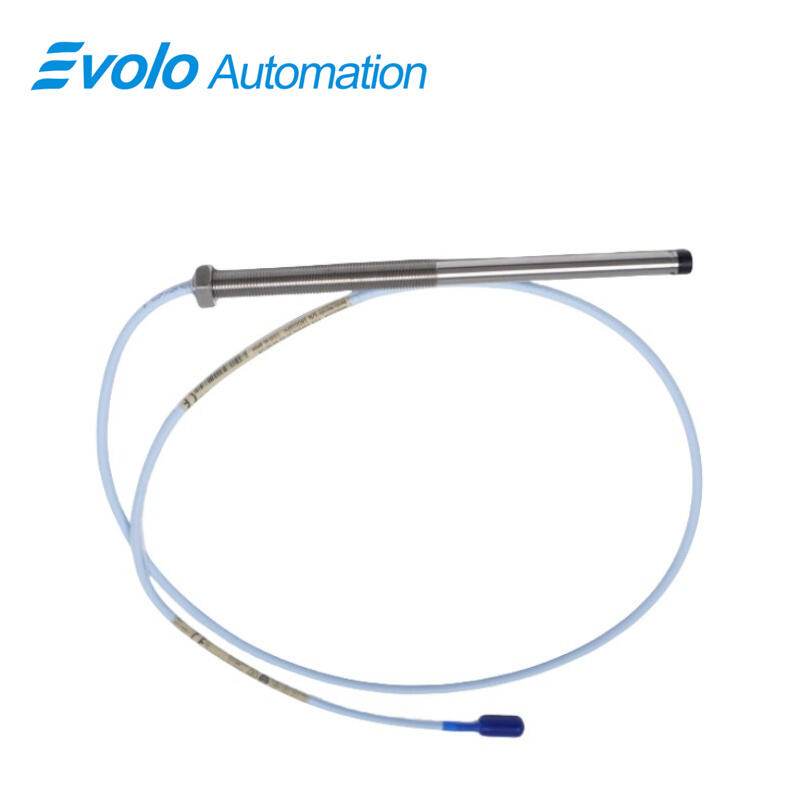

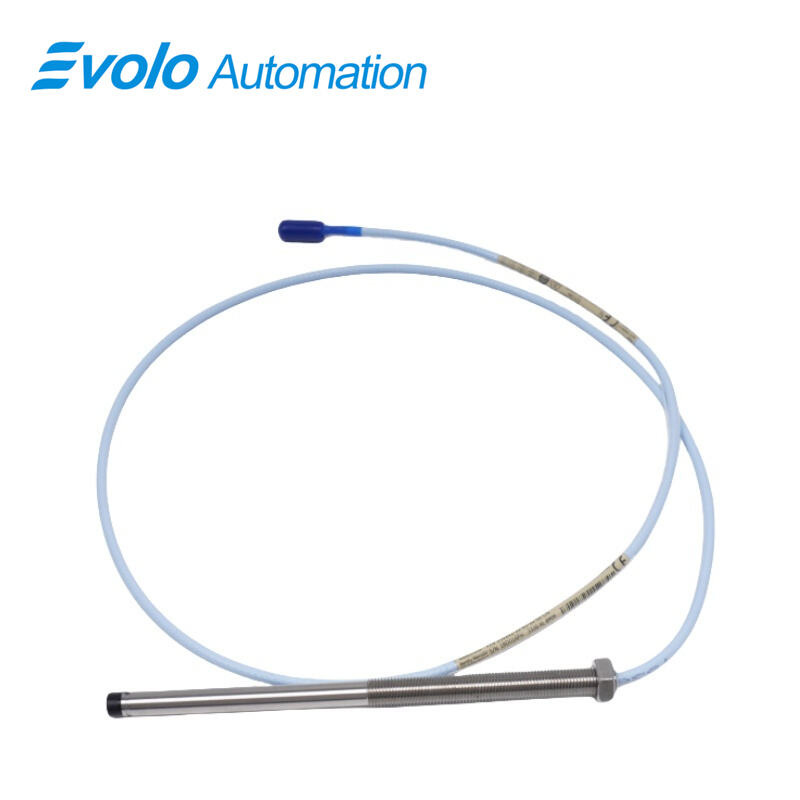

330101-30-63-10-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-30-63-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-30-63-10-02-CN 3300 XL 8 mm Proximity Probe is designed for automated machinery monitoring with CSA, ATEX, and IECEx approvals. The 330101-30-63-10-02-CN provides a 2 mm (80 mils) linear range, converting radial and axial shaft movement into proportional voltage output for turbines, pumps, and compressors. Its 3.0 in unthreaded tip and 6.3 in minimum case length allow installation in deep bearing housings while maintaining accurate probe placement.

The 330101-30-63-10-02-CN features a 3/8-24 UNF thread and 0.563 in maximum engagement for direct mounting. Its 1.0 meter cable with 69.9 pF/m capacitance and 50 Ω output resistance ensures reliable signal transfer to automation control systems. Operating between –52°C and +177°C, the 330101-30-63-10-02-CN supports Keyphasor reference, speed measurement, and continuous vibration monitoring in hazardous and high-temperature industrial environments.

Applications

Record Radial Shaft Vibration in Deep Bearings

The 330101-30-63-10-02-CN has a 6.3 in case and 3.0 in unthreaded tip, enabling installation in deep fluid-film bearings. Its 2 mm (80 mils) linear range converts radial motion into proportional voltage for automated monitoring of turbines, compressors, and pumps.

Measure Axial Shaft Movement on Thrust Collars

Using a 3/8-24 UNF thread with 0.563 in engagement, the 330101-30-63-10-02-CN captures axial shaft displacement. Its 50 Ω output ensures precise signal transfer to automation modules.

Generate Rotor Phase Reference Signals

The 330101-30-63-10-02-CN detects once-per-turn shaft features, producing Keyphasor pulses for orbit and phase analysis. Supply sensitivity under 2 mV/V maintains consistent outputs during minor voltage variations.

Monitor Shaft Speed in High-Temperature Equipment

Operating from –52°C to +177°C, the 330101-30-63-10-02-CN measures rotational speed in turbines and compressors. Its 1.0 meter cable with 69.9 pF/m capacitance ensures accurate signal delivery to controllers.

Capture Transient Motion During Startup and Shutdown

During acceleration or deceleration, the 330101-30-63-10-02-CN records dynamic shaft displacement within its 2 mm range, providing high-resolution vibration and position data to automation systems.

Specifications

Competitive Advantage

Access Deep and Confined Bearing Housings

The 330101-30-63-10-02-CN 6.3 in case and 3.0 in unthreaded tip allow direct mounting without extensions.

Operate Across Extreme Temperatures

The 330101-30-63-10-02-CN functions in –52°C to +177°C environments, supporting continuous automated monitoring.

Maintain Voltage Output Within 2 mV/V

Supply sensitivity under 2 mV/V ensures the 330101-30-63-10-02-CN provides consistent signals even with minor voltage fluctuations.

Deliver Accurate High-Frequency Signals

The 330101-30-63-10-02-CN maintains 50 Ω output impedance with 69.9 pF/m cable capacitance for precise vibration and position signal transmission.

Enable Direct Field Wiring

The 330101-30-63-10-02-CN supports 16–24 AWG (0.2–1.5 mm²) wiring, simplifying installation in automated panels and reducing setup time.
