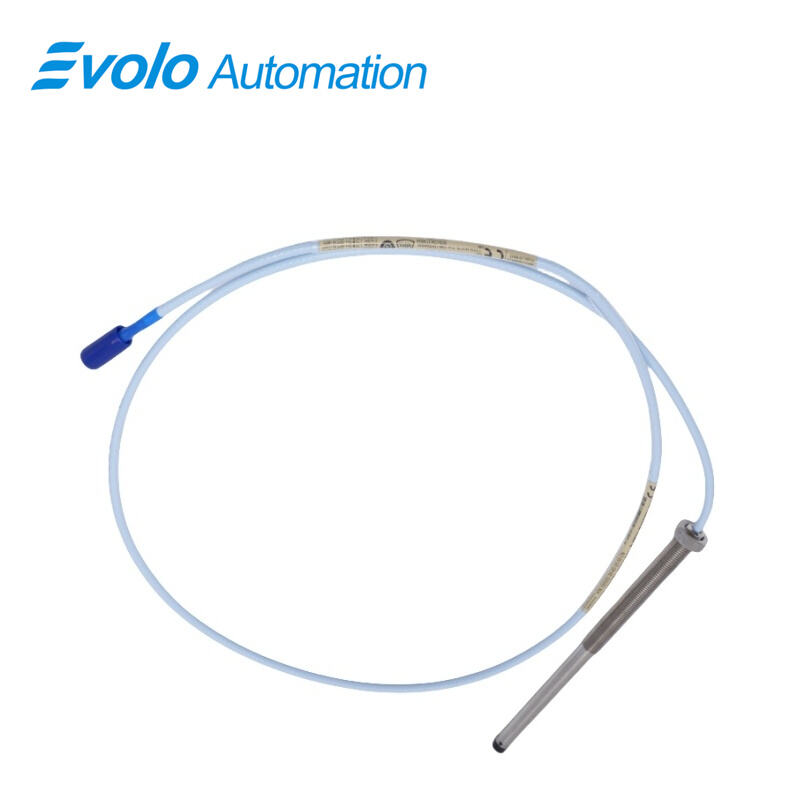

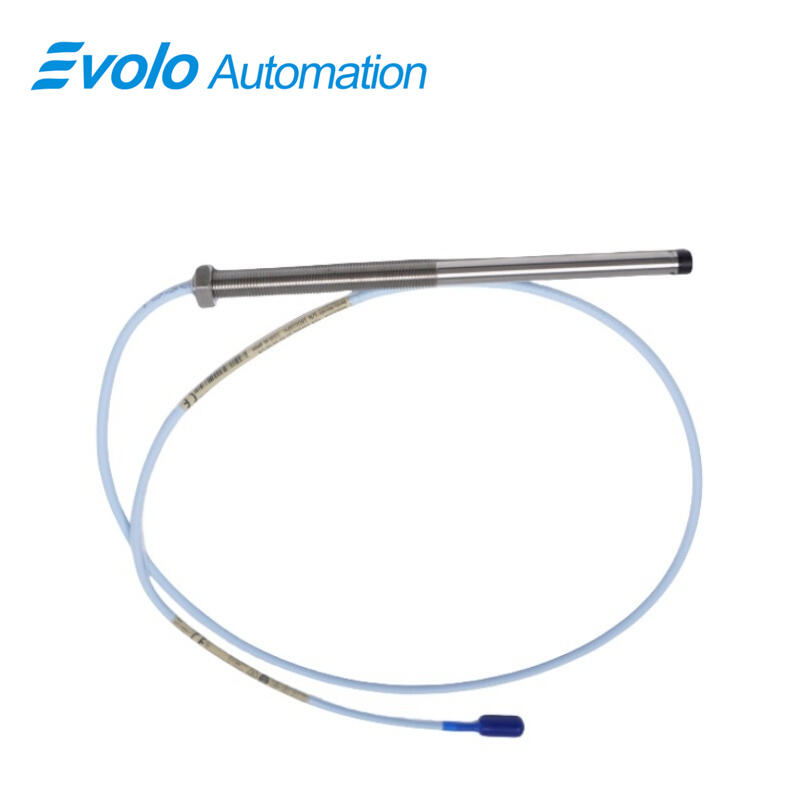

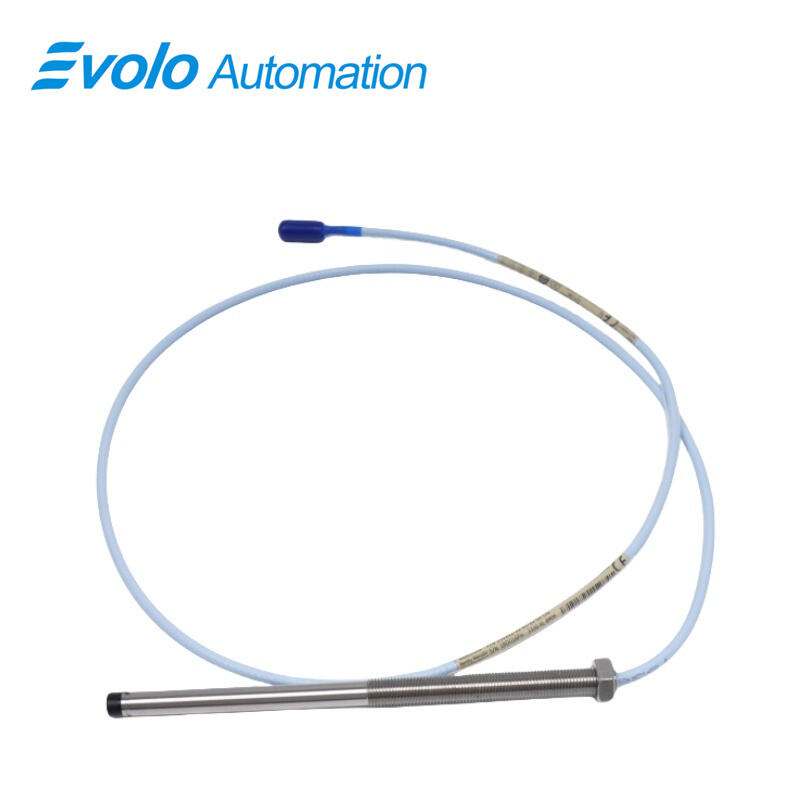

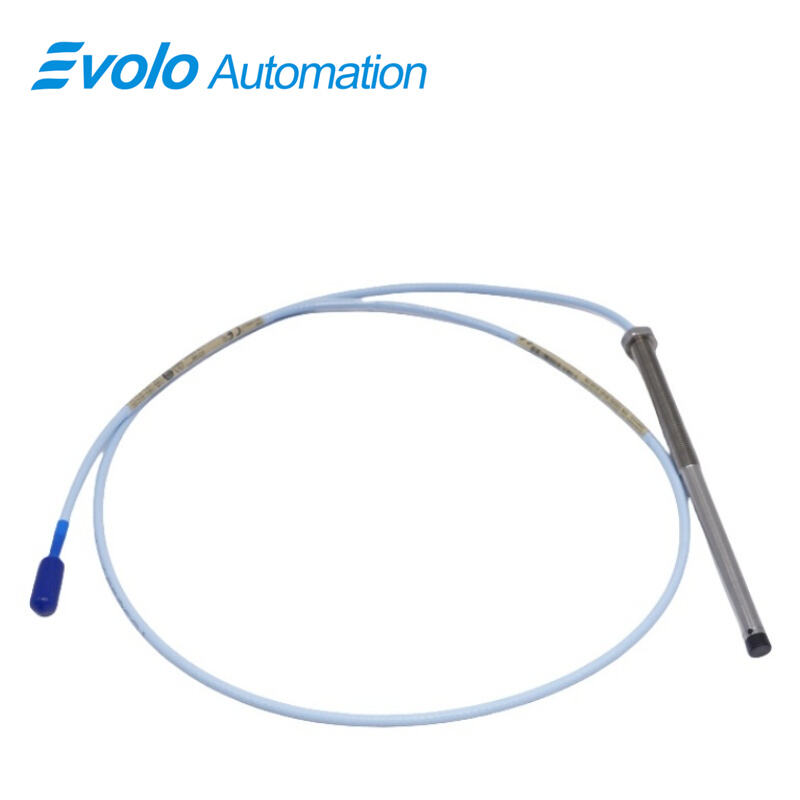

330101-30-60-90-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-30-60-90-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-30-60-90-02-05 3300 XL 8 mm Proximity Probe features a 3/8-24 UNF threaded case, 3.0 in unthreaded length, and 6.0 in overall case length for versatile mounting in automated systems. Its 9.0-meter standard cable with Miniature coaxial ClickLoc connector supports reliable signal transmission for vibration and position monitoring. Designed for -52°C to +177°C operation, the 330101-30-60-90-02-05 3300 XL 8 mm Proximity Probe delivers 2 mm linear range measurements with a recommended 1.0 mm gap, and maintains less than 2 mV/V supply sensitivity. The AISI 304 stainless steel body and PPS tip ensure accurate output under high-temperature and process conditions. Its 50 Ω output resistance and 69.9 pF/m cable capacitance enable precise detection of shaft displacement, axial position, and Keyphasor signals in fluid-film bearing machines. The 330101-30-60-90-02-05 3300 XL 8 mm Proximity Probe is backward compatible with earlier 3300 series probes, supporting seamless upgrades with existing Proximitor sensors and extension cables. Optional FluidLoc cable prevents fluid ingress, ensuring reliable automated monitoring over long cable runs in industrial applications.

Applications

Radial Vibration Measurement on Shafts:
The 330101-30-60-90-02-05 3300 XL 8 mm Proximity Probe monitors radial vibration on fluid-film bearing shafts up to 80 mils of linear range. Its 2 mm linear range and 1.0 mm recommended gap ensure precise displacement readings for shafts with diameters larger than 50 mm.

Axial Position Measurement:
With a 3/8-24 UNF threaded case and 6.0 in overall case length, the 330101-30-60-90-02-05 3300 XL 8 mm Proximity Probe accurately measures axial movement of rotors and thrust bearings, enabling automated control systems to detect position changes in real-time.

Keyphasor Reference and Speed Detection:
Equipped with a ClickLoc miniature coaxial connector and 9.0-meter cable, the 330101-30-60-90-02-05 3300 XL 8 mm Proximity Probe provides clean tachometer signals for rotor speed monitoring and phase synchronization in compressors, turbines, and other rotating machinery.

Specifications

Competitive Advantage

Long Cable Reach for Remote Mounting:
The 9.0-meter standard cable allows placement of the 330101-30-60-90-02-05 3300 XL 8 mm Proximity Probe in hard-to-access areas while maintaining signal integrity with 69.9 pF/m capacitance.

High Temperature Operation:
Operates from -52°C to +177°C, making the 330101-30-60-90-02-05 3300 XL 8 mm Proximity Probe suitable for process compressors and industrial automation environments exposed to extreme heat or cold.

Robust Mechanical Design:
The AISI 304 stainless steel case and PPS probe tip provide mechanical strength and chemical resistance. TipLoc and CableLoc features ensure secure attachment of the probe tip to the cable, handling pull forces up to 330 N (75 lbf).

Precise Linear Range Output:
The 2 mm linear range with less than 2 mV/V supply sensitivity ensures the 330101-30-60-90-02-05 3300 XL 8 mm Proximity Probe delivers accurate voltage proportional to target displacement for automated vibration analysis and process control.
