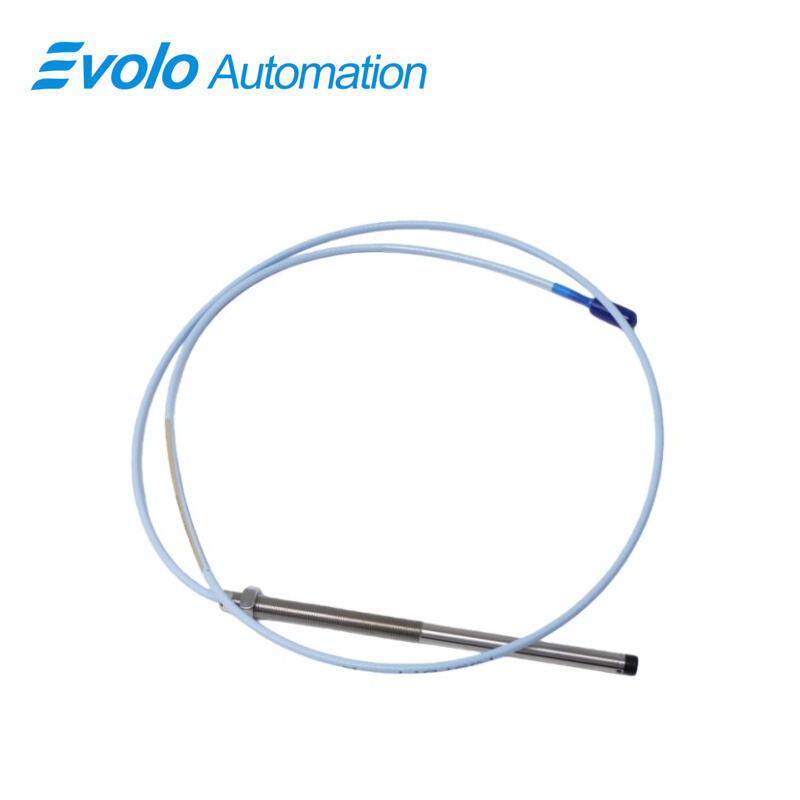

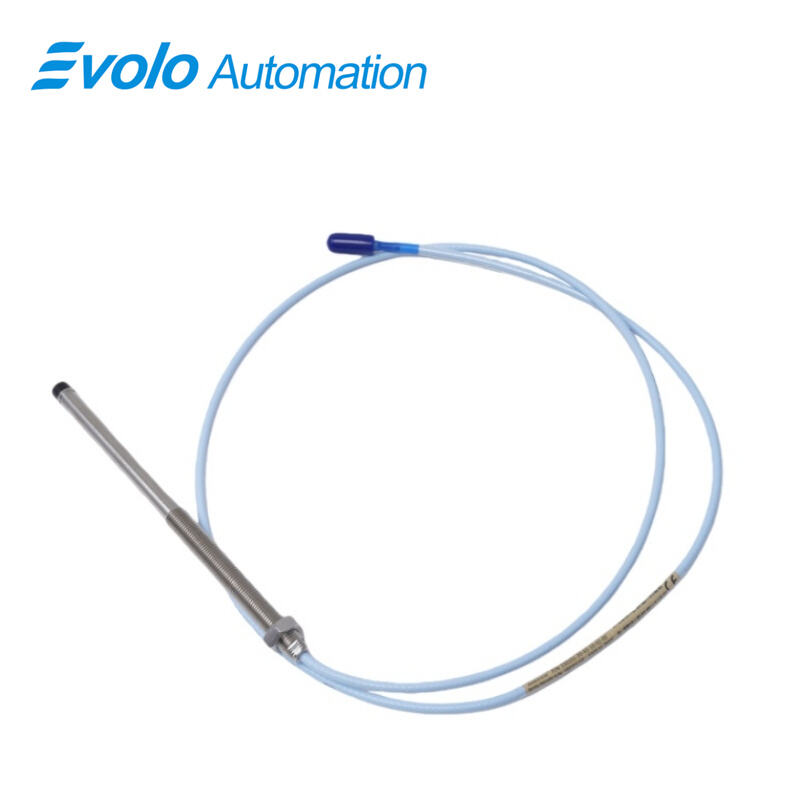

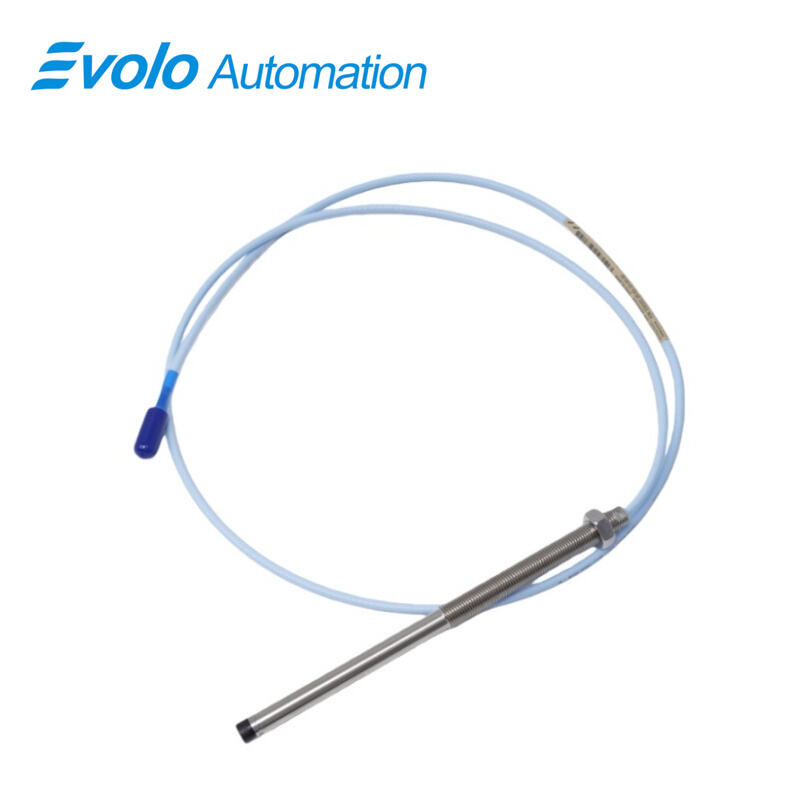

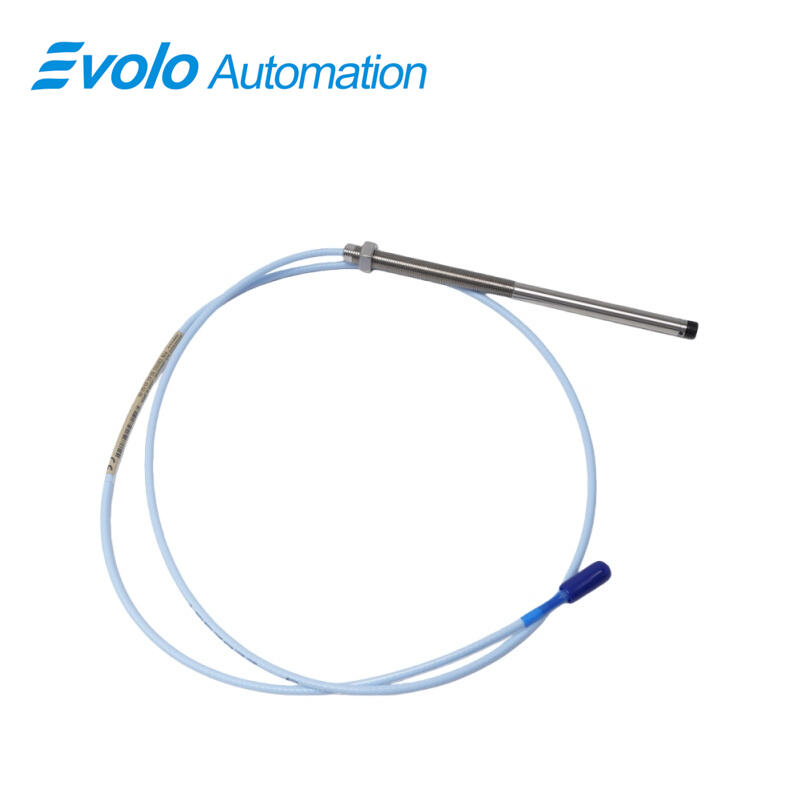

330101-30-60-05-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-30-60-05-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-30-60-05-01-05 3300 XL 8 mm Proximity Probe provides an output voltage proportional to the distance between the probe tip and the measured conductive surface, enabling both static (position) and dynamic (vibration) measurements. The 330101-30-60-05-01-05 3300 XL 8 mm probe features a 3/8-24 UNF thread with 0.563 in maximum thread engagement, a linear range of 2 mm, and an operating temperature from -52°C to +177°C. It includes a miniature coaxial ClickLoc connector with protector and standard cable, output resistance of 50 Ω, and extension cable capacitance of 69.9 pF/m.

The 330101-30-60-05-01-05 3300 XL 8 mm probe is widely used for vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed detection. Its design complies with API 670 standards and supports full interchangeability with other 3300 XL 8 mm and non-XL 5 mm/8 mm system components. Patented TipLoc and CableLoc designs provide secure probe-to-cable attachment and prevent fluid leakage, ensuring reliable automated monitoring. The 330101-30-60-05-01-05 3300 XL 8 mm probe is ideal for demanding industrial automation applications where accurate displacement and vibration measurement are critical.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330101-30-60-05-01-05 3300 XL 8 mm measures bearing vibration at frequencies up to 3,000 rpm with a 2 mm linear range and 50 Ω output resistance, allowing precise detection of machinery movement and early identification of wear in automated monitoring systems.

Position Measurement for Rotating Shafts
Using the 330101-30-60-05-01-05 3300 XL 8 mm, operators can measure shaft displacement with 2 mm linear range and a total length of 0.5 m (1.6 ft), enabling accurate automated alignment and real-time process feedback.

Keyphasor Reference and Speed Detection
The 330101-30-60-05-01-05 3300 XL 8 mm provides reliable Keyphasor timing signals, supporting speed calculation and monitoring of rotating machinery with a thread engagement of 0.563 in and operation temperature from -52°C to +177°C, fully compatible with automated control systems.

Specifications

Competitive Advantage

Robust Probe-Cable Connection
The 330101-30-60-05-01-05 3300 XL 8 mm uses a patented TipLoc molding method to create a strong bond between the probe tip and body. With a maximum thread engagement of 0.563 in, it ensures consistent output voltage and reduces maintenance in automated systems.

High Pull Strength Cable Design
Equipped with CableLoc, the 330101-30-60-05-01-05 3300 XL 8 mm supports 330 N (75 lbf) pull strength, combined with a miniature coaxial ClickLoc connector and connector protector. This prevents accidental cable detachment in industrial automation environments.

Extended Operating Range
The 330101-30-60-05-01-05 3300 XL 8 mm operates from -52°C to +177°C, allowing deployment on machines exposed to extreme temperatures while maintaining a 2 mm linear range and 50 Ω output resistance for accurate vibration and position measurements.

System Interchangeability and Backward Compatibility
The 330101-30-60-05-01-05 3300 XL 8 mm is fully compatible with all 5 mm and 8 mm 3300 series probes and extension cables, allowing easy integration and replacement in existing automated setups without bench calibration, reducing downtime.
