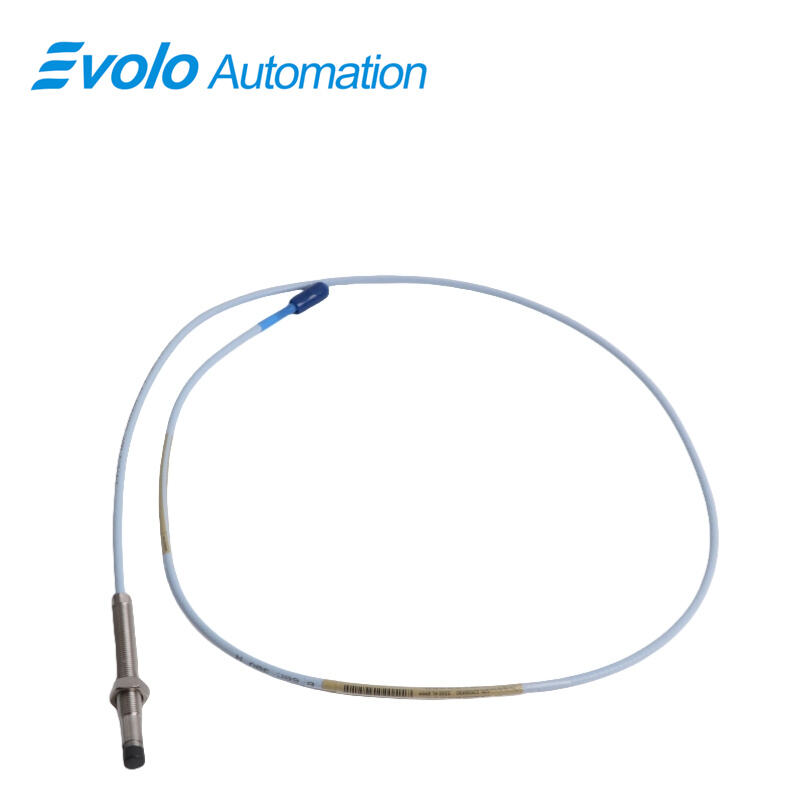

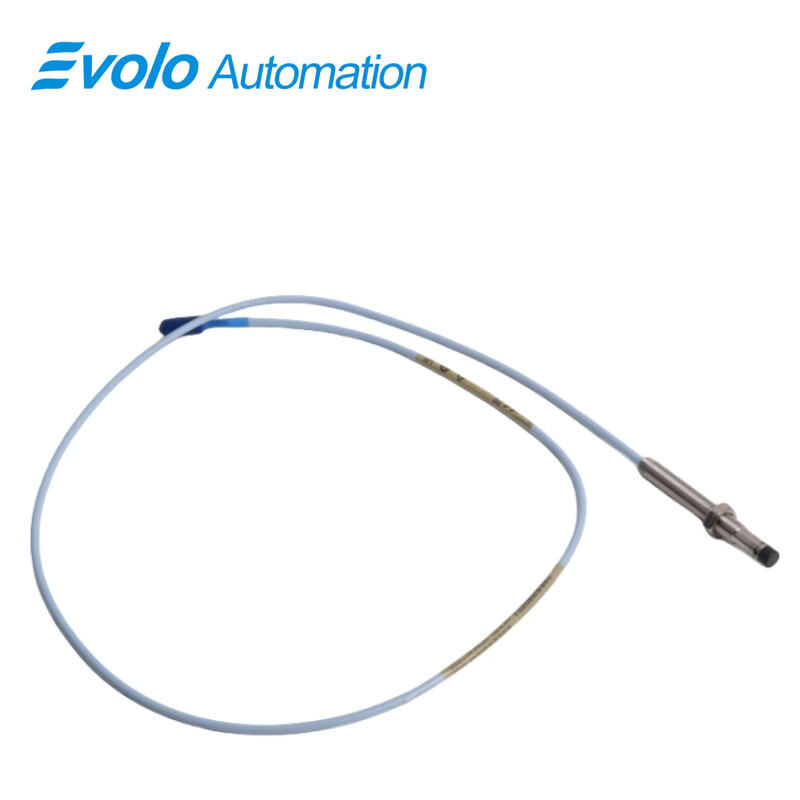

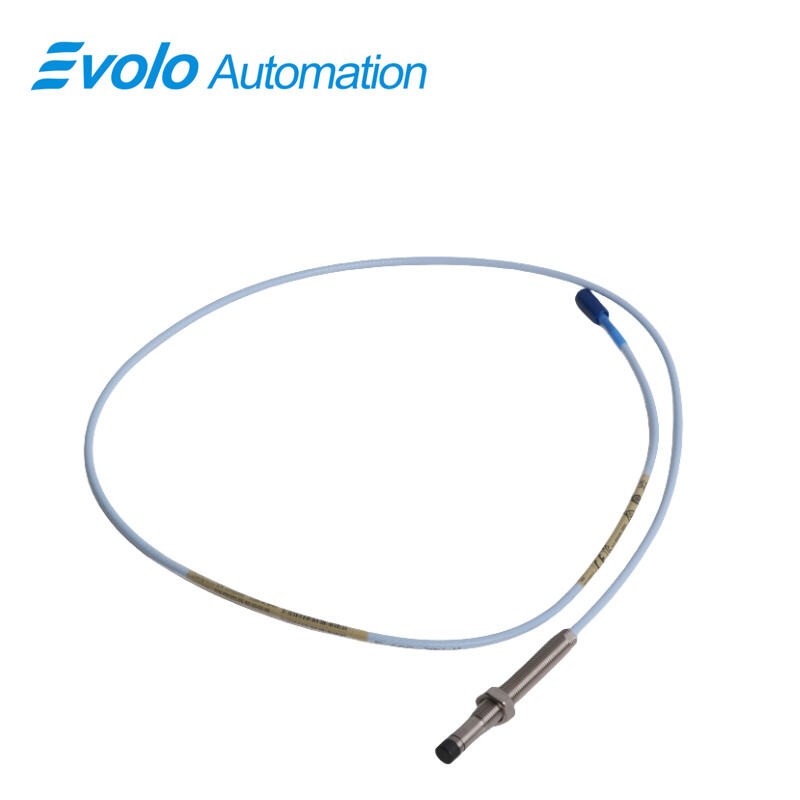

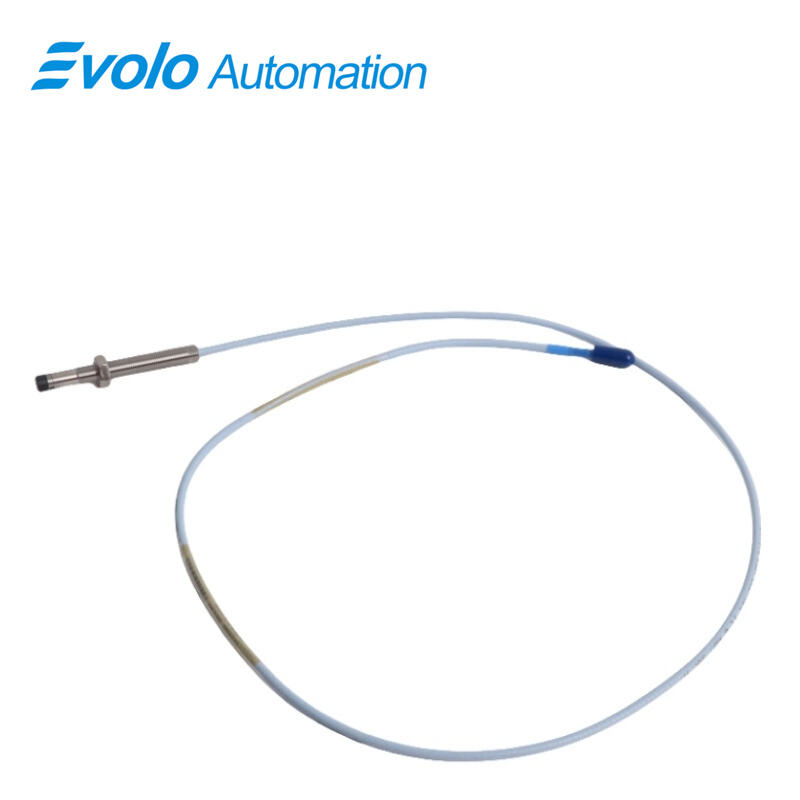

330101-30-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-30-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-30-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision sensor engineered for advanced industrial automation and machinery monitoring. With a total length of 1.0 meter (3.3 feet) and a 3/8-24 UNF threaded stainless steel housing, this probe is optimized for installation in tight and demanding environments while maintaining exceptional measurement accuracy. Designed to work seamlessly with the 3300 XL Proximity Transducer System, it provides an output voltage directly proportional to the distance between the probe tip and the monitored conductive surface, enabling both static (position) and dynamic (vibration) measurements. Its linear range of 2 mm (80 mils) and supply sensitivity of less than 2 mV per volt input change ensure highly repeatable and stable readings under extreme conditions. The probe is compatible with CSA, ATEX, and IECEx standards, making it suitable for use in hazardous industrial environments. The patented TipLoc and CableLoc designs enhance mechanical durability, providing a 330 N (75 lbf) cable pull strength, while the optional FluidLoc cable prevents leakage of oils and liquids, ensuring uninterrupted operation. Operating in temperatures from -52°C to +177°C (-62°F to +350°F), the 330101-30-10-02-05 probe offers reliable performance for turbines, compressors, pumps, and rotating machinery. Its backward compatibility with existing 3300 series probes and Proximitor sensors simplifies system integration and reduces maintenance complexity.

Applications

1. Turbine and Compressor Vibration Monitoring
Measures dynamic vibrations on shafts in turbines and compressors, providing high-resolution data for predictive maintenance programs.

2. Shaft Position Measurement
Accurately detects shaft displacement with a 2 mm linear range, enabling precise monitoring and protection of fluid-film bearings.

3. Keyphasor Signal Generation
Provides reliable speed and phase reference signals for rotating machinery control systems, enhancing automation and synchronization.

4. Hazardous Environment Machinery
Certified for CSA, ATEX, and IECEx, allowing safe operation in explosive or flammable atmospheres.

5. High-Temperature Industrial Applications
Operates effectively in extreme temperatures from -52°C to +177°C, suitable for chemical, petrochemical, and power generation industries.

Specifications

Competitive Advantage

1. TipLoc and CableLoc Technology
Patented designs ensure a robust bond between probe tip and cable, offering 330 N (75 lbf) pull strength for enhanced mechanical reliability.

2. FluidLoc Cable Option
Prevents fluid ingress through the cable, maintaining signal integrity in lubrication-heavy machinery and minimizing downtime.

3. Extreme Temperature Tolerance
Reliable operation from -52°C to +177°C, allowing deployment in environments with high thermal variability.

4. High Signal Accuracy and Linearity
Low extension cable capacitance (69.9 pF/m) and 50 Ω output resistance ensure precise voltage-to-distance correlation for both position and vibration measurements.

5. Backward Compatibility and Interchangeability
Fully compatible with 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors, reducing installation time and simplifying system upgrades.
